Duplex with Single-family Appearance

Heated S.F.
3,082
Units
2
Width
Depth

Floor Plan

Plan 59344ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59344ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

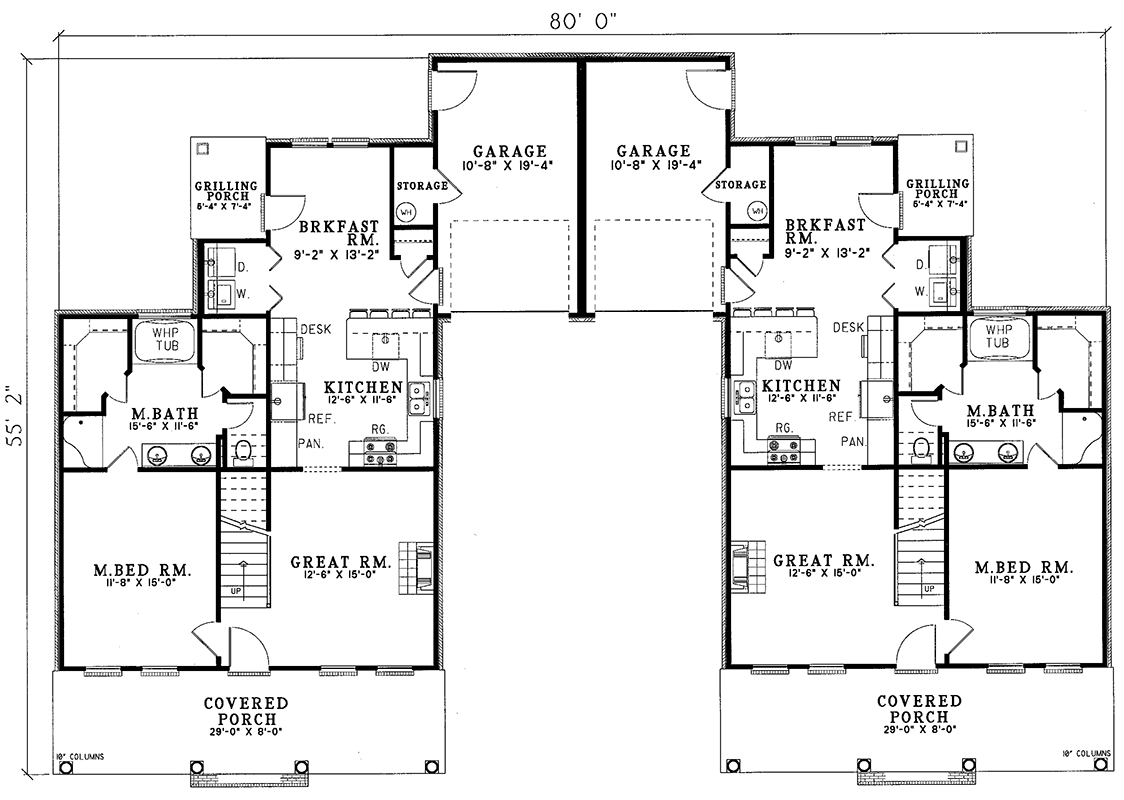

Plan 59344ND: Duplex with Single-family Appearance - Floor Plan - Main Level

2nd Floor

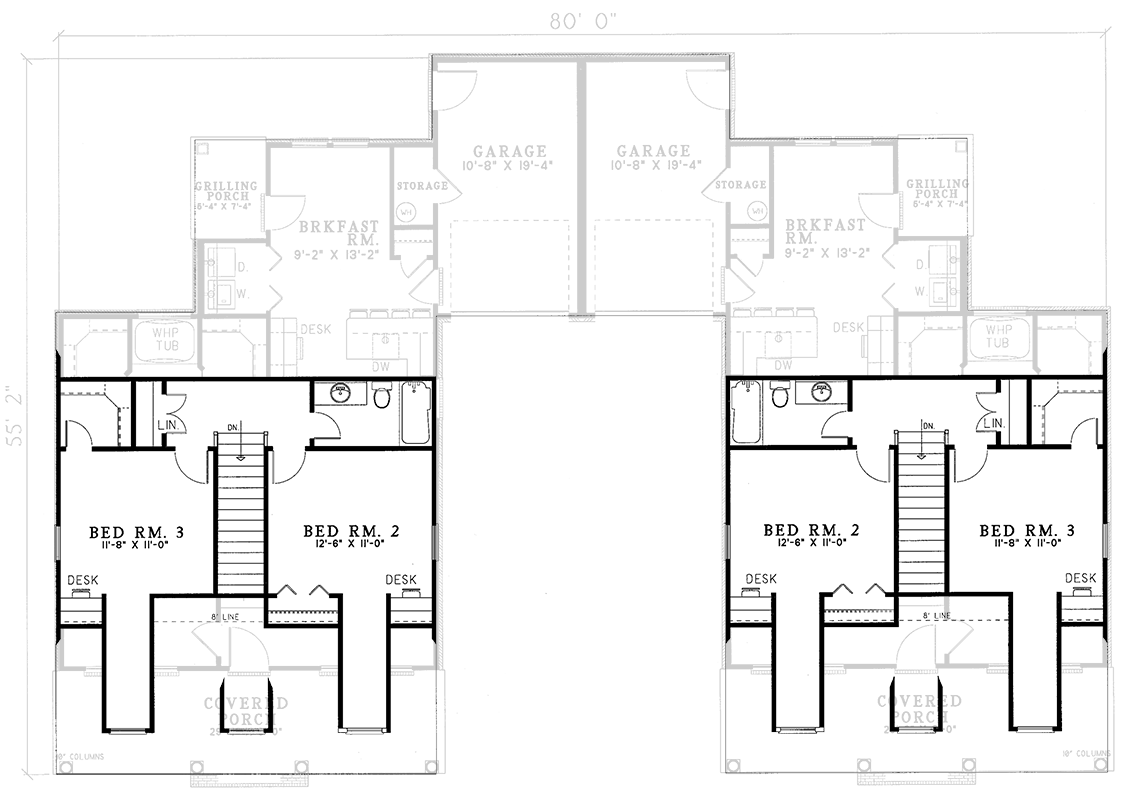

Plan 59344ND: Duplex with Single-family Appearance - Floor Plan - 2nd Floor

Plan Details

  • From the street, this duplex appears to be two large homes sitting closely together. A large covered porch with ten-inch columns and dormers enhance this traditional design.
  • The great room has a large fireplace and gently accesses the kitchen for ease in entertaining. A family oriented kitchen has a counter with bar seating and is totally open to the breakfast room, which leads to a grilling porch.
  • For privacy, the master suite is on the main floor and has double vanities, a separate shower and his and her walk-in closets surrounding a luxurious whirlpool tub.
  • Upstairs you'll find a full bathroom and two bedrooms each with built-in desks for quiet study time.
  • Each unit gives you 980 sq. ft. on the main floor and 573 sq. ft. on the upper floor and a 243 sq. ft. garage and a 285 sq. ft. porch.
Unit A
Heated Area
1,553Sq. Ft.
980 Sq. Ft. 1st
573 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Cars
Attached
243 Sq. Ft.
Dimensions
40'width
55' 2"depth
26' 6"height
Unfinished Areas
243 Sq. Ft. Garage
285 Sq. Ft. Porch, Combined
Unit B
Heated Area
1,553Sq. Ft.
980 Sq. Ft. 1st
573 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Cars
Attached
243 Sq. Ft.
Dimensions
40'width
55' 2"depth
26' 6"height
Unfinished Areas
243 Sq. Ft. Garage

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,082 sq. ft.

1st Floor

1,960 sq. ft.

2nd Floor

1,146 sq. ft.

Porch, Front

480 sq. ft.

Porch, Rear

96 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

55' 2"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

412 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Special Features

Library/Study

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,082 sq. ft.

1st Floor

1,960 sq. ft.

2nd Floor

1,146 sq. ft.

Porch, Front

480 sq. ft.

Porch, Rear

96 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

55' 2"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

412 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Special Features

Library/Study

Master Suite - 1st Floor
