Plan 57251HA
Duplex with Trendsetting Style
Heated S.F.
2,602
Units
2
Width
85' 6"
Depth
39' 4"
What's Included
Plan Details
  • This two family house plan gives each family 1,301 square feet of living spcae.
  • A spacious courtyard with decorative columned lanterns invites you into a large private covered veranda at the entry.
  • The huge living room has a fireplace, convenient access to the rear patio, a dining area and separate entry with coat closet.
  • A snack bar for four, a built-in pantry and abundant cabinets and counter space are a few outstanding features of the well-designed kitchen.
  • The master bedroom has sliding glass doors to the rear patio, a large walk-in closet and luxury bath.
Unit A
1,301 Sq. Ft.
1301 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
41' 9" w 39' 4" d 20' 6" h
Unit B
1,301 Sq. Ft.
1301 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
41' 9" w 39' 4" d 20' 6" h
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

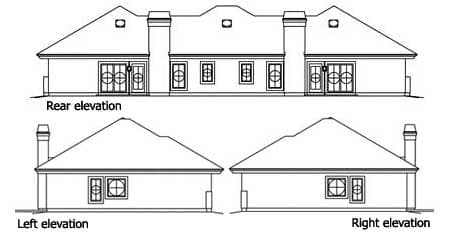

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Duplex with Trendsetting Style

  • 2,602

    Heated s.f.

  • 2

    Units

  • 85' 6"

    Width

  • 39' 4"

    Depth

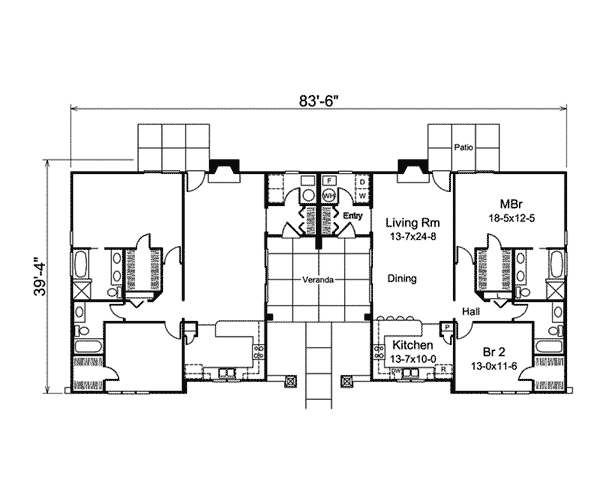

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,602 sq. ft.
  • 1st Floor: 2,602 sq. ft.

Dimensions

  • Width: 85' 6"
  • Depth: 39' 4"
  • Max ridge height: 20' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
