Plan 5990ND

Easy Living

Heated S.F.
2,886
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 5990ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 5990ND

M-F 9am-5pm EST |

1-203-761-8500

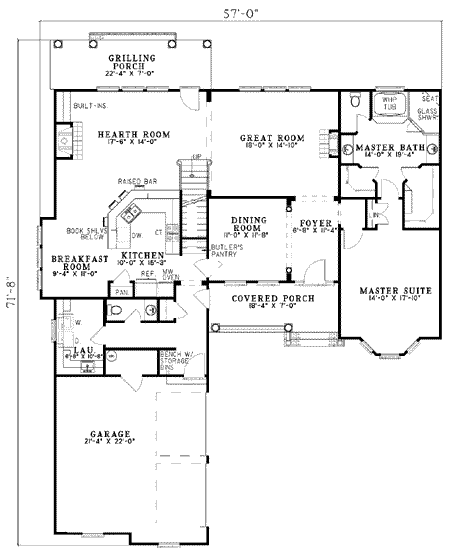

Main Level

Plan 5990ND: Easy Living - Floor Plan - Main Level - Traditional

2nd Floor

Plan 5990ND: Easy Living - Floor Plan - 2nd Floor - Traditional

Plan Details

  • With its courtyard-style garage, dormers and gables, this traditional design presents a friendly face. Inside, the open floor plan and variety of built-ins and other conveniences make for easy living.
  • The dining room is conveniently placed next to the butler's pantry and the kitchen. The kitchen, breakfast room and fireplaced hearth room flow into the great room, also with a fireplace.
  • A bay window provides a sitting area in the master suite, where you also find his and her vanities and walk-in closets, a linen closet, a garden whirlpool tub and a separate shower.
  • Upstairs, three bedrooms, one with a window seat, share a three-compartment bath. Bonus space can be finished to your specifications.
  • Ceilings: 9' first floor; 8' second floor.
  • Foundation options: slab or crawl space. Specify when ordering.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,886 sq. ft.

1st Floor

1,921 sq. ft.

2nd Floor

965 sq. ft.

Bonus

528 sq. ft.

Porch, Front

128 sq. ft.

Porch, Rear

156 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 0"

Depth

71' 8"

Max Ridge Height

30' 5"

Garage

Type

Attached

Area

536 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room
