Plan 60543ND

Economical Two Family Duplex Home Plan with 2024 Square Foot

Heated S.F.
2,024
Units
2
Width
Depth

Floor Plan

Plan 60543ND

Main Level
Main Level

Plan 60543ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

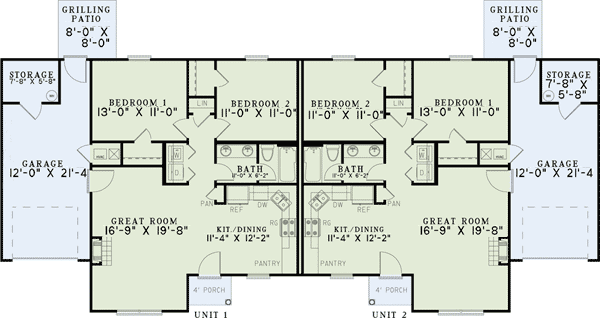

Plan 60543ND: Economical Two Family Duplex Home Plan with 2024 Square Foot - Floor Plan - Main Level

Plan Details

  • This duplex house plan gives you 2 units each with 1012 square feet of heated living space, 2 beds, 1 bath and a 324 sq. ft. 1-car garage.
  • Related Plan: Build in brick with house plan 60542ND.
Unit A
Heated Area
1,012Sq. Ft.
1012 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Cars
Attached
324 Sq. Ft.
Dimensions
41' 4"width
35'depth
18'height
Unfinished Areas
324 Sq. Ft. Garage
7 Sq. Ft. Porch, Front
24 Sq. Ft. Porch, Combined
Unit B
Heated Area
1,012Sq. Ft.
1012 Sq. Ft. 1st
Beds
2Beds
Baths
1Full Bath
Cars
Attached
324 Sq. Ft.
Dimensions
41' 4"width
35'depth
18'height
Unfinished Areas
324 Sq. Ft. Garage
24 Sq. Ft. Porch, Combined

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,024 sq. ft.

1st Floor

2,024 sq. ft.

Porch, Combined

24 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 8"

Depth

35' 0"

Max Ridge Height

18' 4"

Garage

Type

Attached

Area

648 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,024 sq. ft.

1st Floor

2,024 sq. ft.

Porch, Combined

24 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 8"

Depth

35' 0"

Max Ridge Height

18' 4"

Garage

Type

Attached

Area

648 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
