Plan 54083LK

Efficient 2-Bedroom Cottage with Split Bedrooms Under 1000 Sq Ft

Name: Plan 54083LK: Efficient 2-Bedroom Cottage with Split Bedrooms Under 1000 Sq Ft
Brand: Architectural Designs
SKU: 54083LK
Price: 1695.0 USD
Availability: InStock

Heated S.F.

919

Beds

Baths

Stories

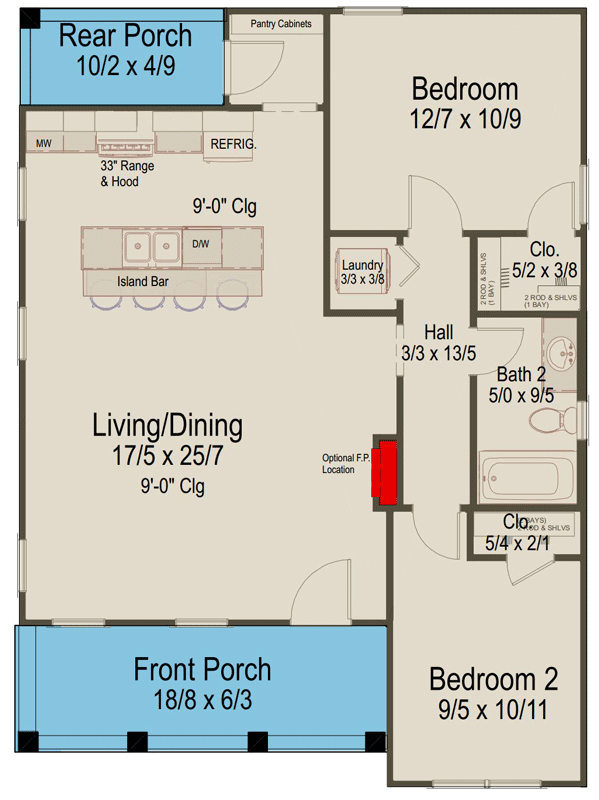

Floor Plan

Plan Details

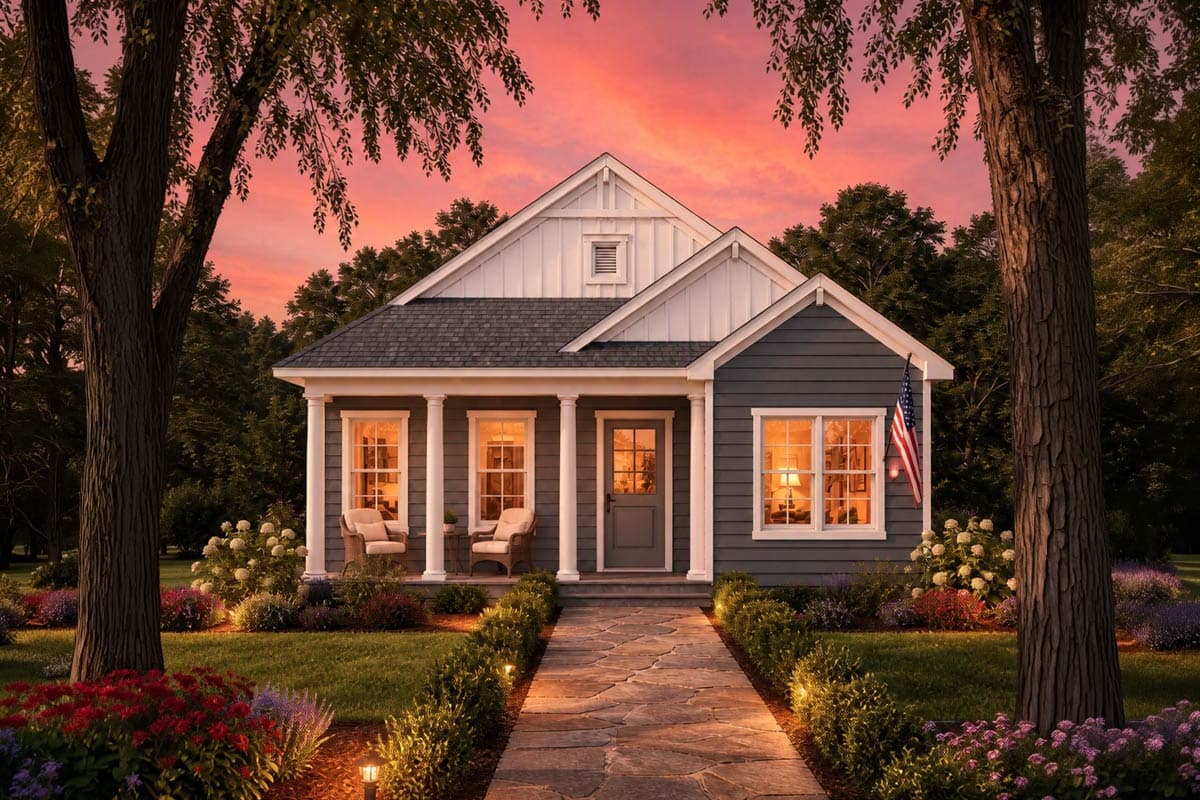

Discover this charming 919 sq. ft., 2-bedroom, 1-bathroom home, embodying a delightful Craftsman exterior style, perfect for a cozy retreat.
Step inside to an inviting open-concept living and dining area, featuring 9-foot ceilings and an island bar, creating a seamless flow for everyday living and effortless entertaining.
The thoughtfully designed layout places the kitchen at the heart of the home, offering ample space for culinary adventures, while the living and dining areas provide a comfortable and expansive atmosphere.
The primary bedroom is located at the rear of the home with a generous walk-in-closet and offers convenient access to the shared full bath and laundry in the hallway.
A secondary bedroom provides comfortable accommodation for children or guests, separated from the primary bedroom by a shared full bathroom.

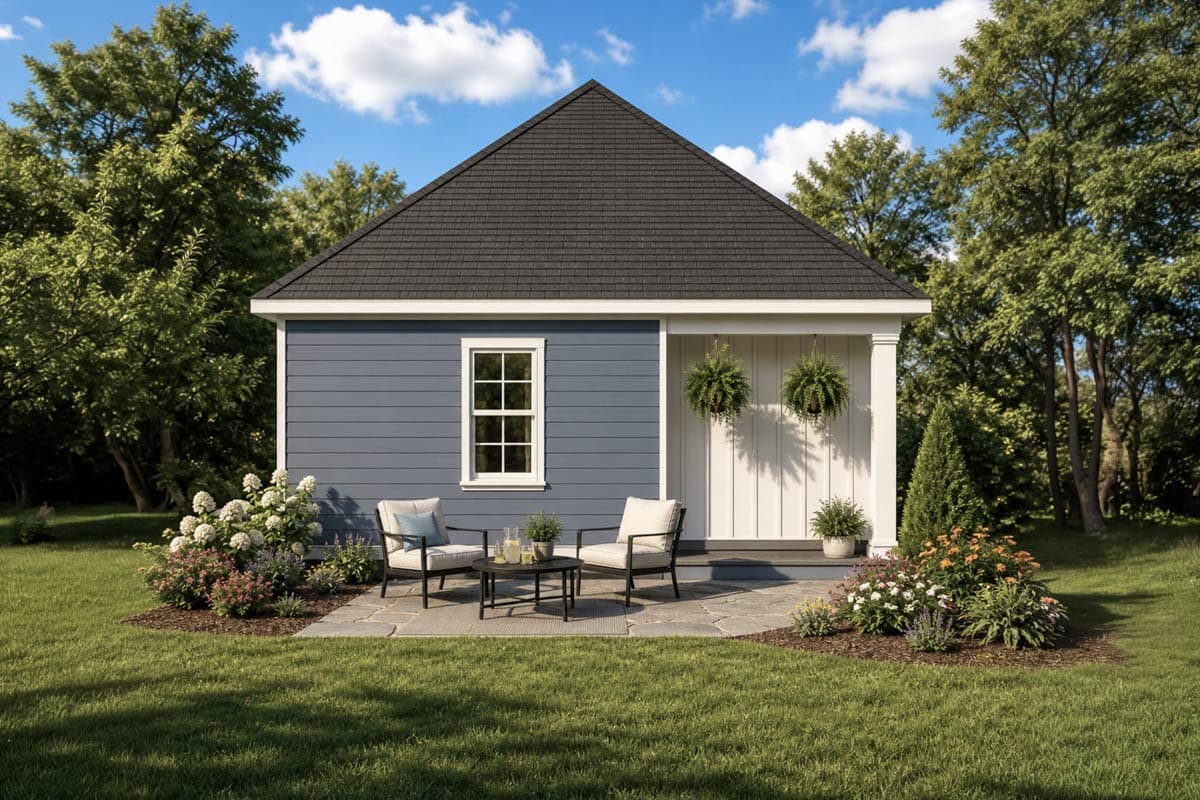

Enjoy the ambiance of the outdoors with covered front and rear porches.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
