Plan 83867JW

Efficient 3 Bed House Plan

Heated S.F.
1,605
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 83867JW

Main Level
Main Level

Plan 83867JW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

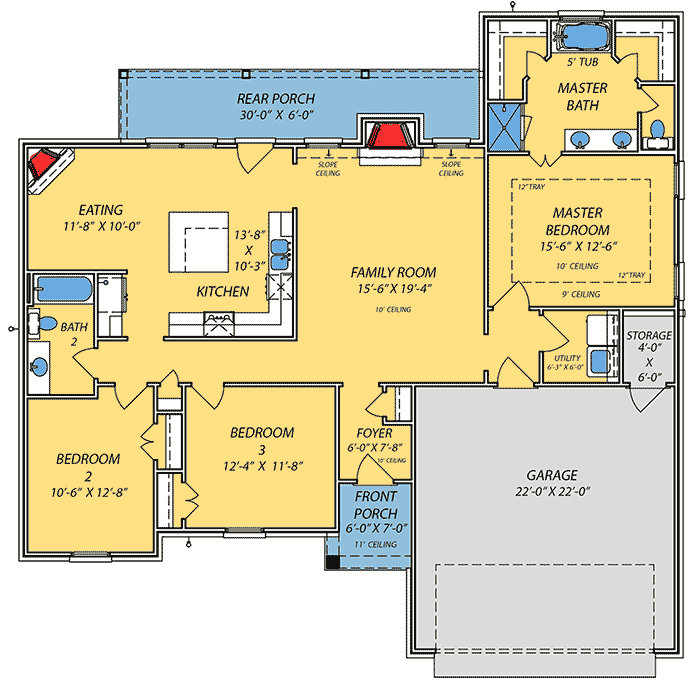

Plan 83867JW: Efficient 3 Bed House Plan - Floor Plan - Main Level - Southern, Traditional

Plan Details

  • This one level 3 bed house plan gives you all the basics plus a few extras.
  • The foyer takes you to the large family room with fireplace and 10' ceilings.
  • The home gives you a fireplace in the dining area too so you can enjoy a cozy fire while cooking or eating.
  • Split bedrooms separate the master suite from the family bedrooms.
  • The master suite has a 10' tray ceiling, two walk-in closets and double sinks.
  • There's even a storage closet in the garage that will hold your extras locked behind a door.

What's Included

  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at
