Efficient Bungalow with Main Floor Master

Plan 50114PH

  • 1,315

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

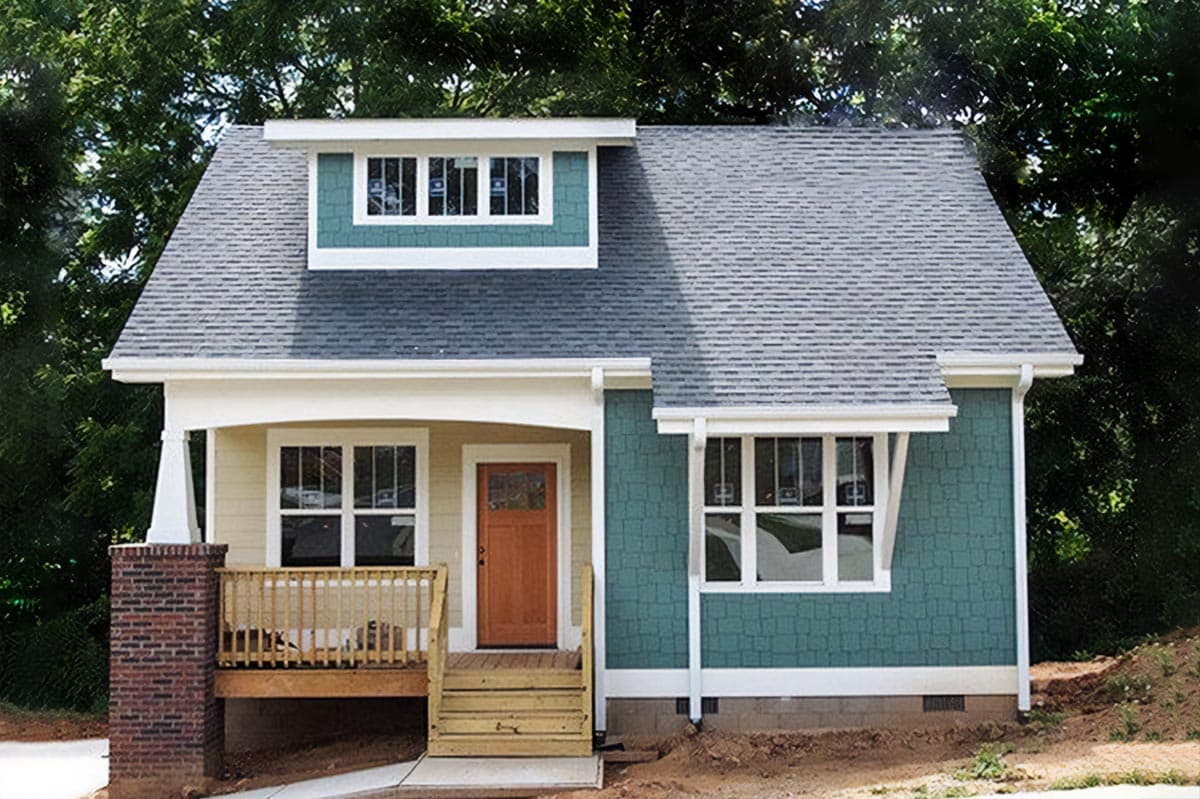

  • A shed dormer adds character to the exterior and light to the upper floor on this 3 bed bungalow house plan. A cozy welcoming porch has room for your rocking chair.
  • The foyer opens to the dining room which flows into the kitchen. On your right is your living room with windows on two walls.
  • The master bedroom is on the main floor and two more bedrooms share a bath upstairs.
  • A stacked washer/dryer combo is tucked in the back corner.

Each plan set includes the following:

  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.

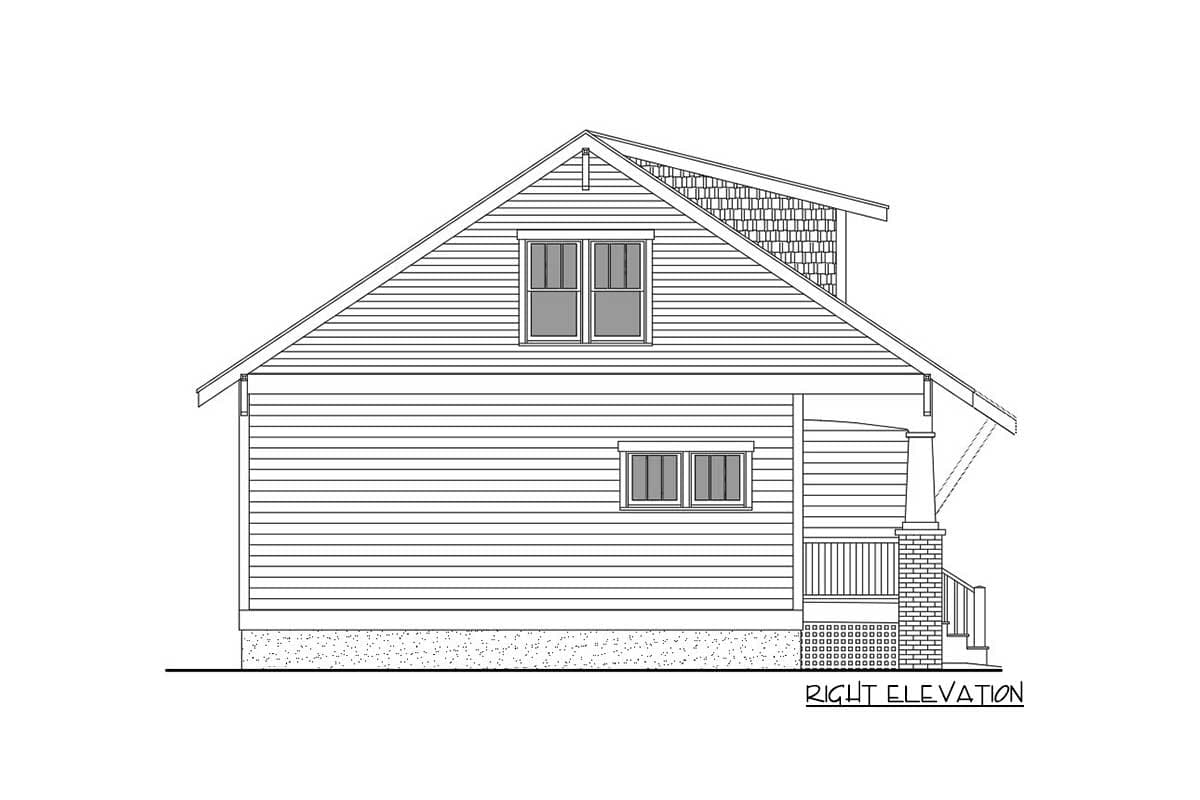

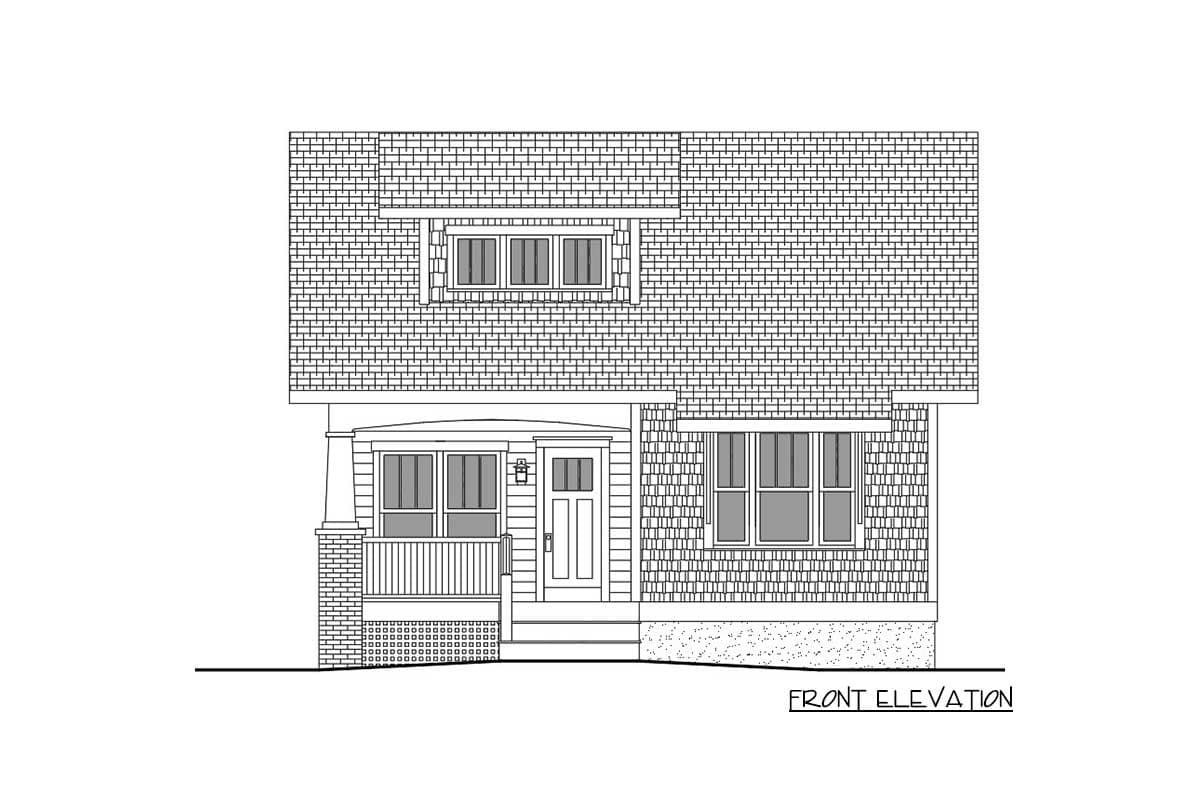

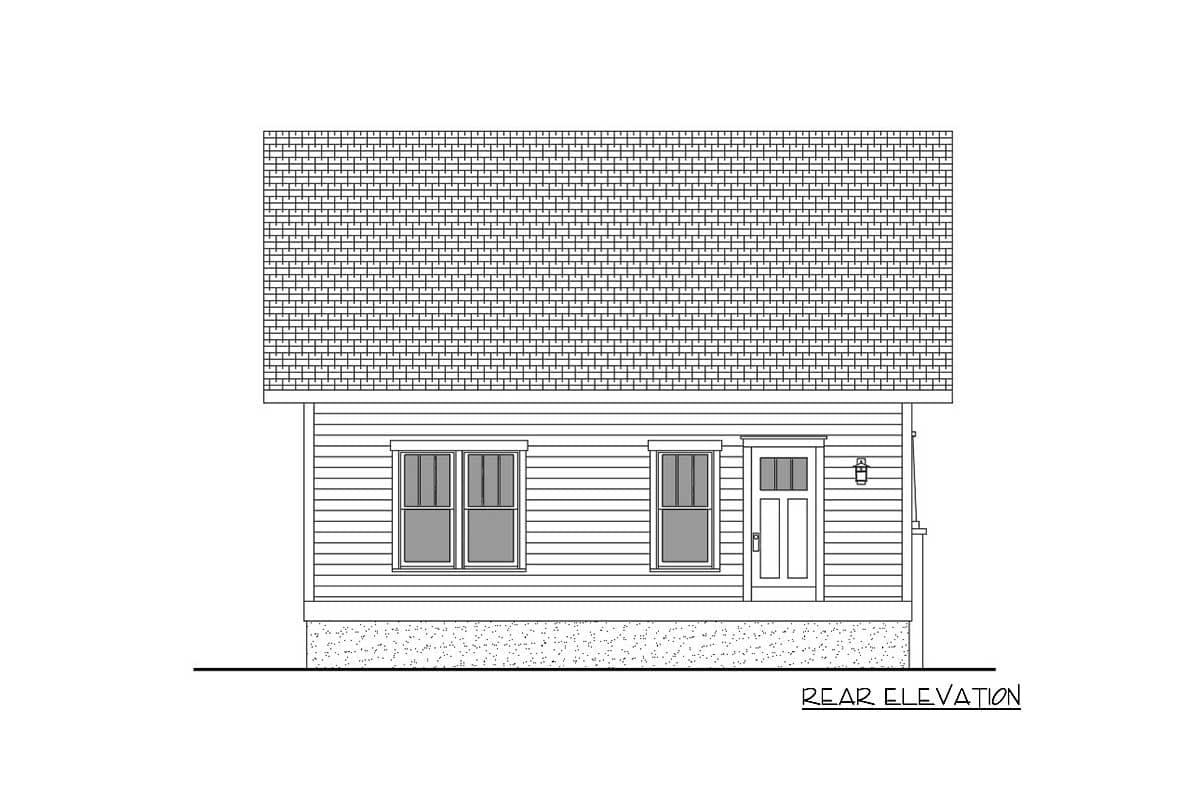

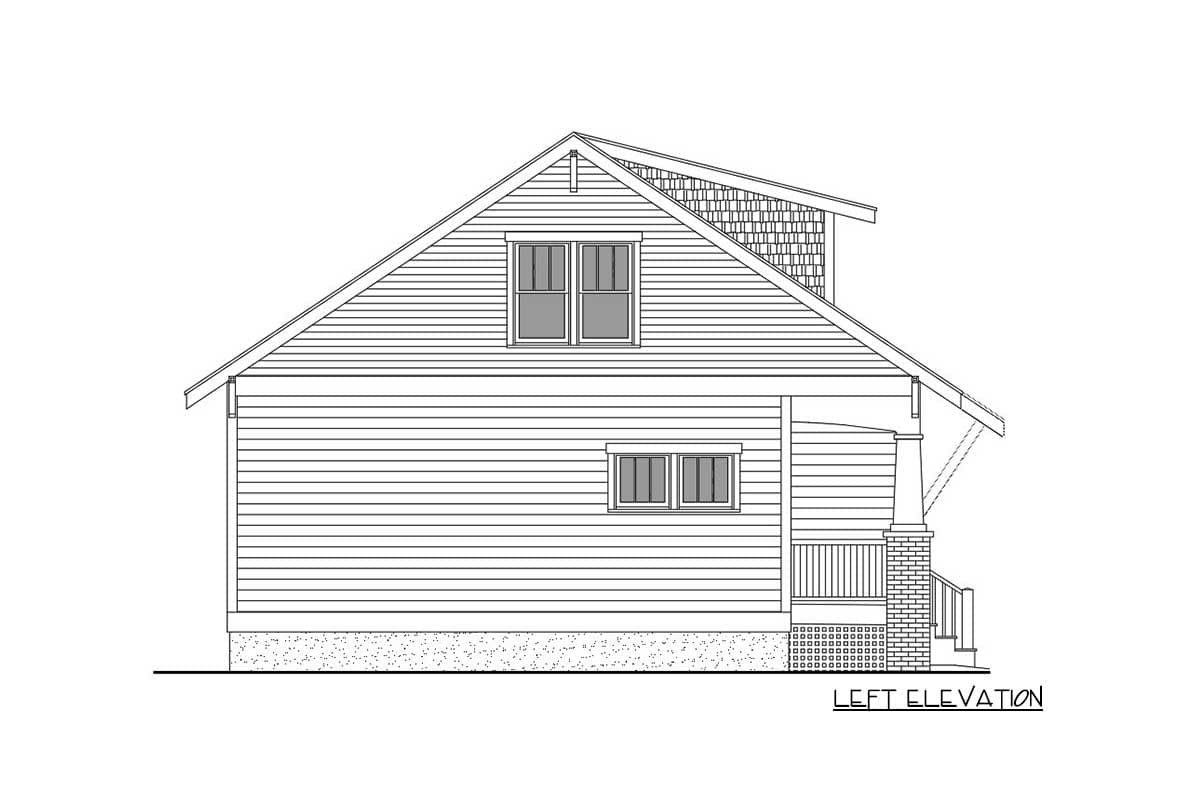

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

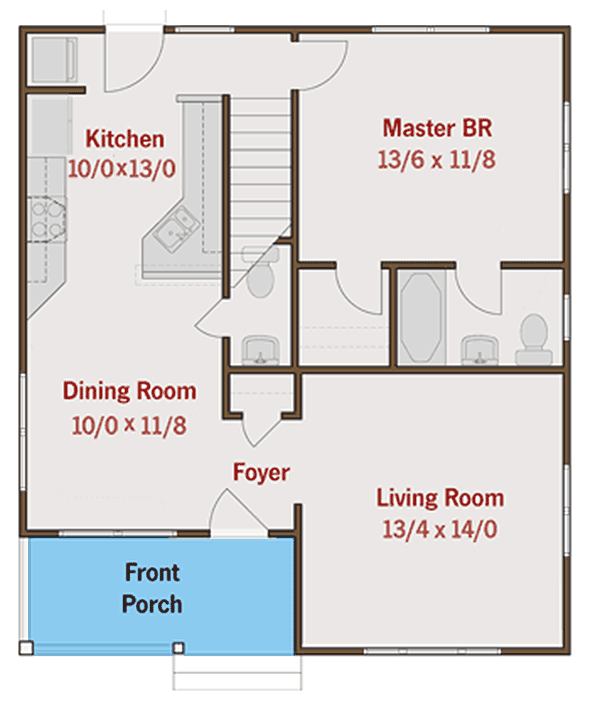

Efficient Bungalow with Main Floor Master - 50114PH floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

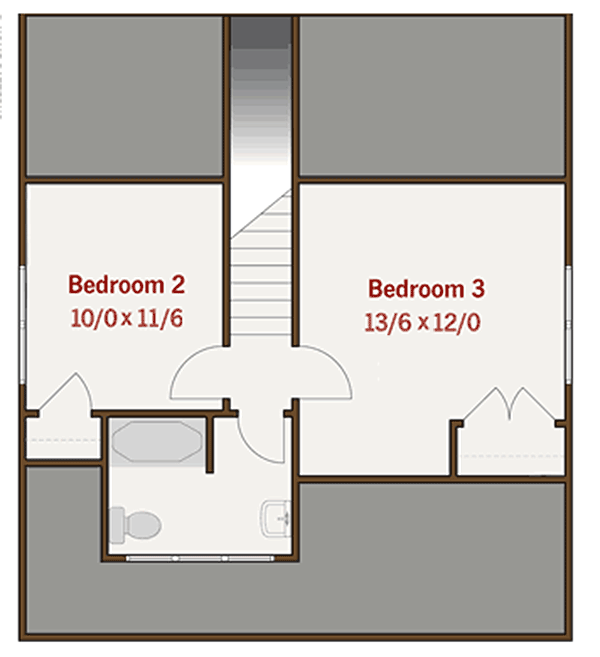

Efficient Bungalow with Main Floor Master - 50114PH floor plan - 2nd Floor

Efficient Bungalow with Main Floor Master

  • 1,315

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,315 sq. ft.
  • 1st Floor: 812 sq. ft.
  • 2nd Floor: 503 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 32' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
