Plan 92050VS
Efficient Garage Plan
Heated S.F.
551
Beds
1
Baths
1
Stories
2
Cars
2
What's Included
Plan Details
  • This two car garage is large enough to accommodate storage and a work bench.
  • Exterior stairs to the 2nd floor makes a perfect efficiency apartment complete with kitchenette.
What's Included
  • Foundation plan
  • Floor plans with electrical layouts
  • 1/4" Elevations (all sides)
  • Cabinet details and interior elevations (when necessary)
  • Roof Plan
  • Typical Wall Section and two standard detail sheets
  • General Notes Page containing reference to the 2012 IRC building code to supplement plans drawn prior to these changes.
  • Other details shown as required by complexity of plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Efficient Garage Plan

  • 551

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

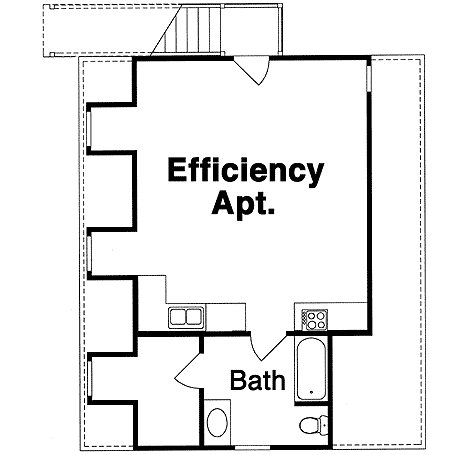

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 551 sq. ft.
  • 2nd Floor: 551 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 30' 0"
  • Max ridge height: 23' 5"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 780 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
