Plan: 26616GG

Efficient Mountain Charm

700 1 1 1
Pageloader

Efficient Mountain Charm

Plan 26616GG

  • 700

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • This home plan proves that good things come in small packages. With only 700 sq. ft. this cottage lives larger than its space measures.
  • The exterior offers life pine shakes and large wood posts with brackets and exposed beams.
  • A vaulted living room greets you as you enter with its exposed beams and stacked stone fireplace. This vaulted room adds volume while corner windows and a French door flood the room with natural light.
  • The kitchen, open to the living and dining areas, adds to the comfortable spacious feeling of the space.
  • The laundry room / linen closet is located just a step away from the kitchen.
  • The bedroom is conveniently located near the laundry and bath areas and includes a fireplace.
  • The bedroom also provides abundant light with its multiple windows and grants deck access through its French door.
  • If efficiency and mountain charm are important to you then this house plan, with its rustic accents, is the cottage for you.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

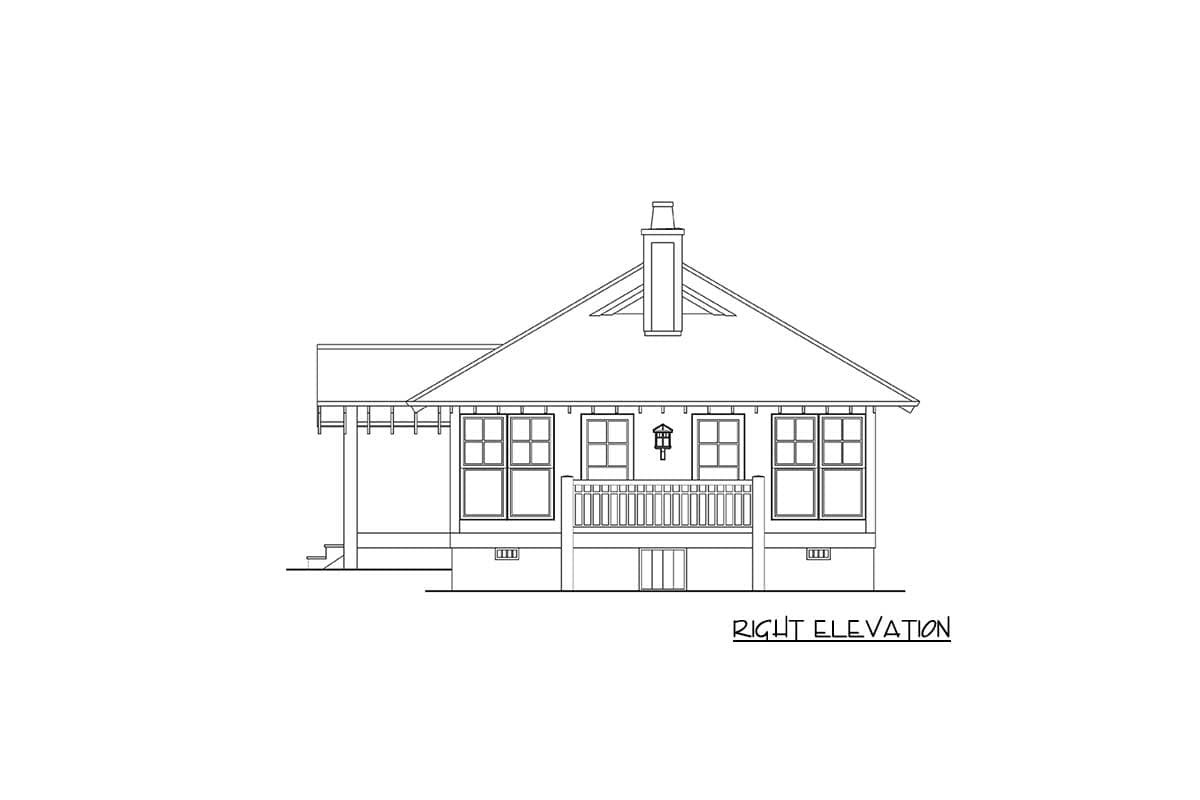

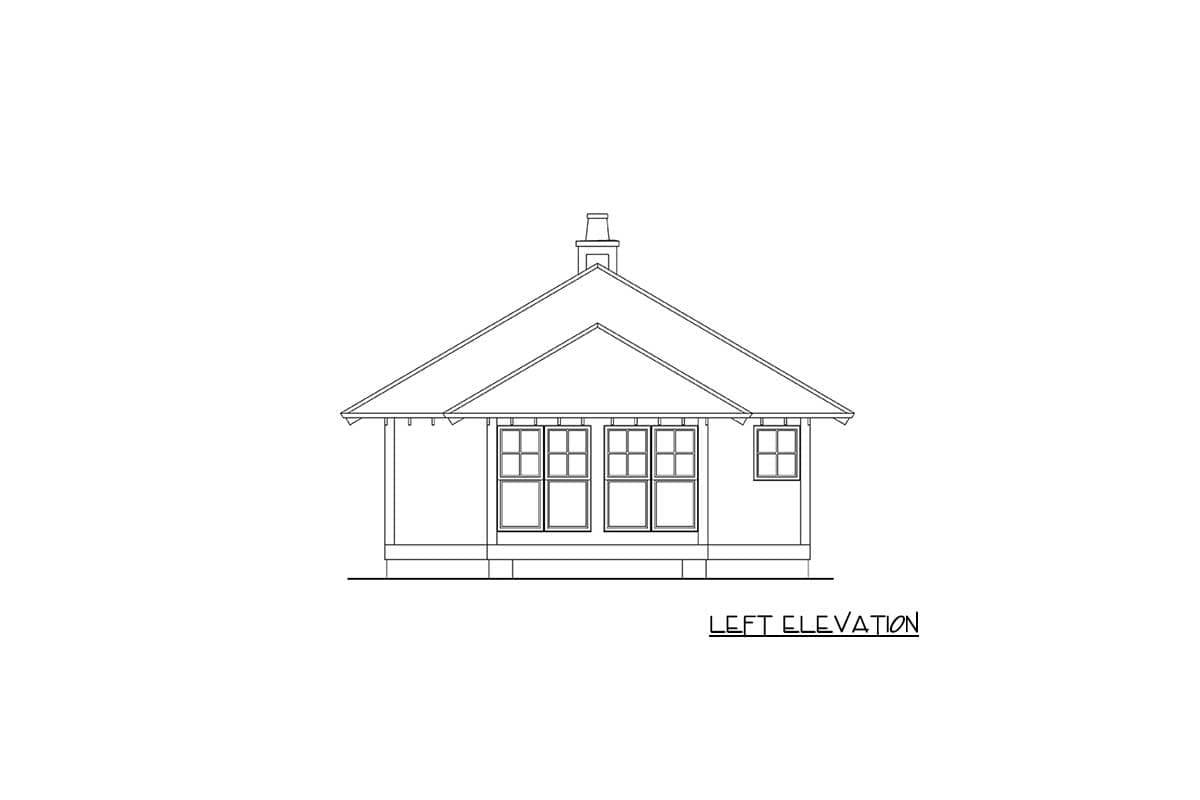

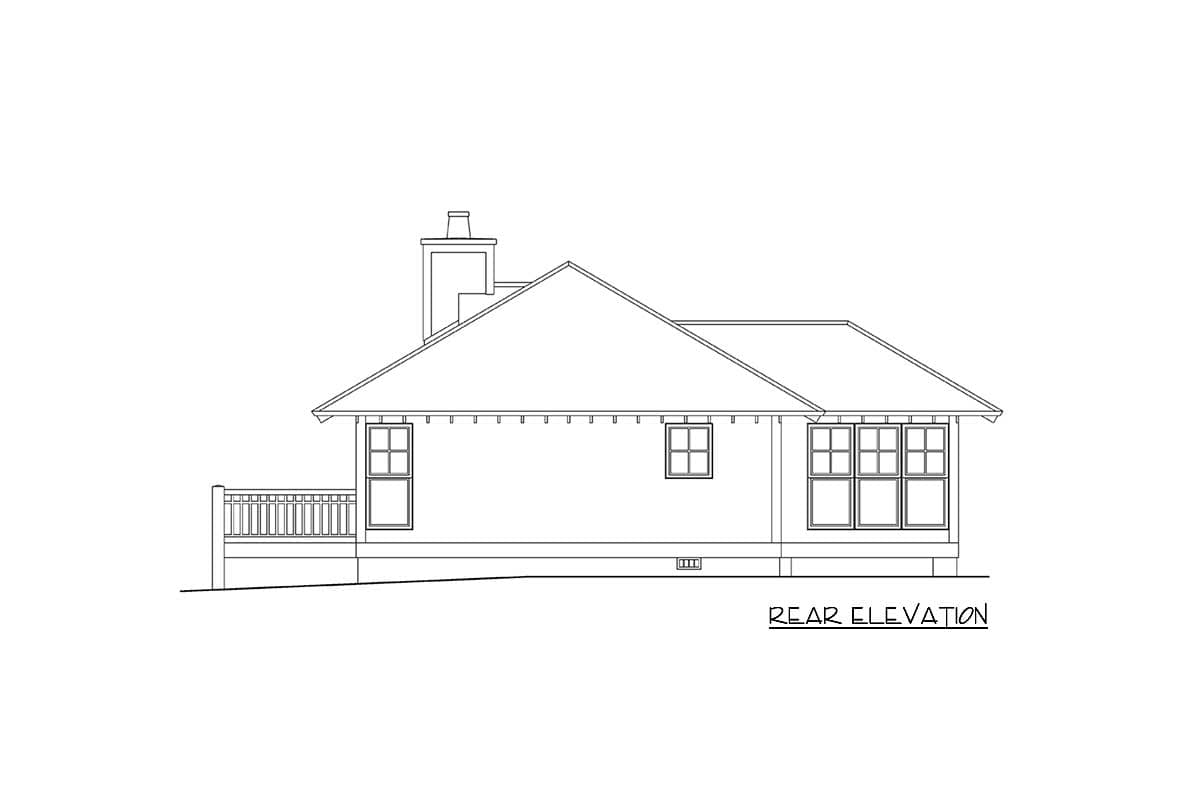

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations (when available)

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Plan details

Architectural Style

Plan Collections



Efficient Mountain Charm

  • 700

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • 5 Sets $875
  • 8 Sets $1,025
  • Reproducible Set $1,175
  • PDF - single-use $1,175
  • CAD $1,875
  • View all purchase option online

About This Plan

  • This home plan proves that good things come in small packages. With only 700 sq. ft. this cottage lives larger than its space measures.
  • The exterior offers life pine shakes and large wood posts with brackets and exposed beams.
  • A vaulted living room greets you as you enter with its exposed beams and stacked stone fireplace. This vaulted room adds volume while corner windows and a French door flood the room with natural light.
  • The kitchen, open to the living and dining areas, adds to the comfortable spacious feeling of the space.
  • The laundry room / linen closet is located just a step away from the kitchen.
  • The bedroom is conveniently located near the laundry and bath areas and includes a fireplace.
  • The bedroom also provides abundant light with its multiple windows and grants deck access through its French door.
  • If efficiency and mountain charm are important to you then this house plan, with its rustic accents, is the cottage for you.

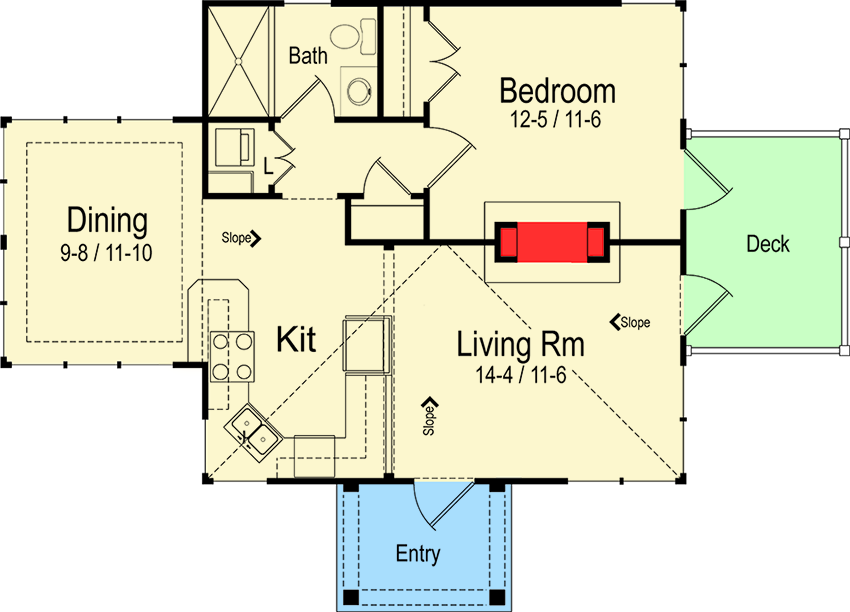

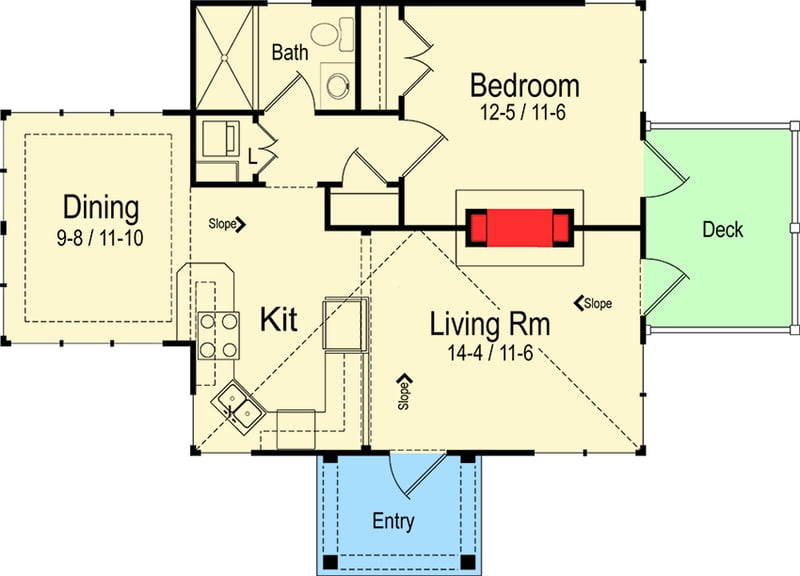

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 700 sq. ft.
  • 1st Floor: 700 sq. ft.
  • Porch, Combined: 48 sq. ft.
  • Deck: 88 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 42' 0"
  • Depth: 30' 0"
  • Max ridge height: 16' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Stick

Architectural Style

  • Cottage
  • Mountain
  • Vacation

Special features

  • 1st Floor Master Suite
  • CAD Available
  • PDF

Plan Collections

  • Tiny House
