Plan 48515FM Elegant 4 Bedroom French Country Home Plan

3,699 4 4.5 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Elegant 4 Bedroom French Country Home Plan

Plan 48515FM

  • 3,699

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 4 bed house plan has a stone and brick facade with a porte-cochere leading you to the motor court where you will find a one-car and a two-car garage.
  • The covered entry opens to the foyer flanked by your formal dining room and private study.
  • Through the gallery, you enter the central great room which is open to the kitchen and has views to the covered patio in back. A fireplace, flanked by built-ins is on the right wall.
  • The kitchen has an island with counter seating and has a walk-in and a butler's pantry. The service entry makes unloading groceries a breeze.
  • The master is on the main level and has a large walk-in closet, a bayed seating area and access to the patio in back. The guest bedroom is across the floor and also has access to the back yard.
  • Upstairs, there are two ensuite bedrooms plus a large game room with an open deck overlooking the back.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan

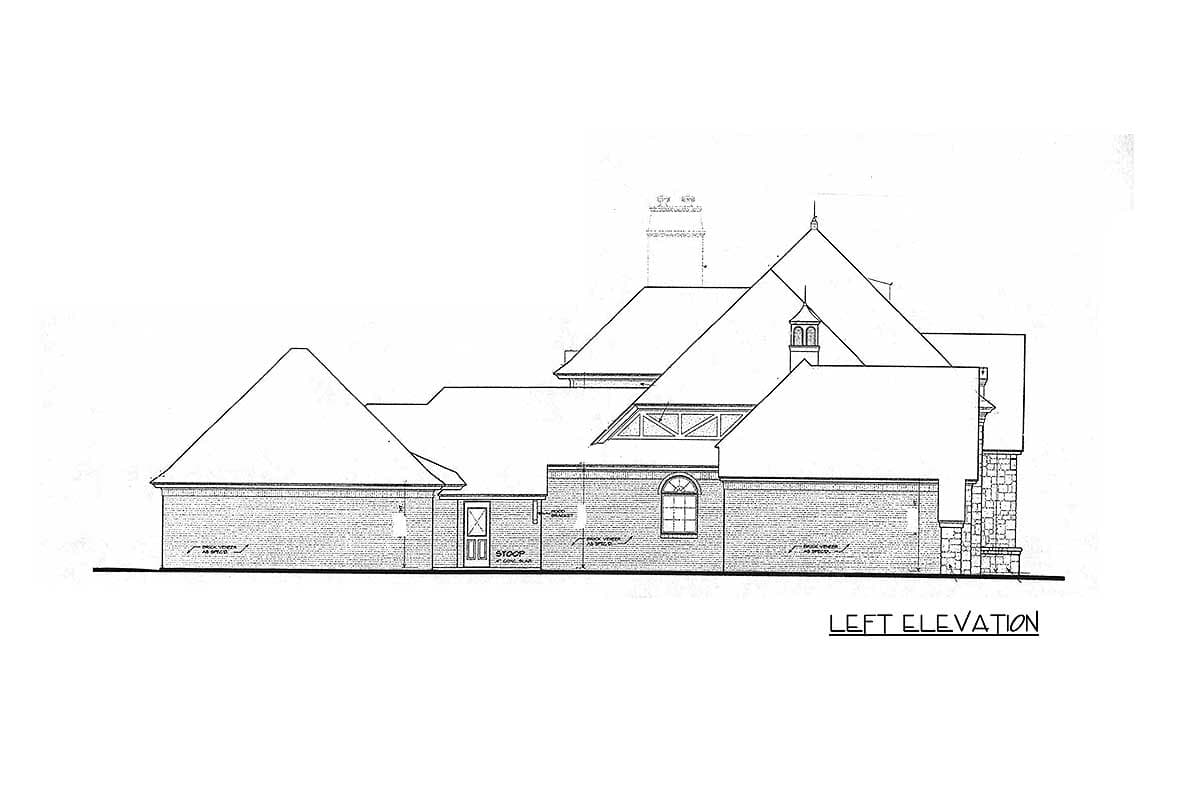

Front and Left Elevation

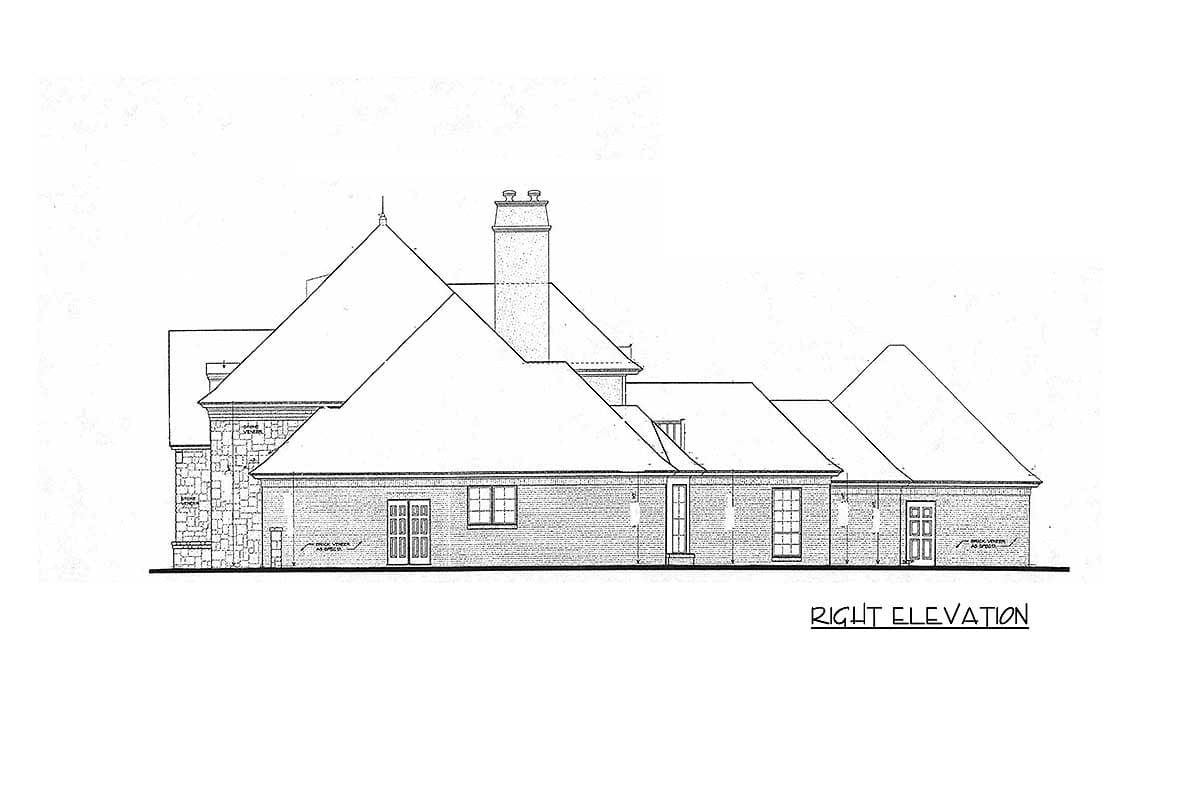

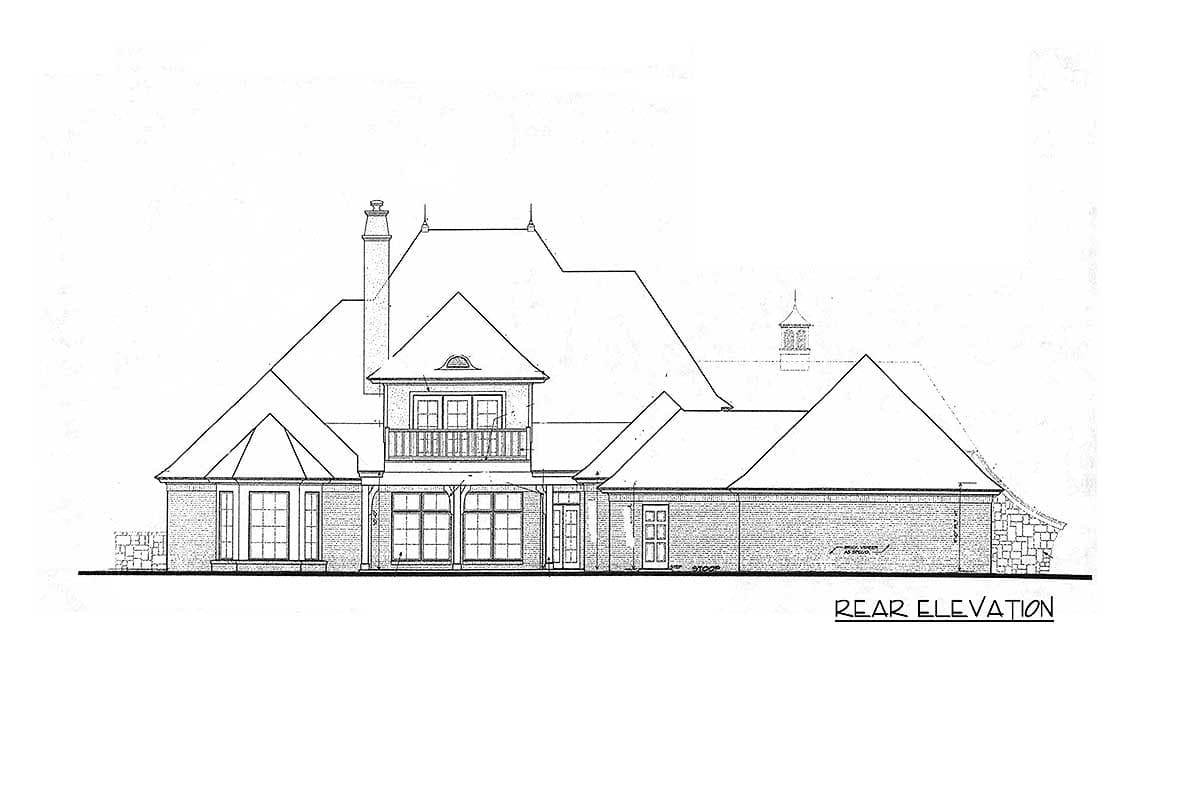

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

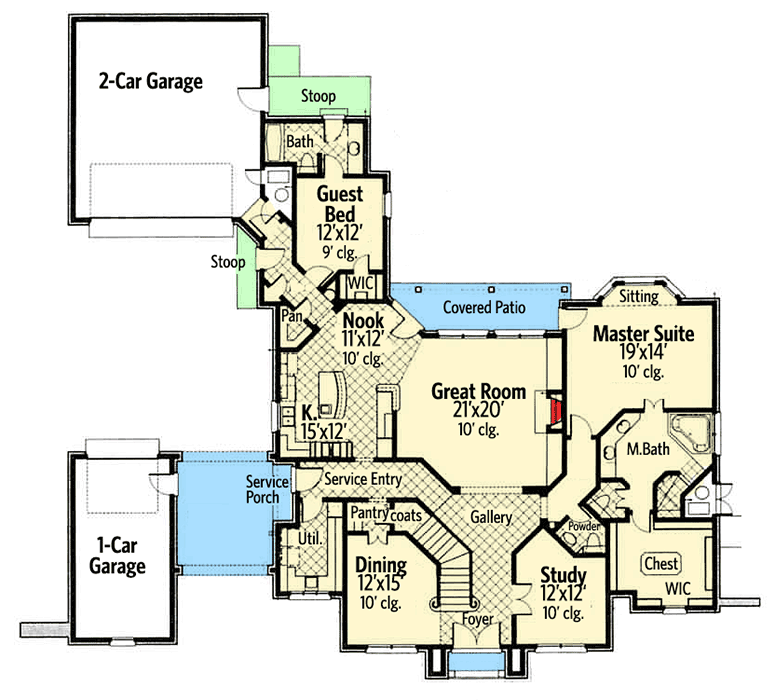

Elegant 4 Bedroom French Country Home Plan - 48515FM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

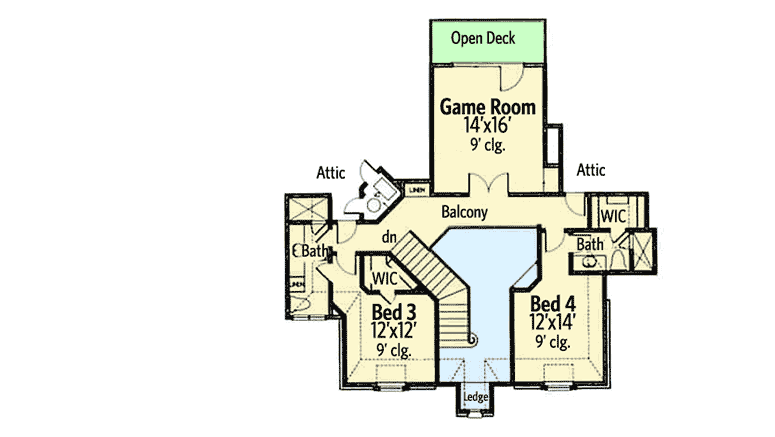

Elegant 4 Bedroom French Country Home Plan - 48515FM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,699 sq. ft.
  • 1st Floor: 2,571 sq. ft.
  • 2nd Floor: 995 sq. ft.
  • Deck: 83 sq. ft.
  • Porch, Front: 31 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 82' 4"
  • Depth: 85' 4"
  • Max ridge height: 34' 6"

Garage

  • Type: Attached
  • Area: 1023 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side, Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 18 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Elegant 4 Bedroom French Country Home Plan

  • 3,699

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,595
  • 8 Sets $1,735
  • PDF - Single-Build $1,885
  • PDF - Unlimited Build $2,385
  • CAD - Single-Build $2,950
  • CAD - Unlimited Build $3,950
  • View all purchase option online

About This Plan

  • This 4 bed house plan has a stone and brick facade with a porte-cochere leading you to the motor court where you will find a one-car and a two-car garage.
  • The covered entry opens to the foyer flanked by your formal dining room and private study.
  • Through the gallery, you enter the central great room which is open to the kitchen and has views to the covered patio in back. A fireplace, flanked by built-ins is on the right wall.
  • The kitchen has an island with counter seating and has a walk-in and a butler's pantry. The service entry makes unloading groceries a breeze.
  • The master is on the main level and has a large walk-in closet, a bayed seating area and access to the patio in back. The guest bedroom is across the floor and also has access to the back yard.
  • Upstairs, there are two ensuite bedrooms plus a large game room with an open deck overlooking the back.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,699 sq. ft.
  • 1st Floor: 2,571 sq. ft.
  • 2nd Floor: 995 sq. ft.
  • Deck: 83 sq. ft.
  • Porch, Front: 31 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 82' 4"
  • Depth: 85' 4"
  • Max ridge height: 34' 6"

Garage

  • Type: Attached
  • Area: 1023 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side, Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 18 on 12
  • Framing Type: Stick
Plan 48515FM
View this and more for this plan by visiting www.architechtecturaldesigns.com/48515FM
|
