Plan 48345FM
Elegant and Compact House Plan
Heated S.F.
2,103
Beds
3
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details
  • Exquisite detailing on the outside gives you a preview of all you can expect inside in this one level European home plan.
  • A corner fireplace and beamed ceiling enhance the great room that is open to the kitchen and breakfast nook.
  • A built-in wine rack in the kitchen and built-in bookshelves in the study are added perks.
  • The split bedroom layout affords privacy to the master suite with its tray ceiling, sitting area and marvelous walk-in closet that has 22 linear feet of hanging space.
  • A side-load three car garage makes this plan suitable for a corner lot.
What's Included
Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

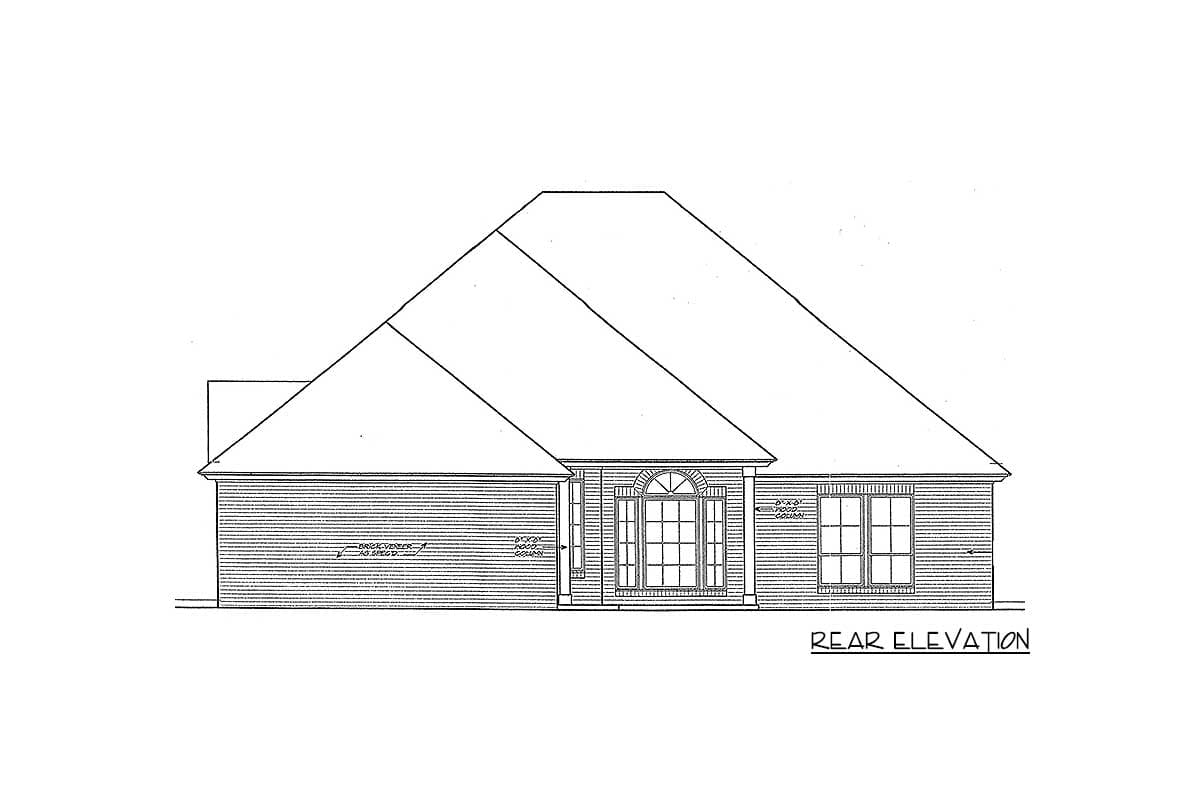

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Elegant and Compact House Plan

  • 2,103

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

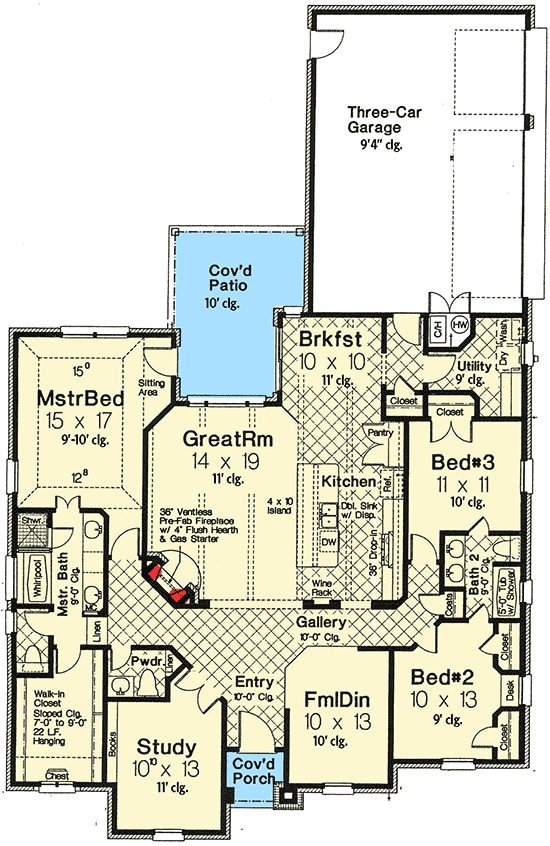

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,103 sq. ft.
  • 1st Floor: 2,103 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 80' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 601 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
