Plan 36532TX

Elegant European House Plan

Pageloader

Elegant European House Plan

Plan 36532TX

  • 4,198

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 2

    Stories

  • 3

    Cars

  • Tall windows flood the 17' high formal dining room with light and add drama to the exterior of this European house plan.
  • The elegant interior is a breath of fresh air with interior columns used instead of walls that block the views.
  • An unusually-shaped kitchen island gives you a spot for informal eating while the breakfast nook enjoys a big fireplace.
  • The wet bar is nicely positioned to serve all the main rooms.
  • Get a double tray ceiling and a big bow window in the main floor master suite along with an enormous walk-in closet and stunning bathroom.
  • On the upper floor, three family bedrooms have easy access to the game room and media room.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

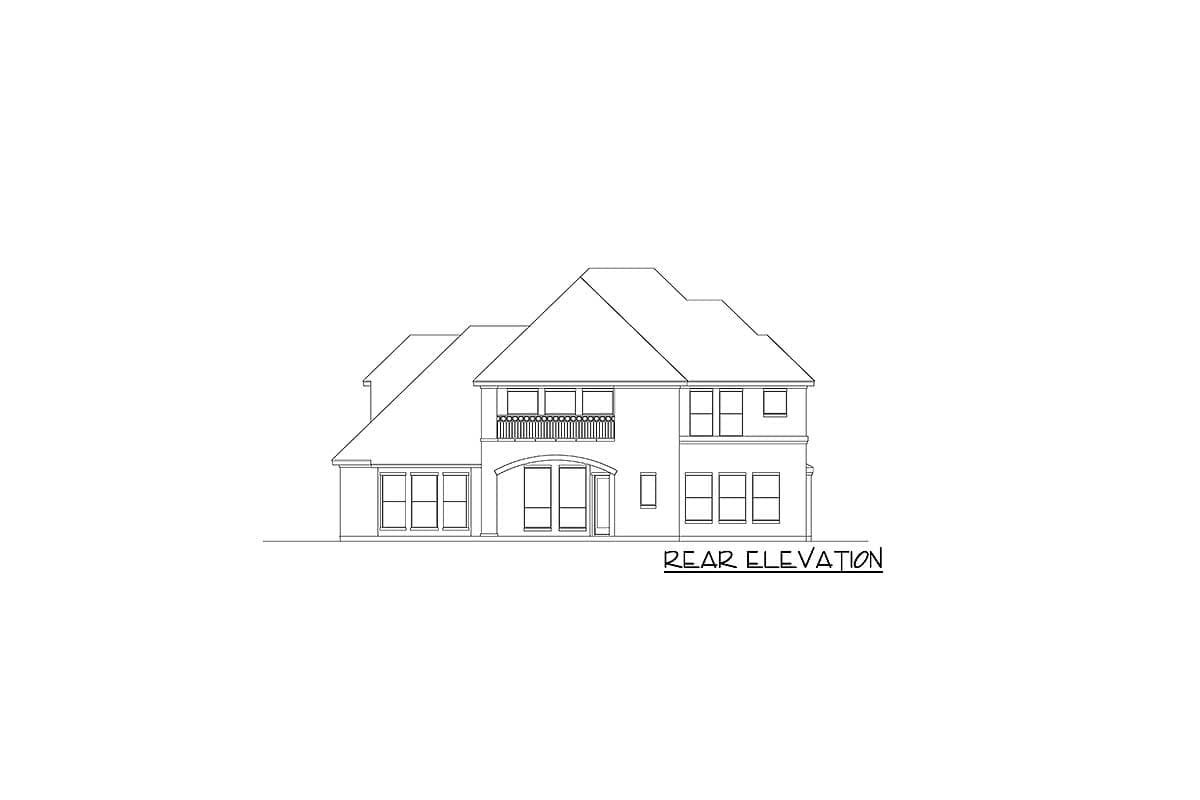

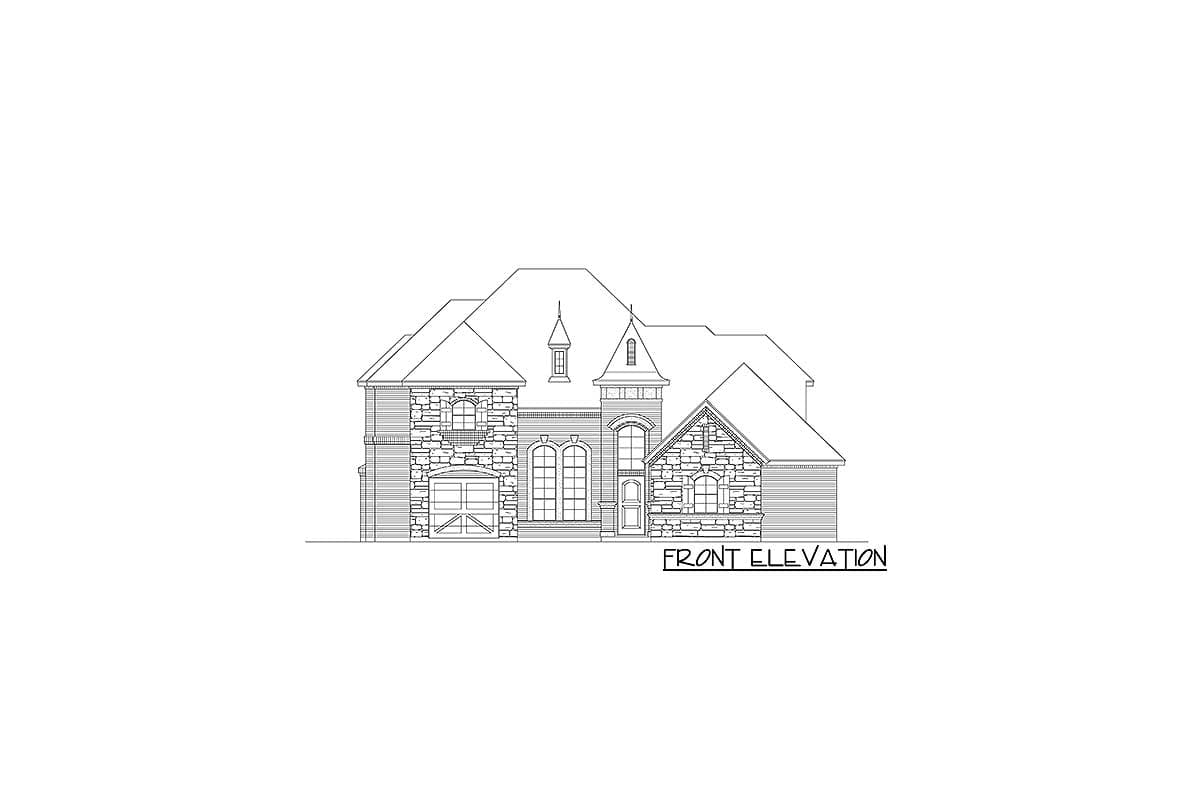

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

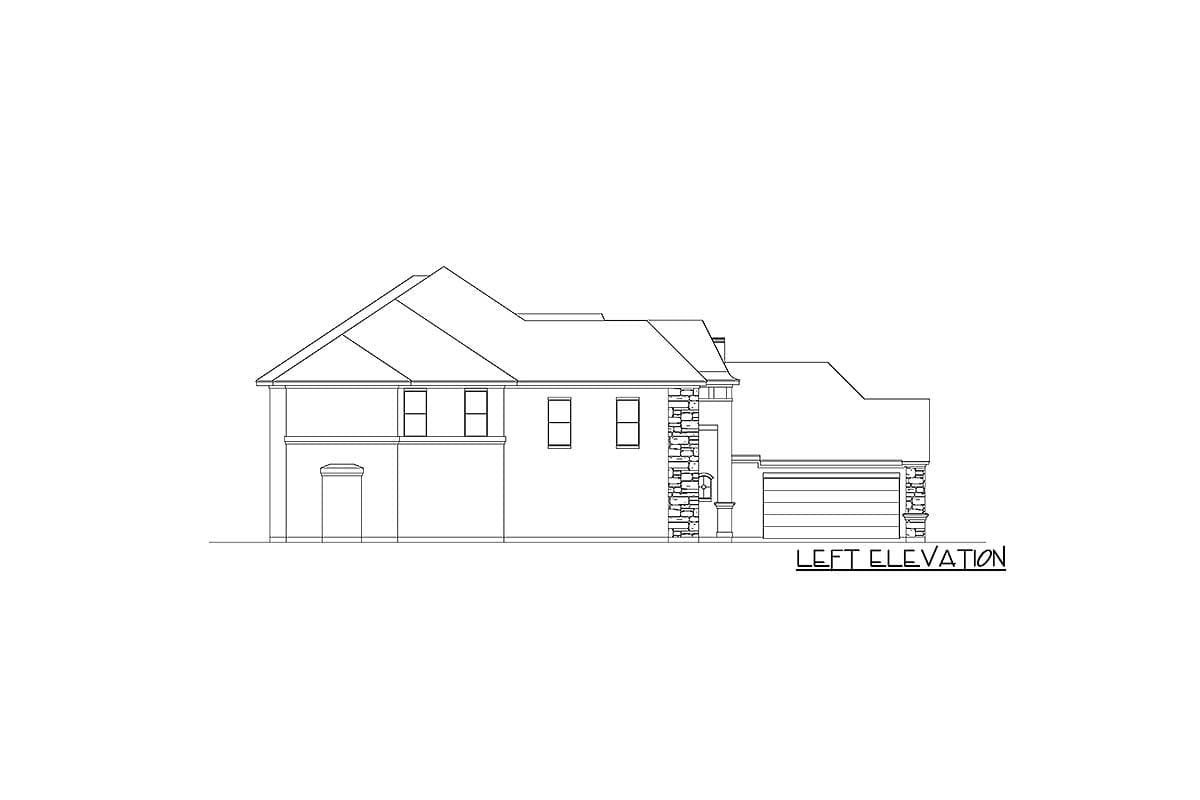

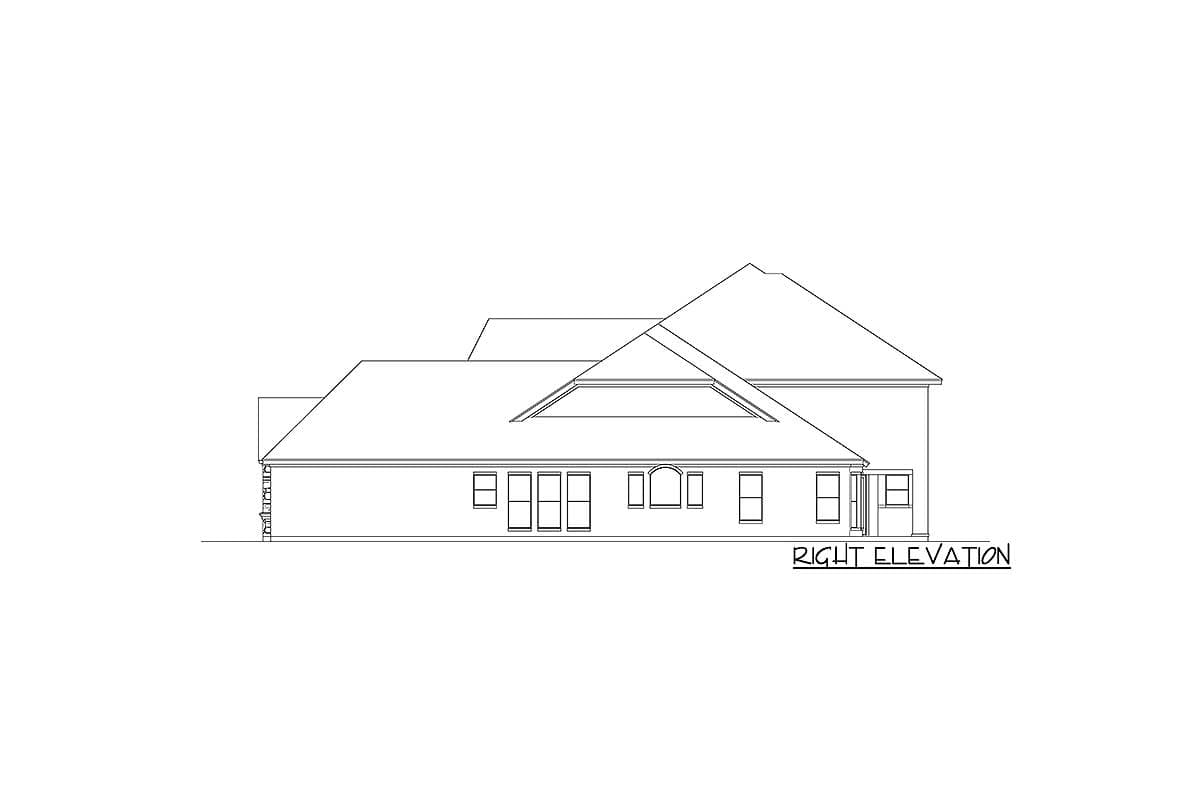

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

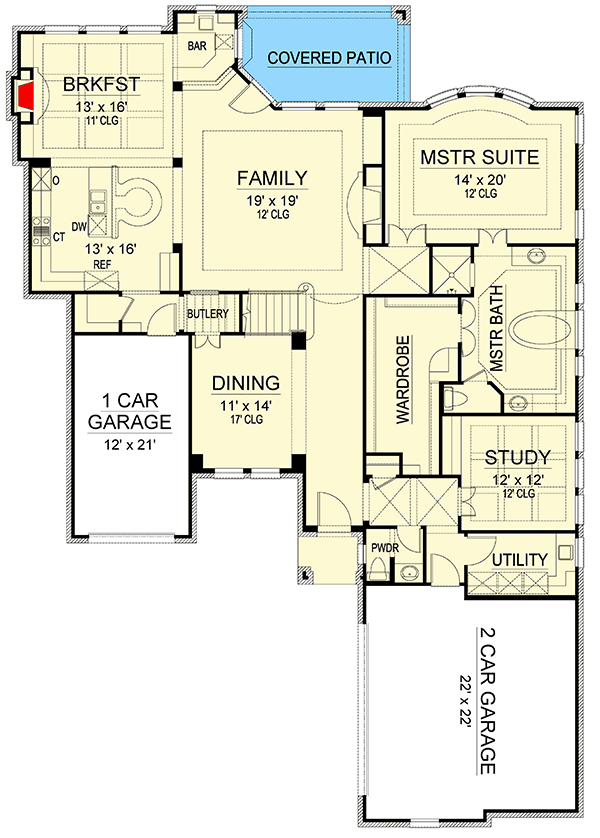

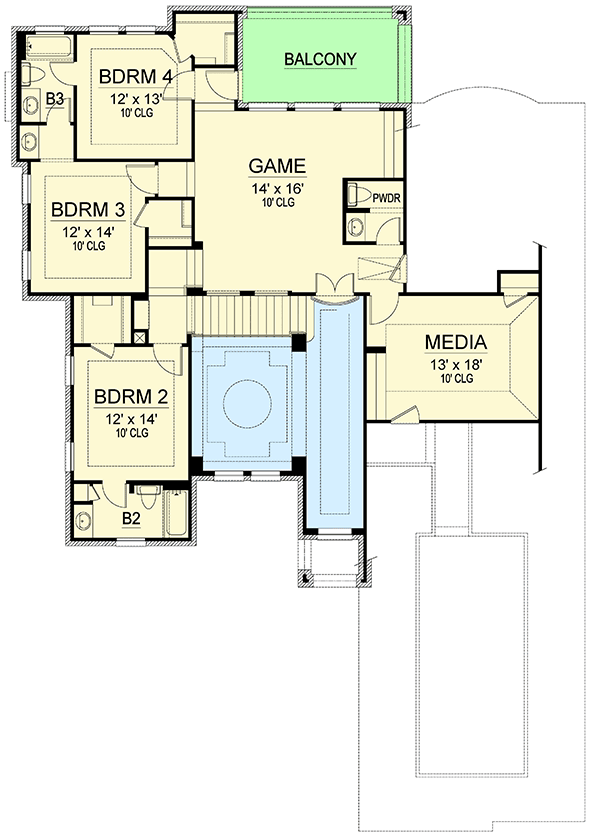

Floor Plan

Plan details



Elegant European House Plan

  • 4,198

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,515
  • 5 Sets $1,715
  • CAD $2,275
  • View all purchase option online

About This Plan

  • Tall windows flood the 17' high formal dining room with light and add drama to the exterior of this European house plan.
  • The elegant interior is a breath of fresh air with interior columns used instead of walls that block the views.
  • An unusually-shaped kitchen island gives you a spot for informal eating while the breakfast nook enjoys a big fireplace.
  • The wet bar is nicely positioned to serve all the main rooms.
  • Get a double tray ceiling and a big bow window in the main floor master suite along with an enormous walk-in closet and stunning bathroom.
  • On the upper floor, three family bedrooms have easy access to the game room and media room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,198 sq. ft.
  • 1st Floor: 2,611 sq. ft.
  • 2nd Floor: 1,587 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 61' 0"
  • Depth: 87' 0"
  • Max ridge height: 37' 0"

Garage

  • Type: Attached
  • Area: 857 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"
