Plan 36561TX

Elegant European-Style House Plan with Main-Level Master

Pageloader

Elegant European-Style House Plan with Main-Level Master

Plan 36561TX

  • 4,416

    Heated s.f.

  • 3

    Beds

  • 3.5+

    Baths

  • 2

    Stories

  • 2

    Cars

  • This elegant two-story European-style mansion offers luxury in a home fit for a narrow, zero lot line. The stone façade offers Juliet balconies with ornate grilles, arched windows, and a large two-story covered entry.
  • As you enter the stunning foyer, you immediately have a view of the overwhelming ceiling styles that lead into the family living center, which includes the family room, study/library, dining, kitchen and breakfast room.
  • Through French doors, enter the elegant dining room offering a trey ceiling and built-ins. The study/library with a corner fireplace has a second set of stairs that lead to the second floor.
  • Off the gourmet kitchen, with state-of-the art appliances, is a utility room, pantry, and free-standing center island with granite countertops and an eating bar. The breakfast room has access to an outdoor patio area and leads to the vaulted family room with a covered patio.
  • Completing the first floor plan is the master suite with a step trey ceiling and luxurious master bath with his and hers vanities, a separate glass shower, marble step-up tub, and large wardrobe with built-ins.
  • A dramatic curved stairway leads to the second level, which boasts two family bedrooms, each with walk-in closets, trey ceilings and private Juliet balconies, share a Jack-n-Jill bathroom with dual vanities. A game and media room share space with a powder room and bonus room with full bath.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

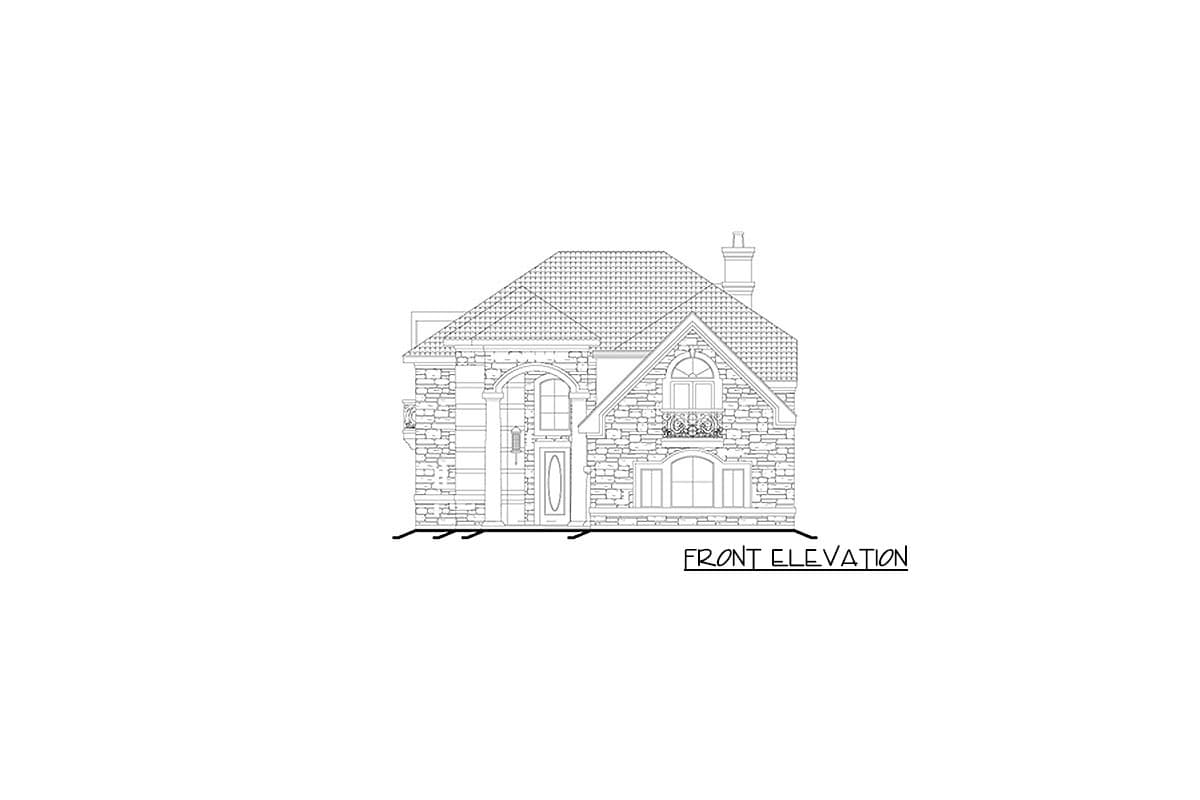

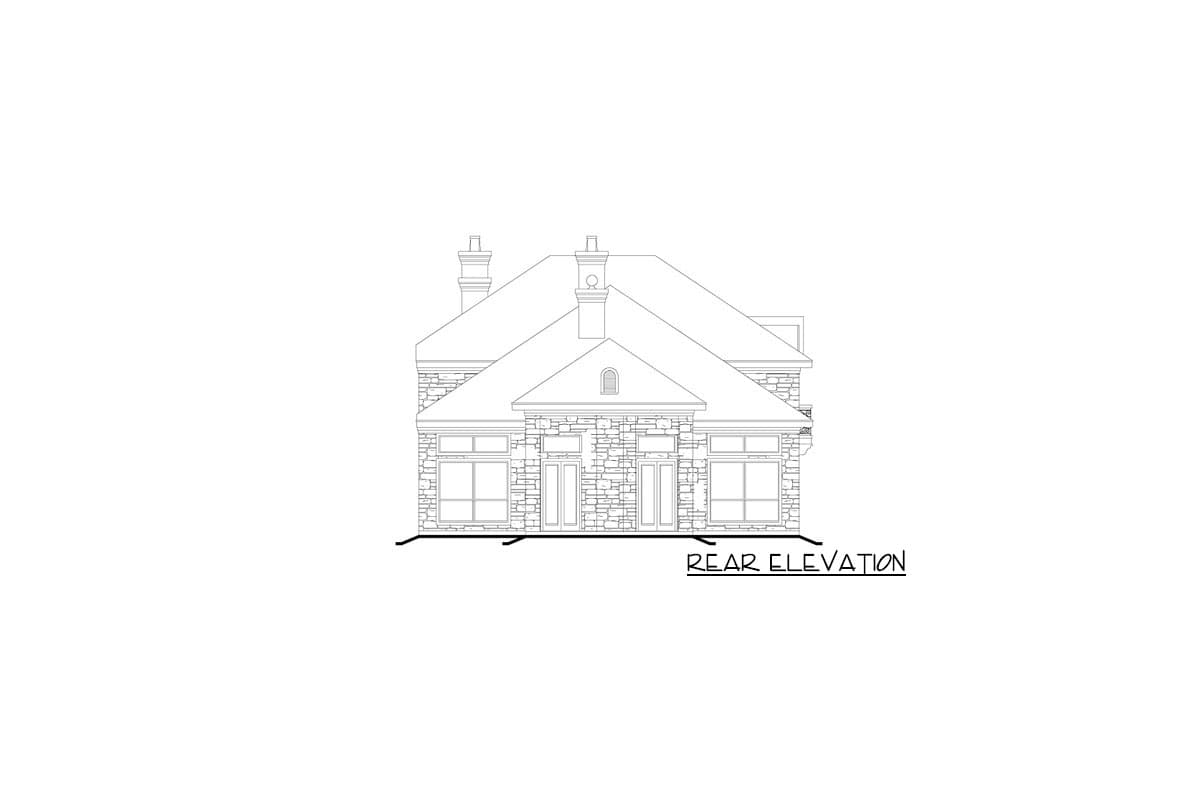

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

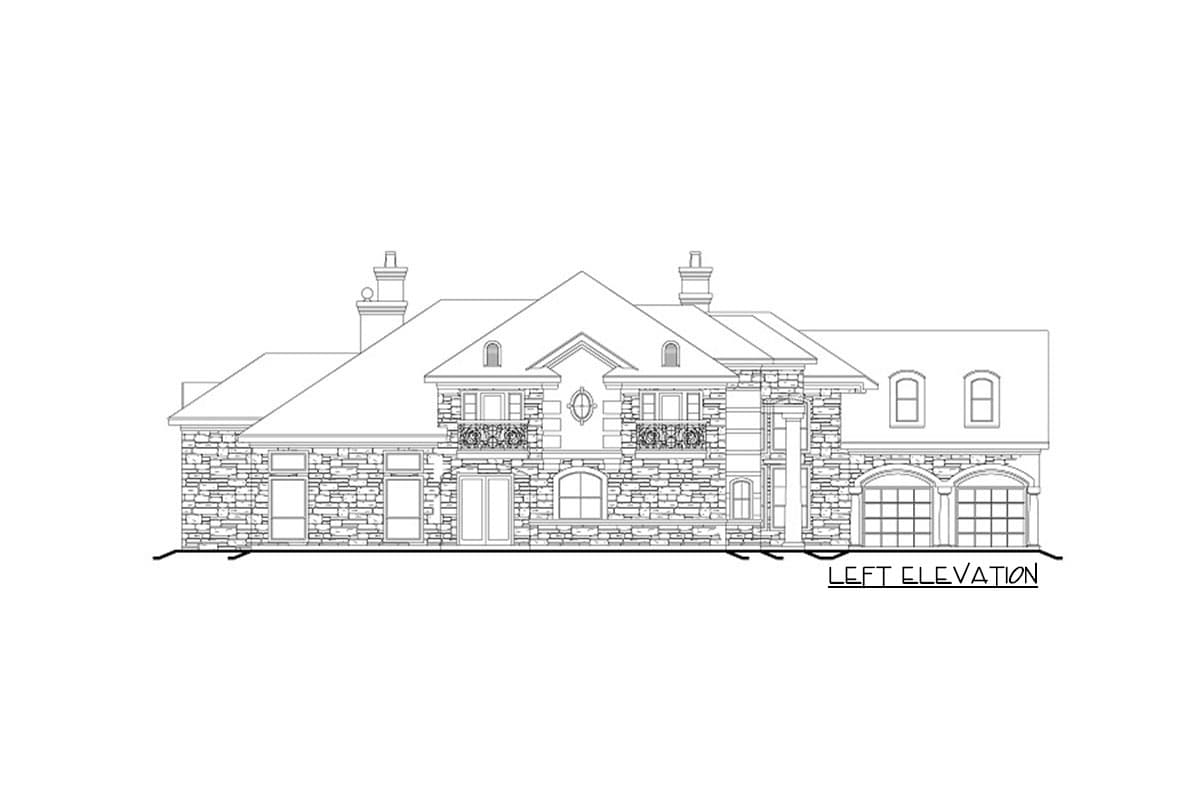

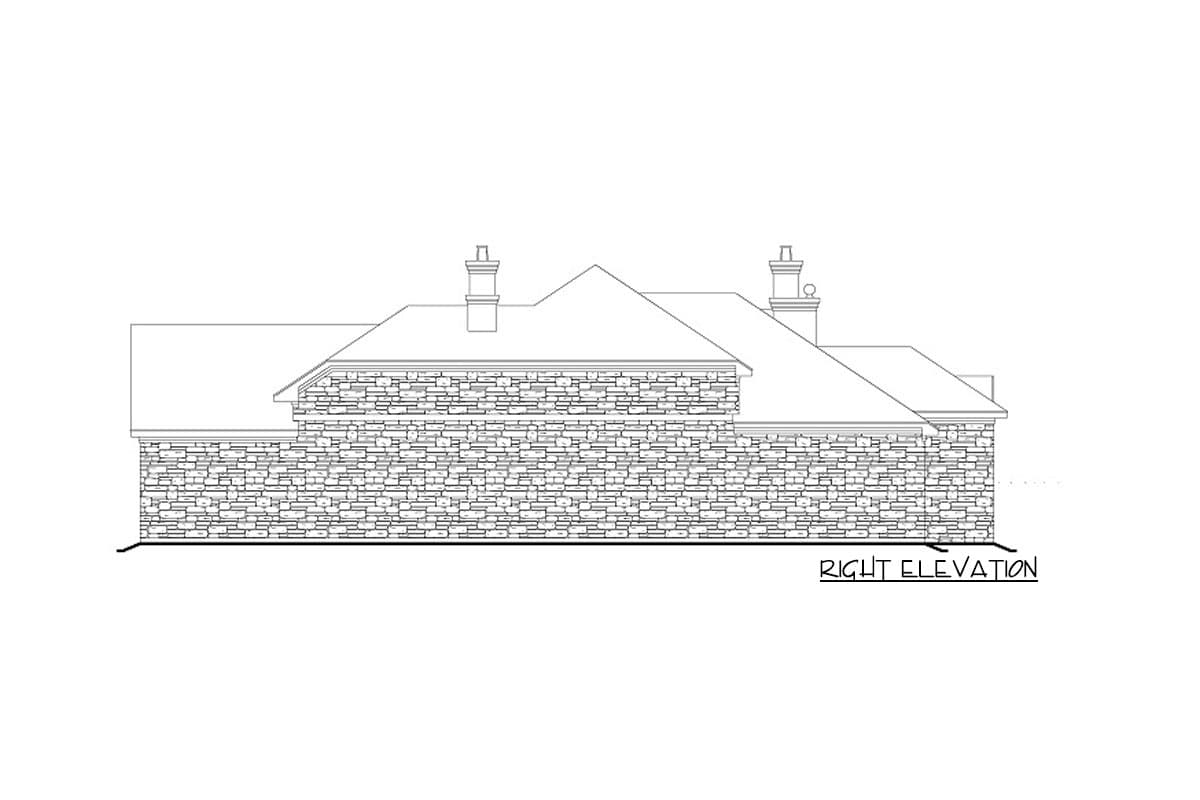

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Elegant European-Style House Plan with Main-Level Master

  • 4,416

    Heated s.f.

  • 3

    Beds

  • 5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,515
  • 5 Sets $1,715
  • CAD $2,275
  • View all purchase option online

About This Plan

  • This elegant two-story European-style mansion offers luxury in a home fit for a narrow, zero lot line. The stone façade offers Juliet balconies with ornate grilles, arched windows, and a large two-story covered entry.
  • As you enter the stunning foyer, you immediately have a view of the overwhelming ceiling styles that lead into the family living center, which includes the family room, study/library, dining, kitchen and breakfast room.
  • Through French doors, enter the elegant dining room offering a trey ceiling and built-ins. The study/library with a corner fireplace has a second set of stairs that lead to the second floor.
  • Off the gourmet kitchen, with state-of-the art appliances, is a utility room, pantry, and free-standing center island with granite countertops and an eating bar. The breakfast room has access to an outdoor patio area and leads to the vaulted family room with a covered patio.
  • Completing the first floor plan is the master suite with a step trey ceiling and luxurious master bath with his and hers vanities, a separate glass shower, marble step-up tub, and large wardrobe with built-ins.
  • A dramatic curved stairway leads to the second level, which boasts two family bedrooms, each with walk-in closets, trey ceilings and private Juliet balconies, share a Jack-n-Jill bathroom with dual vanities. A game and media room share space with a powder room and bonus room with full bath.

Floor Plans

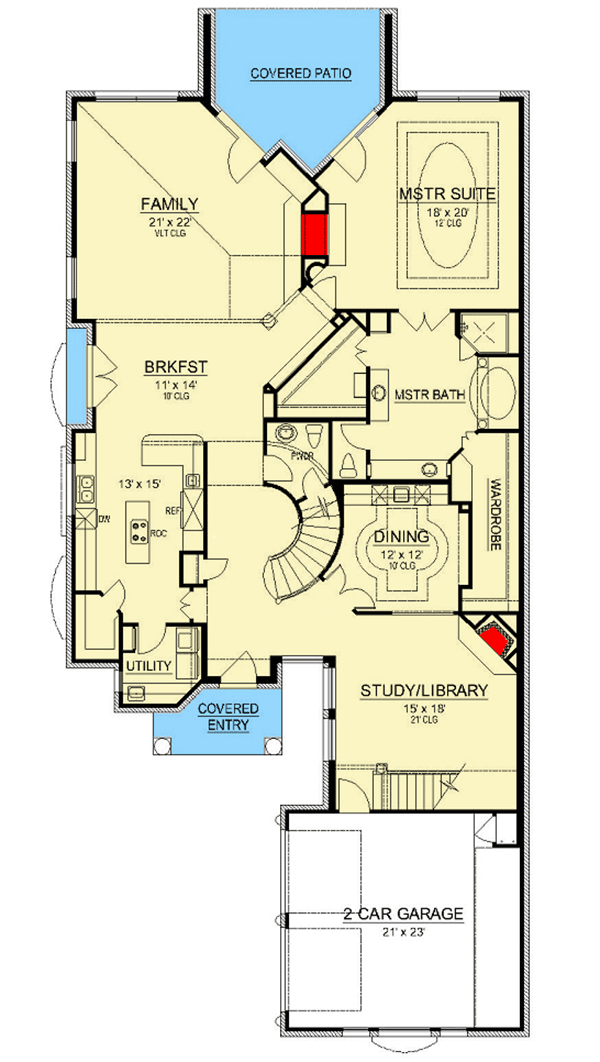

  • Main Level

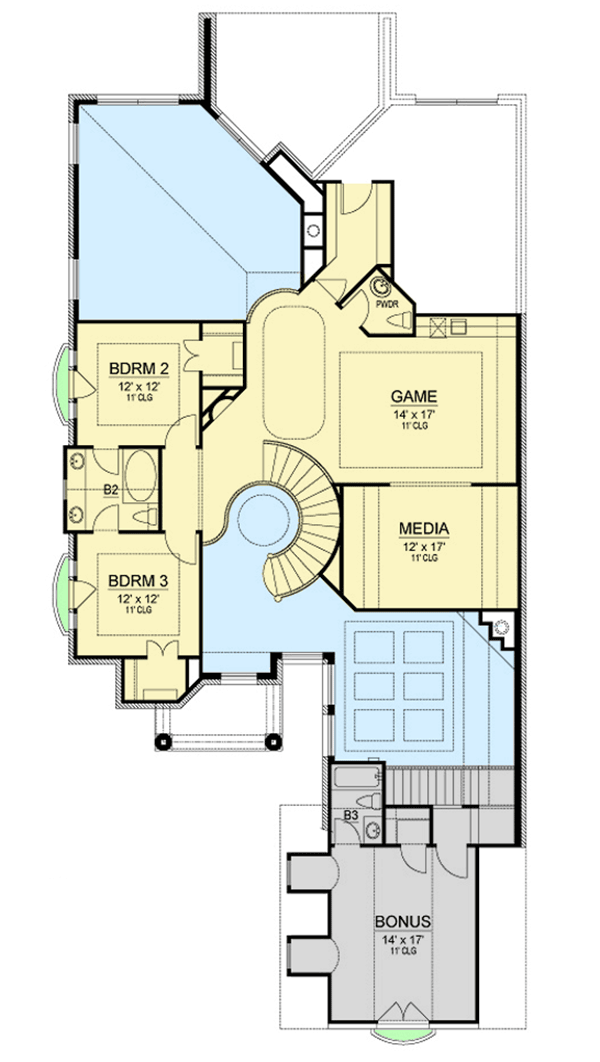

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,416 sq. ft.
  • 1st Floor: 2,760 sq. ft.
  • 2nd Floor: 1,656 sq. ft.
  • Bonus: 238 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 45' 0"
  • Depth: 100' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 527 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"
