Elegant Home Plan with In-Law Suite

Plan 23200JD

This plan plants 3 trees

4,684
Heated s.f.
4
Beds
3.5
Baths
2
Stories
3
Cars

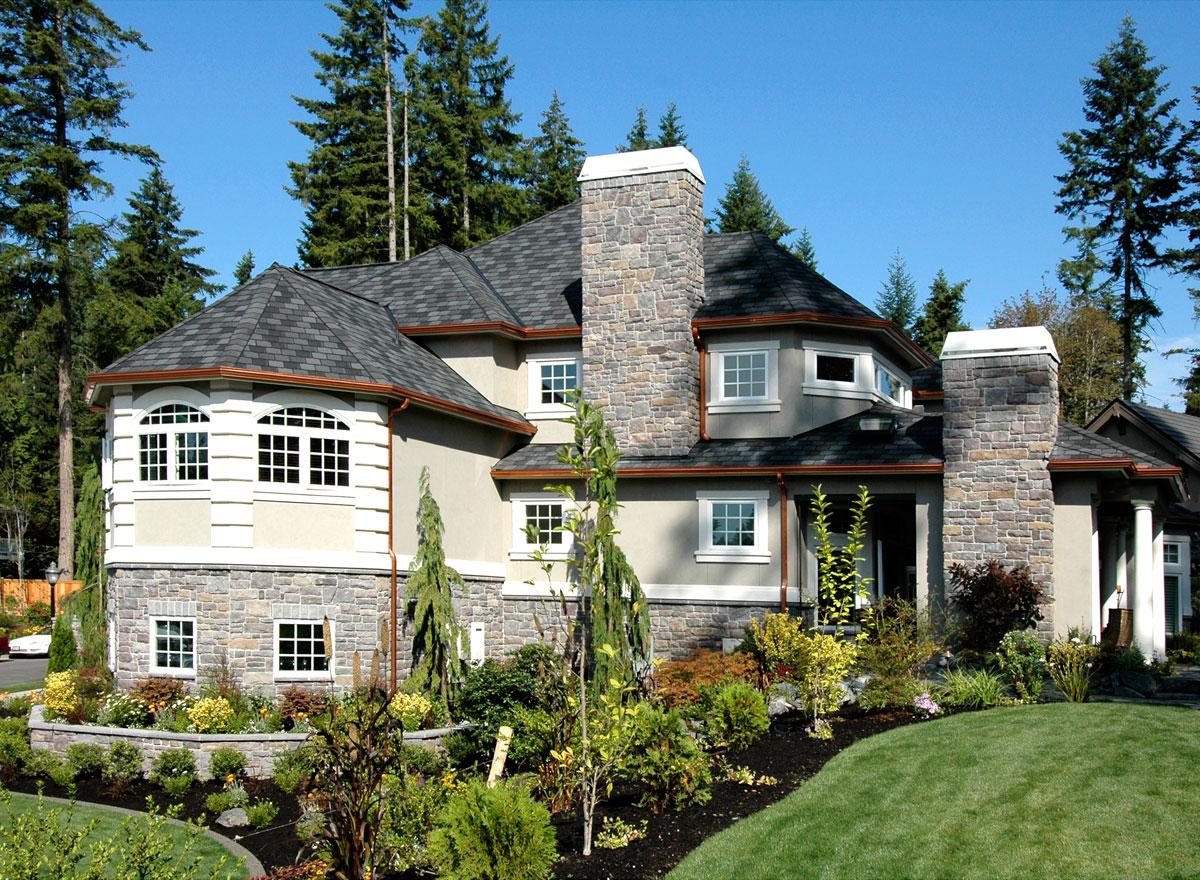

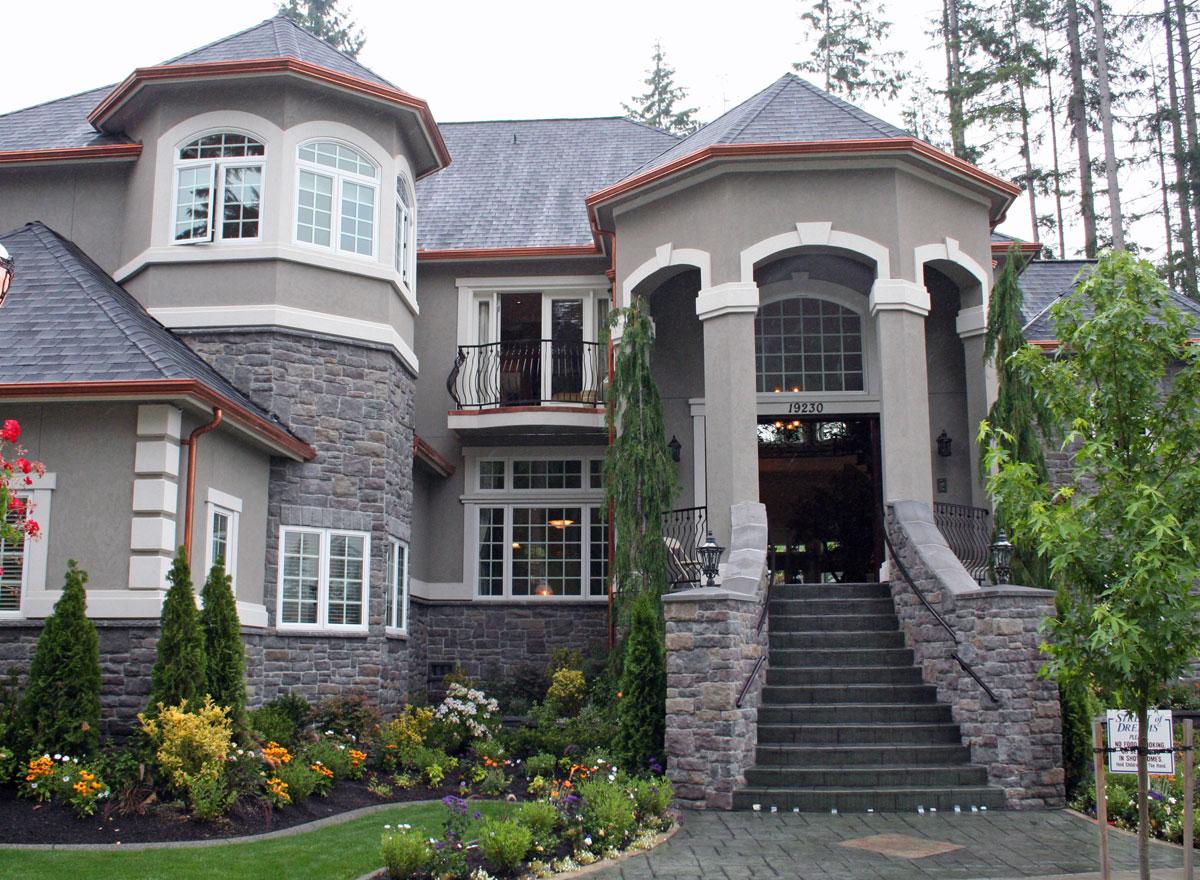

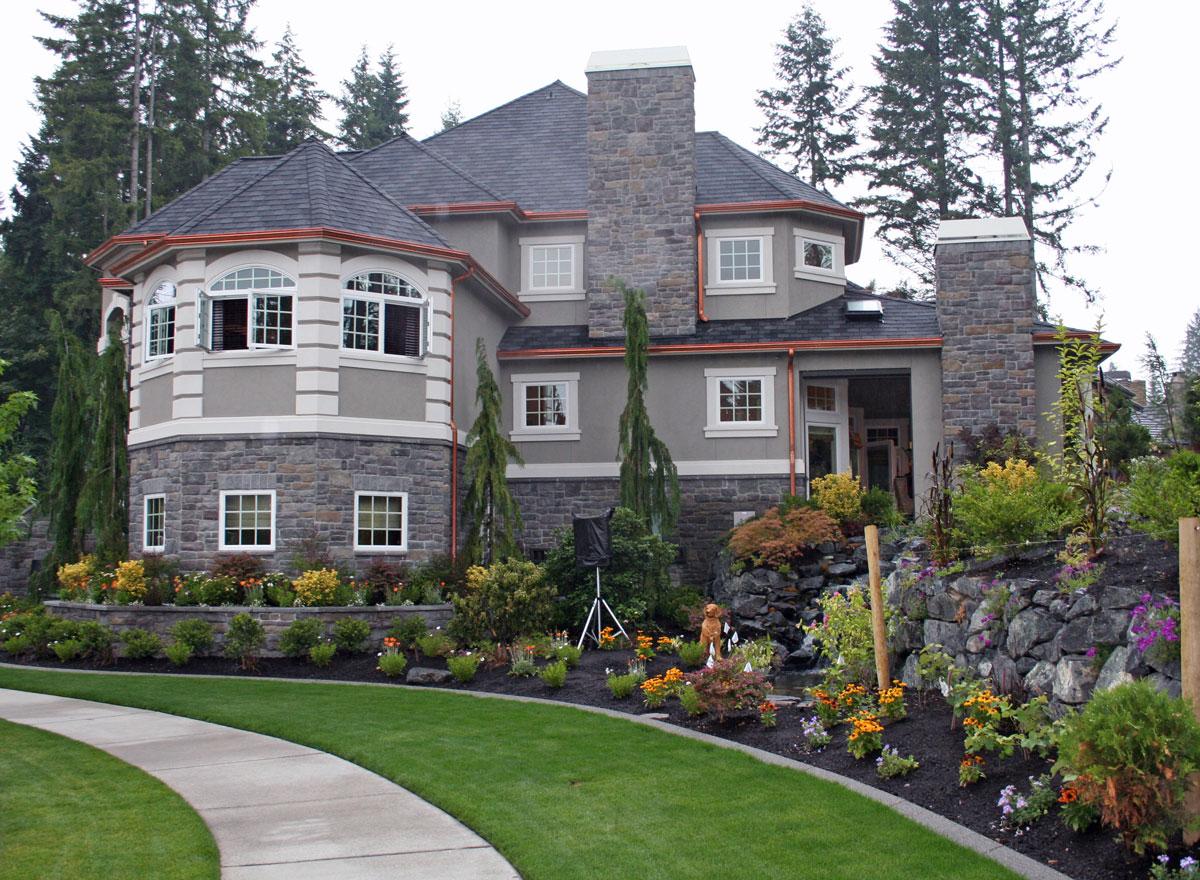

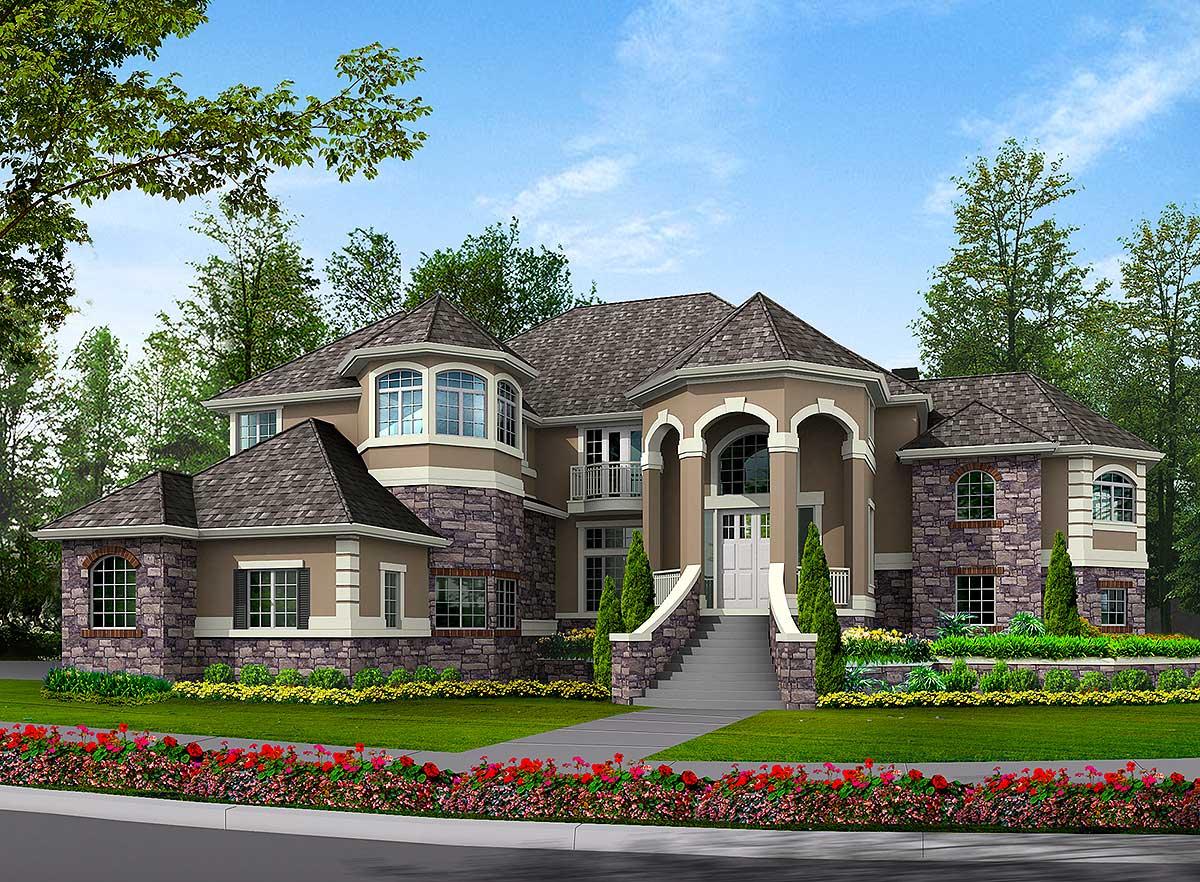

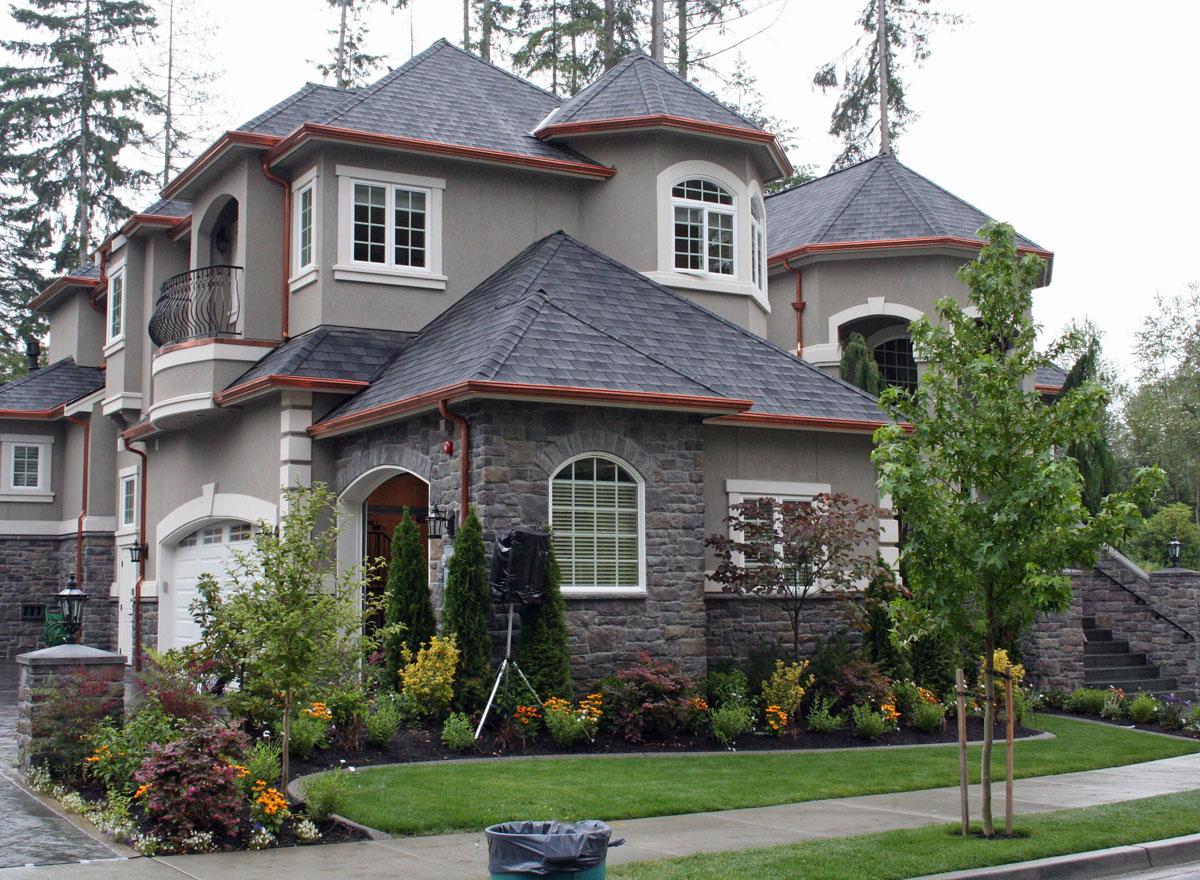

A classic facade is highlighted by a sweeping stairway leading to the graceful columns and arches of its grand octagonal entry. Textures of cut stone and stucco trimmed with quoins convey a dignified air.

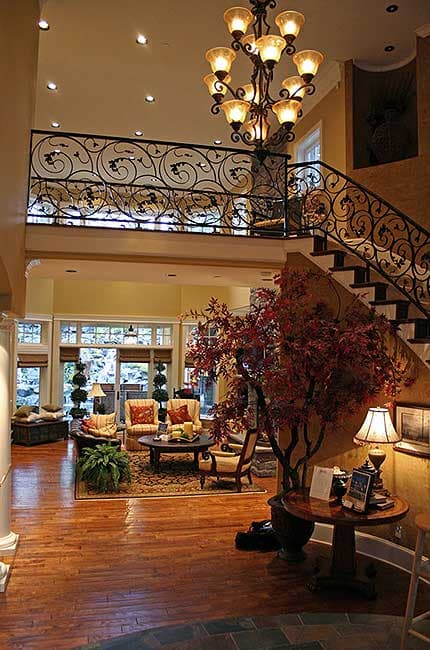

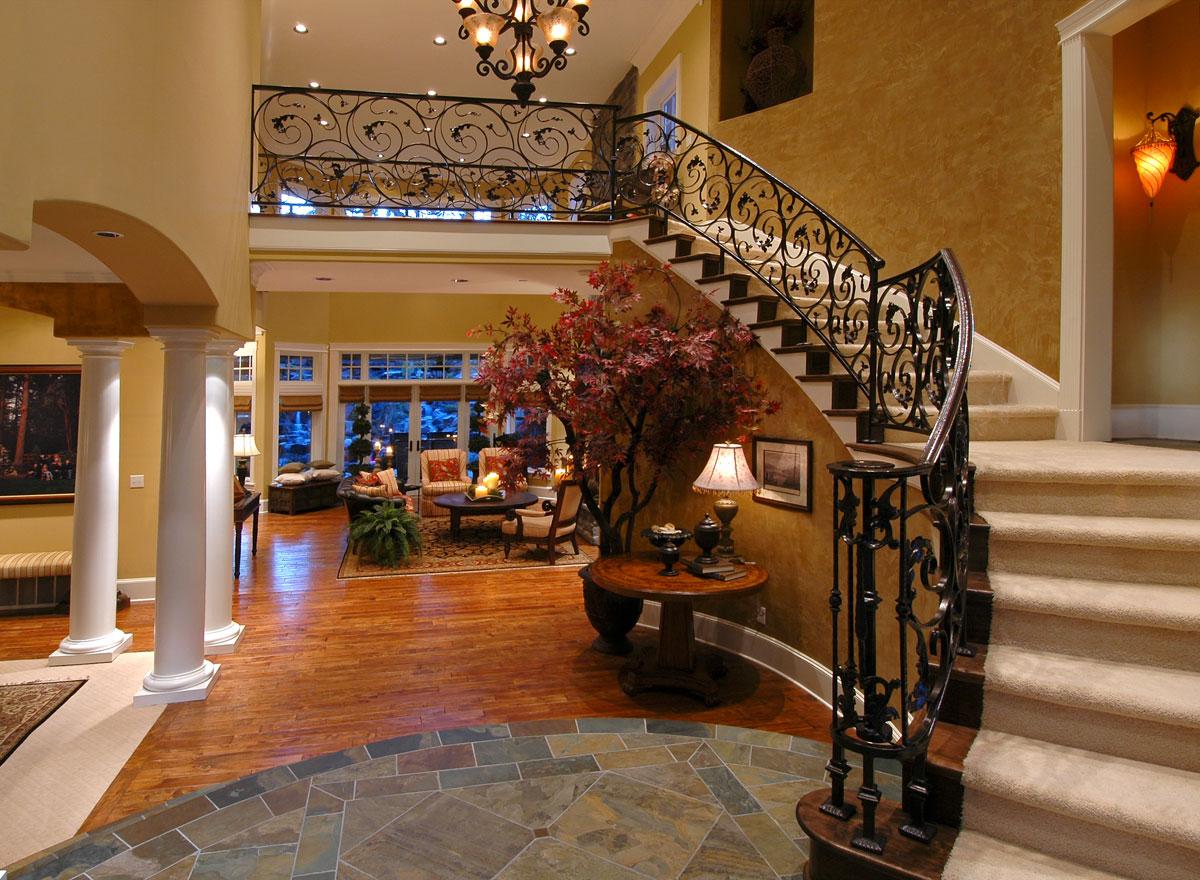

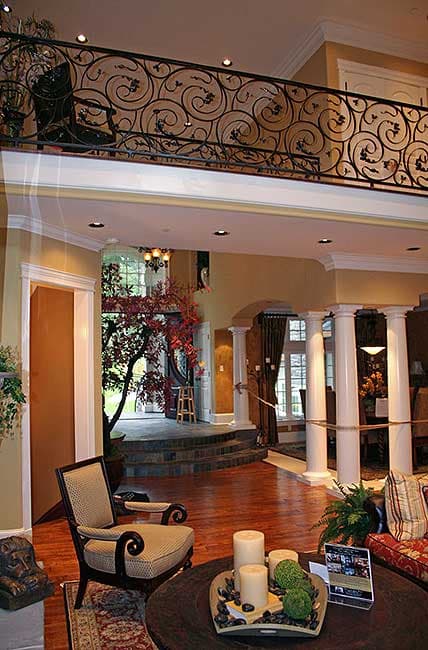

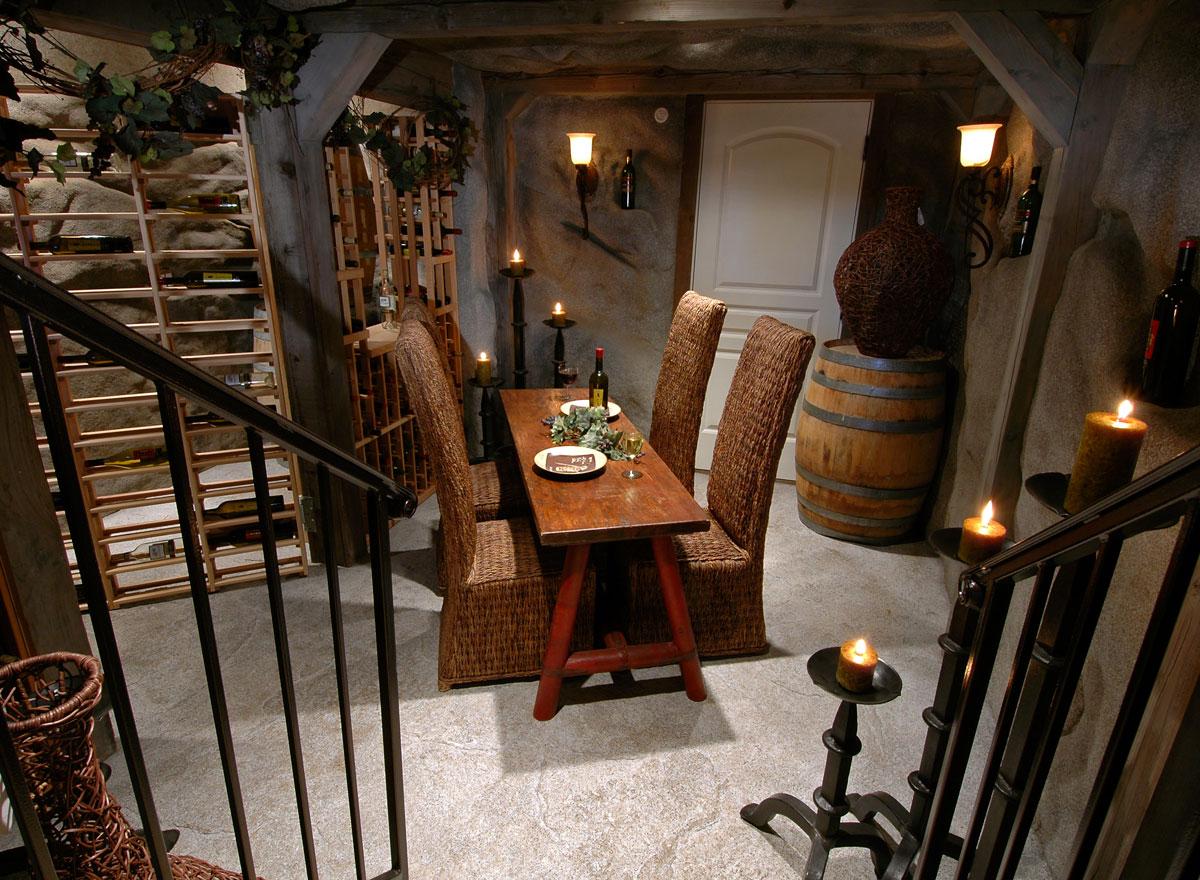

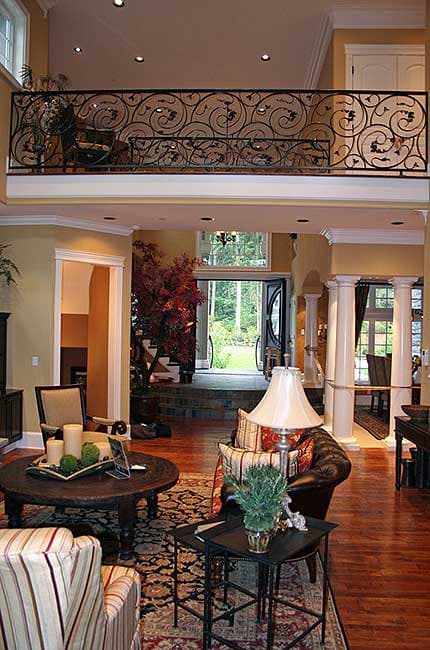

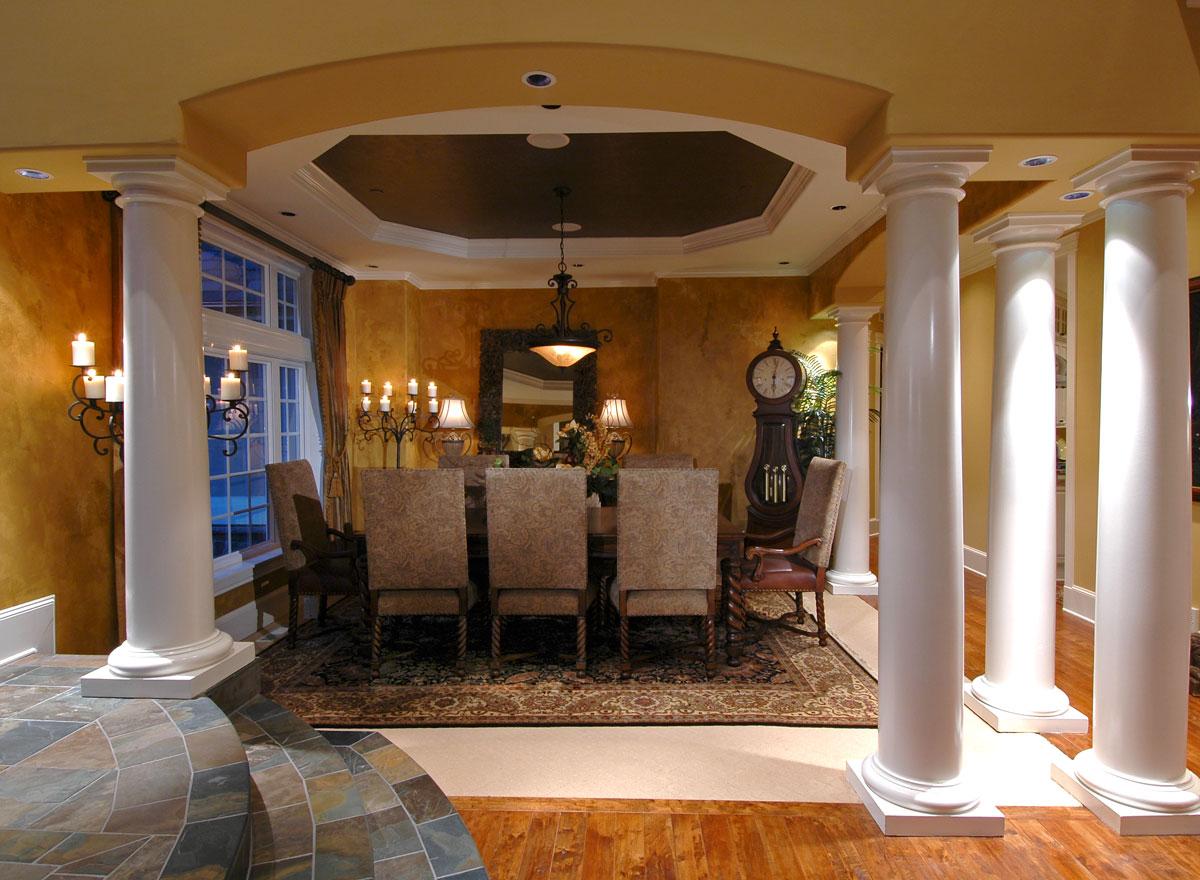

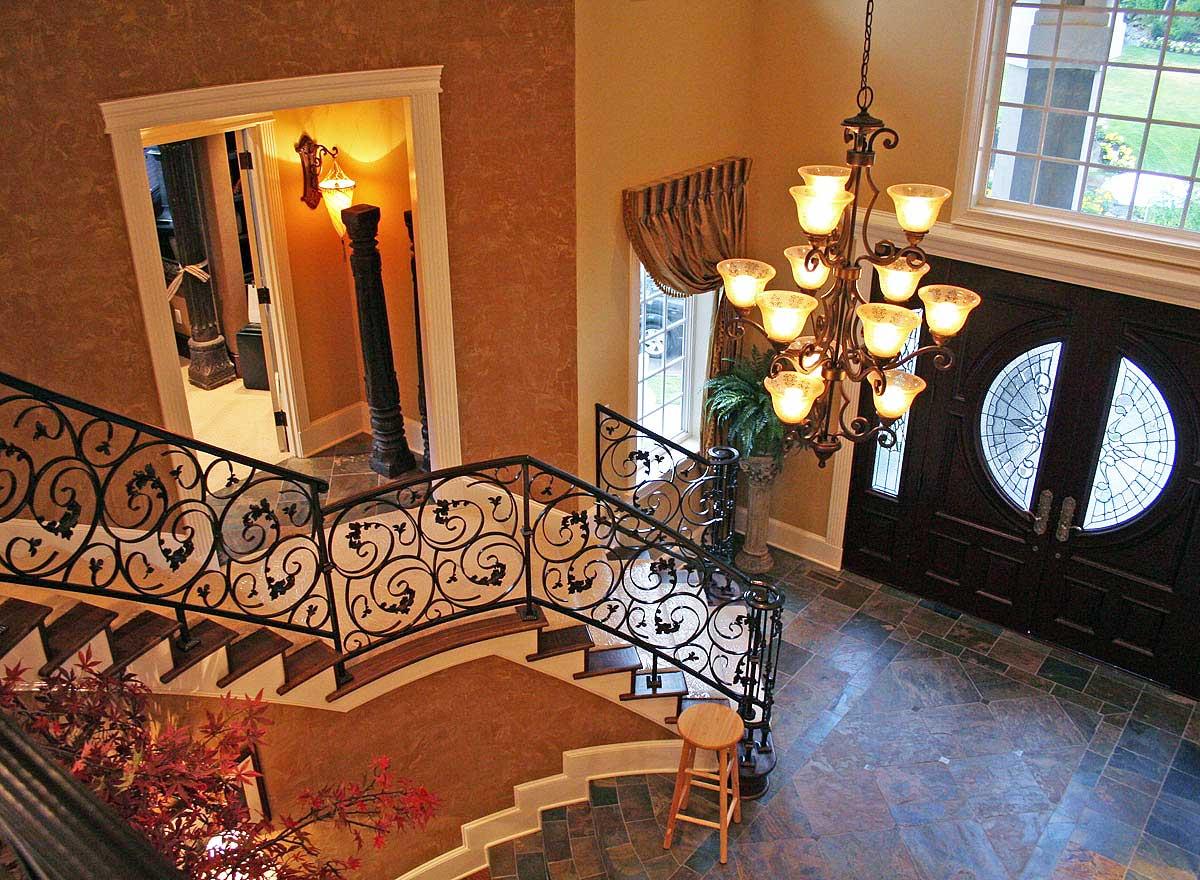

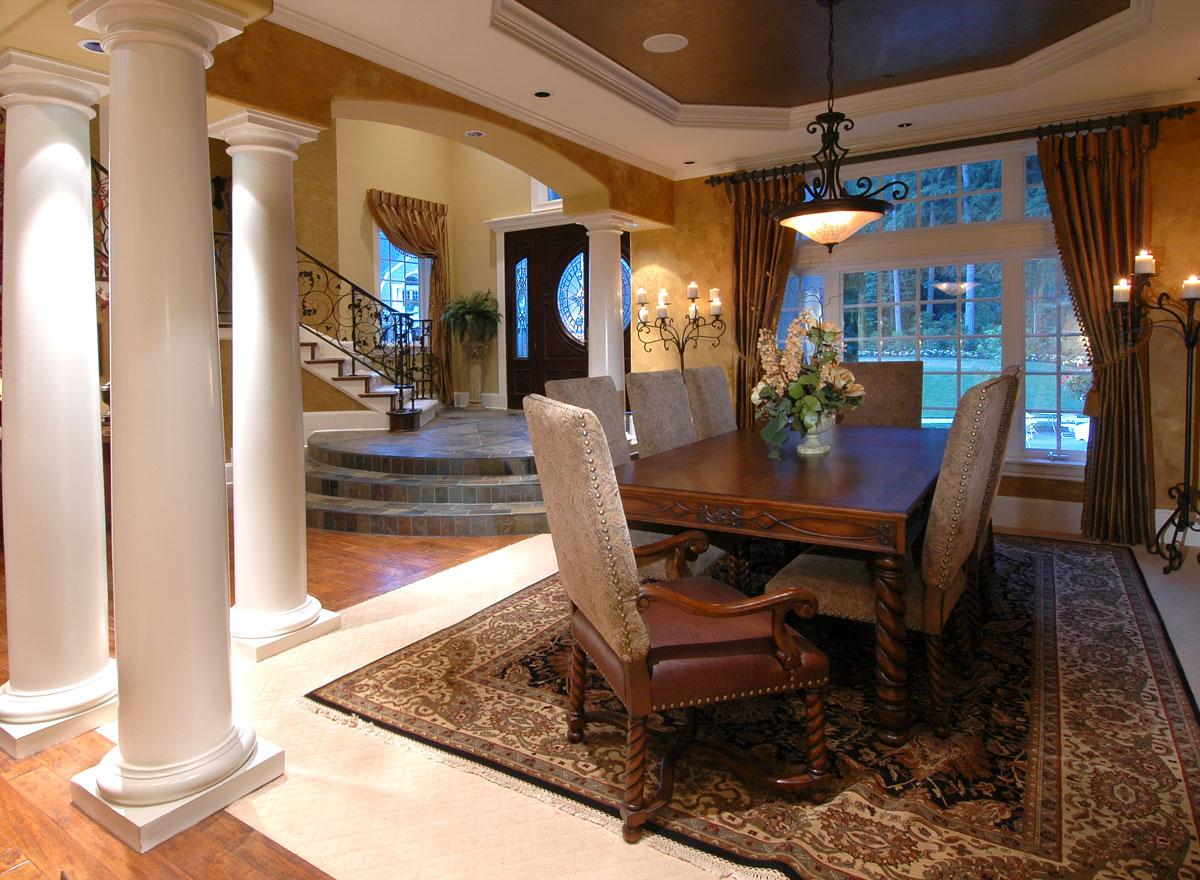

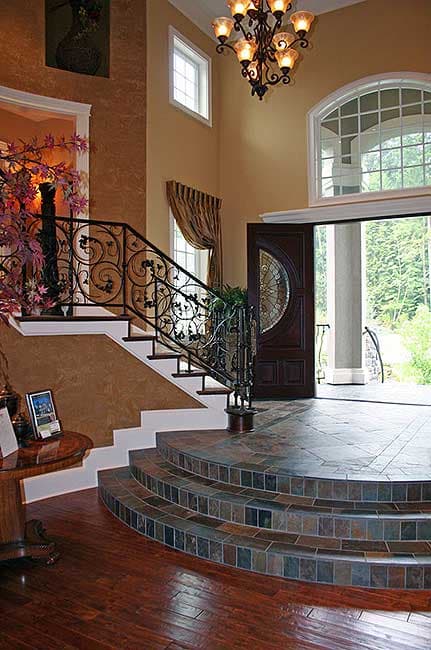

From the entry, your view is directed through the soaring two-story foyer and family room beyond, spanned by a dramatic bridge. Columns define the formal dining room, while the gracious curved stair accesses the mid-level den and wine cellar or card room below.

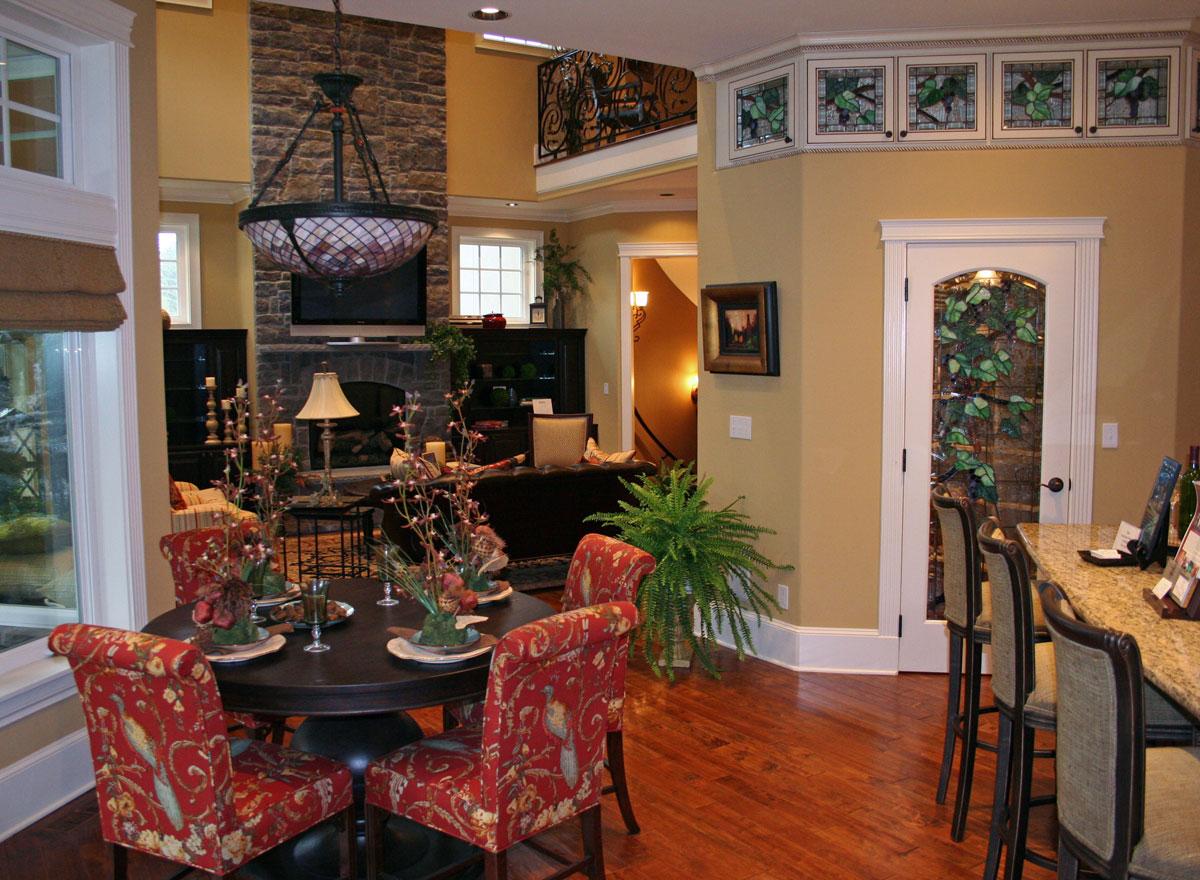

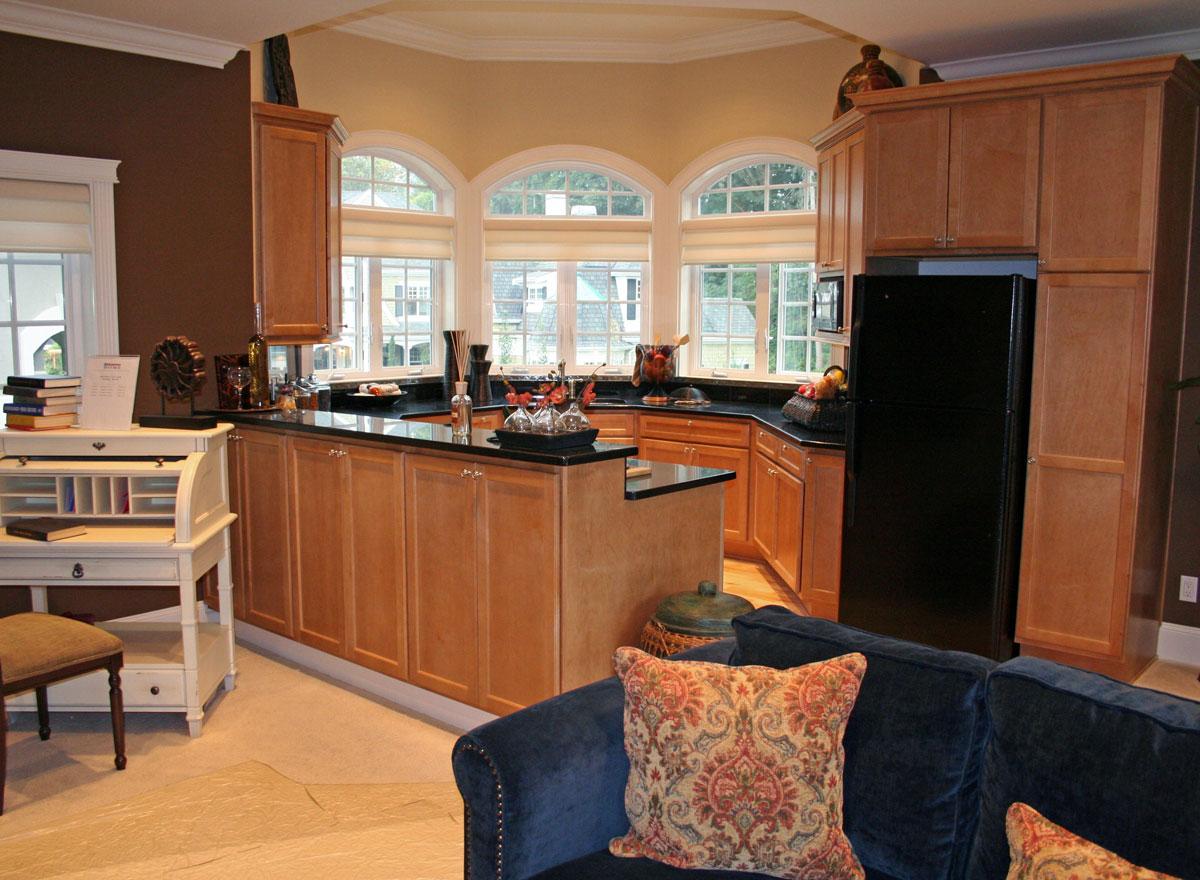

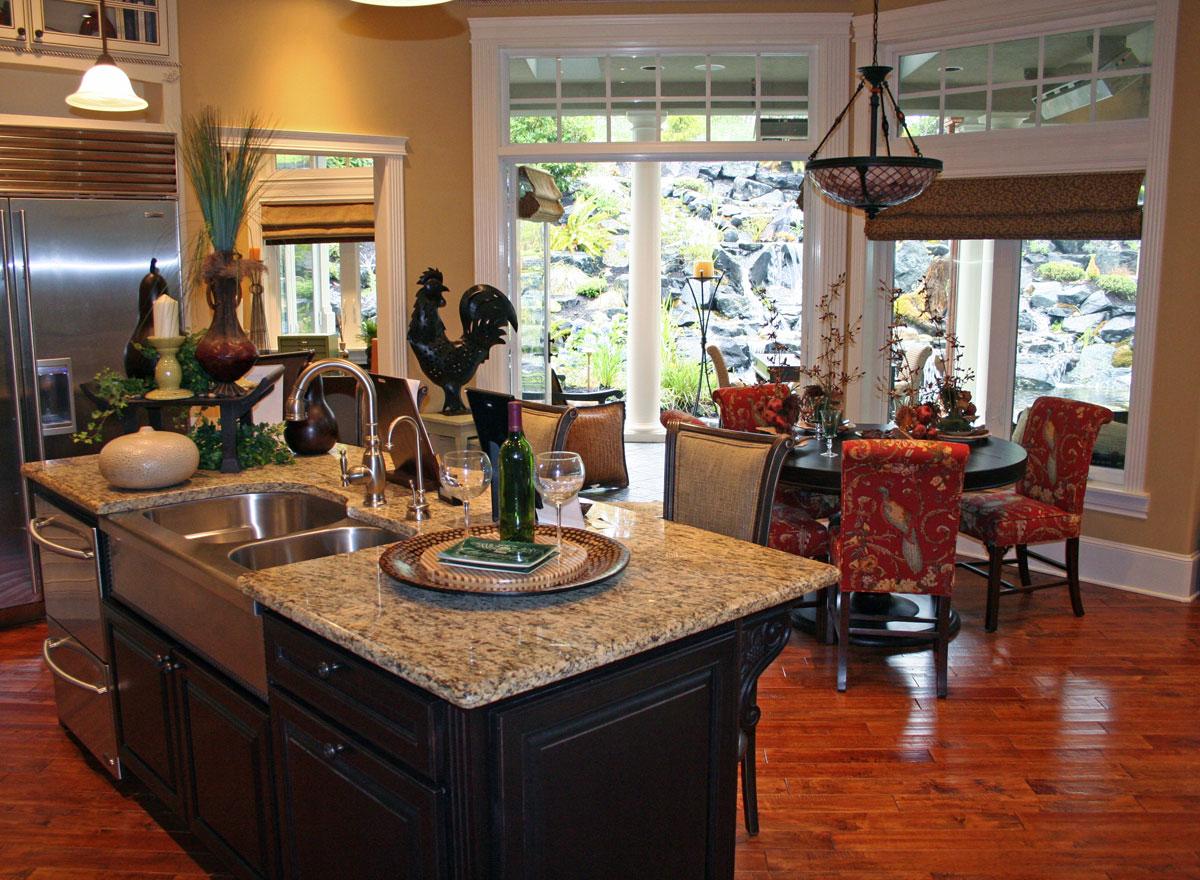

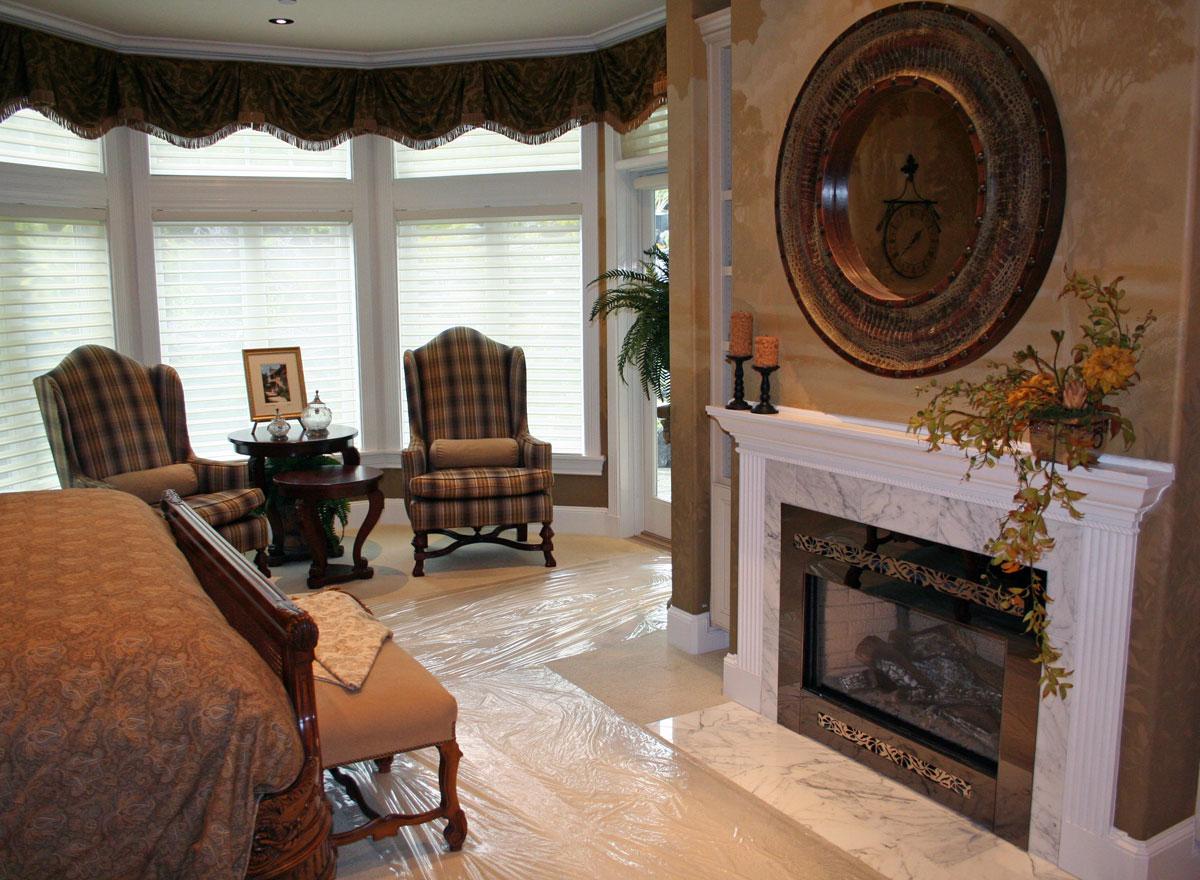

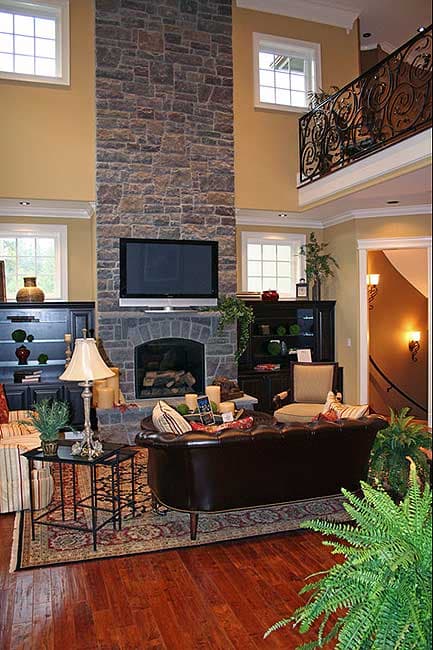

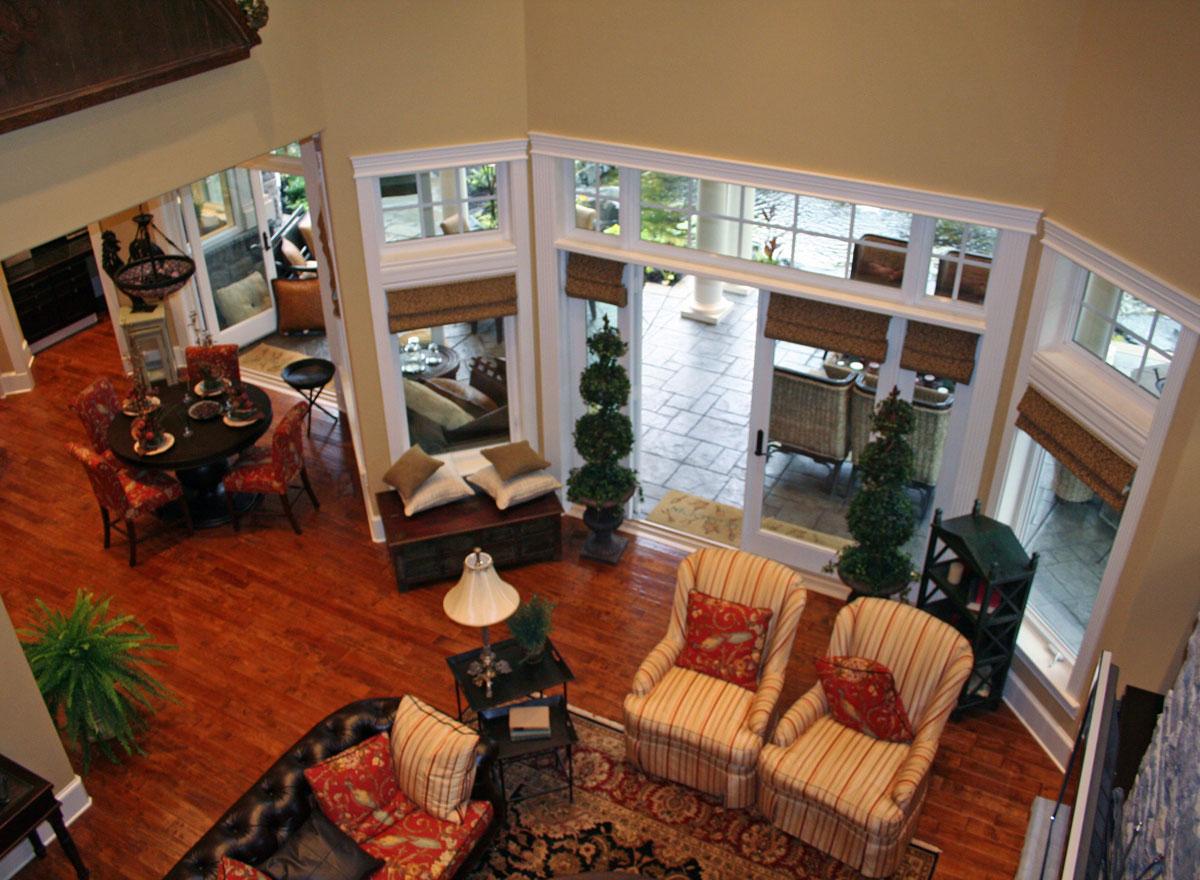

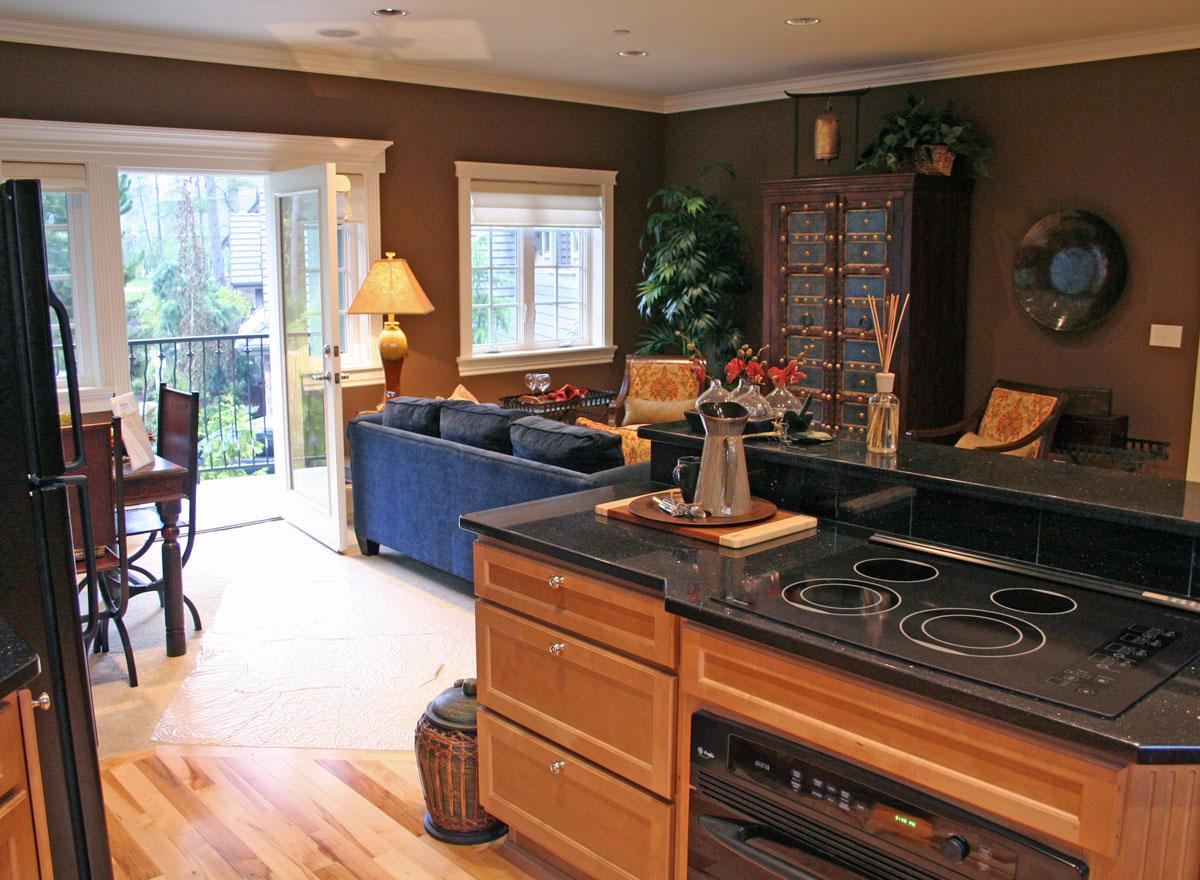

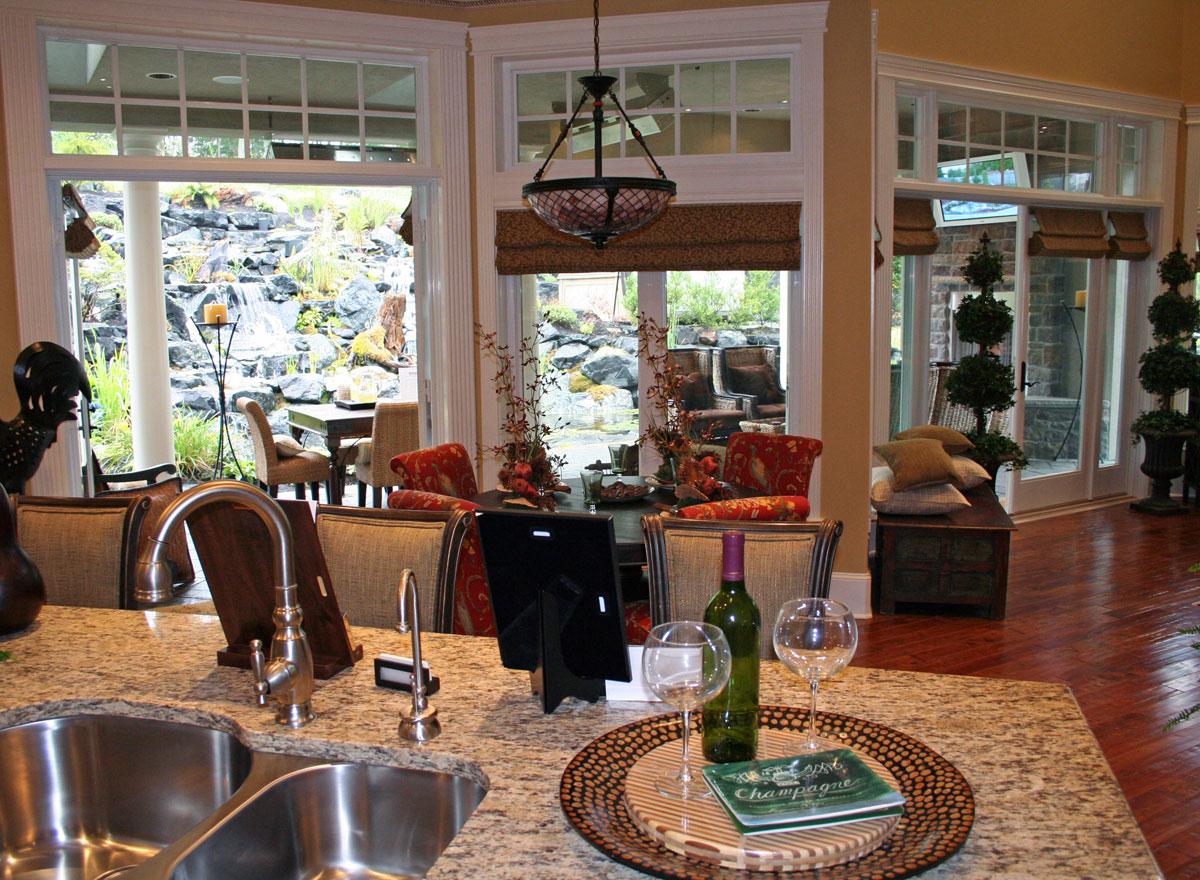

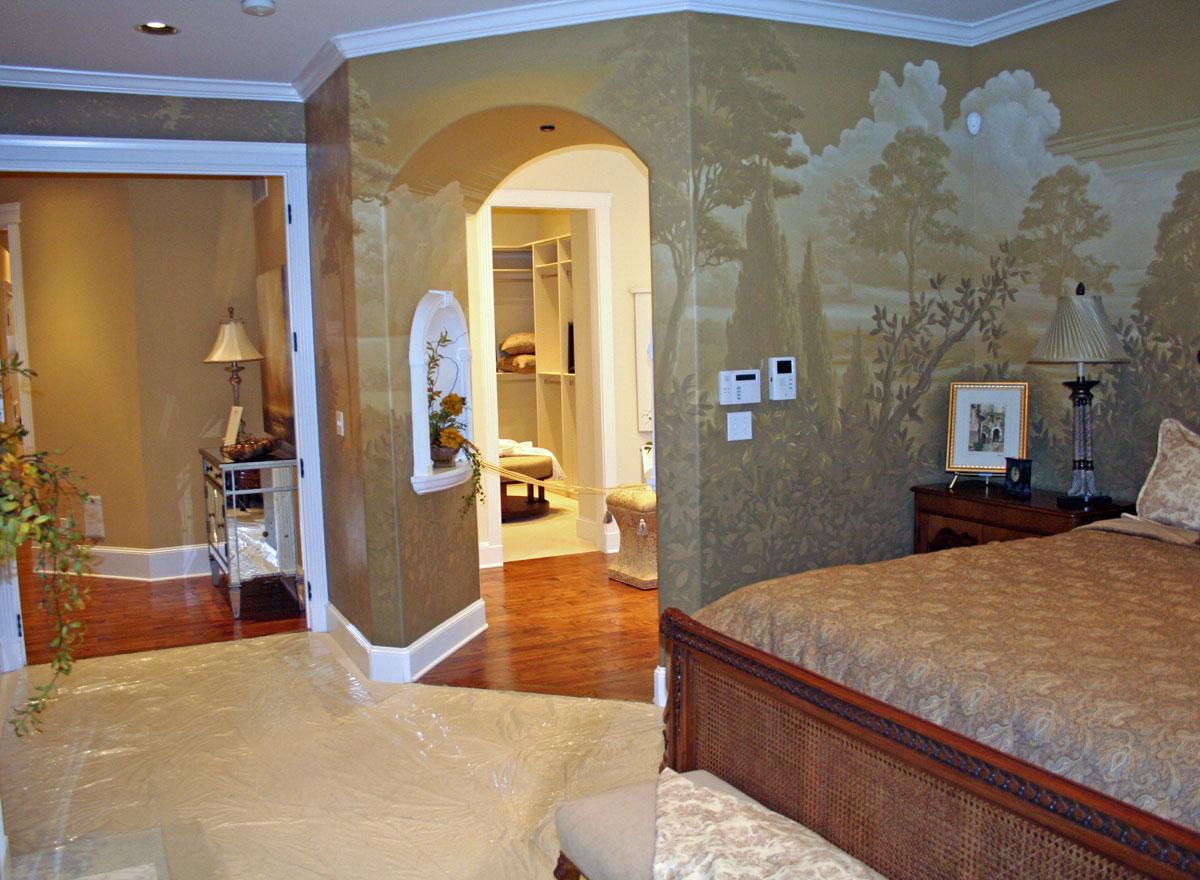

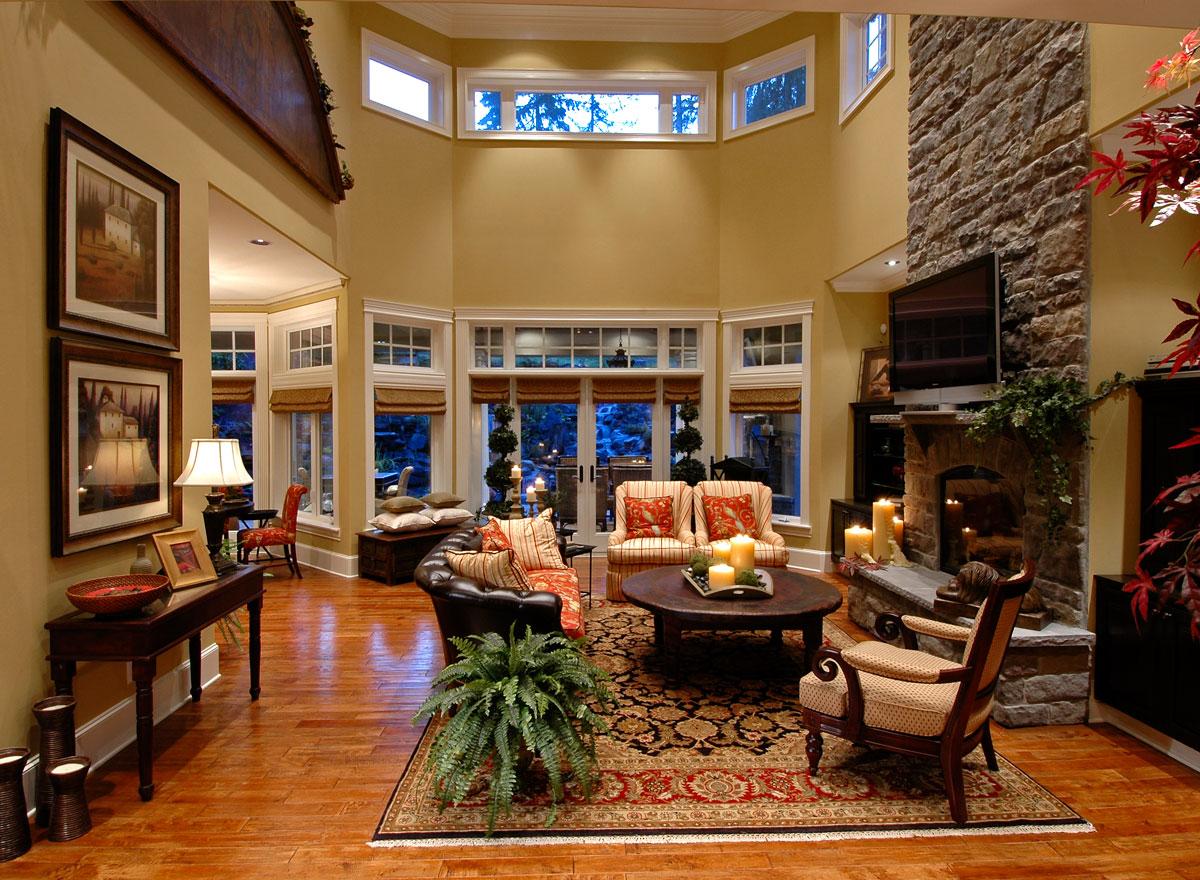

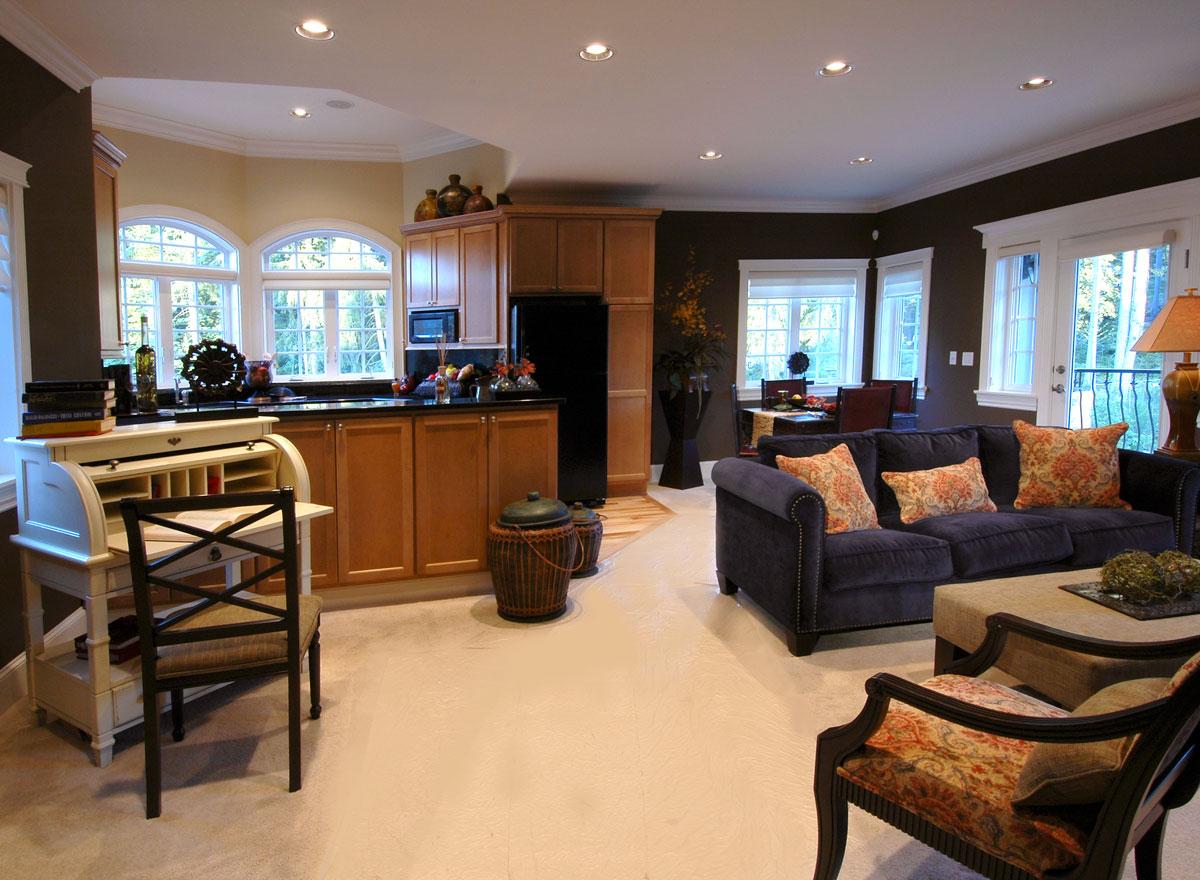

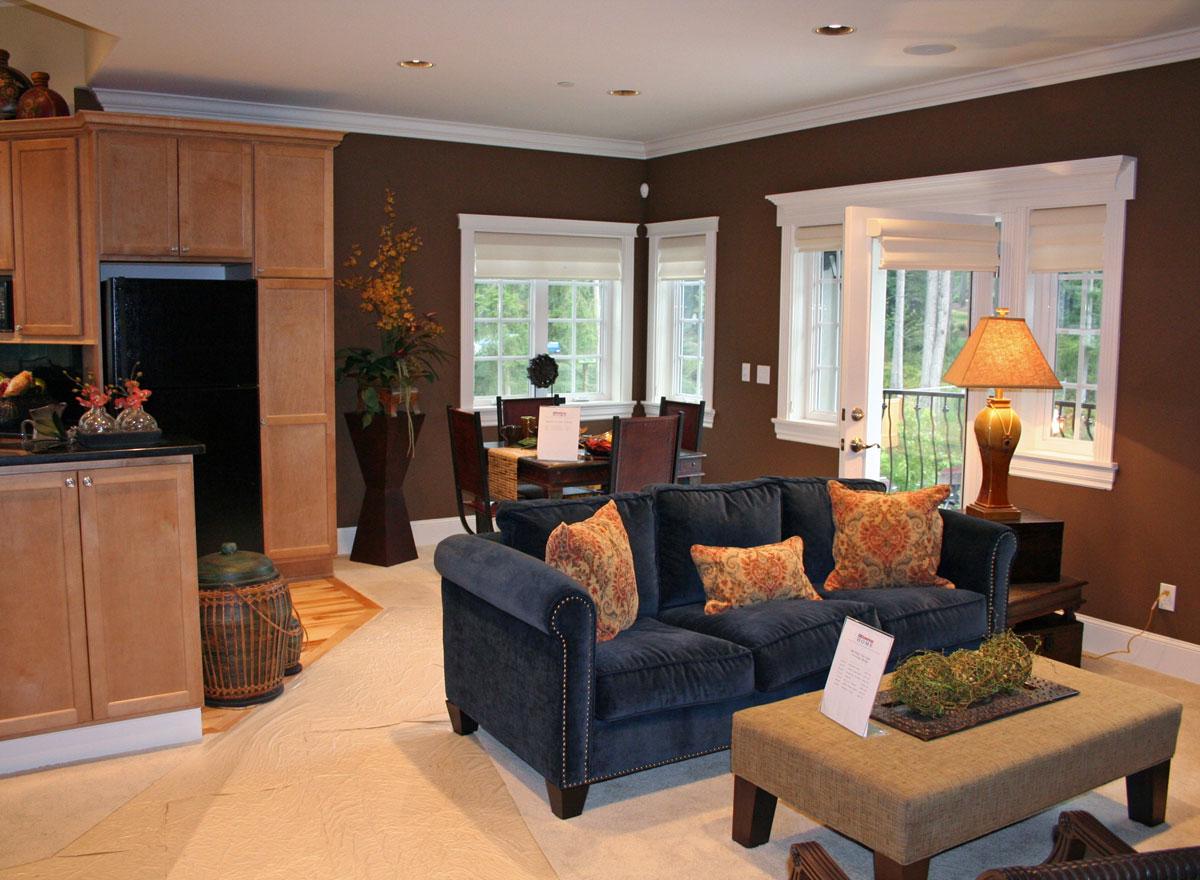

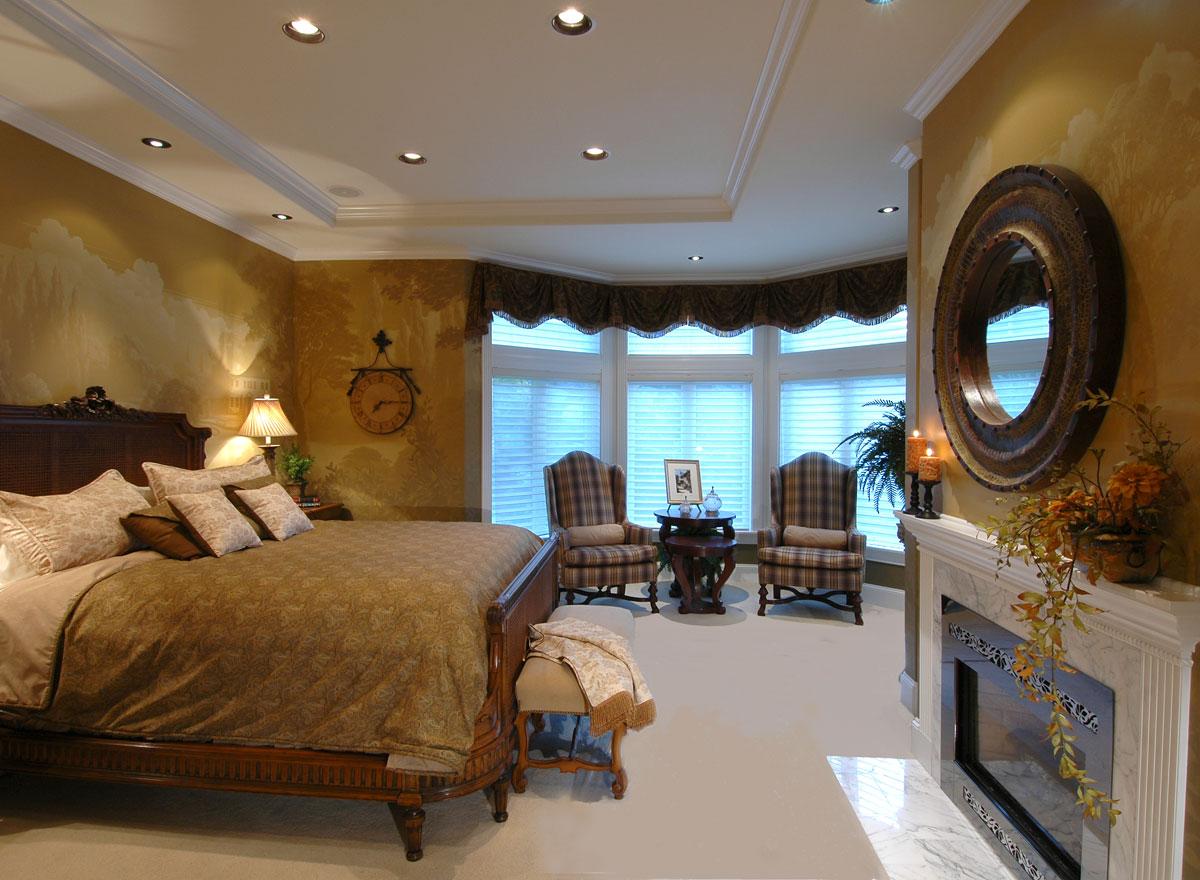

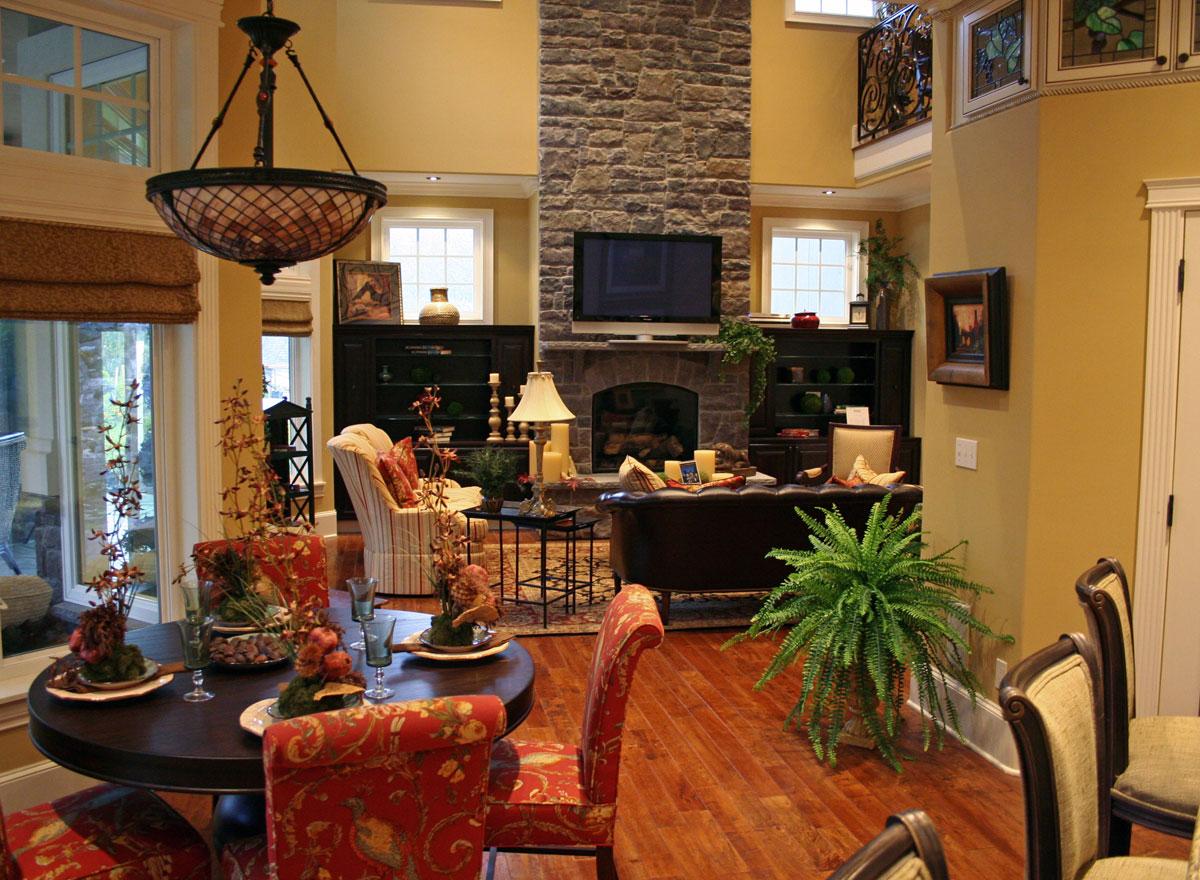

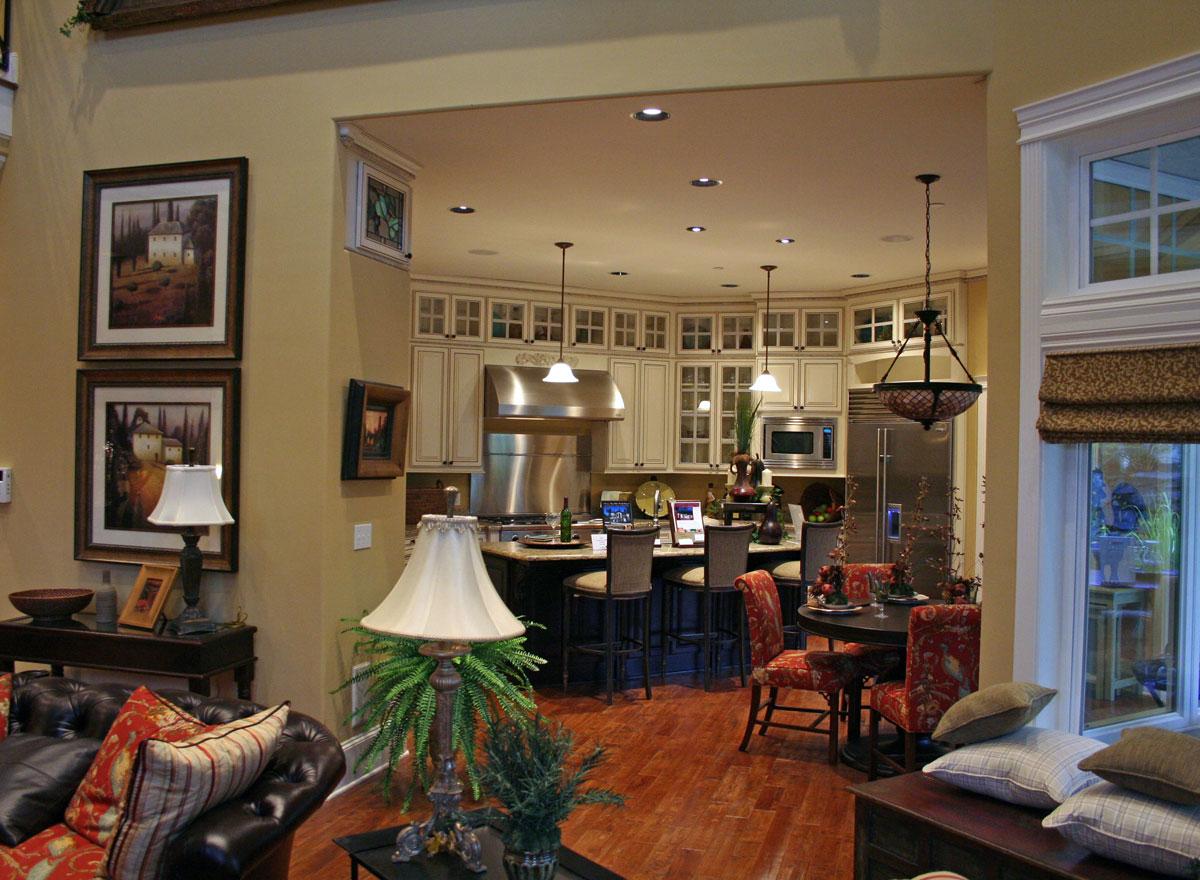

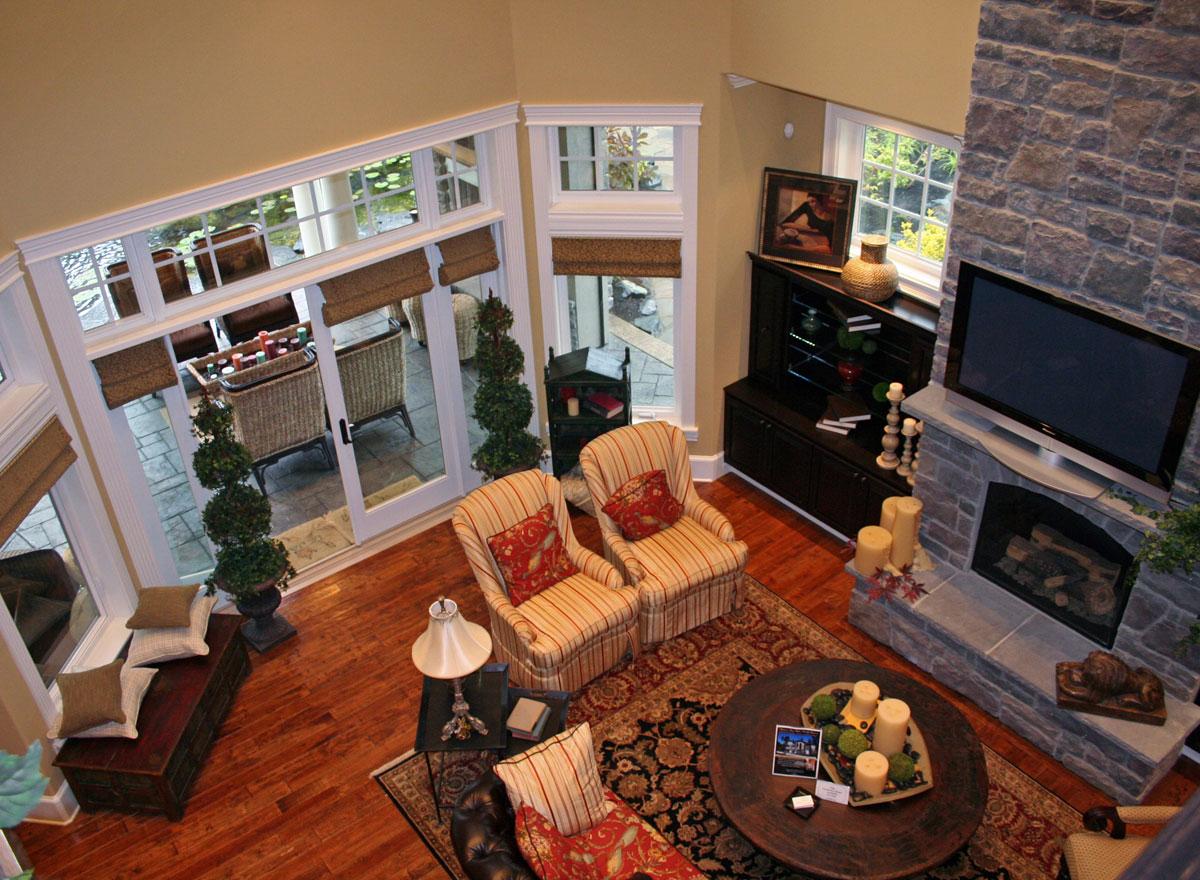

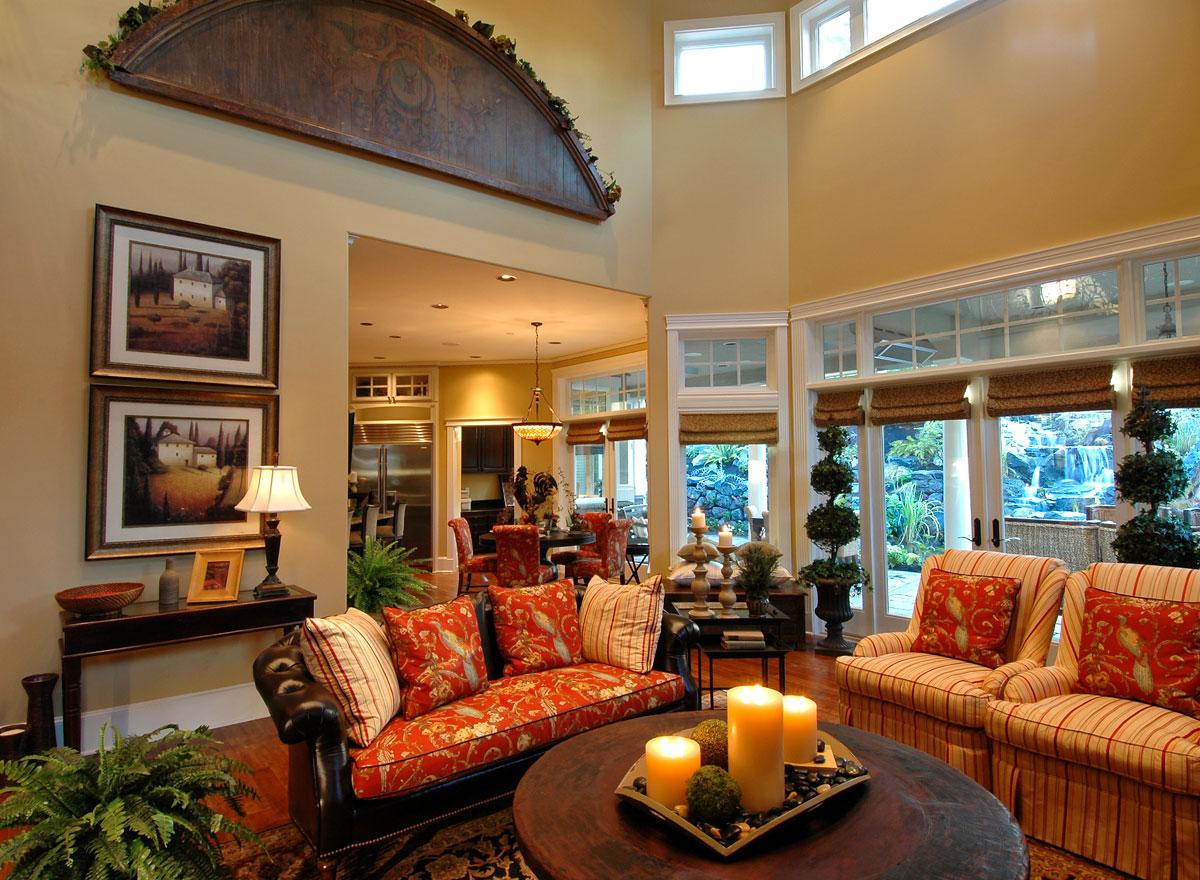

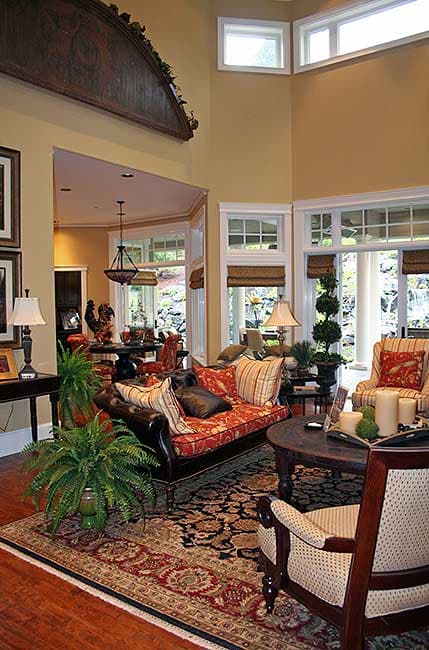

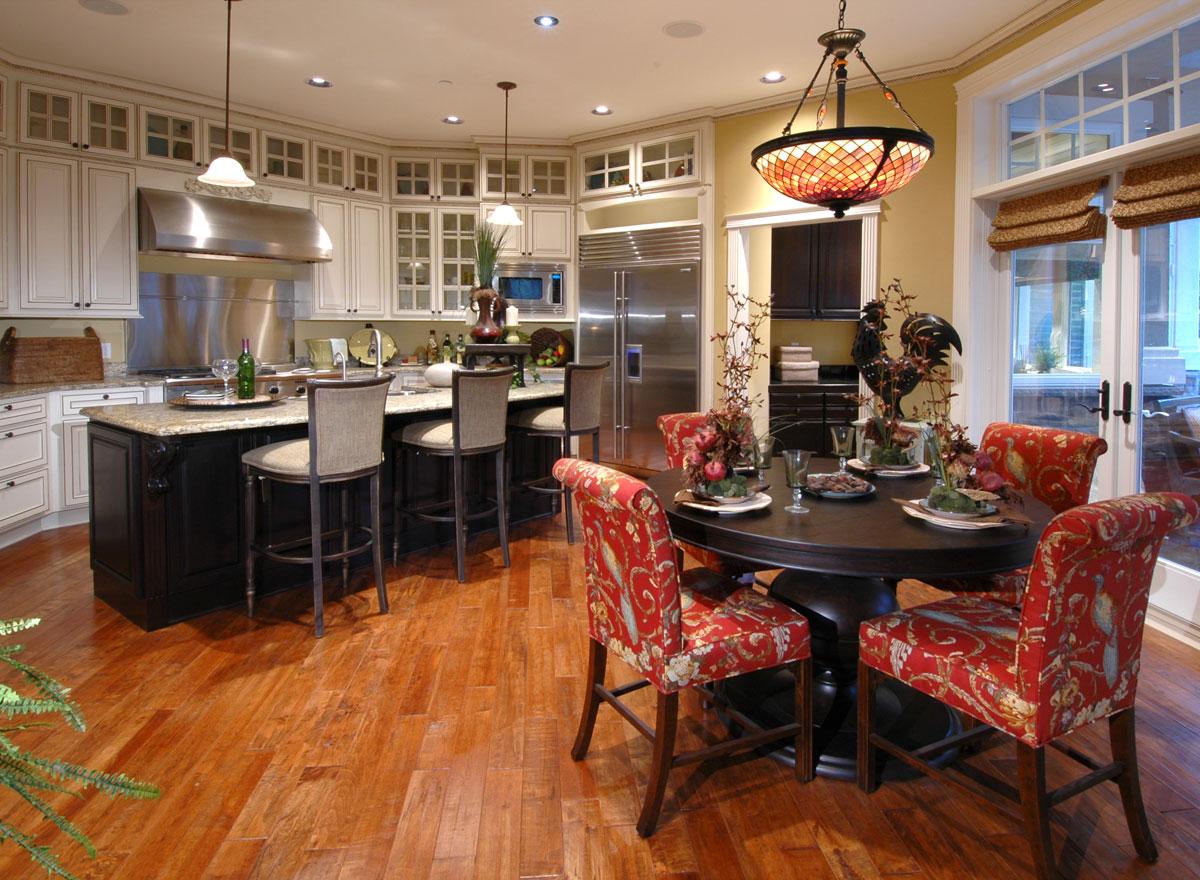

The family room, gourmet island kitchen, nook and spacious master s uite all open to the huge rear BB porch with fireplace. Upstairs a re two large secondary bedrooms and a flexible one-bedroom mother-ini-law apartment with separate stair access.
NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.

Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.

Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.

Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.

Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.

Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.

Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

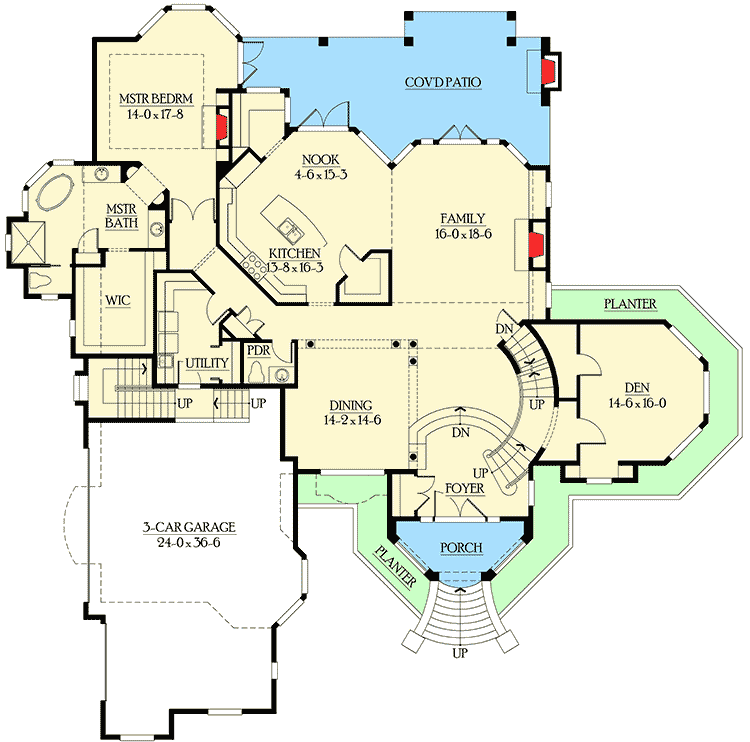

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Elegant Home Plan with In-Law Suite - 23200JD floor plan - Main Level

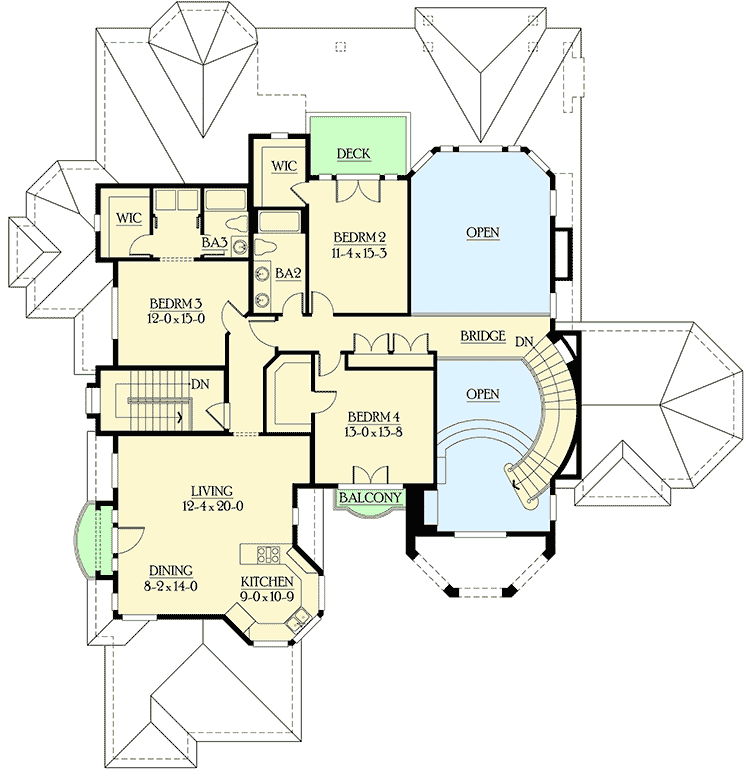

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Elegant Home Plan with In-Law Suite - 23200JD floor plan - 2nd Floor

Lower Leve / Wine Room

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Elegant Home Plan with In-Law Suite - 23200JD floor plan - Lower Leve / Wine Room

Plan details

Square Footage Breakdown

Total Heated Area: 4,684 sq. ft.
Lower Level: 375 sq. ft.
1st Floor: 2,661 sq. ft.
2nd Floor: 1,648 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 82' 0"
Depth: 86' 0"
Max ridge height: 34' 5"

Garage

Type: Attached
Area: 941 sq. ft.
Count: 3 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 10 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections
