Plan 36284TX Elegant Home Plan with Indoor Grotto

4,075 4 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Elegant Home Plan with Indoor Grotto

Plan 36284TX

  • 4,075

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This luxury home plan is filled with special features such as a spectacular step-down indoor grotto with wine bar and fireplace.
  • The two-story foyer leads back into the large informal area of the home with its open floor plan.
  • An extra-large kitchen offers plenty of counter space and a walk-in pantry closet. A small patio off the breakfast nook is a nice touch.
  • The first floor master suite has a tray ceiling and a lovely curved wall of windows that bathes the room in natural light.
  • A private study off the landing of the stairs is on its own level.
  • Continue on up the stairs to enjoy the enormous game room. Everyone will love family movie night in the large media room with a raised floor section.
  • Three bedrooms have their own baths. Bedroom 2 has a nice sitting area and a vaulted ceiling.
  • Related Plans: Get Mediterranean styling with house plan 36281TX and 36283TX (similar plan, different room sizes).
  • Get an alternate exterior and 3 bedrooms with house plan 36285TX (3 bedrooms).

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

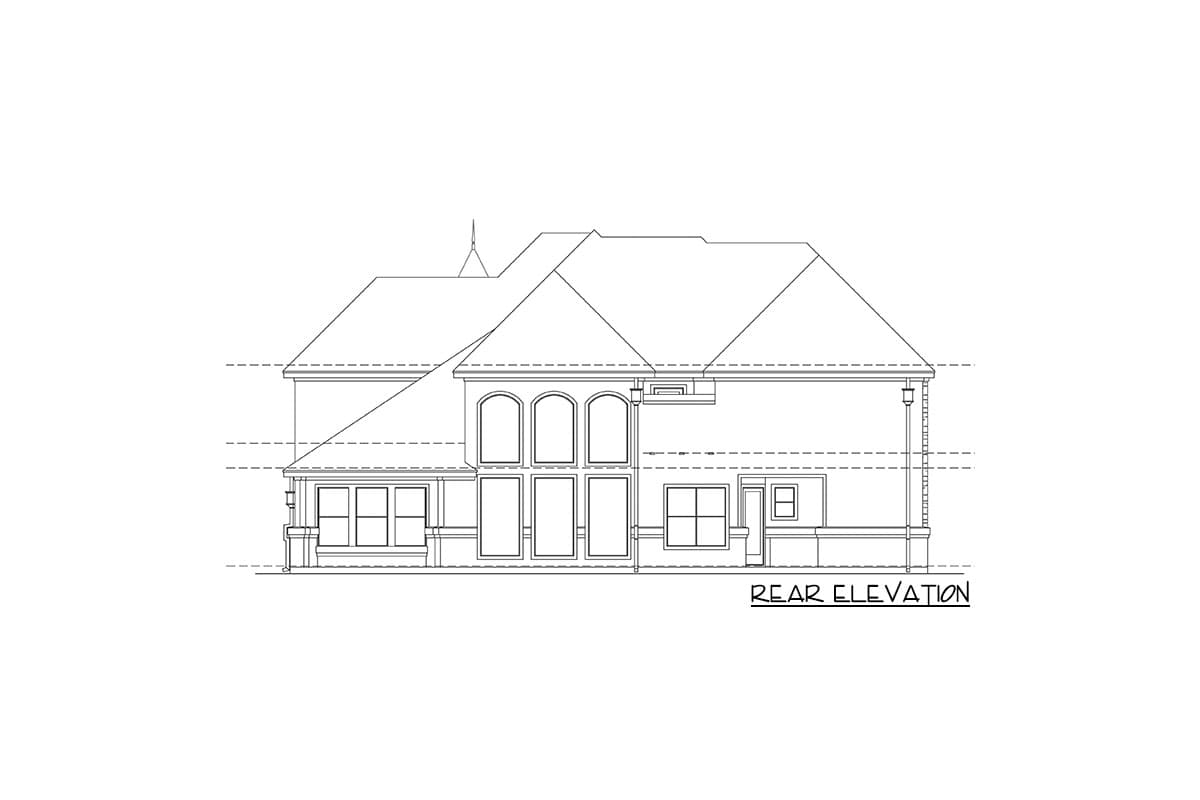

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

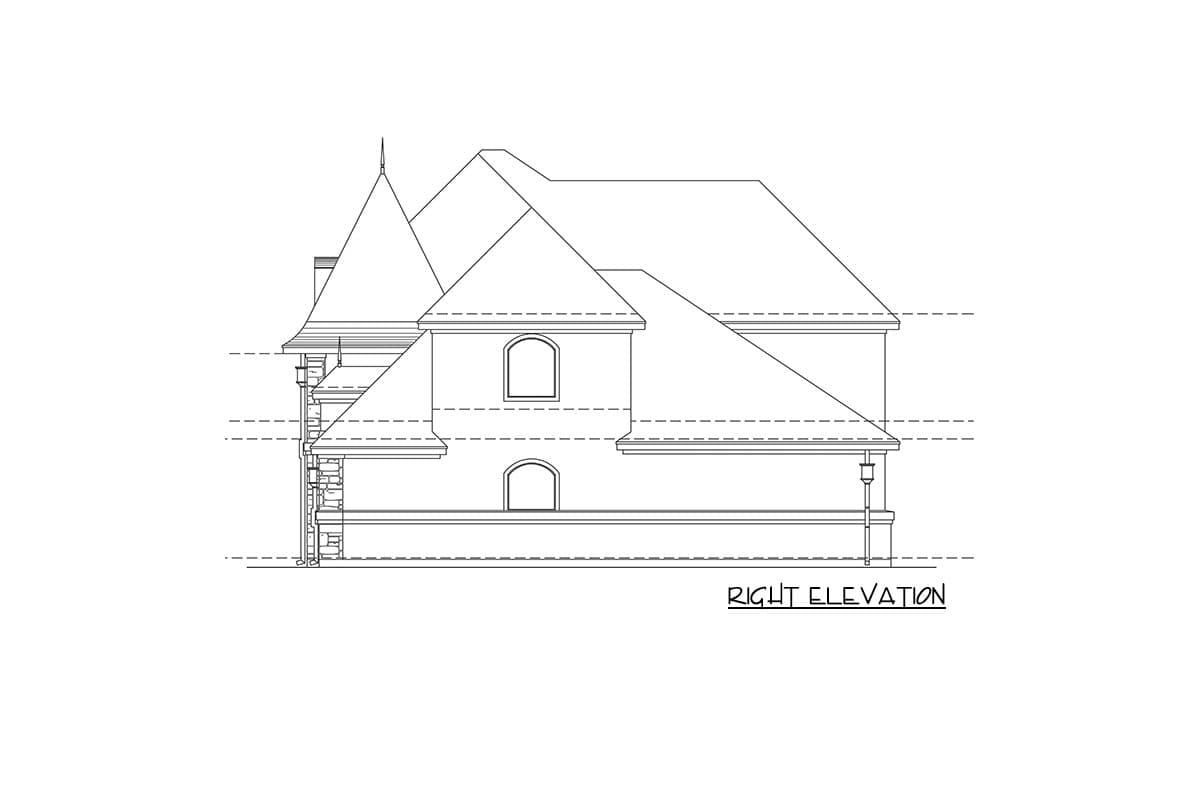

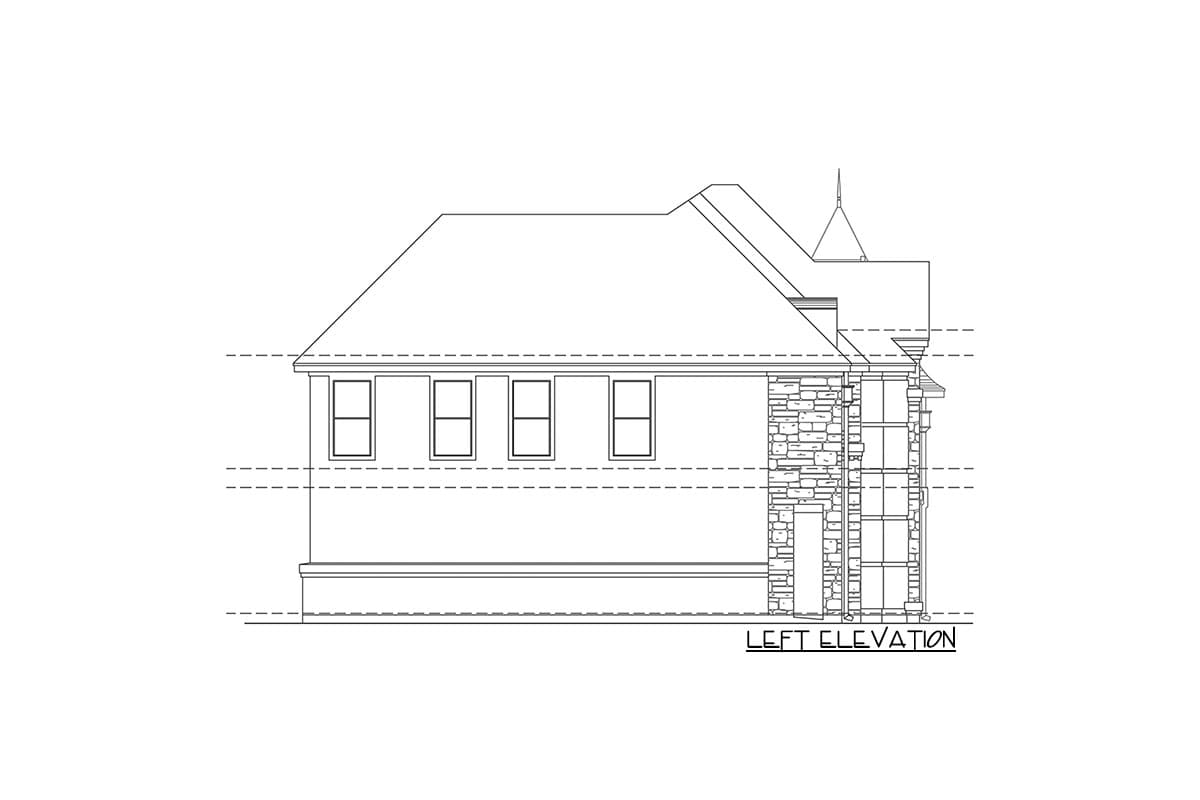

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

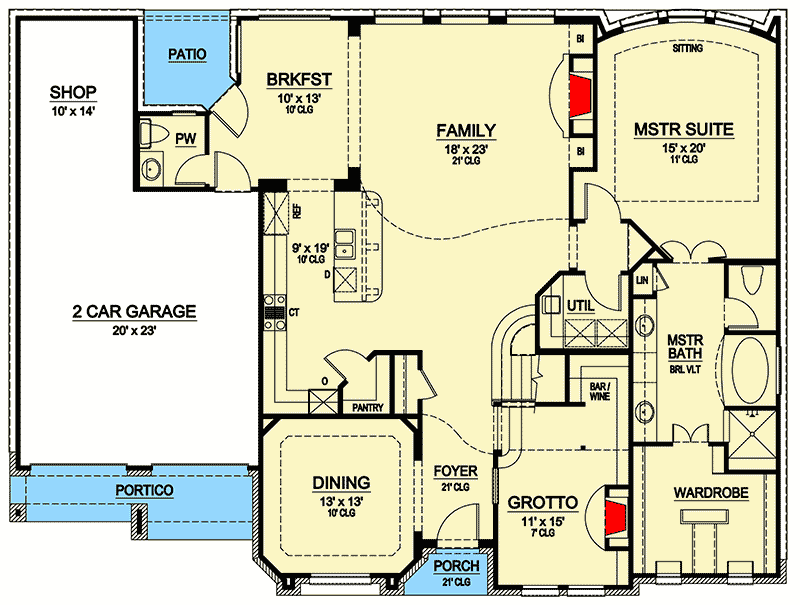

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Elegant Home Plan with Indoor Grotto - 36284TX floor plan - Main Level

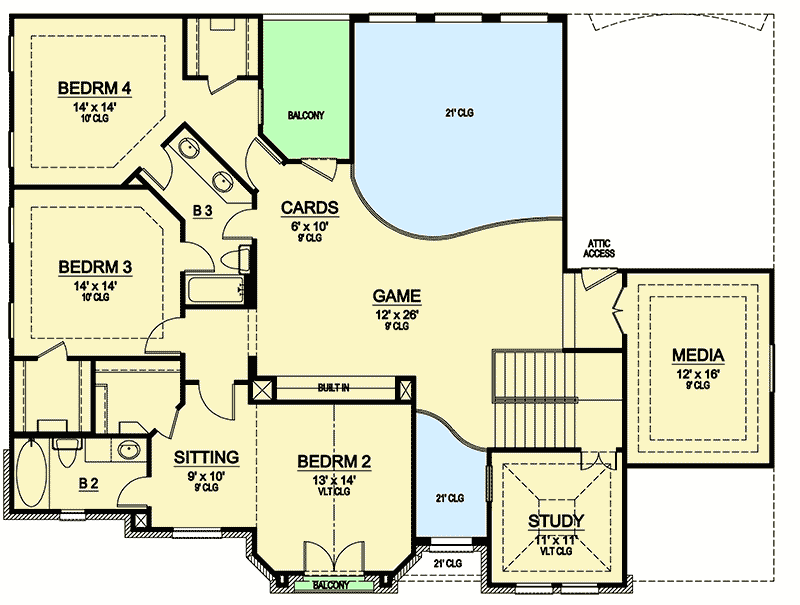

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Elegant Home Plan with Indoor Grotto - 36284TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,075 sq. ft.
  • 1st Floor: 2,157 sq. ft.
  • 2nd Floor: 1,918 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 0"
  • Depth: 49' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 632 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Elegant Home Plan with Indoor Grotto

  • 4,075

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,515
  • 5 Sets $1,715
  • CAD + PDF - Single Build $2,275
  • View all purchase option online

About This Plan

  • This luxury home plan is filled with special features such as a spectacular step-down indoor grotto with wine bar and fireplace.
  • The two-story foyer leads back into the large informal area of the home with its open floor plan.
  • An extra-large kitchen offers plenty of counter space and a walk-in pantry closet. A small patio off the breakfast nook is a nice touch.
  • The first floor master suite has a tray ceiling and a lovely curved wall of windows that bathes the room in natural light.
  • A private study off the landing of the stairs is on its own level.
  • Continue on up the stairs to enjoy the enormous game room. Everyone will love family movie night in the large media room with a raised floor section.
  • Three bedrooms have their own baths. Bedroom 2 has a nice sitting area and a vaulted ceiling.
  • Related Plans: Get Mediterranean styling with house plan 36281TX and 36283TX (similar plan, different room sizes).
  • Get an alternate exterior and 3 bedrooms with house plan 36285TX (3 bedrooms).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,075 sq. ft.
  • 1st Floor: 2,157 sq. ft.
  • 2nd Floor: 1,918 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 65' 0"
  • Depth: 49' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 632 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
Plan 36284TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36284TX
|
