Elegant Modern Farmhouse Plan with Split Bedroom Layout

Plan 51834HZ

  • 2,847

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This elegant modern farmhouse plan offers an attractive board and batten exterior, with a shed dormer over the entry porch, ornamented by exposed rafter tails.
  • The split floor plan provides a home office just off the foyer, and a great room with 12' ceilings that opens to the kitchen.
  • The kitchen is perfect for entertaining, equipped with a walk-in pantry and massive eating bar. After dinner, relax on the spacious rear porch that opens up off the great room.
  • The private master suite has a great bathroom and a spacious walk-in closet. Three additional bedrooms on the opposite side of the home share a compartmentalized bath.
  • Enter the double garage from the side, and enjoy the mudroom amenities next to a half bath.

This designer's plans include the following details:

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

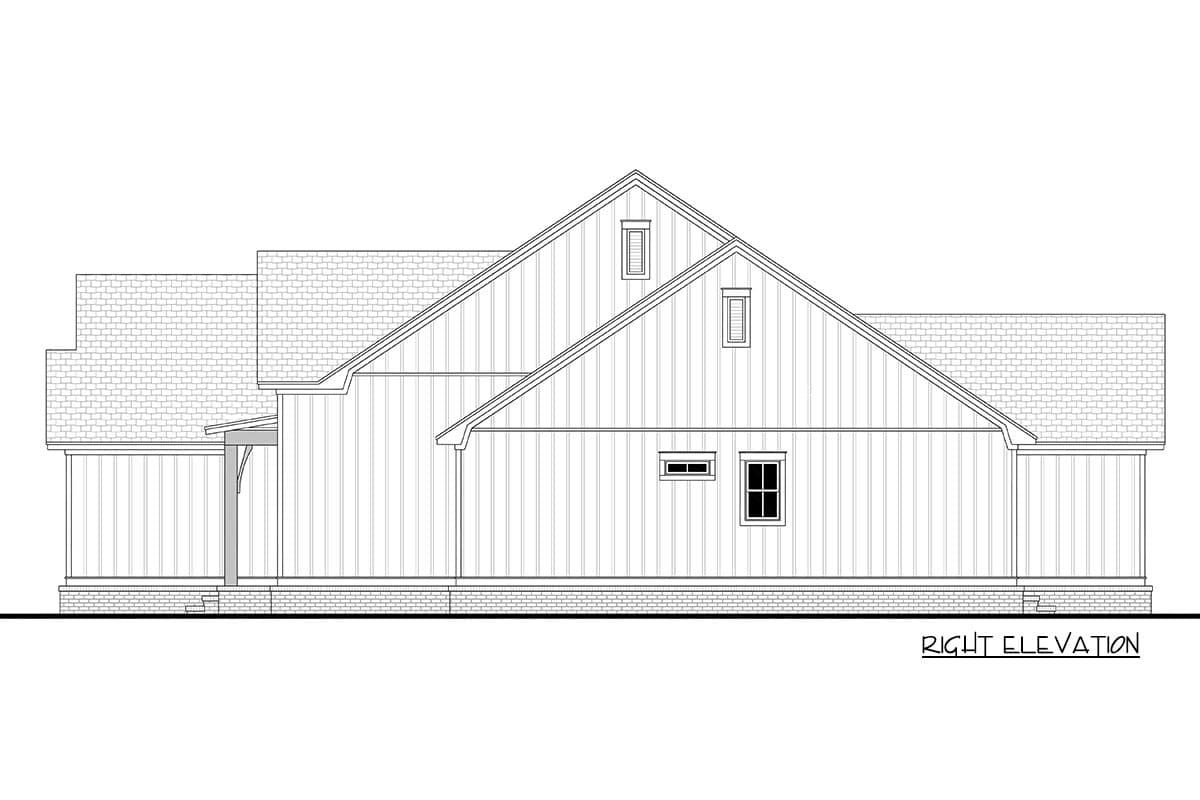

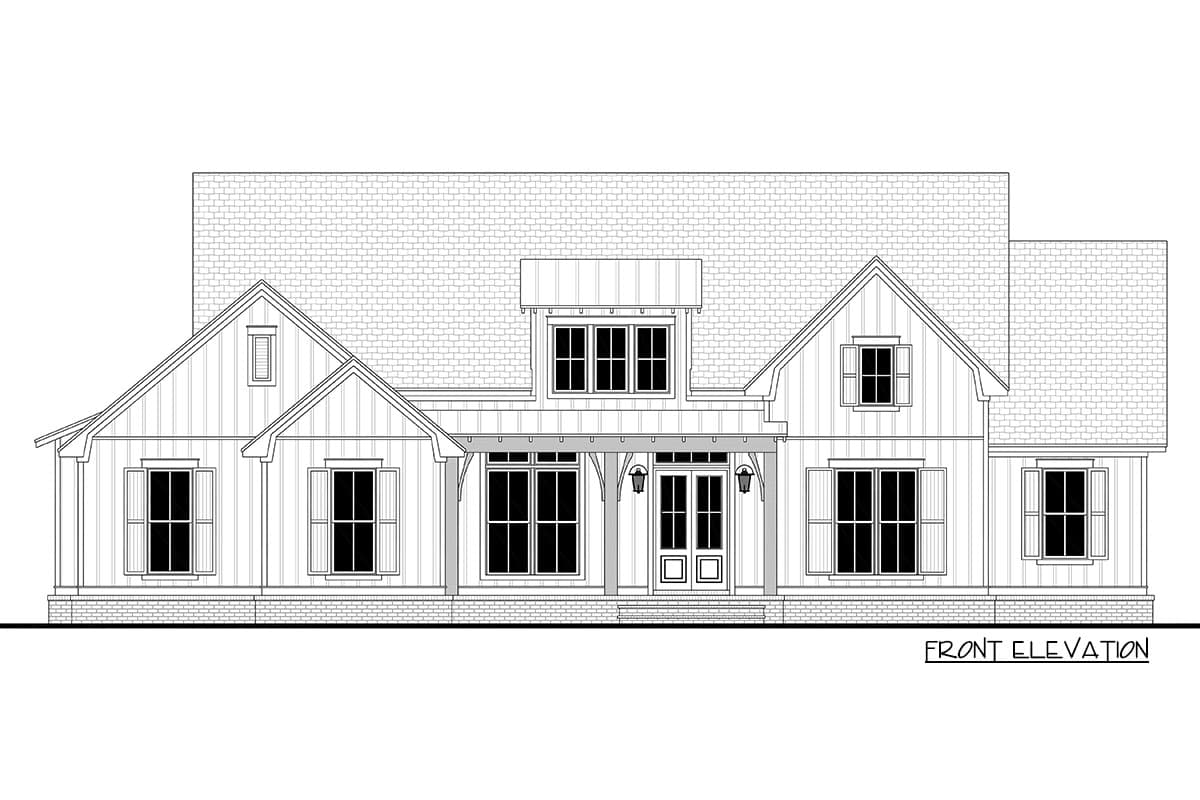

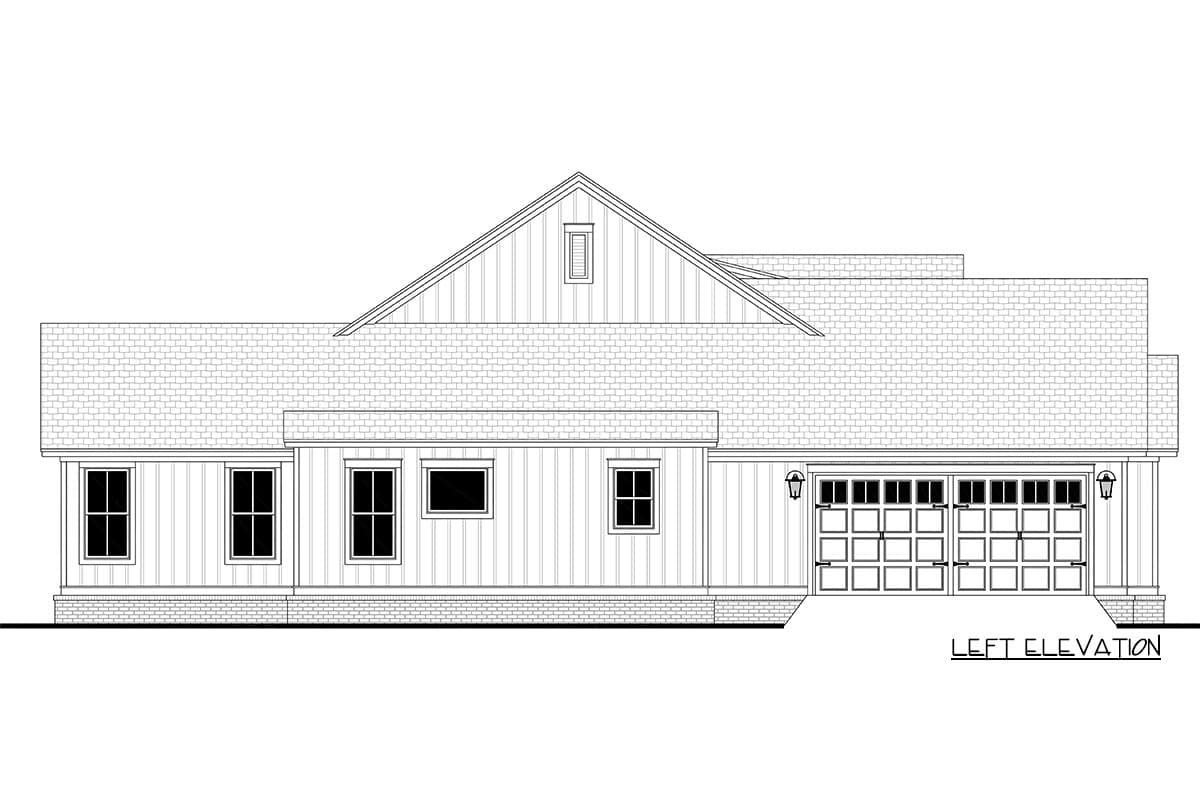

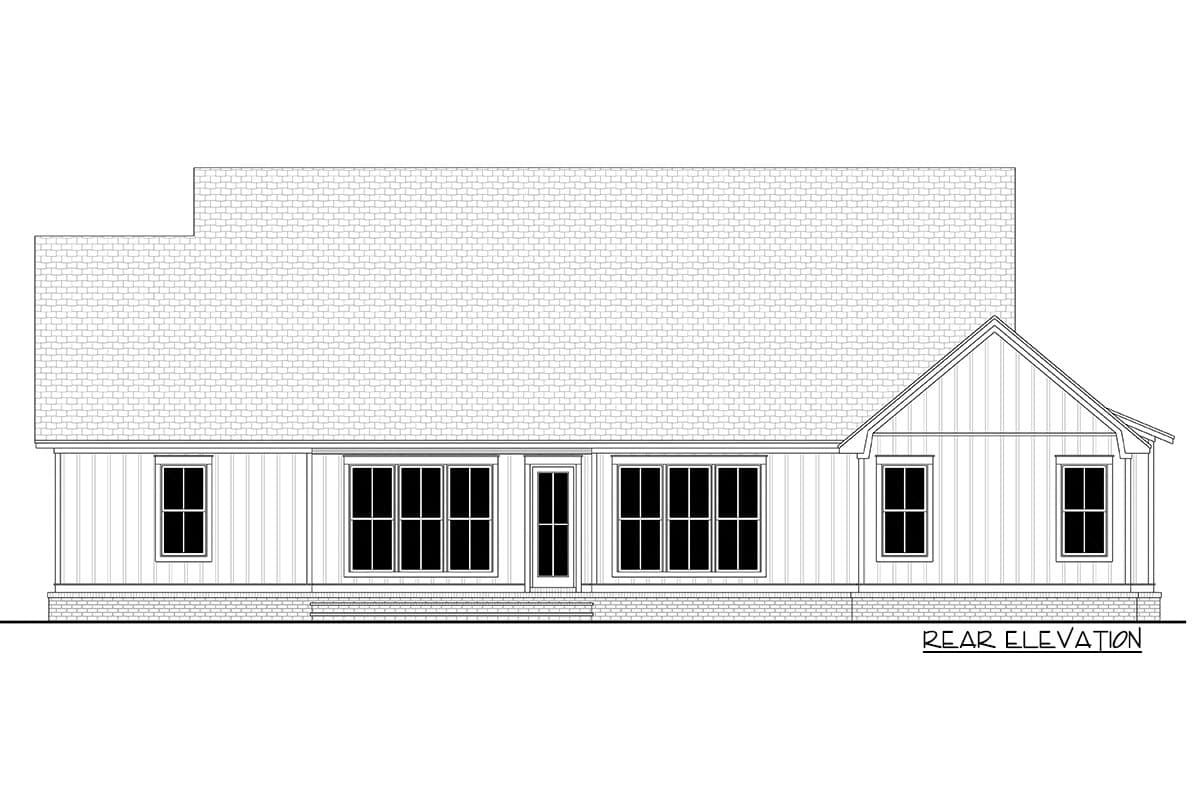

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

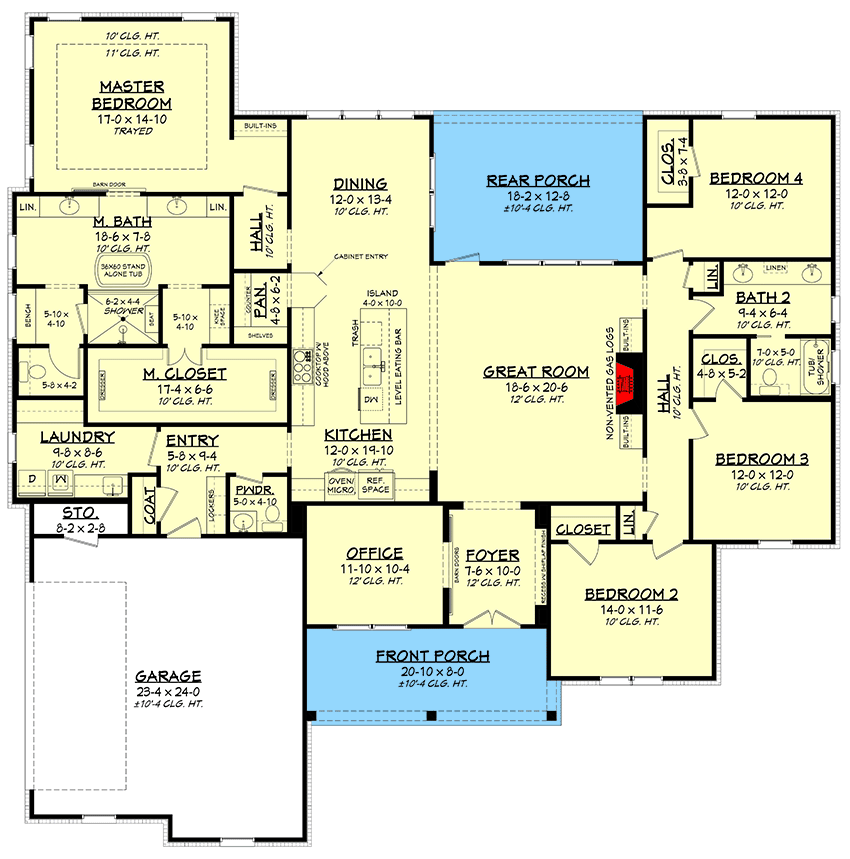

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Elegant Modern Farmhouse Plan with Split Bedroom Layout - 51834HZ floor plan - Main Level

Basement Stairs

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

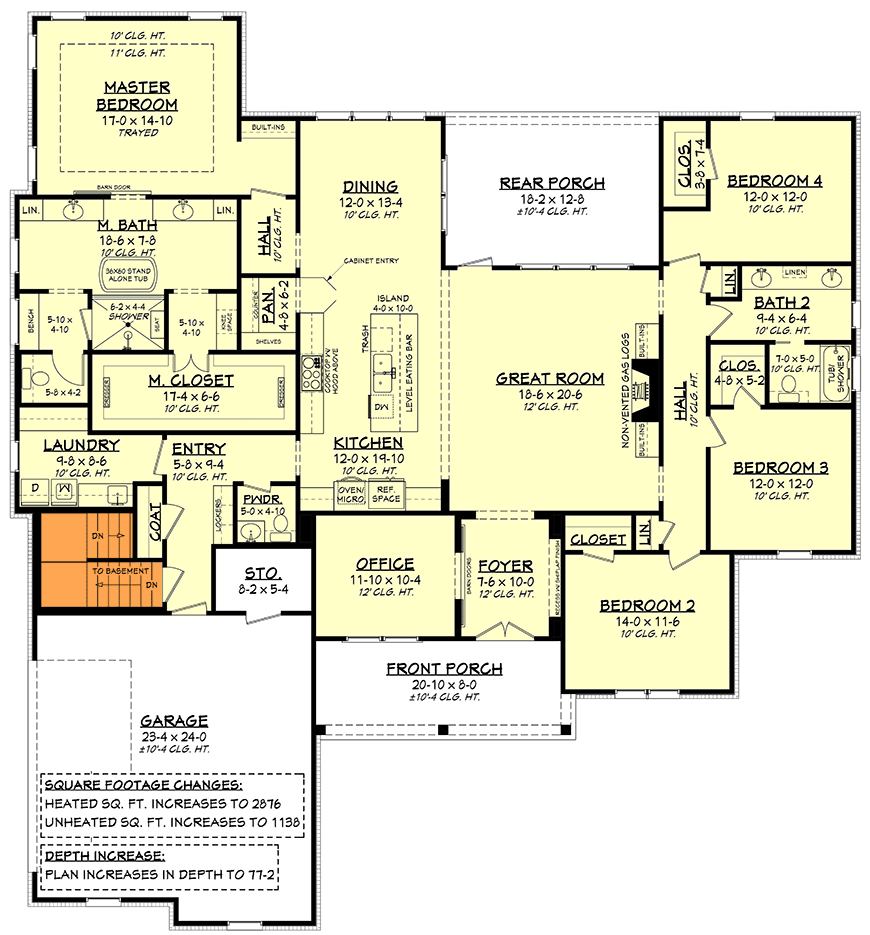

Elegant Modern Farmhouse Plan with Split Bedroom Layout - 51834HZ floor plan - Basement Stairs
