Plan 36549TX
Elegant Traditional 3-Bed Home Plan
Heated S.F.
2,572
Beds
3
Baths
3
Stories
1
Cars
3
What's Included
Plan Details
  • This one-story  traditional house plan has 12’ ceilings, block pane windows, and great curb appeal.
  • The front entry has an arched opening with transos and sidelites and welcomes you the foyer.
  • The foyer is flanked by the family room to the left, complete with dramatic fireplace, built-ins and access to the covered patio, and the elegant dining room to the right, set off by large, decorative columns.
  • Follow the hall down the right and you get to the family bedroom with walk-in closet and full bath. Continuing down the hall you get to the master suite which enjoys access to the patio. The master bath has his and hers vanities, a separate glass shower and tile garden tub. The master suite has direct access to the laundry room.
  • The kitchen and breakfast rooms are centrally located. The kitchen offers plenty of counter space and storage.
  • A family bedroom off the breakfast room has a full bath and walk-in closet.
  • A 3-car, courtyard-entry garage completes this elegant classic traditional house plan.
What's Included
  • Cover sheet
  • Foundation Plan
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

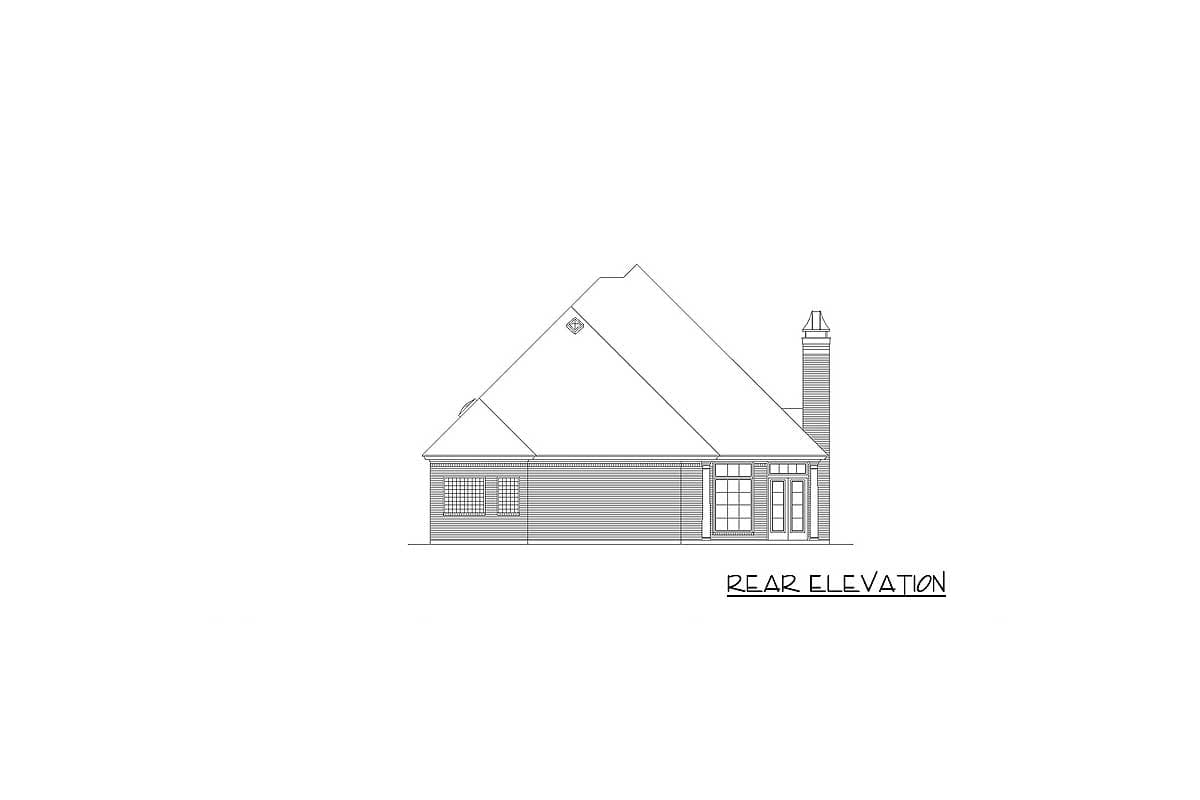

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

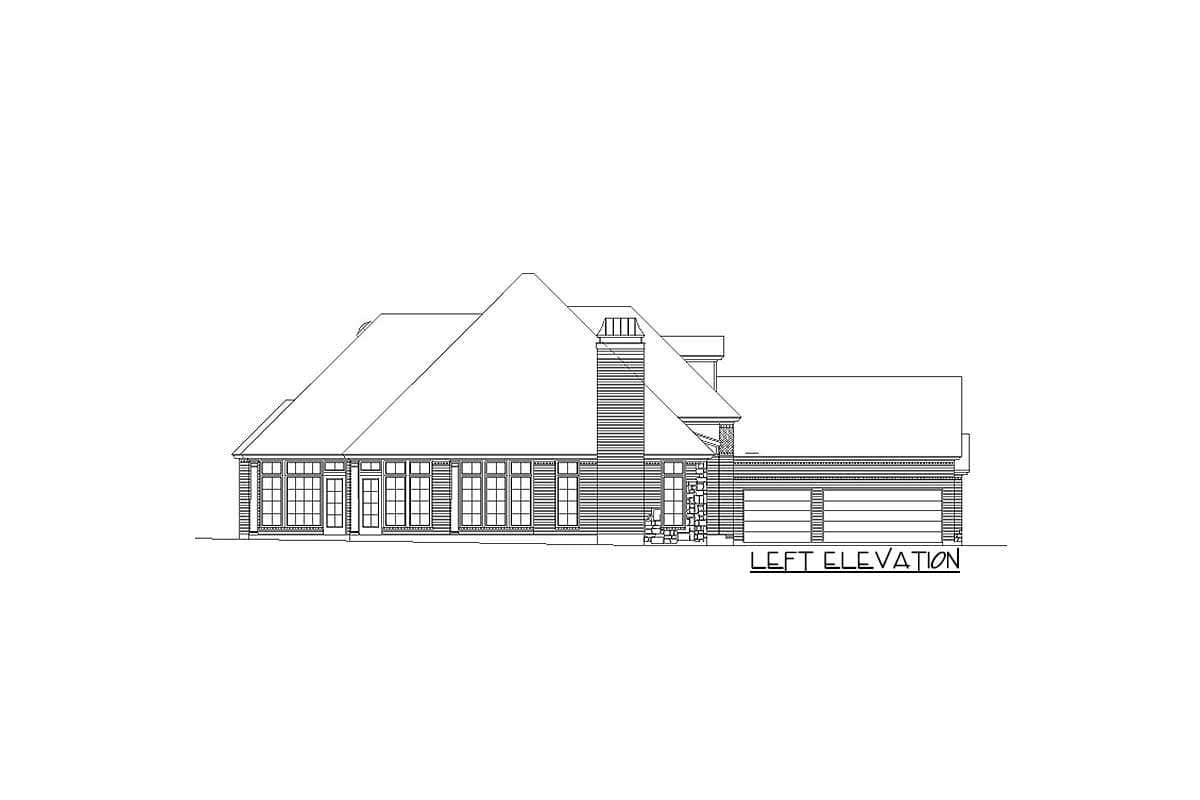

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Elegant Traditional 3-Bed Home Plan

  • 2,572

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

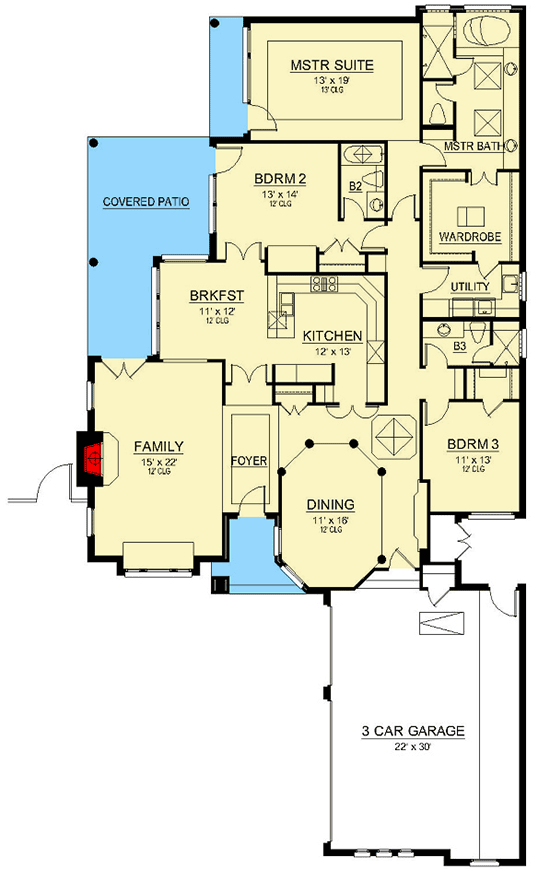

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,572 sq. ft.
  • 1st Floor: 2,572 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 98' 0"
  • Max ridge height: 37' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 763 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"
