Plan 77642FB

Exclusive

Enchanting 4-Bed Craftsman House Plan with In-Law Suite and Bonus Room

Heated S.F.
4,245
Beds
4
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 77642FB

Main Floor
Main Floor
2nd Floor
2nd Floor
Basement Unfinished
Basement Unfinished

Plan 77642FB

M-F 9am-5pm EST |

1-203-761-8500

Main Floor

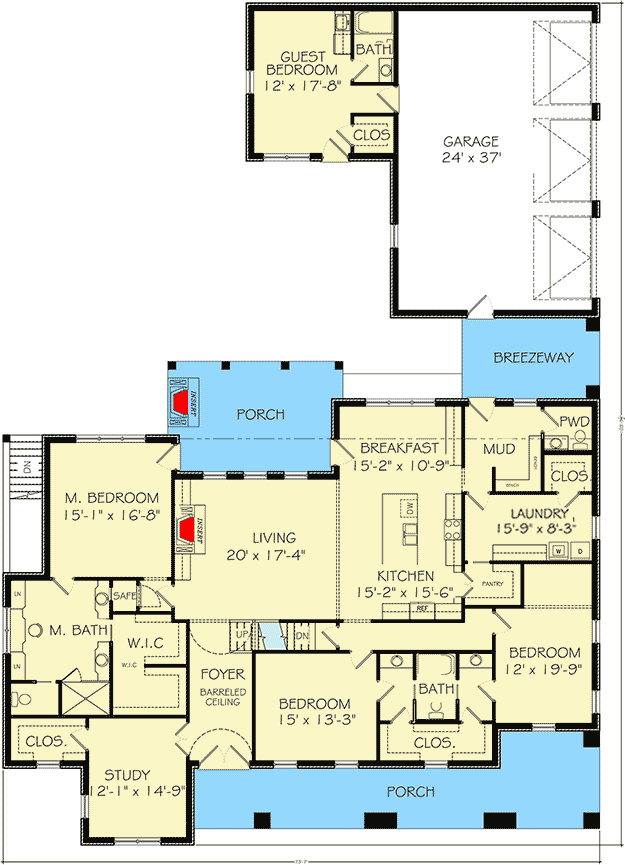

Plan 77642FB: Enchanting 4-Bed Craftsman House Plan with In-Law Suite and Bonus Room - Floor Plan - Main Floor

2nd Floor

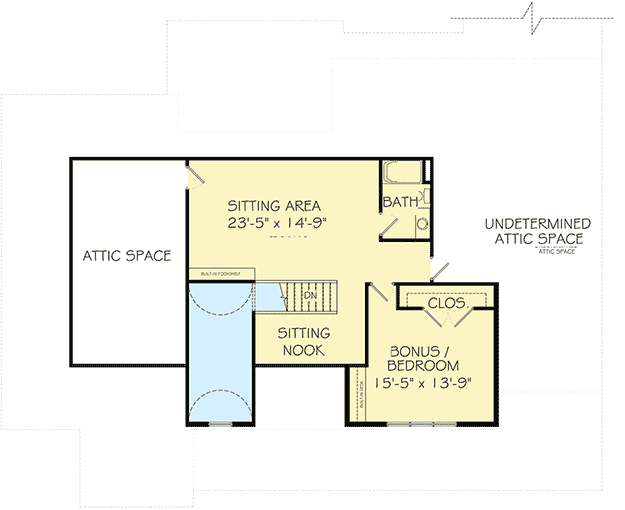

Plan 77642FB: Enchanting 4-Bed Craftsman House Plan with In-Law Suite and Bonus Room - Floor Plan - 2nd Floor

Basement Unfinished

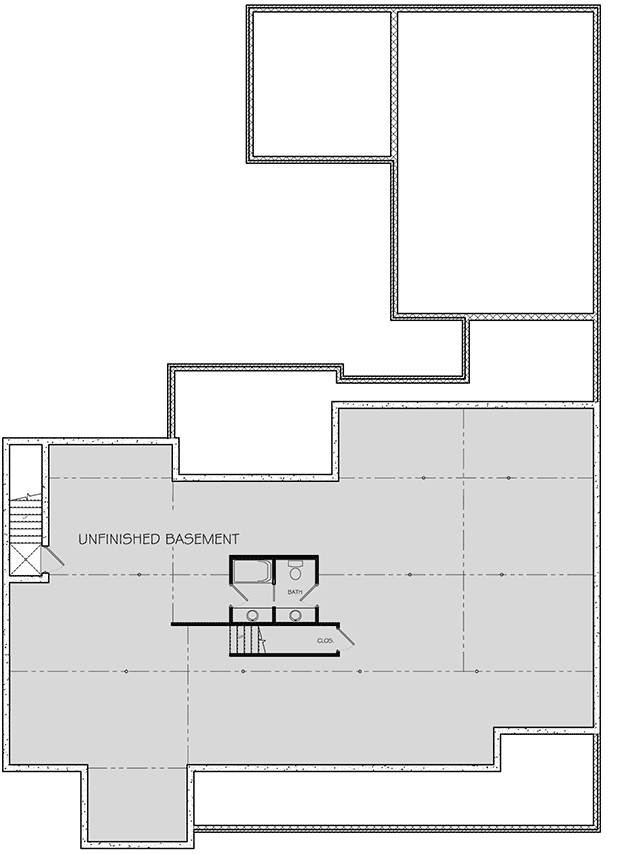

Plan 77642FB: Enchanting 4-Bed Craftsman House Plan with In-Law Suite and Bonus Room - Floor Plan - Basement Unfinished

Plan Details

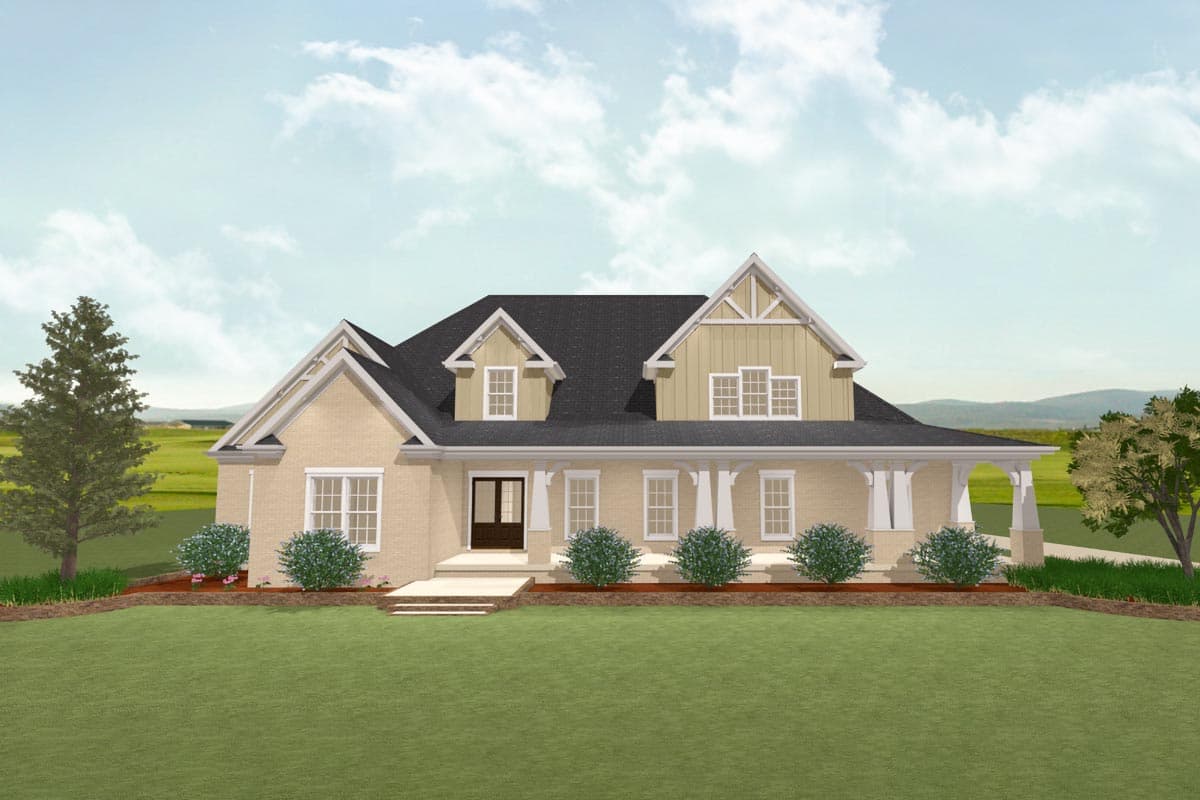

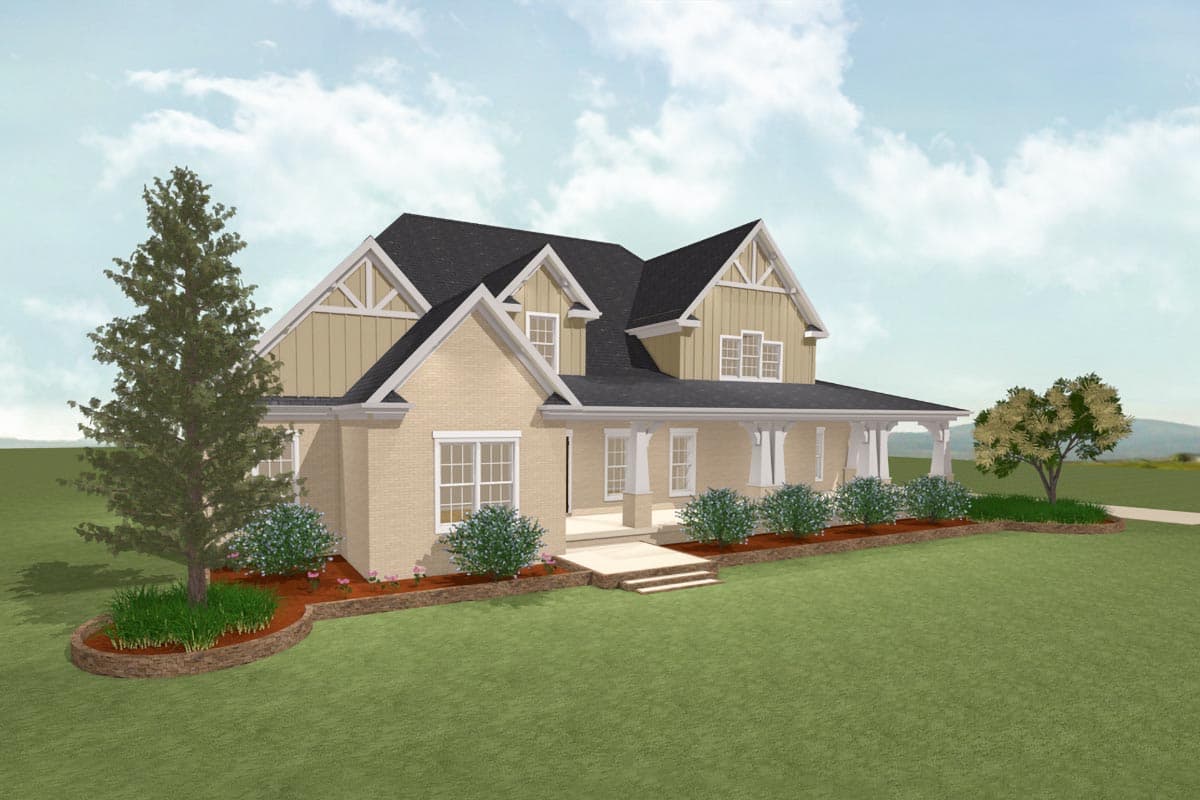

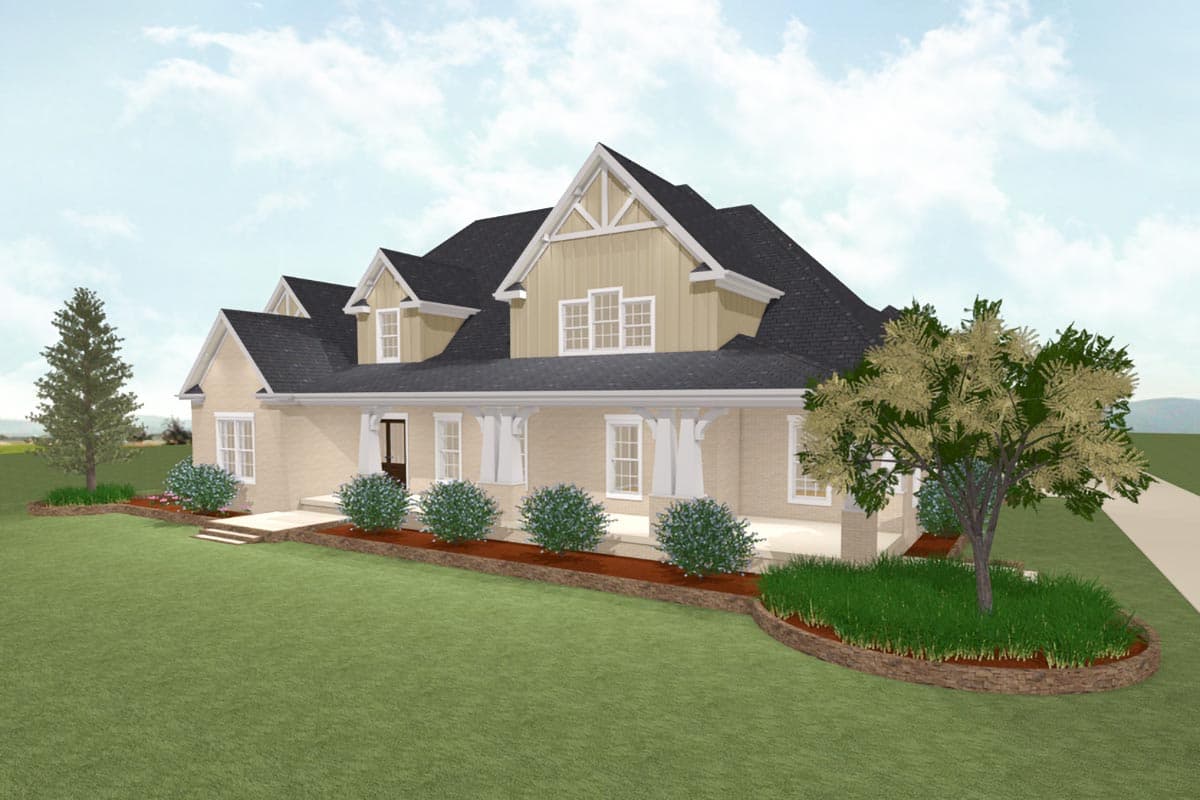

  • An expansive, covered front porch welcomes you home to this 4-bedroom, craftsman house plan featuring decorative, gabled roofs, board and batten siding, and an in-law suite attached to the 3-car garage.

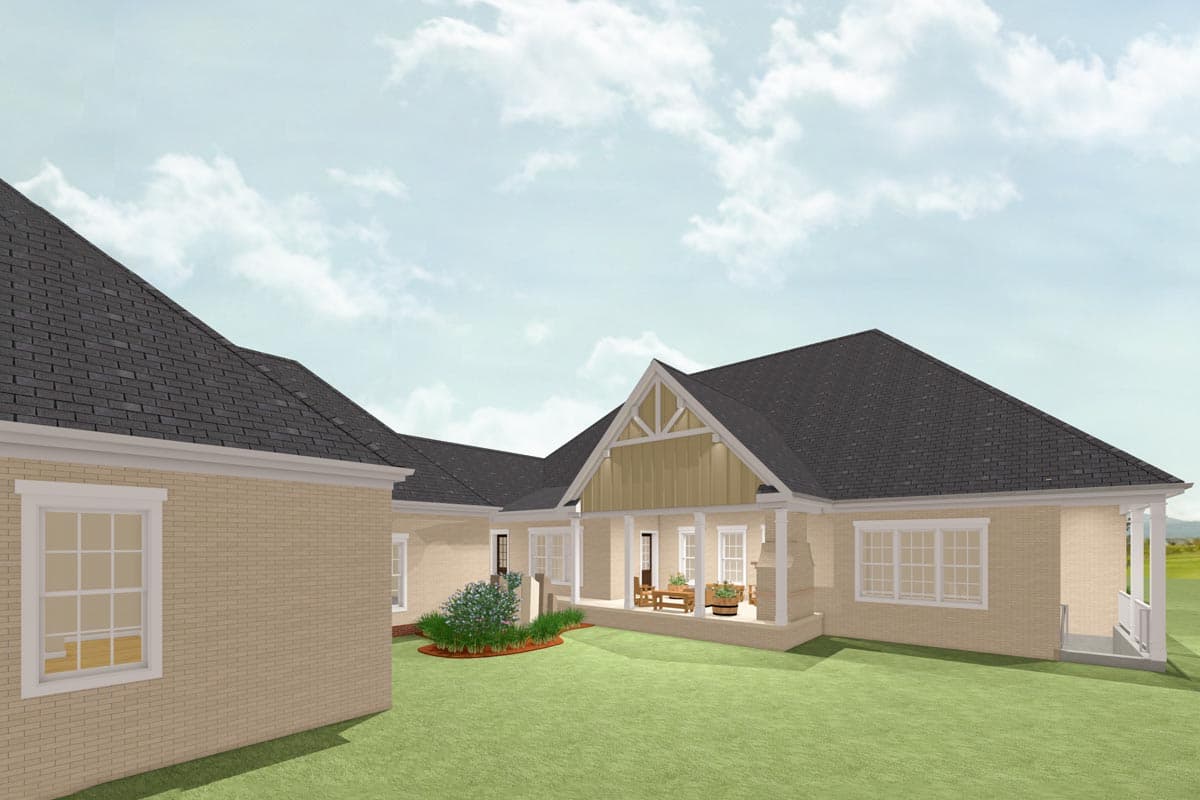

  • The living room is centered around a grand fireplace with surrounding built-ins and overlooks the covered, back porch. With the open-concept floor plan, entertaining is a delight, and the kitchen's oversized island assists with meal preparation.
  • The mudroom, laundry room, and walk-in pantry are within steps of the 3-car garage, simplifying the delivery of groceries.
  • On one side of the home, your first-floor, master suite awaits and boasts a 4-fixture bathroom, his and her closets, and access to the back porch. A built-in, closeted safe is just off the master suite. Two additional bedrooms share a Jack-and-Jill bathroom with a walk-in closet.
  • Upstairs, a private bedroom is perfect for guests and resides next to a large sitting room.
  • A breezeway separates the home from the 3-car garage and secluded, in-law suite which your guests are sure to enjoy. A quiet study resides just off the foyer, and could serve as an additional bedroom should you need room to grow.

What's Included

  • Cover page
  • Foundation plan
  • Floor Plan

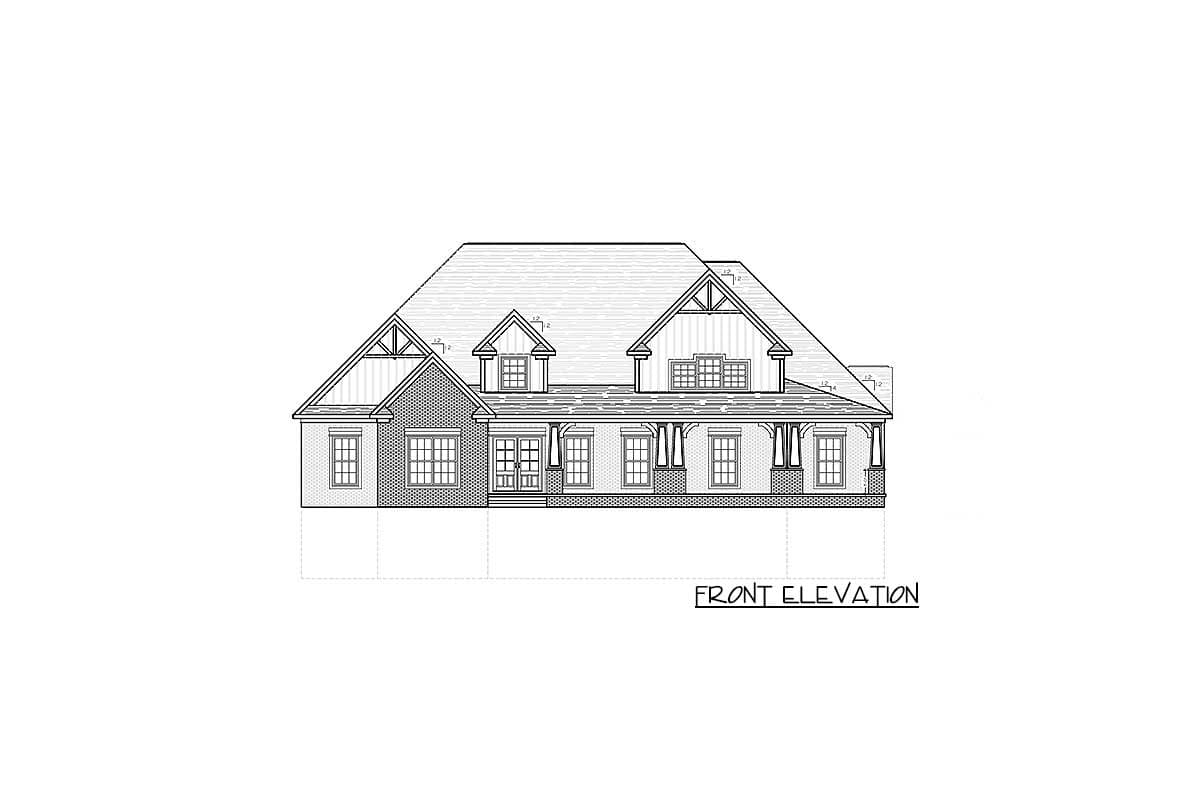

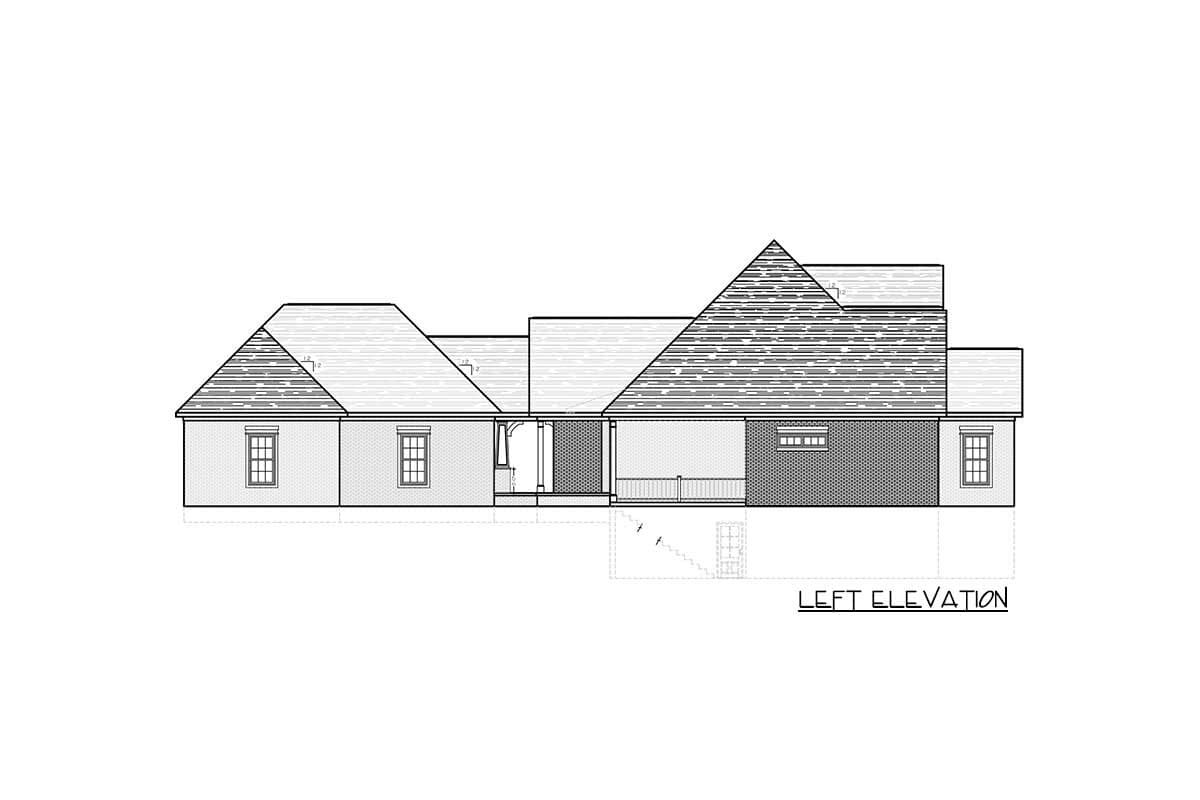

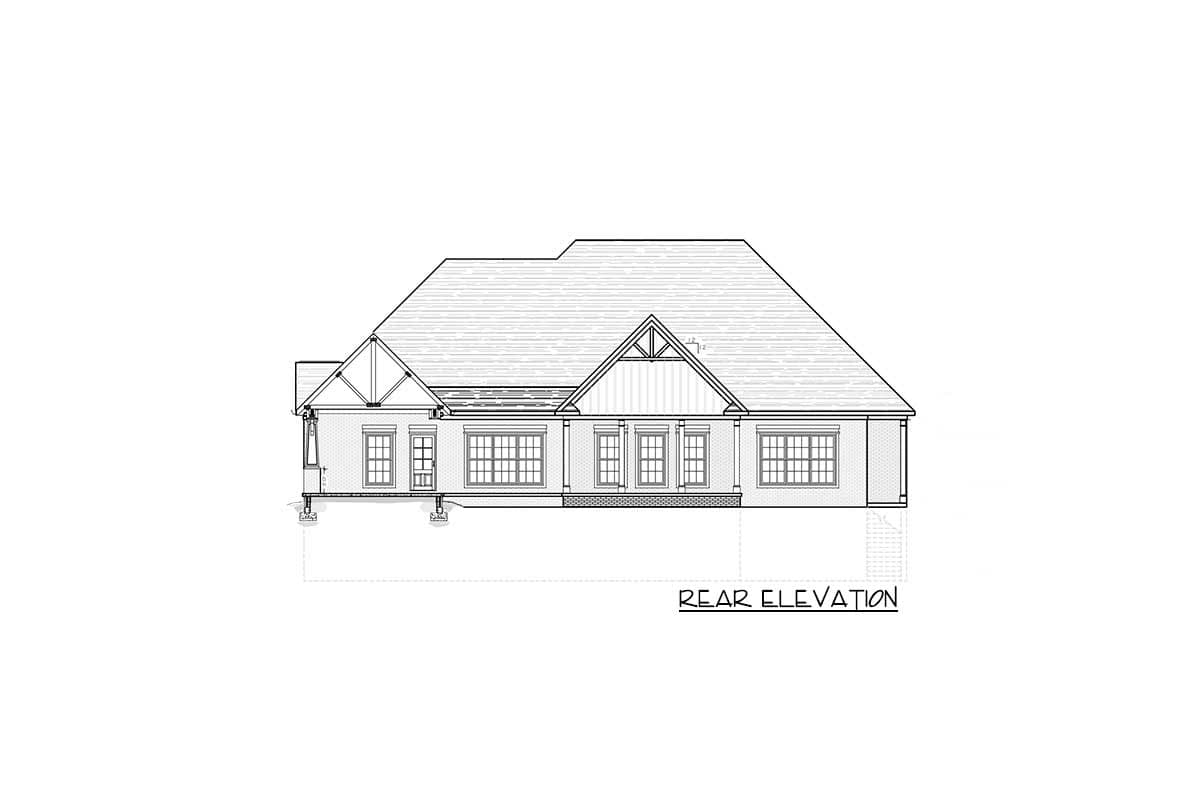

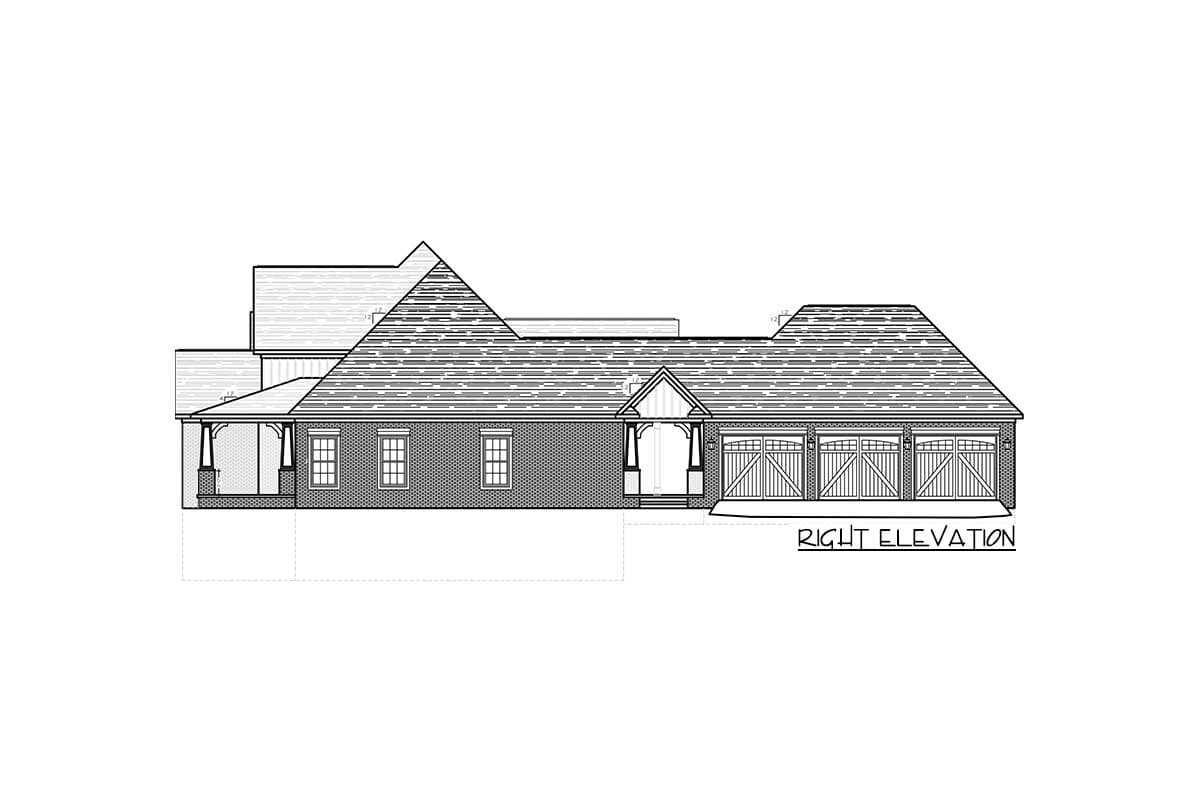

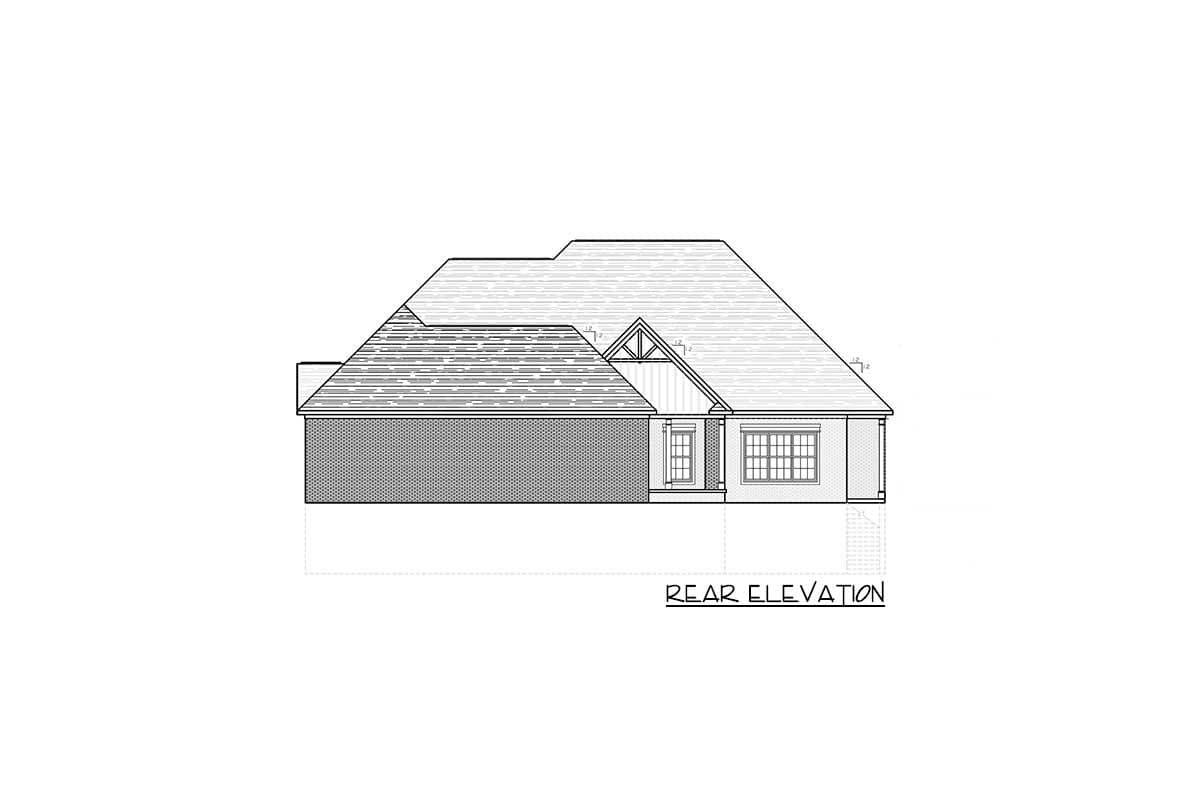

  • Elevations
  • Section View
  • Construction details
  • Electrical Layout
  • Roof Plan (if needed)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,245 sq. ft.

1st Floor

2,974 sq. ft.

2nd Floor

1,271 sq. ft.

Basement Unfinished

2,859 sq. ft.

Apartment

333 sq. ft.

Porch, Combined

921 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

73' 7"

Depth

103' 8"

Max Ridge Height

33' 3"

Garage

Type

Attached

Area

950 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Special Features

Bedrooms - Split

In-Law Suite

Jack & Jill Bath

Library/Study

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

4,245 sq. ft.

1st Floor

2,974 sq. ft.

2nd Floor

1,271 sq. ft.

Basement Unfinished

2,859 sq. ft.

Apartment

333 sq. ft.

Porch, Combined

921 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

73' 7"

Depth

103' 8"

Max Ridge Height

33' 3"

Garage

Type

Attached

Area

950 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Special Features

Bedrooms - Split

In-Law Suite

Jack & Jill Bath

Library/Study

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Walk-in Pantry

Plan Collections

Exclusive
