Plan 5531BR
Energy Efficiency and Outdoor Living Space
Heated S.F.
1,792
Beds
3
Baths
2
Stories
1
Cars
2

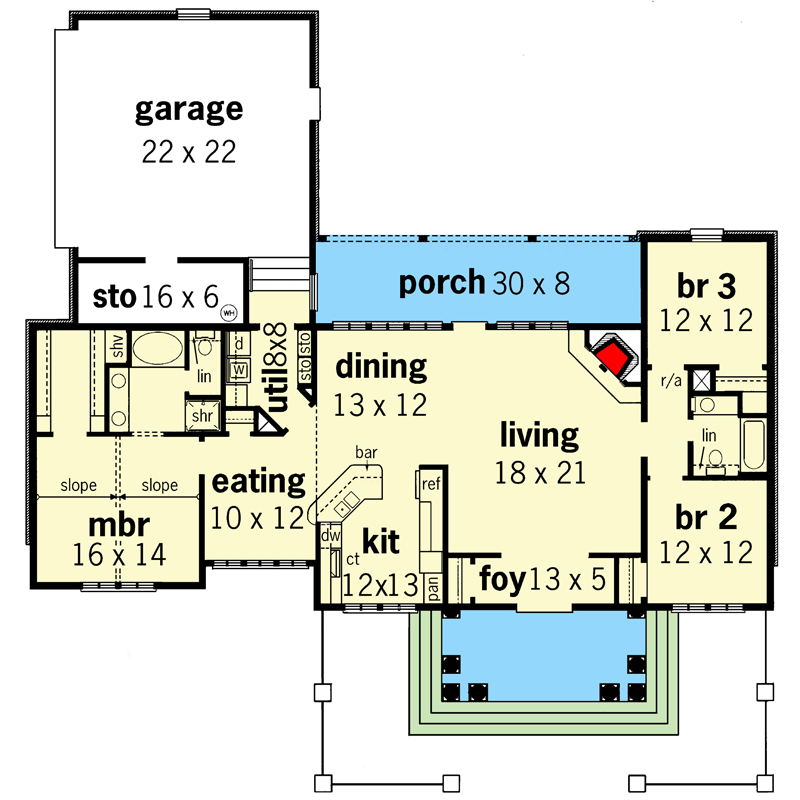

Floor Plan

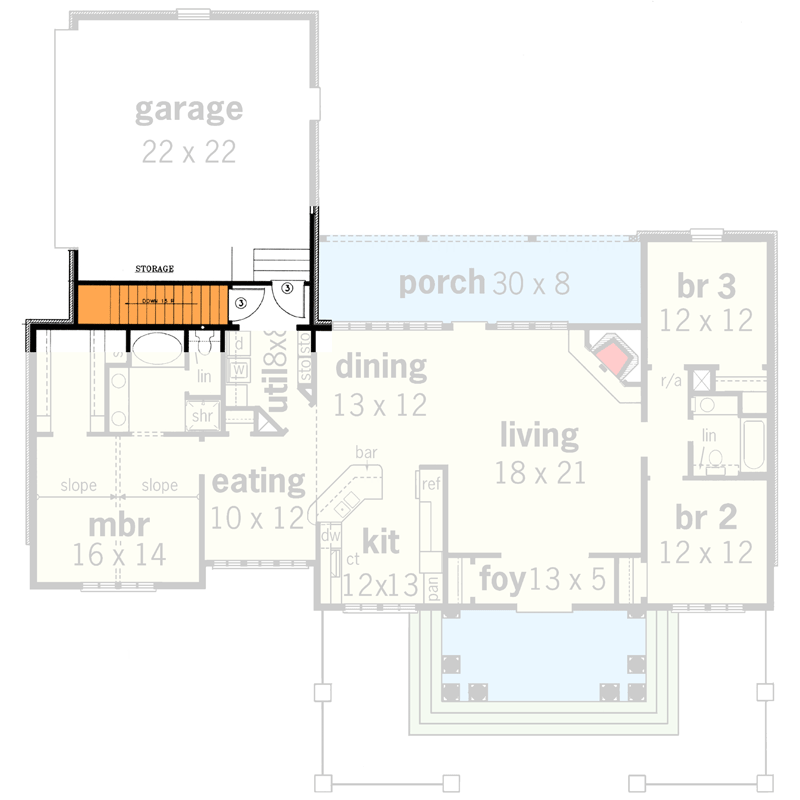

Basement Stairs Location
Reverse Floor Plan
Energy Efficiency and Outdoor Living Space - 5531BR floor plan - Basement Stairs Location
Optional Basement Foundation
Reverse Floor Plan
Energy Efficiency and Outdoor Living Space - 5531BR floor plan - Optional Basement Foundation
Plan Details
  • Complementing the covered entry porch of this pleasant energy-efficient design, a larger covered porch in back extends to a deck and then a patio.
  • Inside, the living area rises to 12', as does bedroom two. The living and dining rooms form one large area with a corner fireplace adding warmth.
  • A cathedral ceiling tops the master bedroom, which along with a walk-in closet and a well-equipped bath, comprises a private suite.
  • Storage space is abundant. Note the storage room off the side-entry garage and the pull-down stairs to attic storage in both the garage and the hall.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required
