Plan 55136BR
Energy Efficient Craftsman Charmer
Heated S.F.
2,643
Beds
3
Baths
3
Stories
1-2
Cars
2
Floor Plan

Plan 55136BR

Main Level
slide image 0
Bonus
slide image 1

Plan 55136BR

1-800-854-7852

1-262-521-4596

Main Level

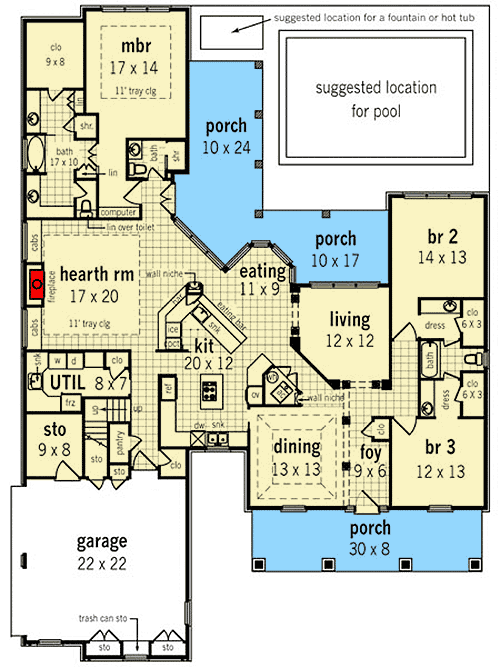

floor plan image Main Level
Bonus

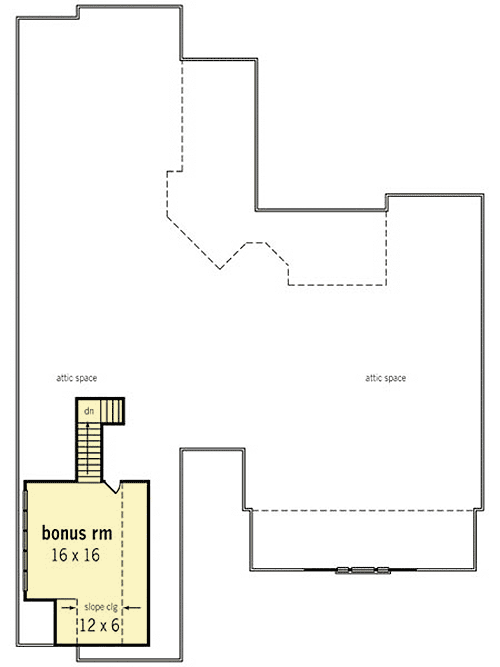

floor plan image Bonus
Plan Details
  • Built in decorative niches are a nice touch to this Craftsman home plan. There is even one on the master suite just inside the door.
  • This house plan features a centrally-located heat and AC and water heater for greater efficiency.
  • You'll enjoy the gourmet kitchen with eating bar, wet bar, ice maker, compactor, island, separate oven, cook top and nearby butlers pantry.
  • Both secondary bedrooms enjoy private dressing rooms
  • A half bath with shower is easily accessible from the suggested pool area.
What's Included
  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

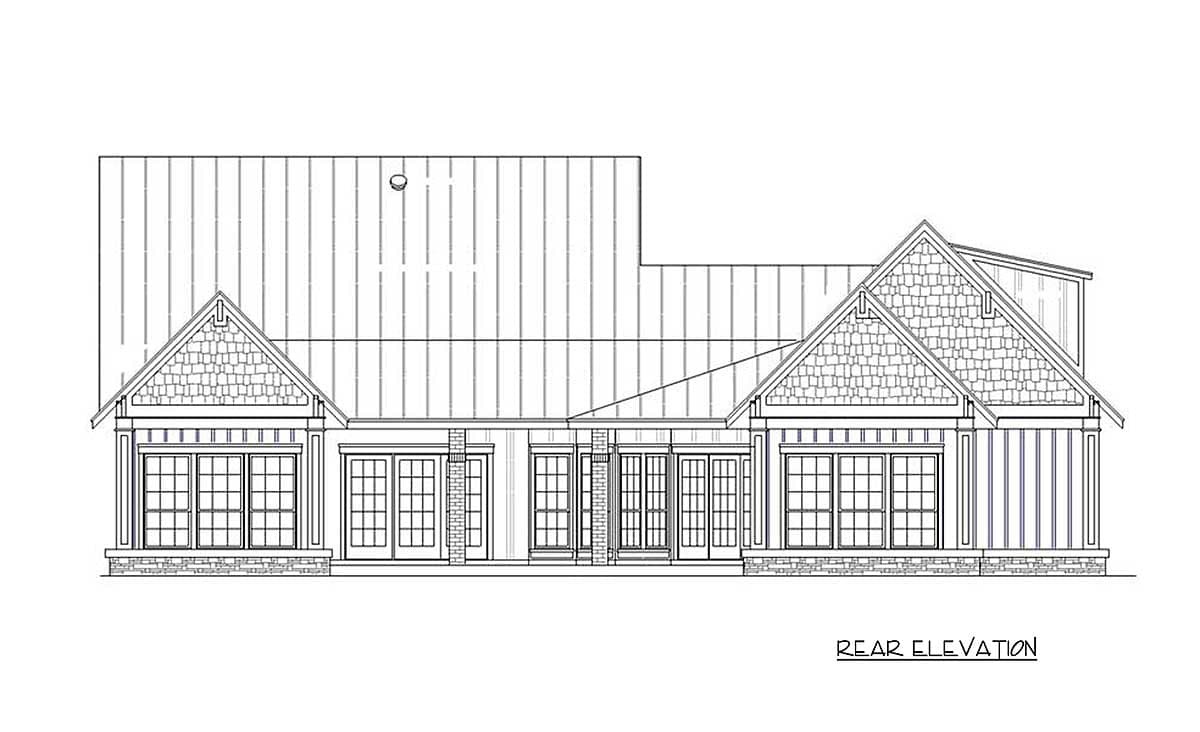

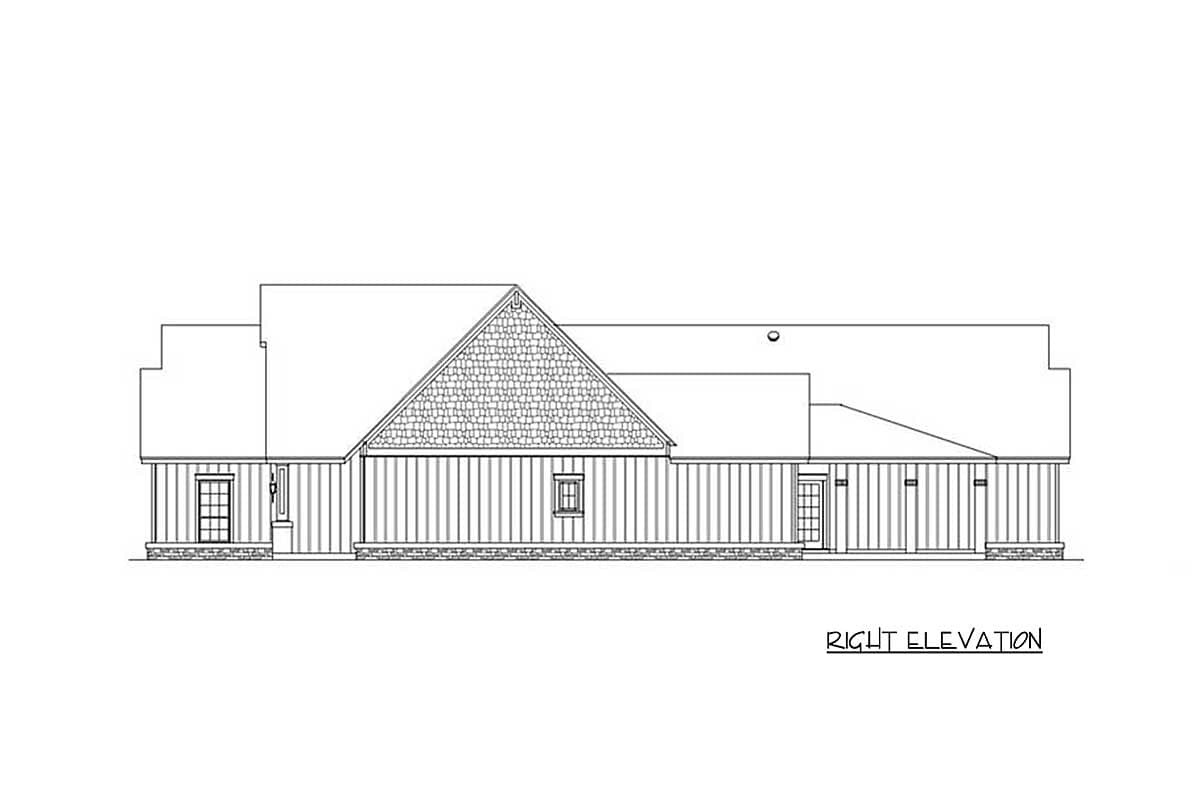

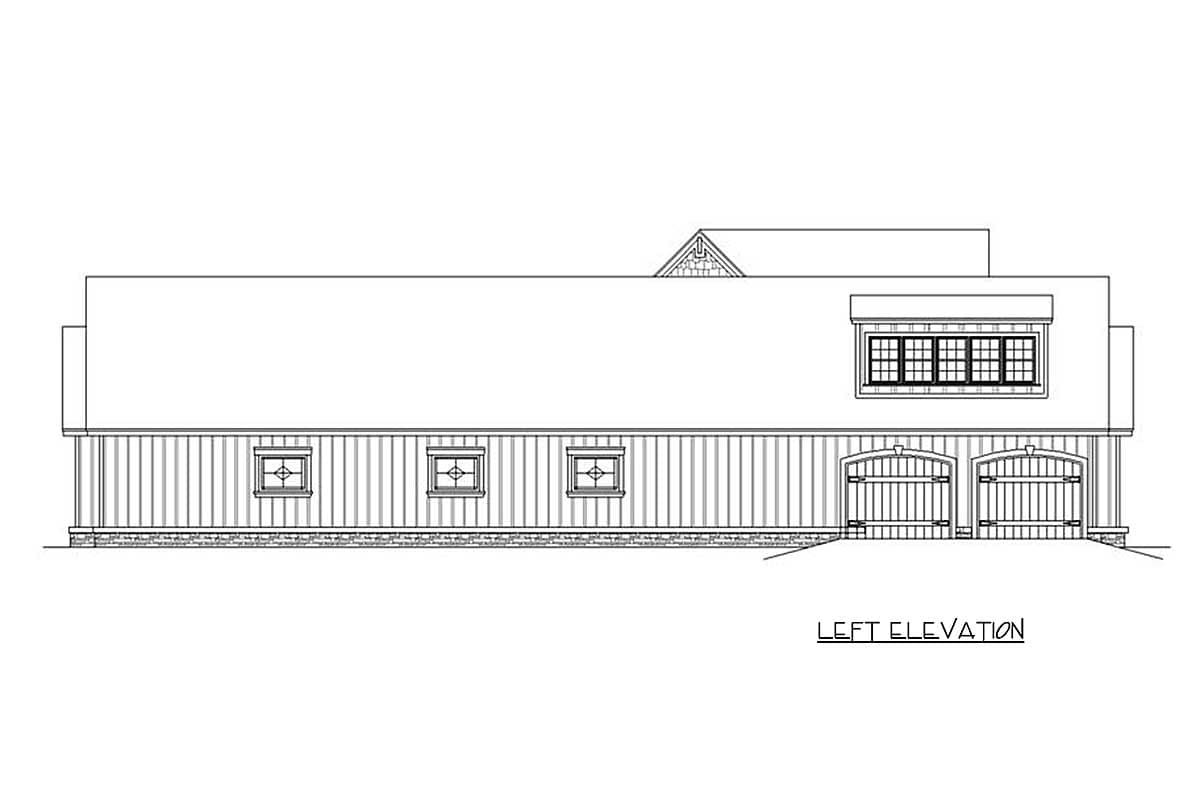

  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,643 sq. ft.

1st Floor

2,643 sq. ft.

Bonus

342 sq. ft.

Porch, Front

240 sq. ft.

Porch, Rear

422 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 0"

Depth

87' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

489 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

Special Features

Bedrooms - Split

Bonus Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Wet Bar

Square Footage Breakdown

Total Heated Area

2,643 sq. ft.

1st Floor

2,643 sq. ft.

Bonus

342 sq. ft.

Porch, Front

240 sq. ft.

Porch, Rear

422 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 0"

Depth

87' 0"

Max Ridge Height

30' 0"

Garage

Type

Attached

Area

489 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

Special Features

Bedrooms - Split

Bonus Room

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Wet Bar
