Plan 55142BR
Energy-Efficient Traditional Home
Heated S.F.
1,806
Beds
3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • The open living areas with high ceilings of this small home create the illusion of a much larger home.
  • French doors, transoms and large windows further enhance the open feeling of the main living spaces.
  • The master suite is cleverly designed to combine the sleeping area with a sitting area. The master bedroom will accommodate a king size bed arrangement plus a sofa and cocktail table in the sitting area.
  • The utility room offers built-in storage and cabinets plus a laundry sink and there is outside access for convenience as a mud room.
  • There is a floor to ceiling book cabinet conveniently located in the hallway and perfect for a students reference library.
  • Kitchen features include a raised eating bar, broom closet, pantry and double ovens.
  • There are numerous energy saving features designed to cut the heating and cooling cost in half without adding significant building cost.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Energy-Efficient Traditional Home

  • 1,806

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

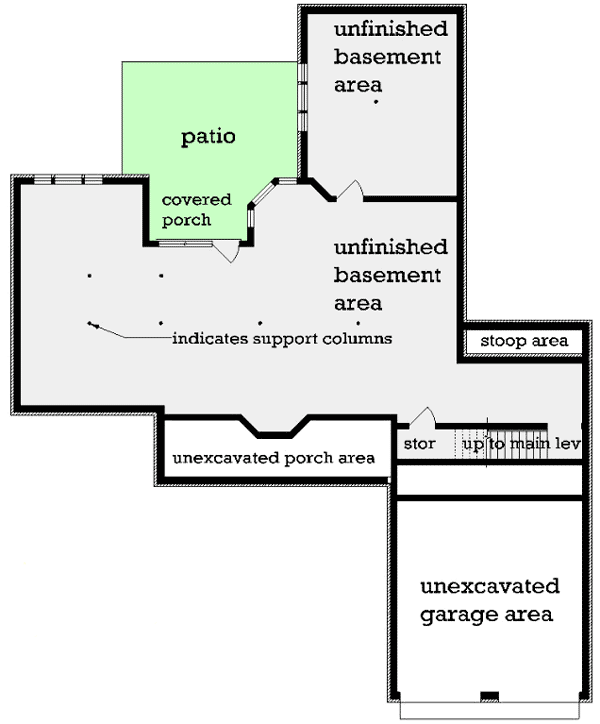

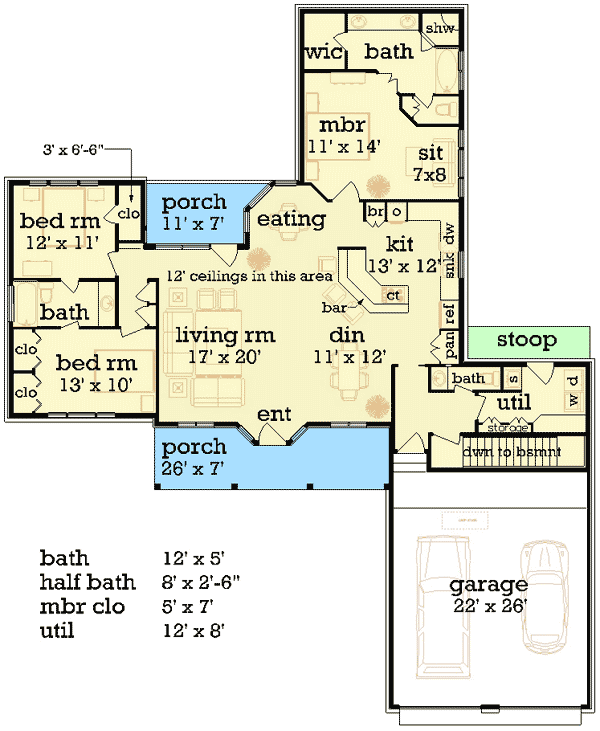

  • Main Level
