Engaging Views

Plan 86226HH

  • 2,091

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • The open layout of this one level European house plan gives you marvelous sightlines right from the front door.
  • The big corner fireplace in the family room can be seen from the dining room, kitchen and breakfast nook.
  • Not only does the kitchen island give you extra counter space, you can also grab a quick snack, with room for three stools.
  • A split bedroom floor plan positions the master suite away from the other bedrooms.
  • Bonus space on the second floor comes with a handy half bathroom.

Cover Sheet

Foundation plans

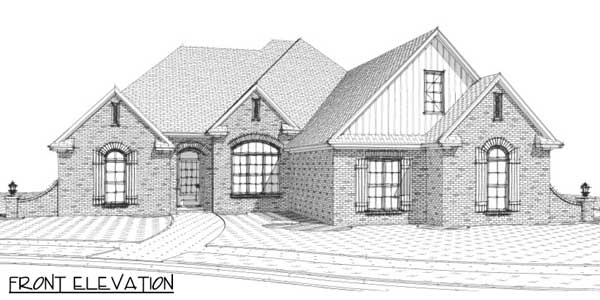

Elevations - complete with dimensions, ridge heights and special notes
Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
Rafter Plan
Details
Interior Elevations - include applicable cabinetry, electrical and special construction notes
Floor Joist Plan - complete with spans, sizes and direction (if applicable)
Ceiling Joist - complete with spans, sizes and direction
Sections - complete with dimensions, notes and specifications
Electrical plan - complete wit layout, light fixtures, outlets and legend

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

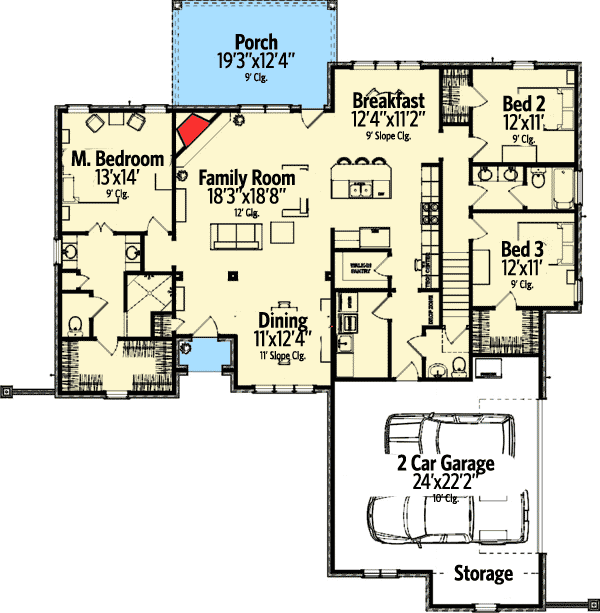

Engaging Views - 86226HH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Engaging Views - 86226HH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,091 sq. ft.
  • 1st Floor: 2,091 sq. ft.
  • Porch, Combined: 256 sq. ft.
  • Bonus: 344 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 61' 7"
  • Depth: 71' 5"
  • Max ridge height: 29' 3"

Garage

  • Type: Attached
  • Area: 663 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Engaging Views

  • 2,091

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,091 sq. ft.
  • 1st Floor: 2,091 sq. ft.

Dimensions

  • Width: 61' 7"
  • Depth: 71' 5"
  • Max ridge height: 29' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 663 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
