Plan 57187HA
Escape with a View
Heated S.F.
624
Beds
2
Baths
1
Stories
1
What's Included
Plan Details
  • The combination of stone, vertical siding, lots of glass and a low roof line creates a cozy retreat.
  • Vaulted living area features free-standing fireplace that heats adjacent stone wall for warmth.
  • Efficient kitchen includes dining area and view to an angular deck.
  • Two bedrooms share a hall bath with shower.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Escape with a View

  • 624

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

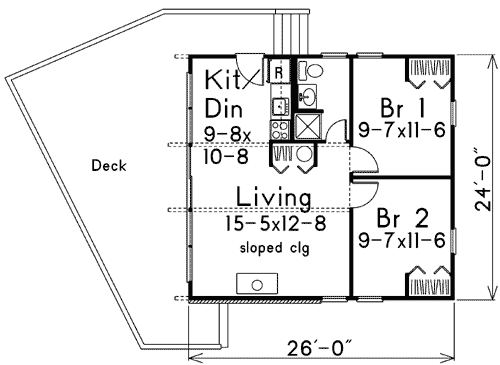

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 624 sq. ft.
  • 1st Floor: 624 sq. ft.

Dimensions

  • Width: 26' 0"
  • Depth: 24' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Pier

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
