Plan 42678DB Euro-style House Plan with Loaded Lower Level with Home Theater and Secret Room

5,963 6 6.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Euro-style House Plan with Loaded Lower Level with Home Theater and Secret Room

Plan 42678DB

  • 5,963

    Heated s.f.

  • 6

    Beds

  • 6.5

    Baths

  • 2

    Stories

  • 4

    Cars

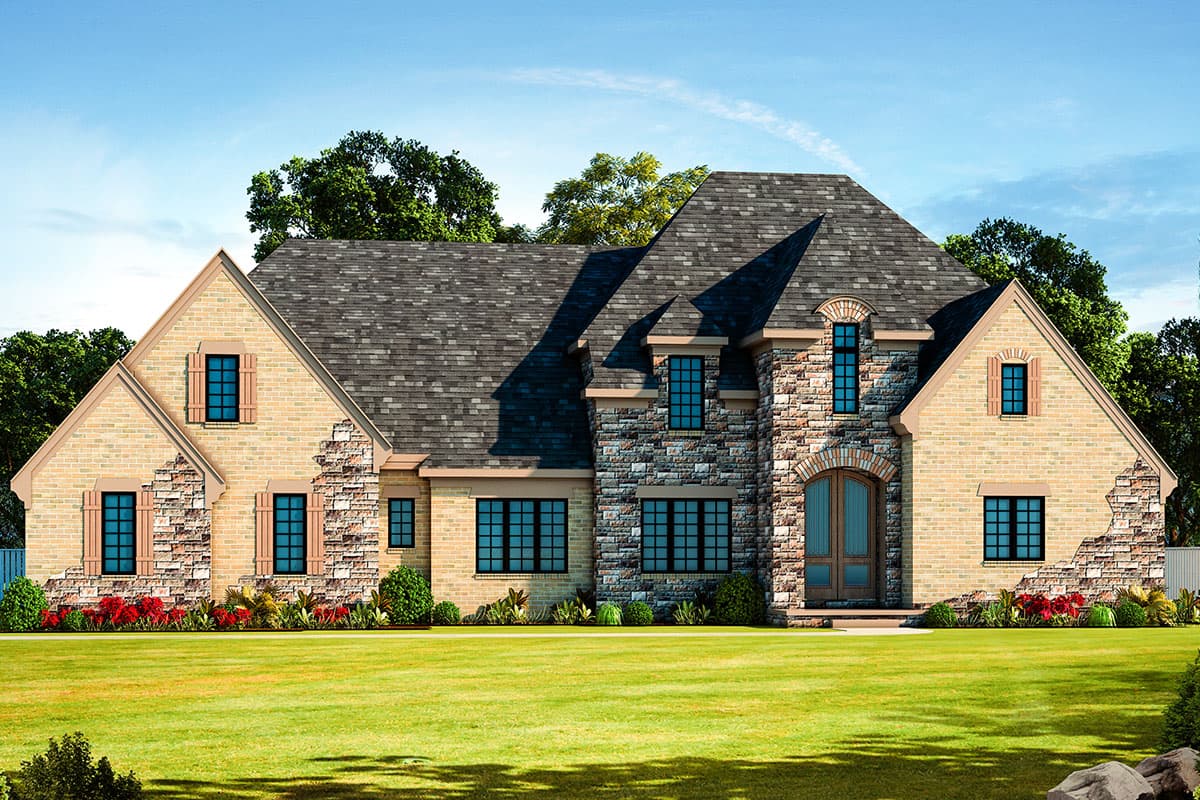

  • An arched stone entry porch ushers you into this imposing European house plan.
  • The beautiful open layout is immediately visible with views that stretch from the foyer and dining room to the great room and kitchen.
  • A wall of windows across the back overlooks the rear terrace.
  • The super-sized master suite boasts a giant walk-in closet with an island in the middle and a window to bring in natural light while you choose your outfits for the day.
  • Four big bedrooms occupy the second floor that has its own laundry room and an open rail balcony that looks down into the great room below.
  • Finish the spacious lower level to gain a sixth bedroom, a rec room, billiards room and a home theater with platform seating.
  • There's even a secret room that could be used as a storm shelter.
  • Related Plan: Eliminate the finished lower level with house plan 42402DB.

This house plan set has the following details:

  • General Notes

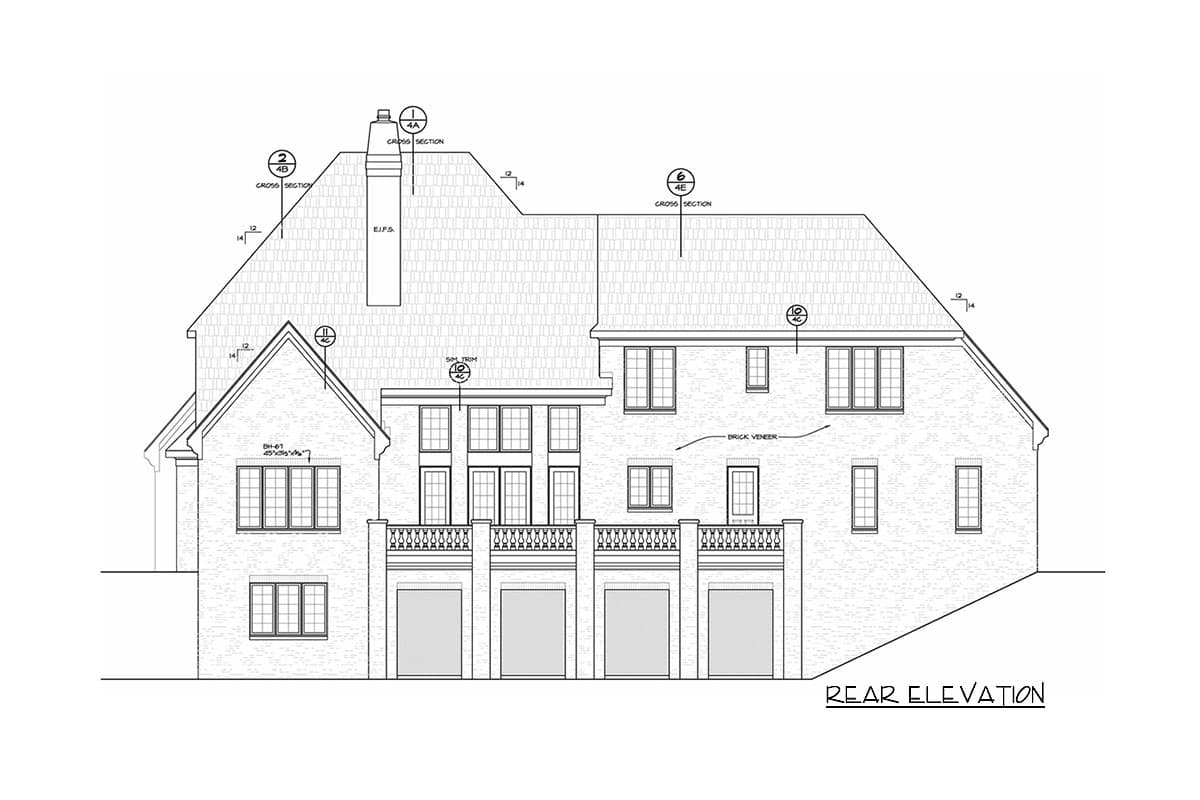

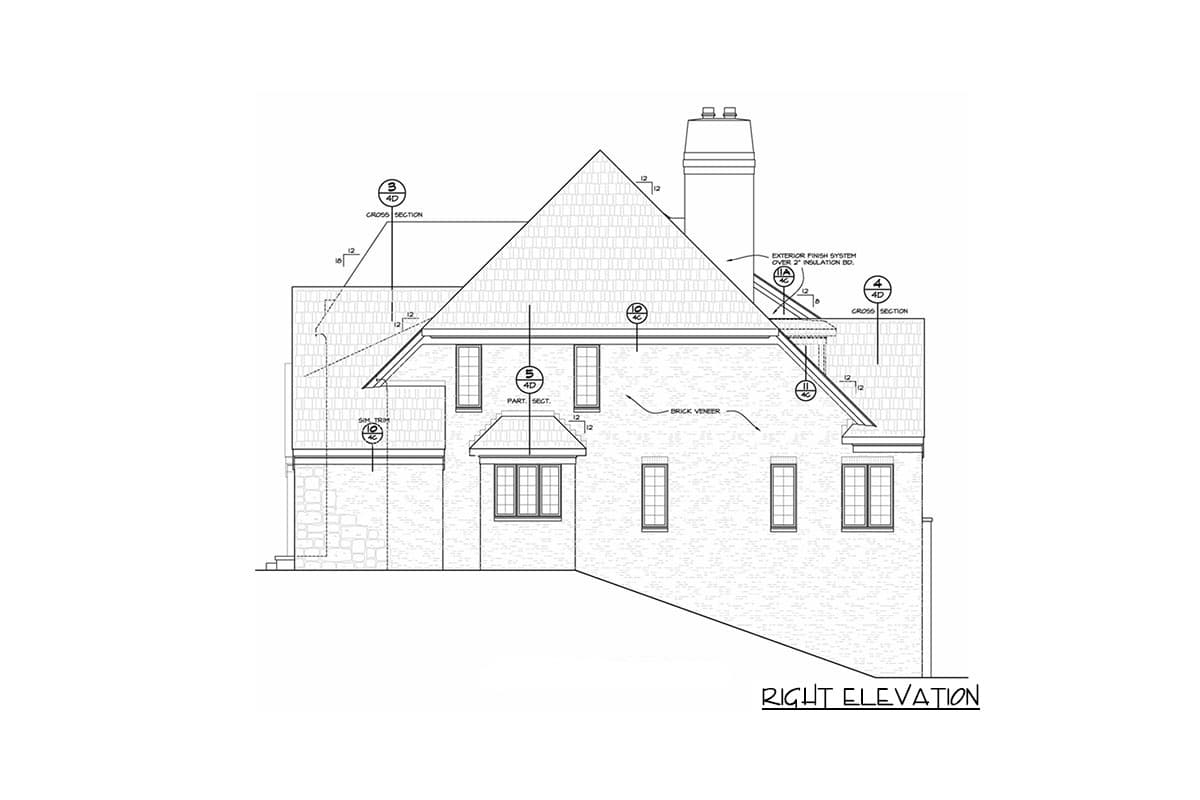

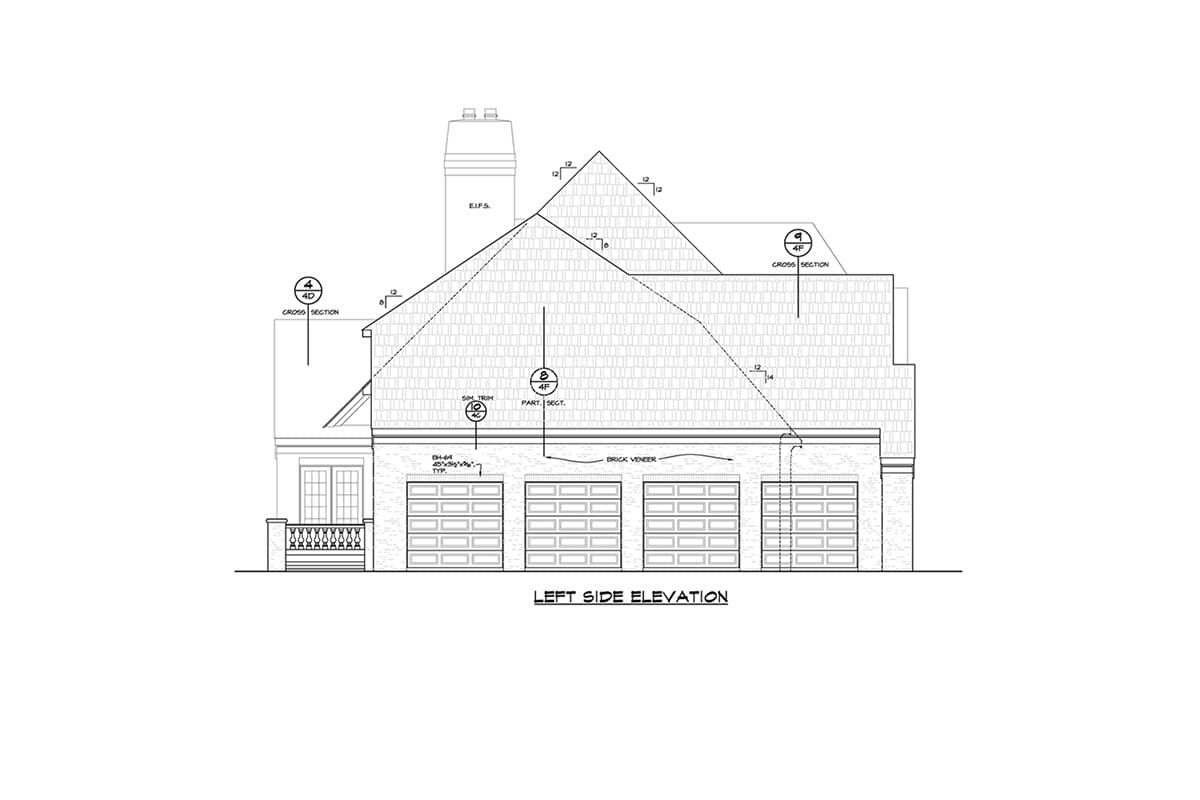

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

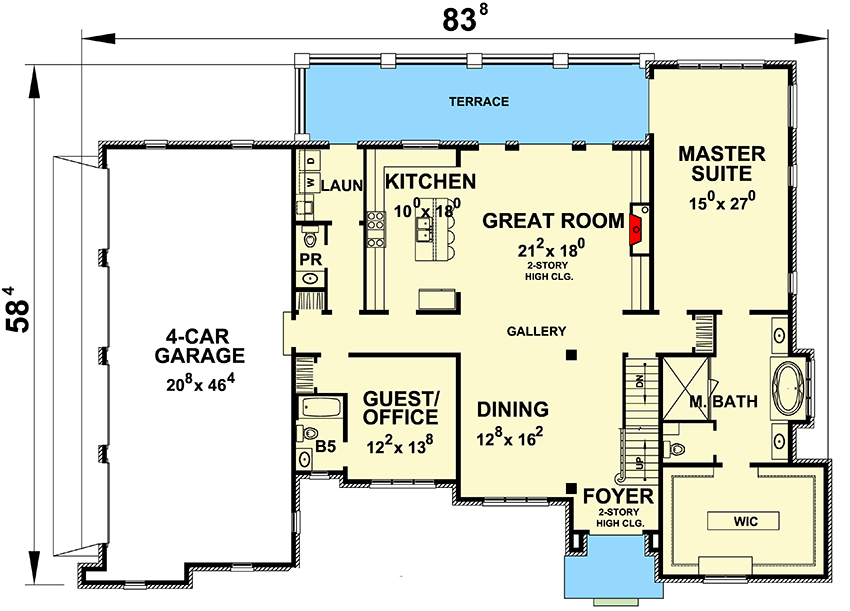

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Euro-style House Plan with Loaded Lower Level with Home Theater and Secret Room - 42678DB floor plan - Main Level

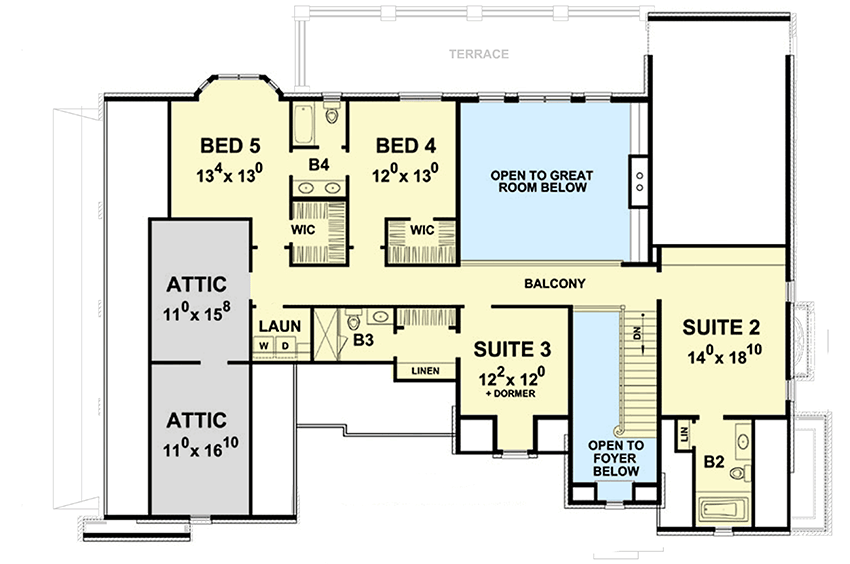

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Euro-style House Plan with Loaded Lower Level with Home Theater and Secret Room - 42678DB floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Euro-style House Plan with Loaded Lower Level with Home Theater and Secret Room - 42678DB floor plan - 3rd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,963 sq. ft.
  • Lower Level: 1,840 sq. ft.
  • 1st Floor: 2,586 sq. ft.
  • 2nd Floor: 1,537 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 83' 8"
  • Depth: 58' 4"
  • Max ridge height: 39' 1"

Garage

  • Type: Attached
  • Area: 1033 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Euro-style House Plan with Loaded Lower Level with Home Theater and Secret Room

  • 5,963

    Heated s.f.

  • 6

    Beds

  • 6.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • Study Set - Digital $2,640
  • PDF - Single-Build $4,115
  • PDF - Unlimited Build $4,615
  • CAD + PDF - Single-Build $5,840
  • CAD - Unlimited Build $6,340
  • View all purchase option online

About This Plan

  • An arched stone entry porch ushers you into this imposing European house plan.
  • The beautiful open layout is immediately visible with views that stretch from the foyer and dining room to the great room and kitchen.
  • A wall of windows across the back overlooks the rear terrace.
  • The super-sized master suite boasts a giant walk-in closet with an island in the middle and a window to bring in natural light while you choose your outfits for the day.
  • Four big bedrooms occupy the second floor that has its own laundry room and an open rail balcony that looks down into the great room below.
  • Finish the spacious lower level to gain a sixth bedroom, a rec room, billiards room and a home theater with platform seating.
  • There's even a secret room that could be used as a storm shelter.
  • Related Plan: Eliminate the finished lower level with house plan 42402DB.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,963 sq. ft.
  • Lower Level: 1,840 sq. ft.
  • 1st Floor: 2,586 sq. ft.
  • 2nd Floor: 1,537 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 6
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 83' 8"
  • Depth: 58' 4"
  • Max ridge height: 39' 1"

Garage

  • Type: Attached
  • Area: 1033 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
Plan 42678DB
View this and more for this plan by visiting www.architechtecturaldesigns.com/42678DB
|
