Plan 444032GDN European Craftsman Plan with Angled Garage and Walkout Basement

European Craftsman Plan with Angled Garage and Walkout Basement

Plan 444032GDN

  • 3,014

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • This European Craftsman home plan has an angled 2-car garage and has a walkout basement making this perfect for your rear sloping lot.
  • Ceiling treatments crown every living space on the first floor, and bay windows hug the screen porch, dining room, and master bedroom.
  • The kitchen has a 15'8" cathedral ceiling and connects with the dining area and great room. Take your friends to the screened porch for bug-free outdoor dining.
  • The double garage extends at an angle and supports a sizable bonus room upstairs.
  • The lower level features two full bathrooms for each bedroom, making it the perfect home plan retreat for overnight visitors or older children.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

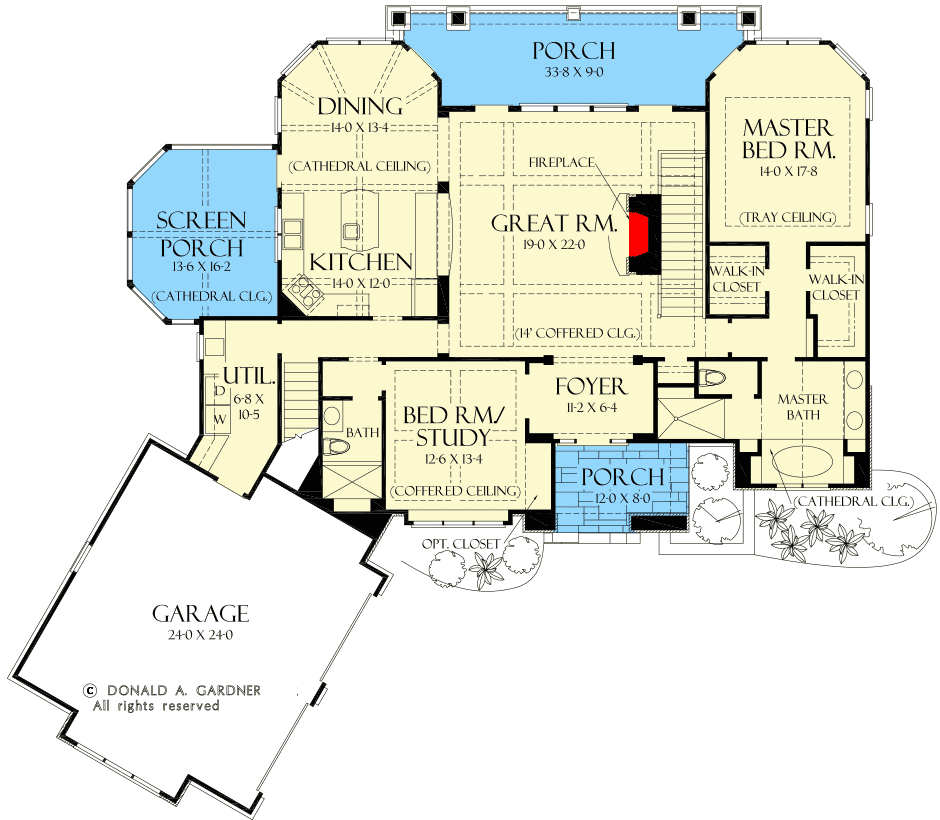

European Craftsman Plan with Angled Garage and Walkout Basement - 444032GDN floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

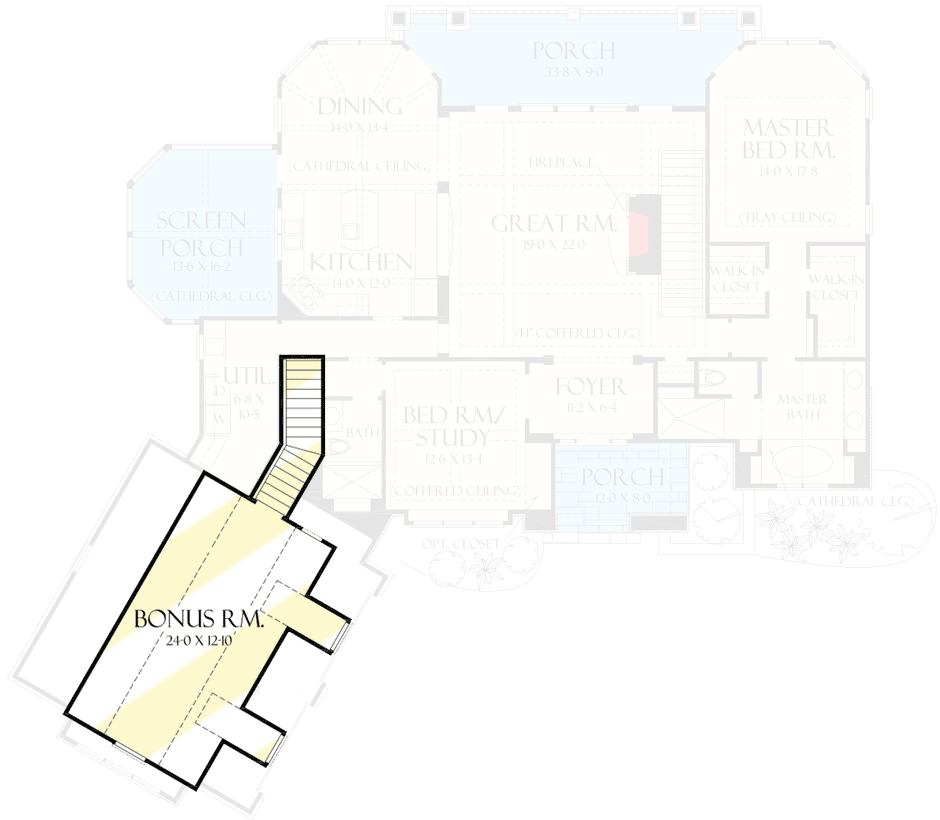

European Craftsman Plan with Angled Garage and Walkout Basement - 444032GDN floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

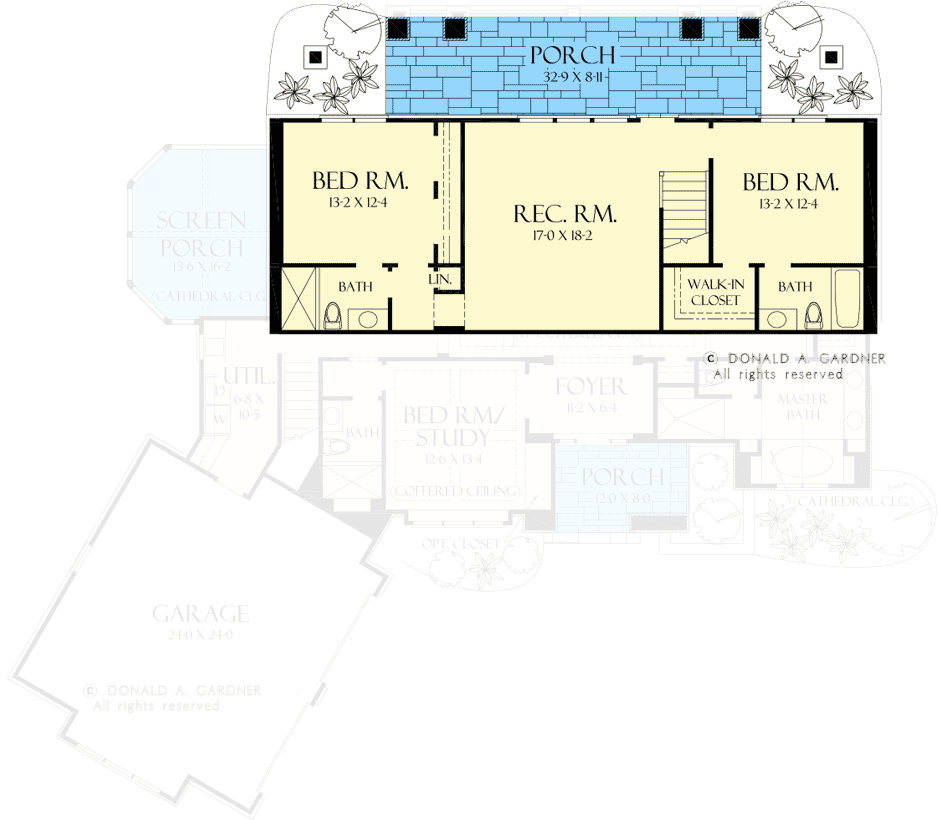

European Craftsman Plan with Angled Garage and Walkout Basement - 444032GDN floor plan - Basement

Plan details

European Craftsman Plan with Angled Garage and Walkout Basement

  • 3,014

    Heated s.f.

  • 3 - 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $1,955
  • PDF - Single-Build $2,155
  • 5 Sets + PDF $2,455
  • CAD - Unlimited Build $4,310
  • View all purchase option online

About This Plan

  • This European Craftsman home plan has an angled 2-car garage and has a walkout basement making this perfect for your rear sloping lot.
  • Ceiling treatments crown every living space on the first floor, and bay windows hug the screen porch, dining room, and master bedroom.
  • The kitchen has a 15'8" cathedral ceiling and connects with the dining area and great room. Take your friends to the screened porch for bug-free outdoor dining.
  • The double garage extends at an angle and supports a sizable bonus room upstairs.
  • The lower level features two full bathrooms for each bedroom, making it the perfect home plan retreat for overnight visitors or older children.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,014 sq. ft.
  • Lower Level: 998 sq. ft.
  • 1st Floor: 2,016 sq. ft.
  • Covered Patio: 272 sq. ft.
  • Screened Porch: 200 sq. ft.
  • Porch, Rear: 256 sq. ft.
  • Porch, Front: 92 sq. ft.
  • Bonus: 364 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 77' 4"
  • Depth: 72' 9"
  • Max ridge height: 38' 1"

Garage

  • Type: Attached
  • Area: 661 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
