Plan: 36203TX

European Elegance

5,327 5 6 2 3
Pageloader

European Elegance

Plan 36203TX

  • 5,327

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Stories

  • 3

    Cars

  • MORE PHOTOS: See more photos with different interior decorating in our Facebook photo album.
  • Spires, a steep pitched roof and arched windows give this European home an elegant air.
  • Inside, special ceiling treatments, double doors and built-ins continue to add elegance.
  • A 21' ceiling in the foyer will take your breath away, with views of the family room beckoning you on.
  • The bay window in the spacious breakfast nook will brighten your informal meals.
  • When it is time for bed, head through the gallery with its double tray ceiling to enter the over-sized master suite with romantic fireplace and sitting area.
  • A guest bedroom has its own bath and walk-in closet and could serve as an in-law suite.
  • Both a media room and game room with balcony access and wet bar await your entertaining needs.
  • Three large bedrooms also occupy this floor.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



European Elegance

  • 5,327

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,420
  • 5 Sets $2,620
  • CAD $3,630
  • View all purchase option online

About This Plan

  • MORE PHOTOS: See more photos with different interior decorating in our Facebook photo album.
  • Spires, a steep pitched roof and arched windows give this European home an elegant air.
  • Inside, special ceiling treatments, double doors and built-ins continue to add elegance.
  • A 21' ceiling in the foyer will take your breath away, with views of the family room beckoning you on.
  • The bay window in the spacious breakfast nook will brighten your informal meals.
  • When it is time for bed, head through the gallery with its double tray ceiling to enter the over-sized master suite with romantic fireplace and sitting area.
  • A guest bedroom has its own bath and walk-in closet and could serve as an in-law suite.
  • Both a media room and game room with balcony access and wet bar await your entertaining needs.
  • Three large bedrooms also occupy this floor.

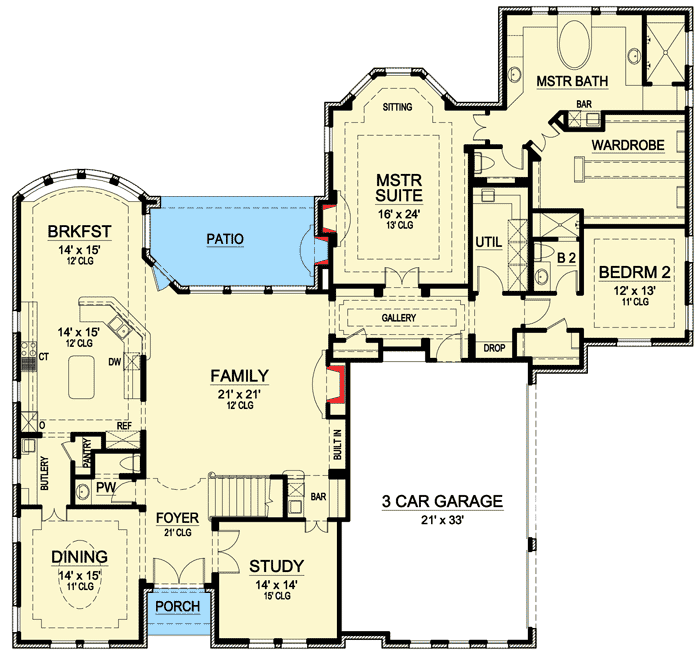

Floor Plans

  • Main Level

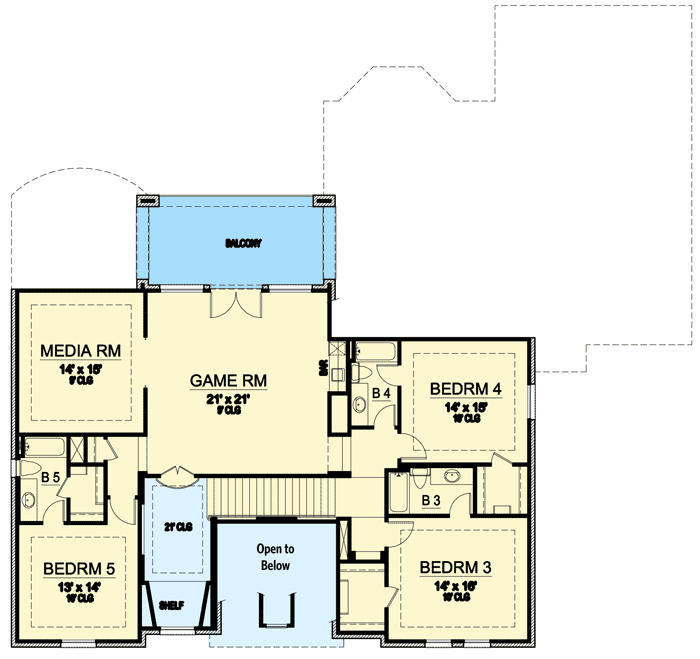

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,327 sq. ft.
  • 1st Floor: 3,364 sq. ft.
  • 2nd Floor: 1,963 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 80' 0"
  • Depth: 75' 0"
  • Max ridge height: 37' 0"

Garage

  • Type: Attached
  • Area: 748 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"

Architectural Style

  • European
  • French Country

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • MBR Sitting Area
  • Media-Game-Home Theater
  • PDF

Plan Collections

  • Luxury
  • Photo Gallery
  • Premium Collection
