European Estate Home Plan

Plan 36175TX

This plan plants 3 trees

6,550
Heated s.f.
5
Beds
5.5+
Baths
2
Stories
4
Cars

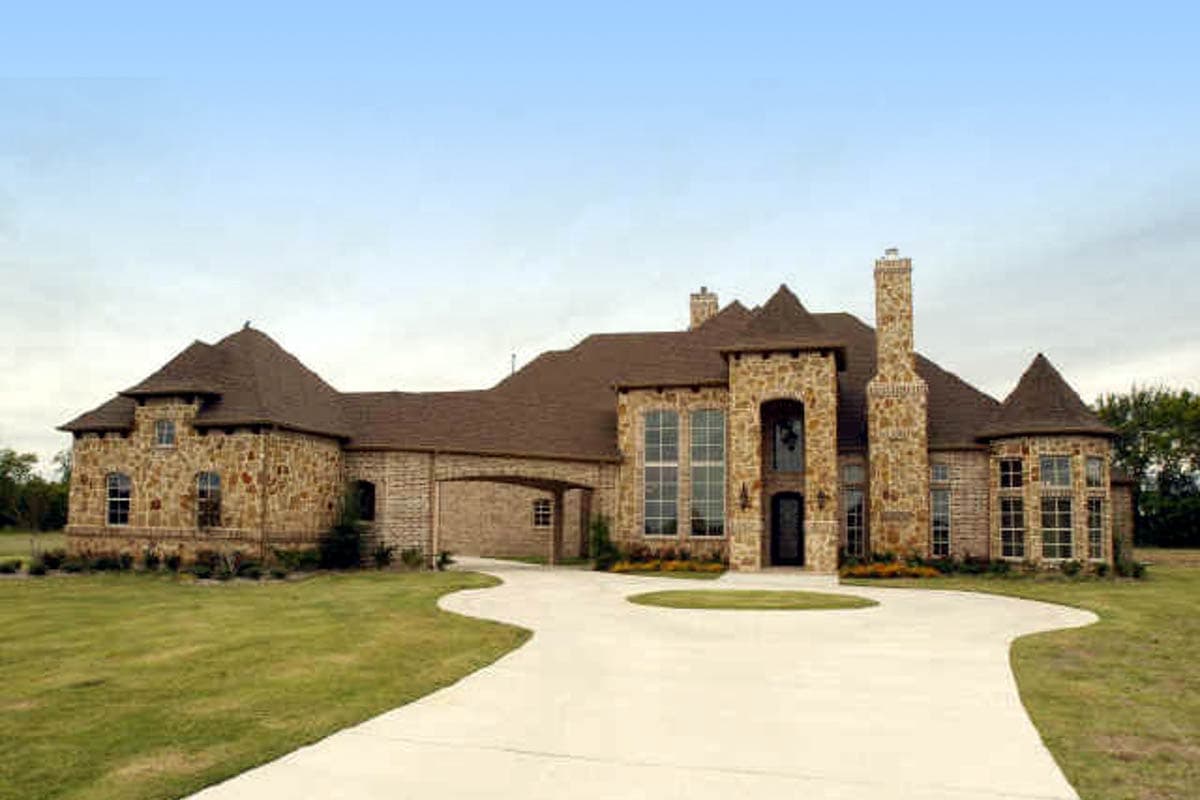

Designed to impress, this magnificent estate home plan draws you in with two-story windows and reading nook set in a turret with vaulted ceiling.
A step-down wine cellar will hold your special wine collection in style.
The media room has its own large wet bar to aid in entertaining.

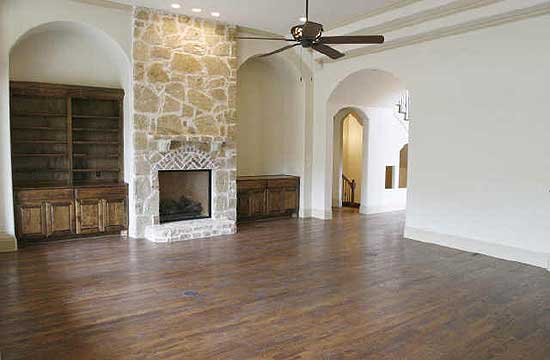

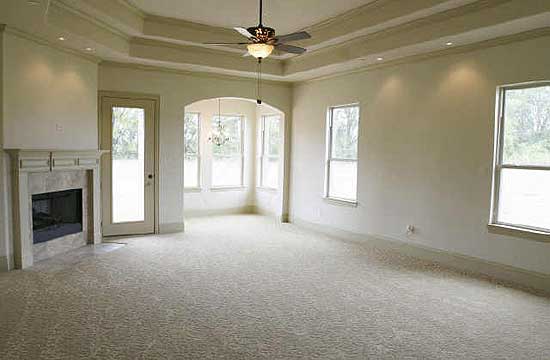

Fireplaces can be found in the cozy breakfast nook, the spacious family room and the luxurious master suite as well as the front-facing study with a coffered ceiling.
Bedroom 2 on the first floor would make an excellent in-law suite.

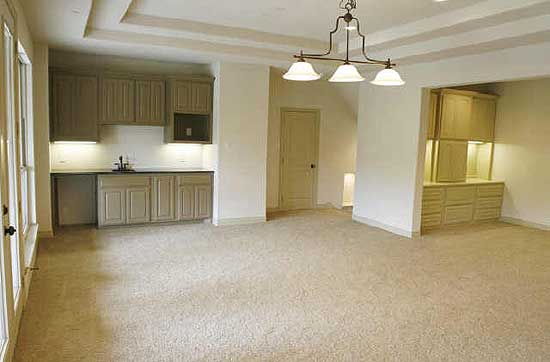

Three more bedrooms can be found on the sprawling second floor along with a bonus room, game room with another wet bar and an office with tray ceilings.

Plan set includes the following:

1. Cover sheet

2. Foundation Plan

3. First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4. Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5. First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6. Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7. Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8. Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9. Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10. Sections page

11. Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

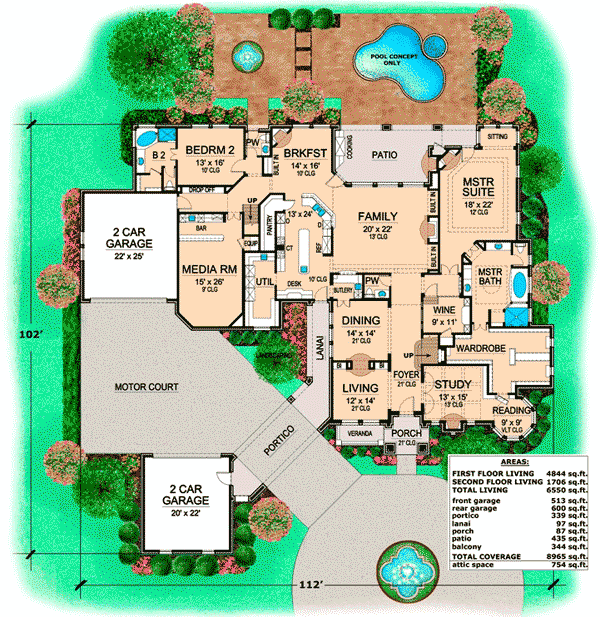

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

European Estate Home Plan - 36175TX floor plan - Main Level

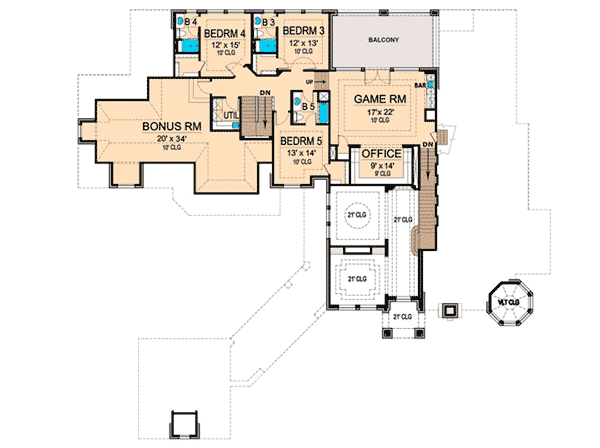

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

European Estate Home Plan - 36175TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 6,550 sq. ft.
1st Floor: 4,844 sq. ft.
2nd Floor: 1,706 sq. ft.

Bonus: 754 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 5
Half bathrooms: 2

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 112' 0"
Depth: 102' 0"
Max ridge height: 35' 0"

Garage

Type: Attached
Area: 1113 sq. ft.
Count: 4 Cars
Entry Location: Front, Rear
