European House Plan with 2-Story Great Room

Plan 9383EL

  • 3,747

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This great English Manor Tudor style open floor plan is perfect for entertaining family and friends.
  •  Relax before dinner in the vaulted great room that leads to an open rear terrace.
  • Dinner is served out of the gourmet kitchen with a breakfast area, butler and formal dining nearby.
  • The open floor plan also features a downstairs master suite with his and her’s walk-in closets, a large laundry room, mudroom and a study.
  • Upstairs includes three suites with plenty of storage and a game room.
  • Parking is no problem, thanks to a garage with 2-car dimensions, plus an adjoining sports car garage that’s perfect for a workshop or man cave.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

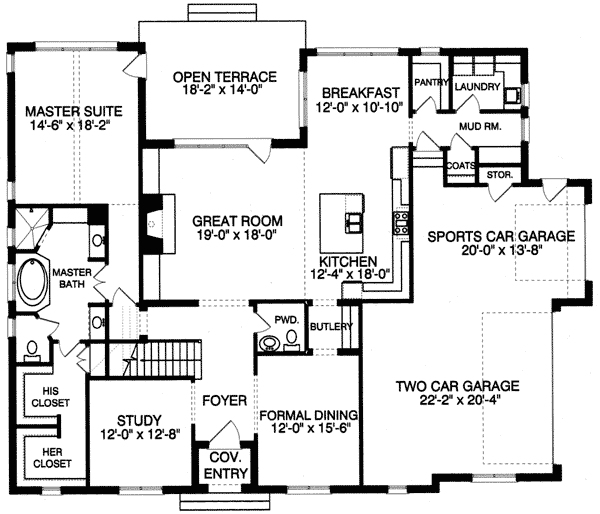

European House Plan with 2-Story Great Room - 9383EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

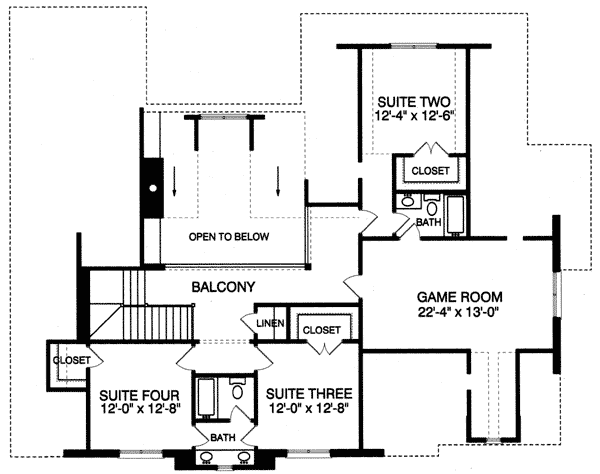

European House Plan with 2-Story Great Room - 9383EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,747 sq. ft.
  • 1st Floor: 2,327 sq. ft.
  • 2nd Floor: 1,420 sq. ft.
  • Entry: 33 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 67' 2"
  • Depth: 55' 3"

Garage

  • Type: Attached
  • Area: 805 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

European House Plan with 2-Story Great Room

  • 3,747

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage
