Plan 82113KA

European House Plan with Arched Windows

Heated S.F.
2,353
Beds
4
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 82113KA

Main Level
Main Level

Plan 82113KA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

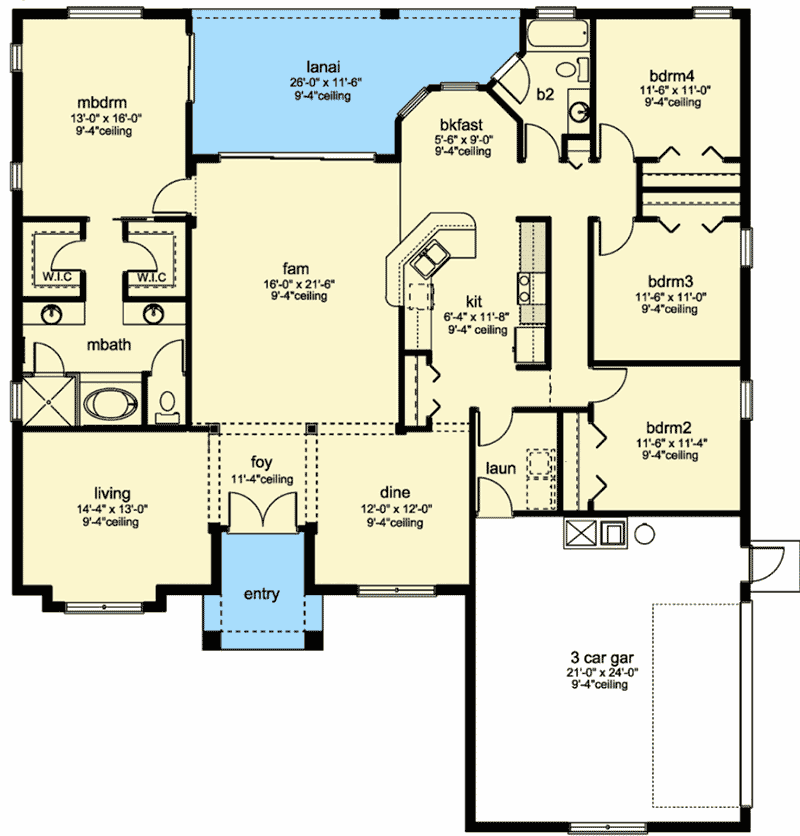

Plan 82113KA: European House Plan with Arched Windows - Floor Plan - Main Level - European, Southern

Plan Details

  • Elegant arched windows span the front of this one level European house plan.
  • The views flow from room to room, thanks to the open layout.
  • The huge family room has a wall of sliding glass doors that open to the rear covered lanai.
  • More sliding glass doors are found in the secluded master suite.
  • The three family bedrooms are placed on the opposite side of the home.
  • 9'4" high ceilings can be found throughout the home, making the rooms feel larger.

What's Included

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,353 sq. ft.

1st Floor

2,353 sq. ft.

Porch, Front

82 sq. ft.

Porch, Rear

167 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

60' 0"

Depth

69' 2"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

710 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,353 sq. ft.

1st Floor

2,353 sq. ft.

Porch, Front

82 sq. ft.

Porch, Rear

167 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

60' 0"

Depth

69' 2"

Max Ridge Height

21' 4"

Garage

Type

Attached

Area

710 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European

Southern

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
