Plan 9343EL

European Manor with Open Floor Plan

Pageloader

European Manor with Open Floor Plan

Plan 9343EL

  • 4,120

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • There are vaulted or high ceilings in almost every key room downstairs, including the gourmet kitchen, dining room, great room and formal dining area.
  • The downstairs master suite features an eye-catching bath area and spacious his and her’s walk-in closets.
  • Other popular features downstairs include a covered loggia and mud room.
  • Upstairs you’ll find three large suites, a game room with a vaulted ceiling and a computer station.
  • The attached garage offers 3-car dimensions.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Framing
  • First Floor Plan
  • Second Floor Framing (if applicable)
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

Floor Plan

Plan details



European Manor with Open Floor Plan

  • 4,120

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,295
  • 5 Sets $2,920
  • CAD $2,920
  • View all purchase option online

About This Plan

  • There are vaulted or high ceilings in almost every key room downstairs, including the gourmet kitchen, dining room, great room and formal dining area.
  • The downstairs master suite features an eye-catching bath area and spacious his and her’s walk-in closets.
  • Other popular features downstairs include a covered loggia and mud room.
  • Upstairs you’ll find three large suites, a game room with a vaulted ceiling and a computer station.
  • The attached garage offers 3-car dimensions.

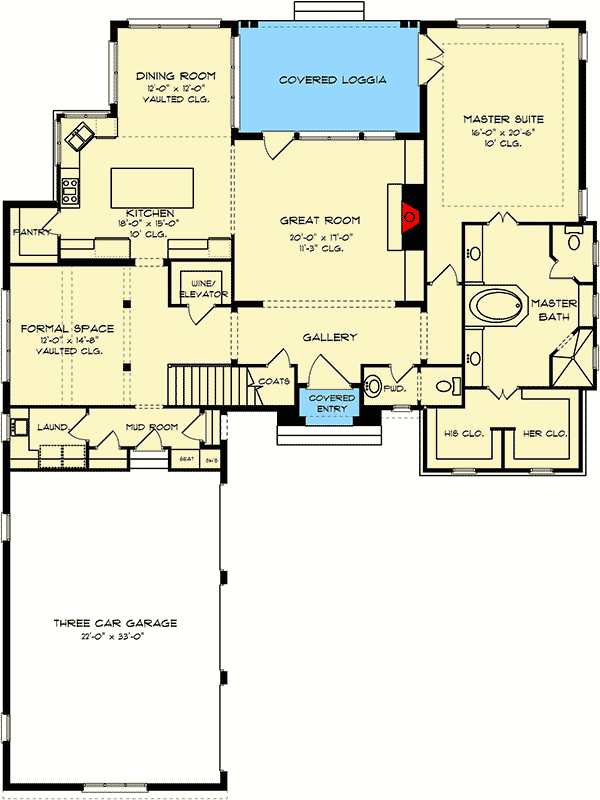

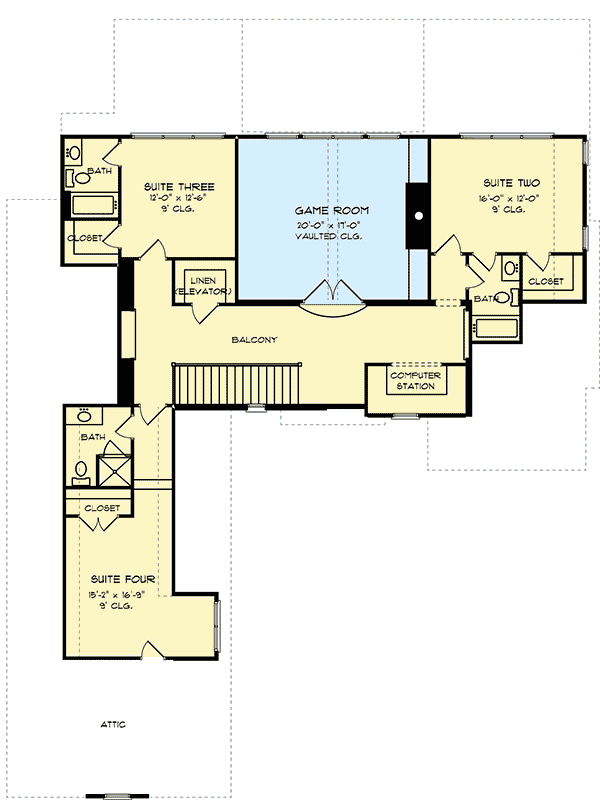

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,120 sq. ft.
  • 1st Floor: 2,398 sq. ft.
  • 2nd Floor: 1,722 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Daylight, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 61' 6"
  • Depth: 81' 3"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 806 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick
