European Mansion with Optional Sports Court

Plan 290002IY

  • 5,146

    Heated s.f.

  • 3-7

    Beds

  • 3.5 - 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • Designed with large families in mind, this luxurious European house plan caters to those with young or teen family members.
  • A long foyer stretches back to reveal a vaulted and beamed great room where the whole family can gather in comfort.
  • The bayed music room off to the side is mirrored by a bayed breakfast nook in the upscale kitchen.
  • And all across the back, decks and porches await when you want some fresh air.
  • The elegant first floor master suite has a bayed sitting area and lovely tray ceiling.
  • There's a craft room and a home office with built-in shelving too.
  • The second floor holds a large home office or man cave and bedroom 3.
  • But the massive fully finished lower level is the star of the show with a games room with snack bar, huge family room with fireplace and four spacious bedrooms each with a large walk-in closet.
  • There's even a dedicated exercise room, a laundry room and best of all - the optional sports court that adds 1,057 square feet of family fun.

What is Included in Our Plans?

All of our plans are designed by licensed architects and residential building designers. Each plan is designed to meet nationally recognized building codes for the year they were created.

No two plans are the same. We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

Building Code

All of our plans are designed to provide the information needed to build your home. Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Plan details



European Mansion with Optional Sports Court

  • 5,146

    Heated s.f.

  • 3 - 7

    Beds

  • 4 +

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • Digital Study Set $2,071.30
  • PDF - single-use $2,291.30
  • 5 Sets $2,566.30
  • 8 Sets $2,703.80
  • CAD $4,582.60
  • View all purchase option online

About This Plan

  • Designed with large families in mind, this luxurious European house plan caters to those with young or teen family members.
  • A long foyer stretches back to reveal a vaulted and beamed great room where the whole family can gather in comfort.
  • The bayed music room off to the side is mirrored by a bayed breakfast nook in the upscale kitchen.
  • And all across the back, decks and porches await when you want some fresh air.
  • The elegant first floor master suite has a bayed sitting area and lovely tray ceiling.
  • There's a craft room and a home office with built-in shelving too.
  • The second floor holds a large home office or man cave and bedroom 3.
  • But the massive fully finished lower level is the star of the show with a games room with snack bar, huge family room with fireplace and four spacious bedrooms each with a large walk-in closet.
  • There's even a dedicated exercise room, a laundry room and best of all - the optional sports court that adds 1,057 square feet of family fun.

Floor Plans

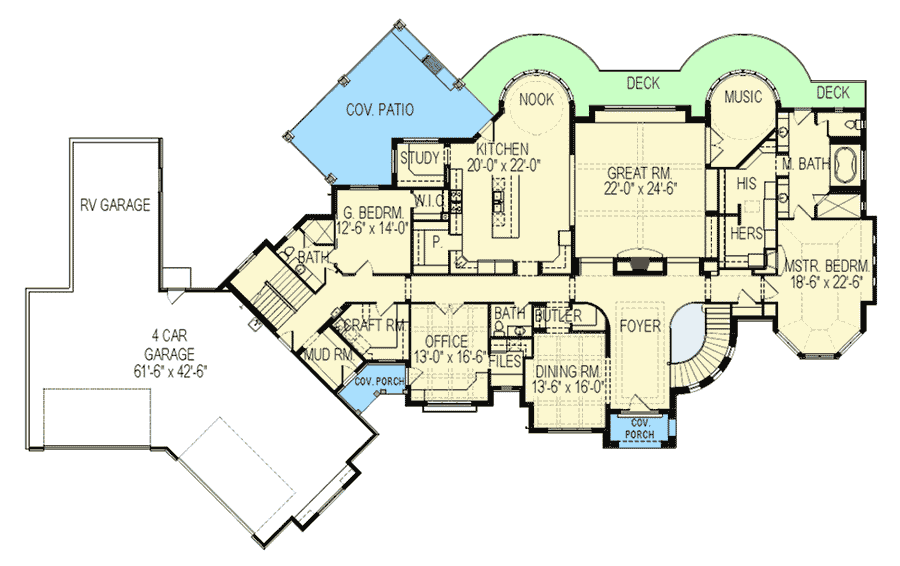

  • Main Level

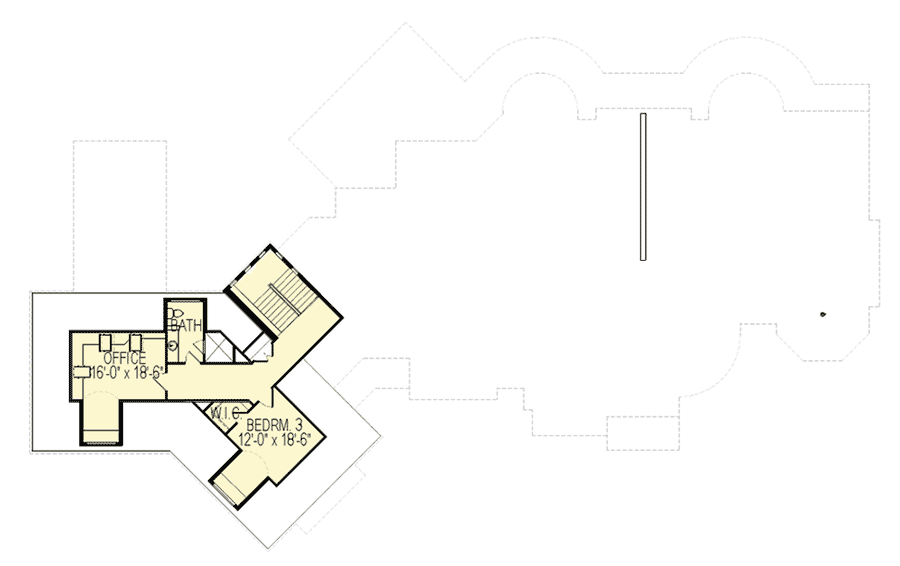

  • 2nd Floor

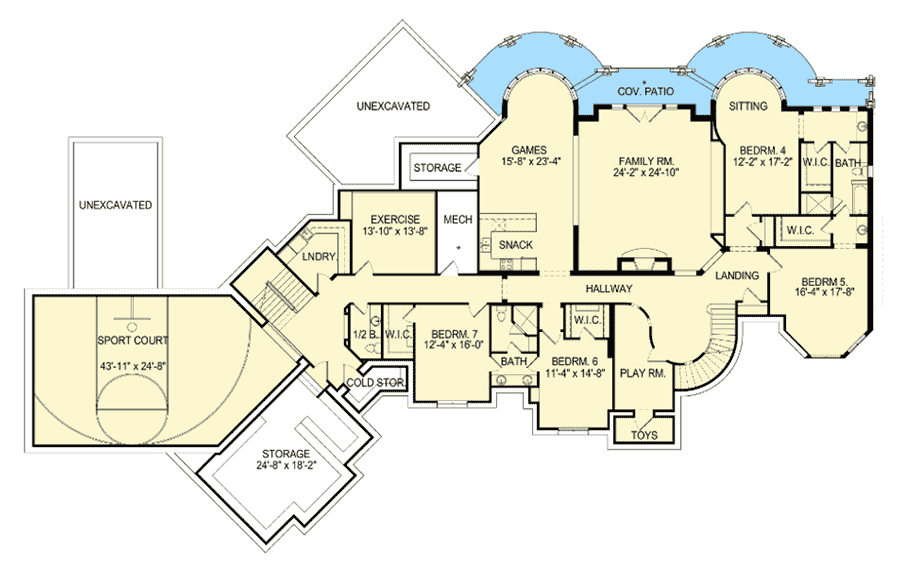

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,146 sq. ft.
  • 1st Floor: 4,348 sq. ft.
  • 2nd Floor: 798 sq. ft.
  • Sports Court: 1,057 sq. ft.
  • Deck: 924 sq. ft.
  • Covered Patio: 456 sq. ft.
  • Storage: 698 sq. ft.
  • Optional Lower Level: 4,089 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, 5, 6, & 7
  • Full bathrooms: 3, 4, & 5
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 142' 11"
  • Depth: 80' 8"
  • Max ridge height: 35' 5"

Garage

  • Type: Attached
  • Area: 1928 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
