European Masterpiece with Optional Version

Plan 48006FM

This plan plants 3 trees

3,423
Heated s.f.
4
Beds
3.5+
Baths
1-2
Stories
3
Cars

This European-inspired masterpiece packs a lot of punch in under 3,500 sq. ft. From the entry hall, a diagonal axis extends from the corner study diagonally across to the breakfast nook.
The formal dining room is set off by pillars and has views into the great room. Those views extend through the rear wall of windows across the covered patio and beyond.
The great room features a fireplace on one end and the kitchen on the other.
The master suite has covered patio access and a massive walk-in closet. Three other bedrooms are situated across the home and each has its own bath.
Laundry is in a good central location yet off the main traffic patterns.
A 2-car garage (584 s.f.) and a 1-car garage (334 s.f.) create a courtyard area and the breezeway mutes their presence and preserves the elegant front elevation.
Related Plan: Remove the bonus room with house plan 48103FM.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation

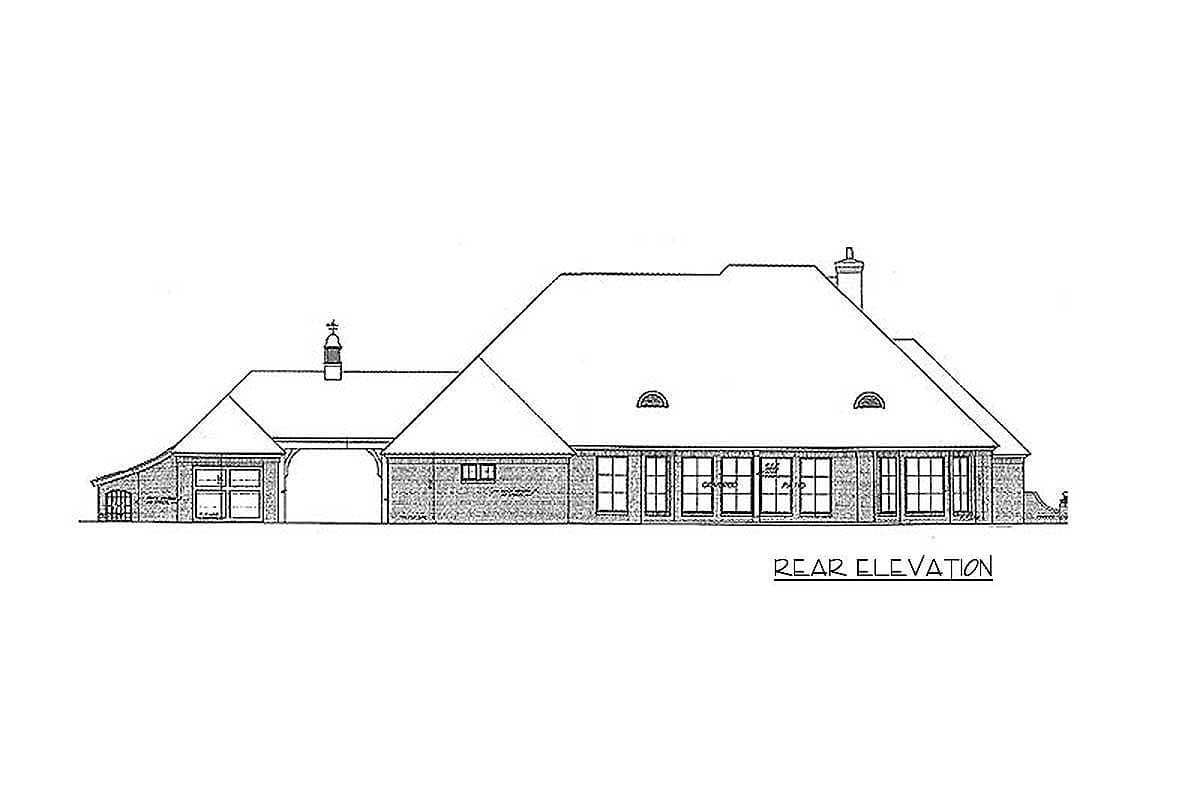

Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

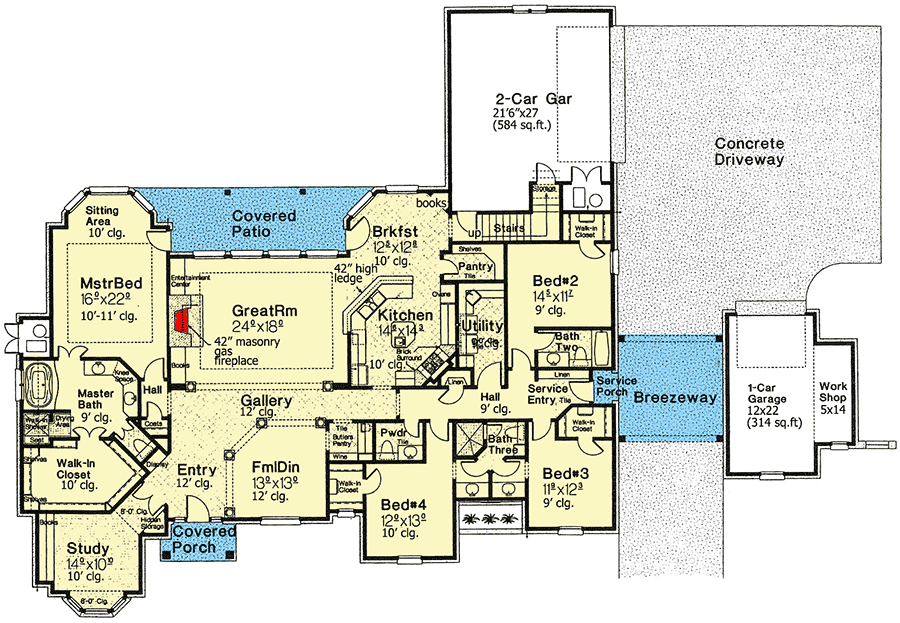

European Masterpiece with Optional Version - 48006FM floor plan - Main Level

Bonus

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

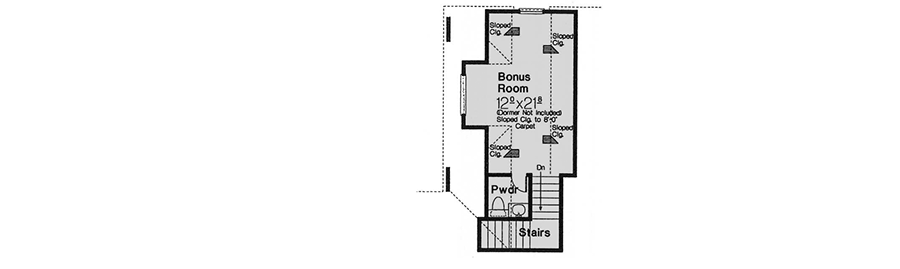

European Masterpiece with Optional Version - 48006FM floor plan - Bonus

Plan details

Square Footage Breakdown

Total Heated Area: 3,423 sq. ft.
1st Floor: 3,423 sq. ft.

Bonus: 325 sq. ft.

Beds/Baths

Bedrooms: 4

Full bathrooms: 3
Half bathrooms: 1 or 2

Foundation Type

Standard Foundations: Slab, Crawl, Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 112' 0"
Depth: 81' 6"
Max ridge height: 33' 0"

Garage

Type: Attached
Area: 918 sq. ft.
Count: 3 Cars
Entry Location: Rear, Side

Ceiling Heights

Floor / Height: First Floor / 9' 0"

Room Details	Ceiling Type	Width	Depth	Height
Entry				12' 0"
Study				10' 0"
Dining Room				12' 0"
Kitchen				10' 0"
Breakfast Room				10' 0"
Master Bedroom	Tray			11' 0"
Great Room	Pullman			11' 0"

Roof Details

Primary Pitch: 12 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections

Scroll
