Plan 39144ST

European Retreat with Elevator

Heated S.F.
5,306
Beds
3
Baths
3.5+
Stories
3
Cars
3

Floor Plan

Plan 39144ST

Main Level
Main Level
Second Level
Second Level
Third Level
Third Level
Lower Level
Lower Level

Plan 39144ST

M-F 9am-5pm EST |

1-203-761-8500

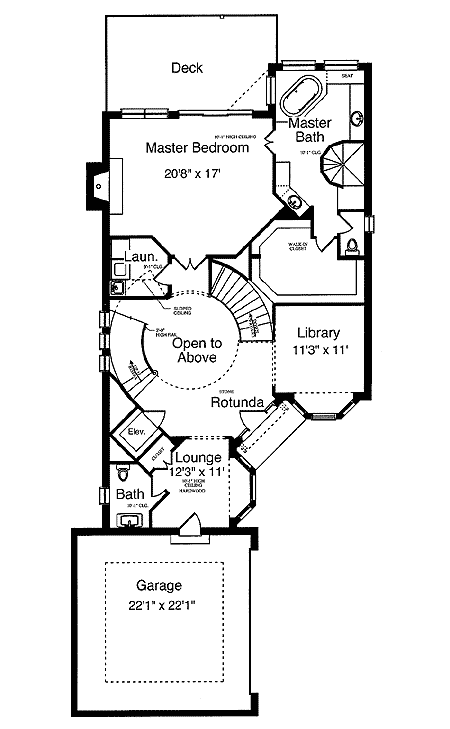

Main Level

Plan 39144ST: European Retreat with Elevator - Floor Plan - Main Level - European

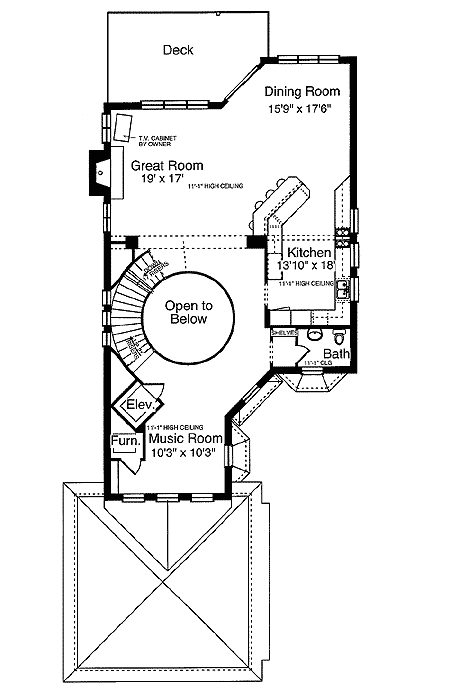

Second Level

Plan 39144ST: European Retreat with Elevator - Floor Plan - Second Level - European

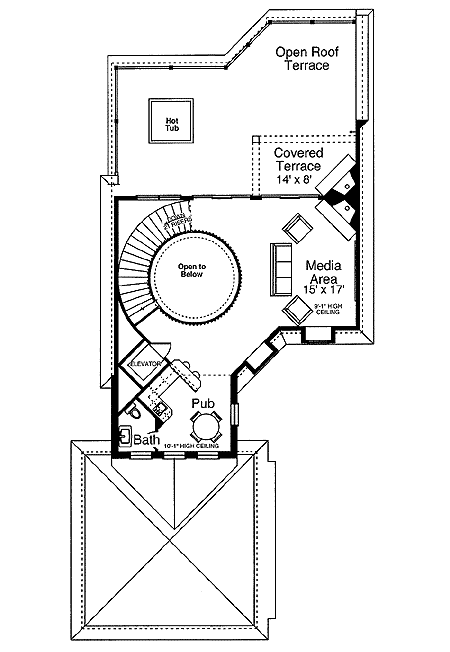

Third Level

Plan 39144ST: European Retreat with Elevator - Floor Plan - Third Level - European

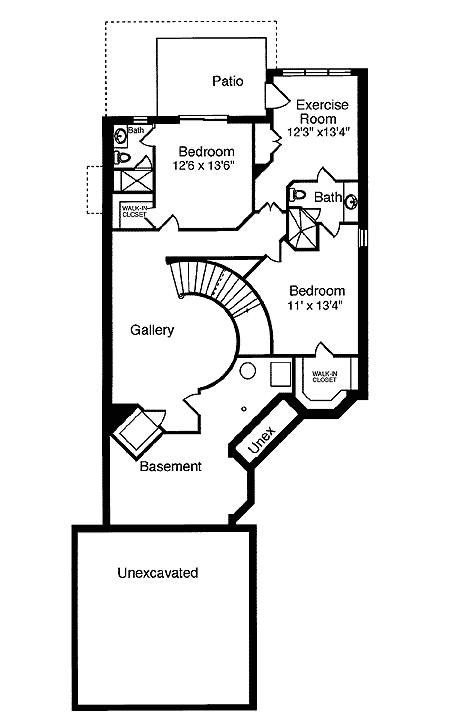

Lower Level

Plan 39144ST: European Retreat with Elevator - Floor Plan - Lower Level - European

Plan Details

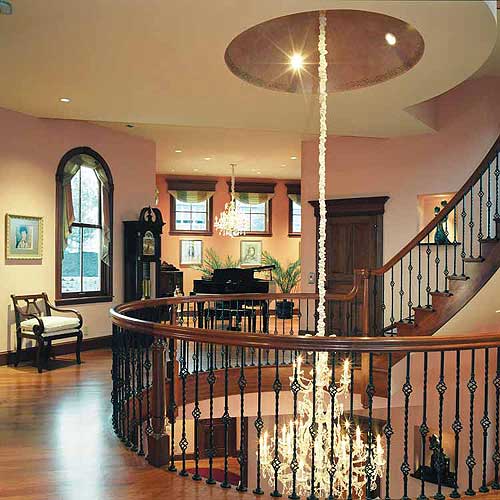

  • A grand spiral staircase invites you to enjoy the luxury offered on each level of this luxury home plan while an elevator provides easy movement from floor to floor.

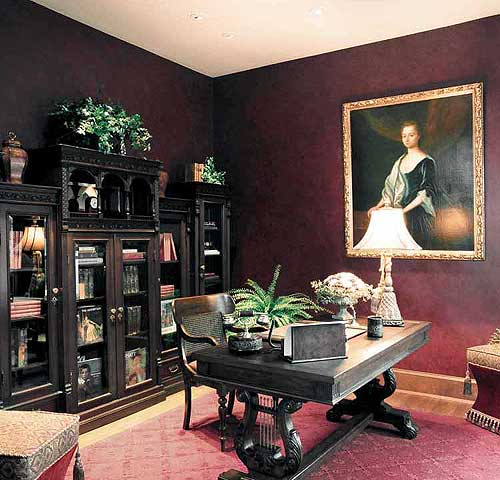

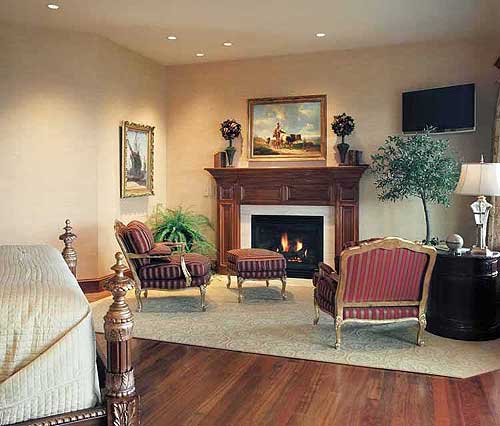

  • An art gallery, bedrooms, and exercise room are featured on the lower level and the entry level introduces a library, lounge and the master bedroom suite.

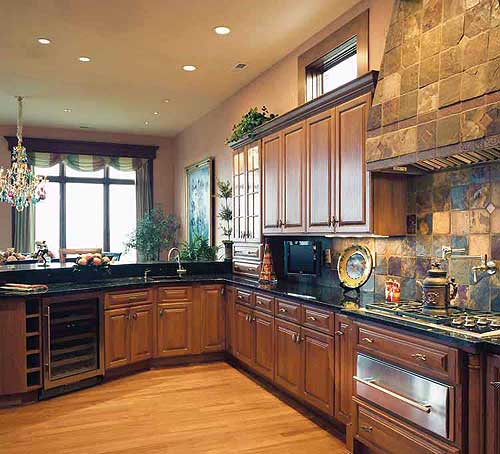

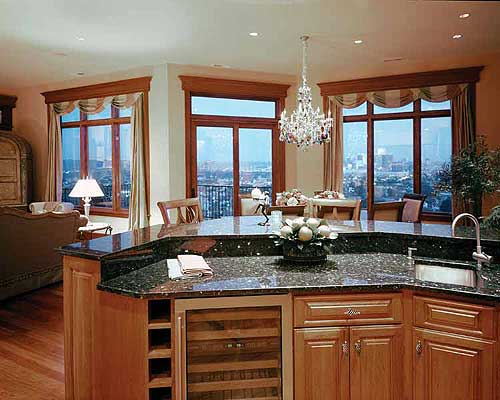

  • The primary living areas are located on the second and third floors. An open great room, dining room and kitchen enjoy an 11'-ceiling height and a private music room offers a view to the grand staircase and through to the great room.
  • Outdoor living space is offered at each level with the rooftop terrace becoming the preferred hot spot of the home.

What's Included

  • General notes and specifications

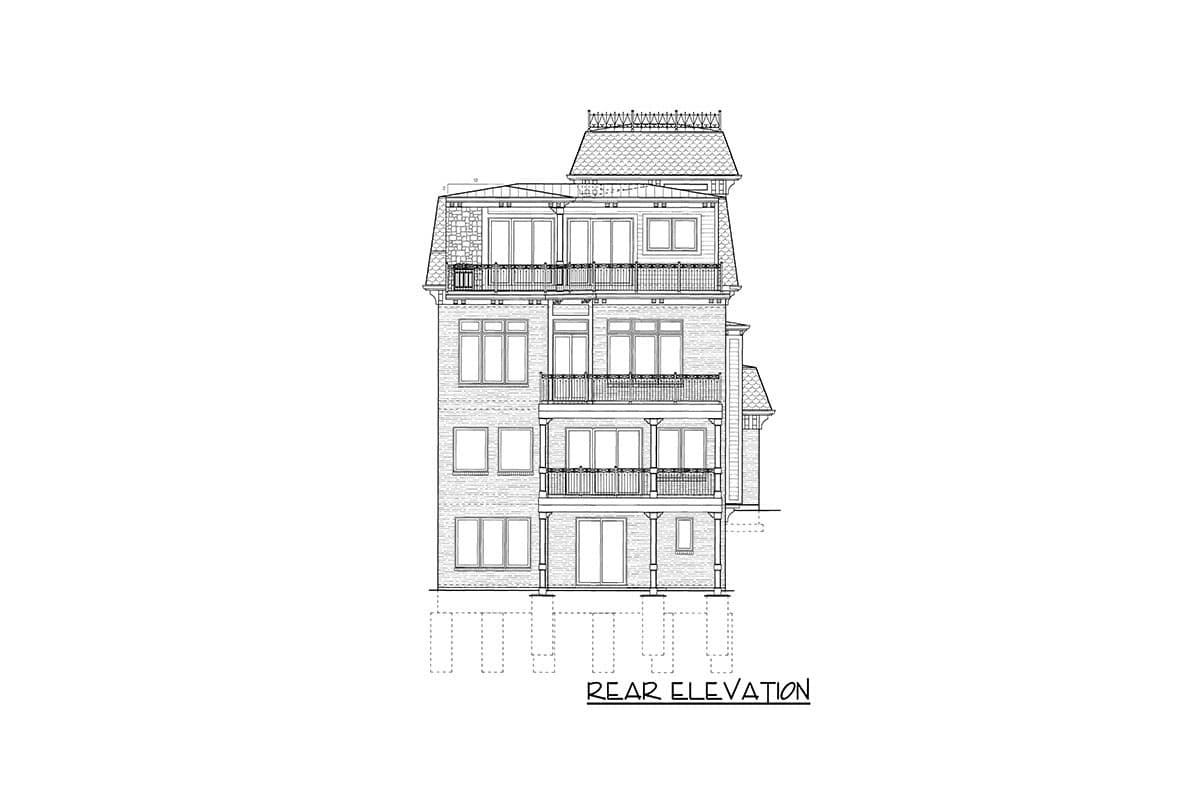

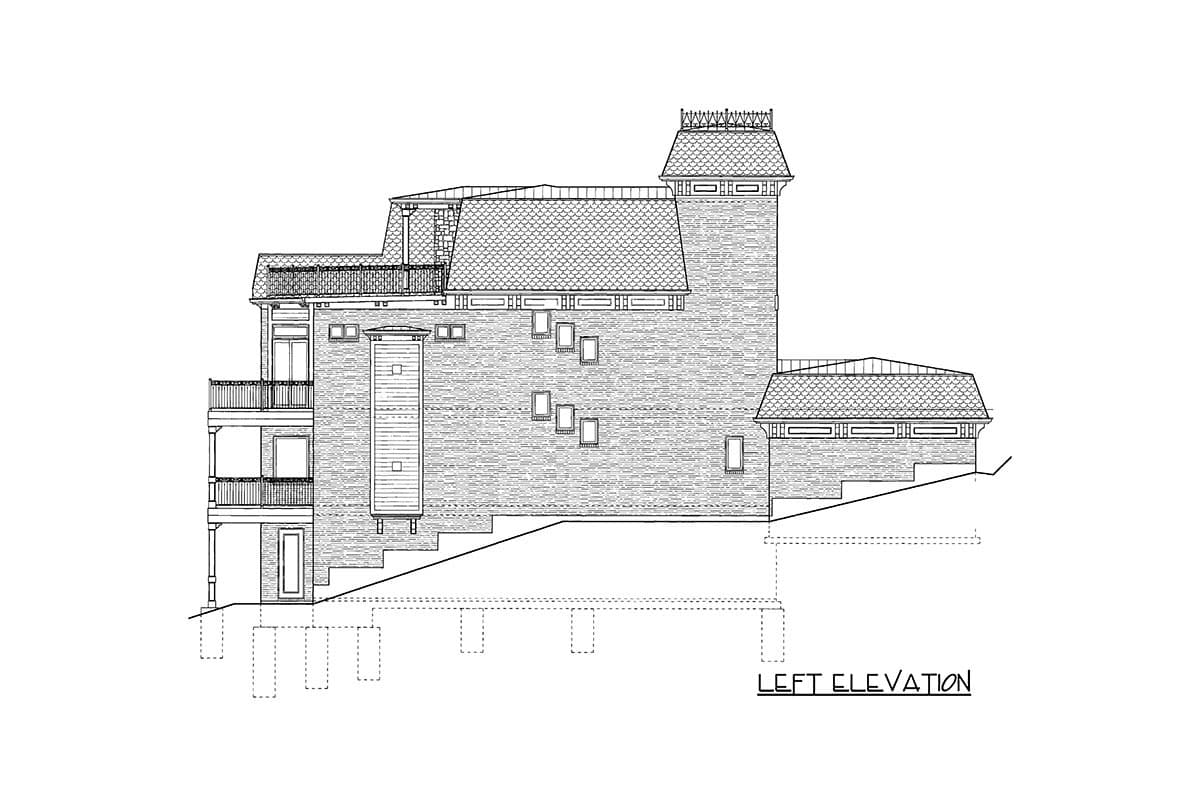

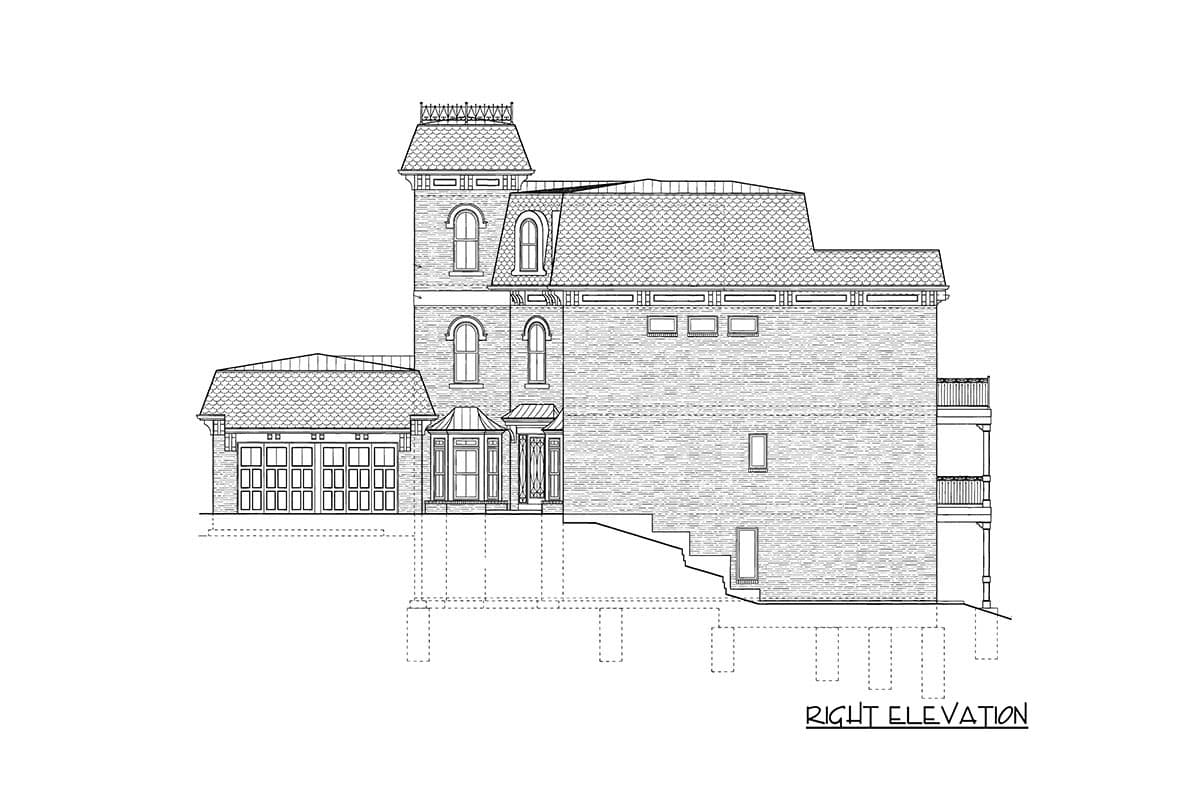

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,306 sq. ft.

Lower Level

1,676 sq. ft.

1st Floor

1,450 sq. ft.

2nd Floor

1,450 sq. ft.

3rd Floor

730 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

38' 0"

Depth

82' 0"

Garage

Type

Attached

Area

488 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Second Floor

11'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Elevator

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Outdoor Fireplace

Wet Bar

Plan Collections

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

5,306 sq. ft.

Lower Level

1,676 sq. ft.

1st Floor

1,450 sq. ft.

2nd Floor

1,450 sq. ft.

3rd Floor

730 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

38' 0"

Depth

82' 0"

Garage

Type

Attached

Area

488 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Second Floor

11'

Roof Details

Framing Type

Truss

Architectural Style

European

Special Features

Elevator

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Outdoor Fireplace

Wet Bar

Plan Collections

Luxury

Photo Gallery

Premium Collection
