Plan 24037BG

European Retreat with Massive Gathering Room and Two Stairs - 6234 Sq Ft

Heated S.F.
6,234
Beds
3
Baths
3.5+
Stories
2
Cars
3

Floor Plan

Plan 24037BG

Main Level
Main Level
2nd Floor
2nd Floor

Plan 24037BG

M-F 9am-5pm EST |

1-203-761-8500

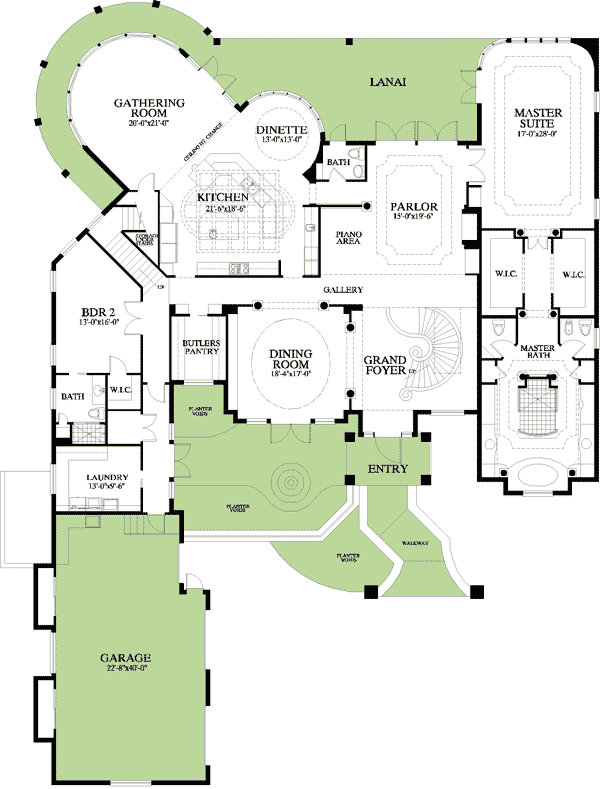

Main Level

Plan 24037BG: European Retreat with Massive Gathering Room and Two Stairs - 6234 Sq Ft - Floor Plan - Main Level - European, French Country

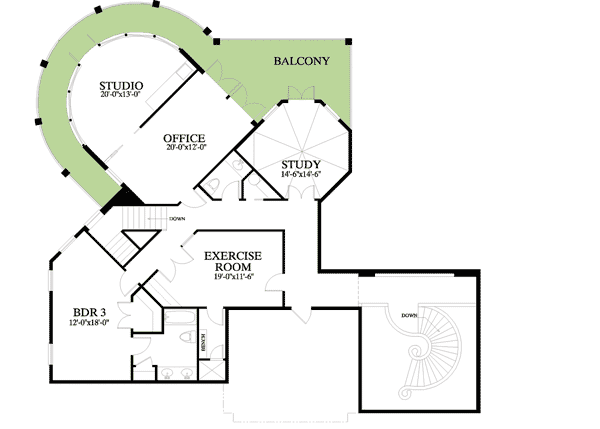

2nd Floor

Plan 24037BG: European Retreat with Massive Gathering Room and Two Stairs - 6234 Sq Ft - Floor Plan - 2nd Floor - European, French Country

Plan Details

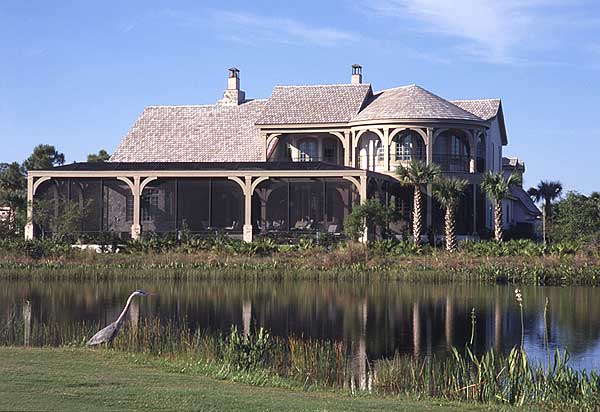

  • A stone exterior further enhances the European feel of this magnificent home from our Premium Collection.

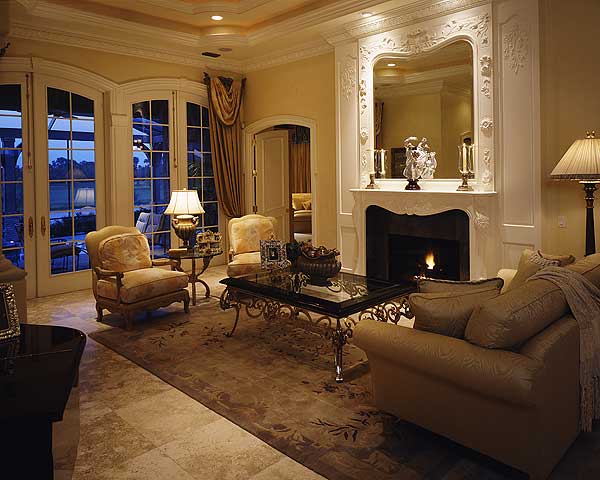

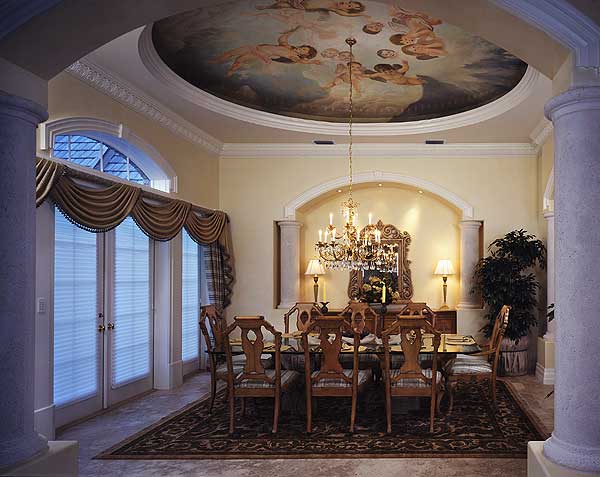

  • The grand foyer within presents your guests with a stunning curved staircase and views of the formal dining room and parlor.

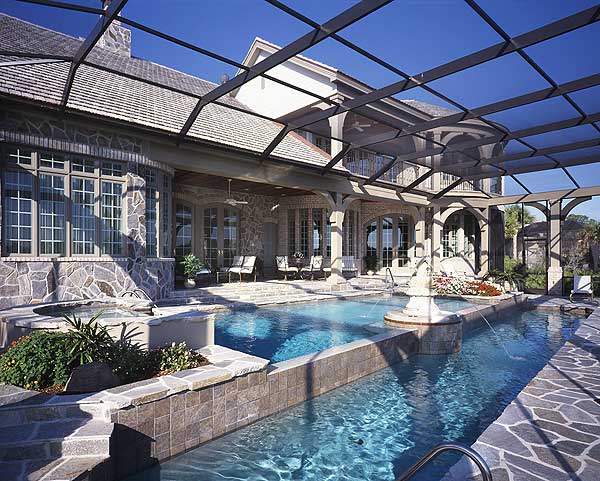

  • Double French doors open the parlor to a covered lanai and the dining room to a front courtyard.

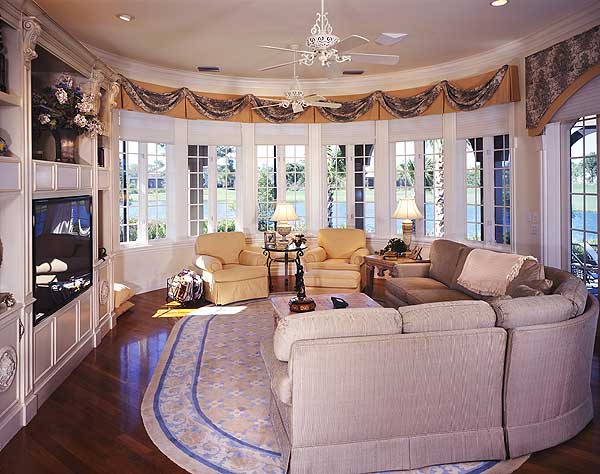

  • The gathering room, dinette and second floor studio have walls of glass in an unusual semi-circular shape.

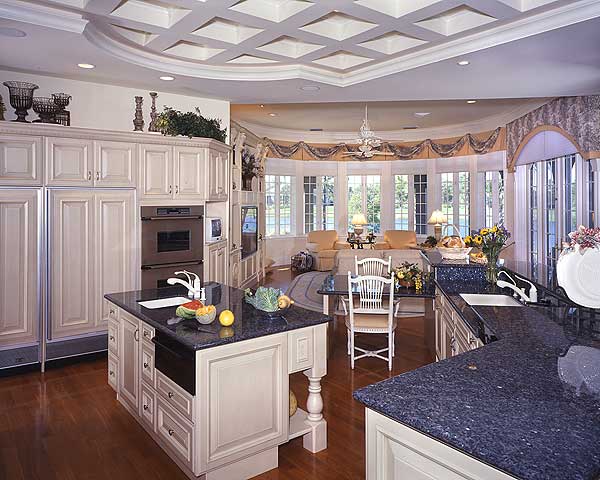

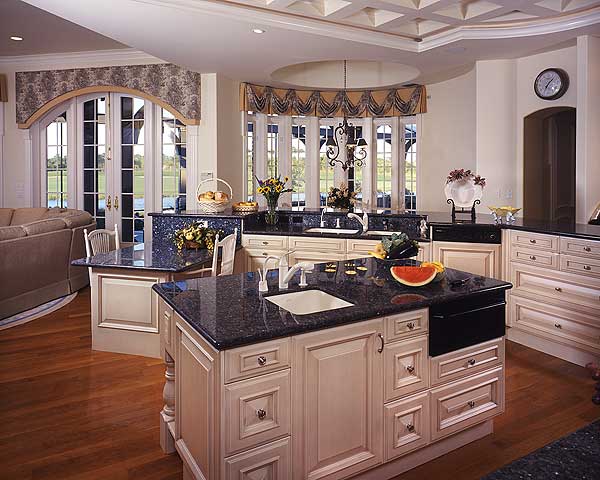

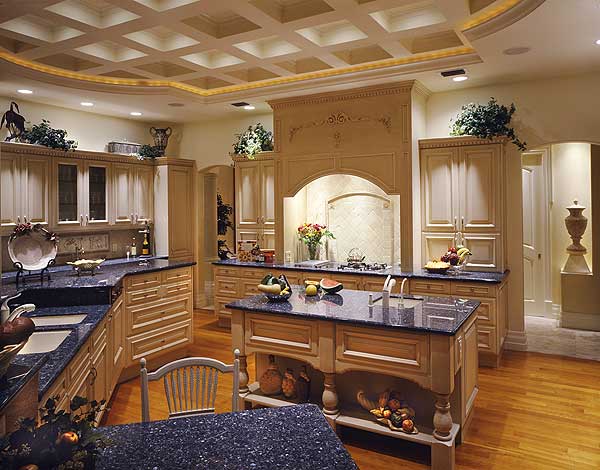

  • Coffered and trayed ceilings abound throughout the home.

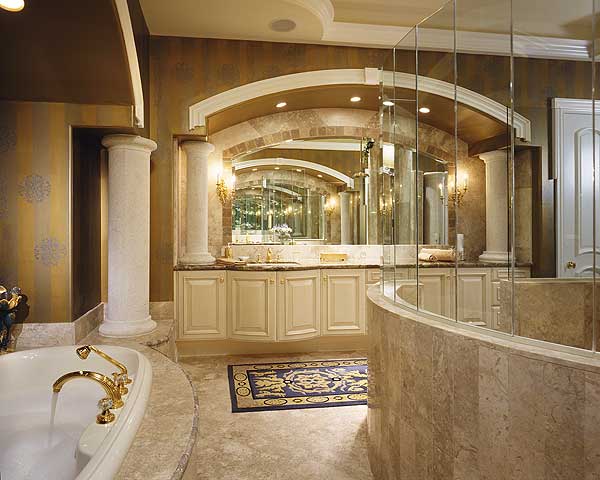

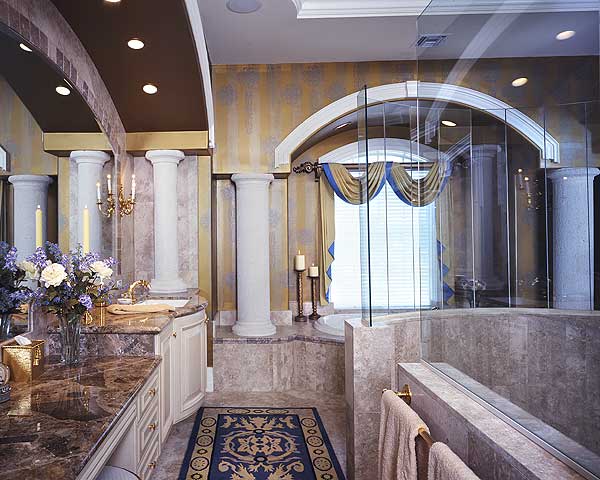

  • An opulent master bath includes a walk-in shower accessed from two sides, tray ceiling, his and her water closets, double sinks and a large soaking tub flanked by columns.

What's Included

  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan

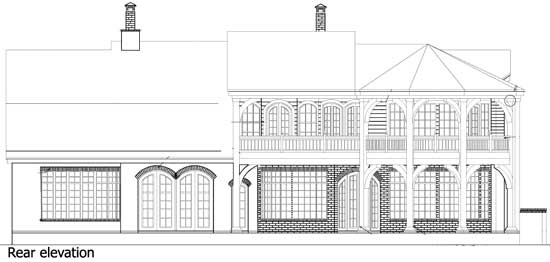

  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
  • Roof truss design - to be created by the truss manufacturer in accordance with local code requirements

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,234 sq. ft.

1st Floor

4,500 sq. ft.

2nd Floor

1,734 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

85' 0"

Depth

118' 6"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

907 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

European

French Country

Special Features

Bedrooms - Split

Breakfast Nook

Courtyard

Formal Dining

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Multiple Stairs

Walk-in Pantry

Plan Collections
