Plan 444025GDN

European-style Estate House Home Plan with Cathedral Ceiling on a Walkout Basement

Heated S.F.
4,357
Beds
4 - 5
Baths
5
Stories
1
Cars
3

Floor Plan

Plan 444025GDN

Main Level
Main Level
2nd Floor
2nd Floor
Basement
Basement

Plan 444025GDN

M-F 9am-5pm EST |

1-203-761-8500

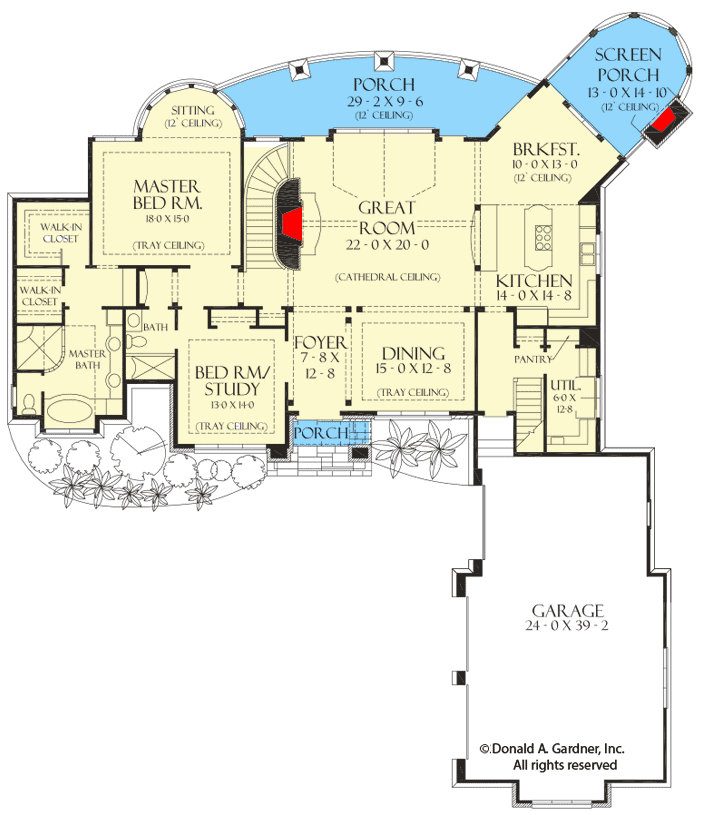

Main Level

Plan 444025GDN: European-style Estate House Home Plan with Cathedral Ceiling on a Walkout Basement - Floor Plan - Main Level - European

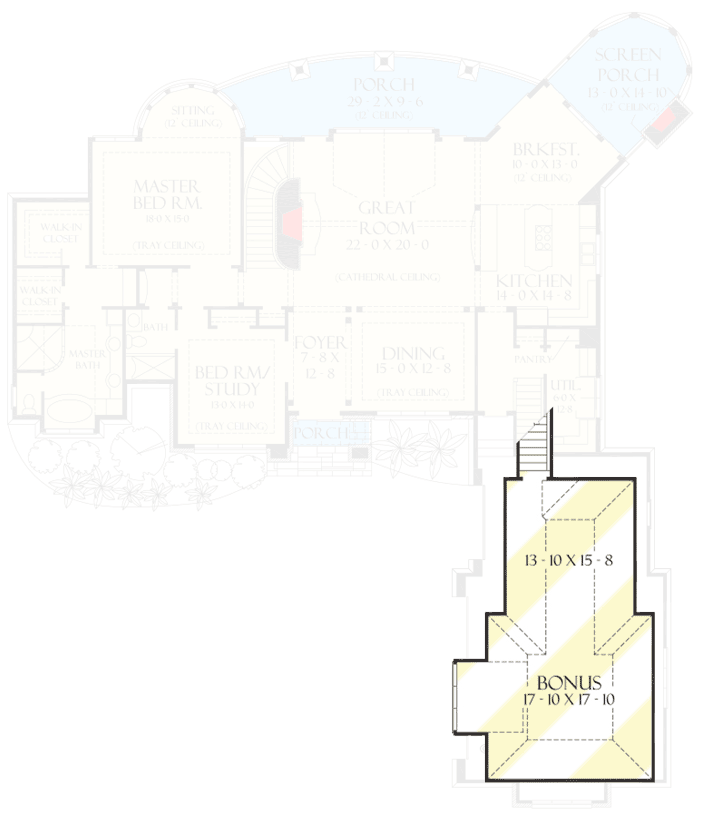

2nd Floor

Plan 444025GDN: European-style Estate House Home Plan with Cathedral Ceiling on a Walkout Basement - Floor Plan - 2nd Floor - European

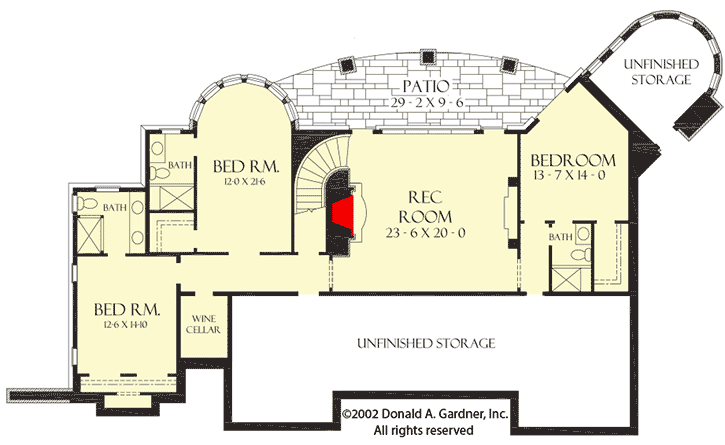

Basement

Plan 444025GDN: European-style Estate House Home Plan with Cathedral Ceiling on a Walkout Basement - Floor Plan - Basement - European

Plan Details

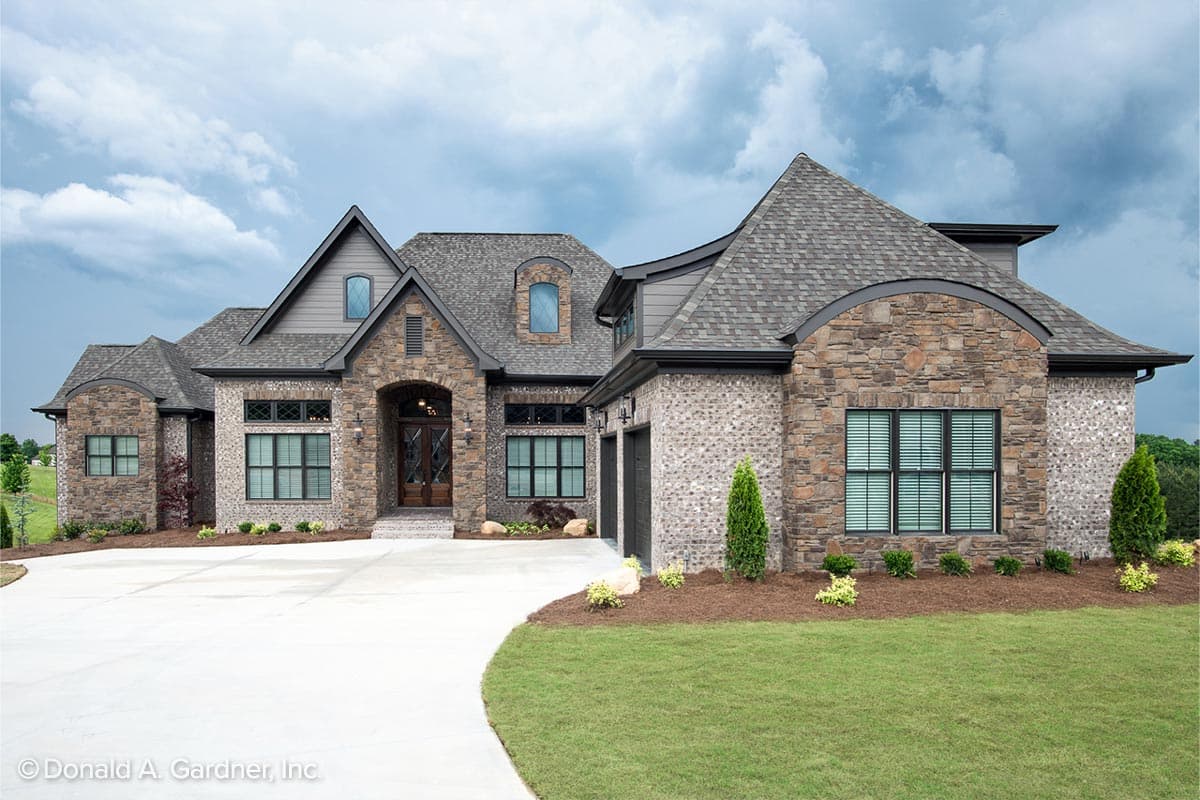

  • Stone and stucco combine with multiple gable peaks and an impressive, front entry to create stunning curb appeal for this European estate house plan.

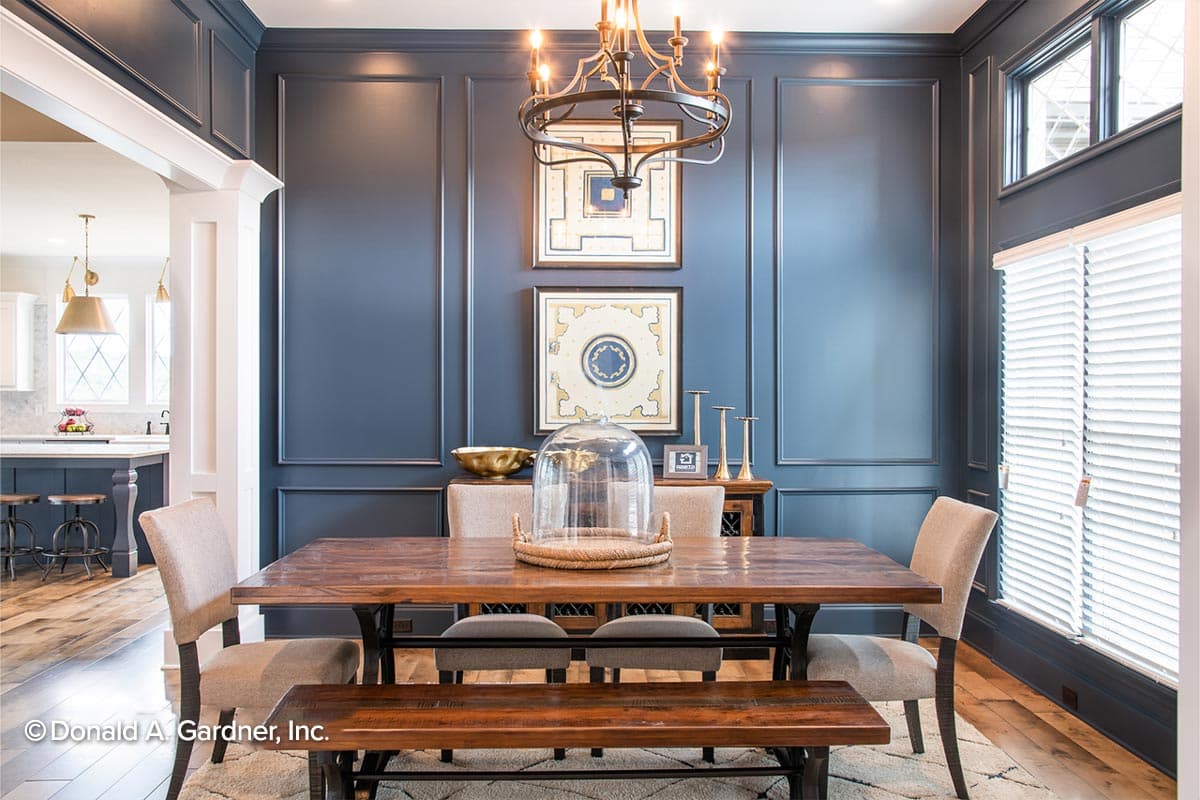

  • The grand foyer greets visitors on the inside, while the dining room and bedroom/study flank the foyer on both sides.

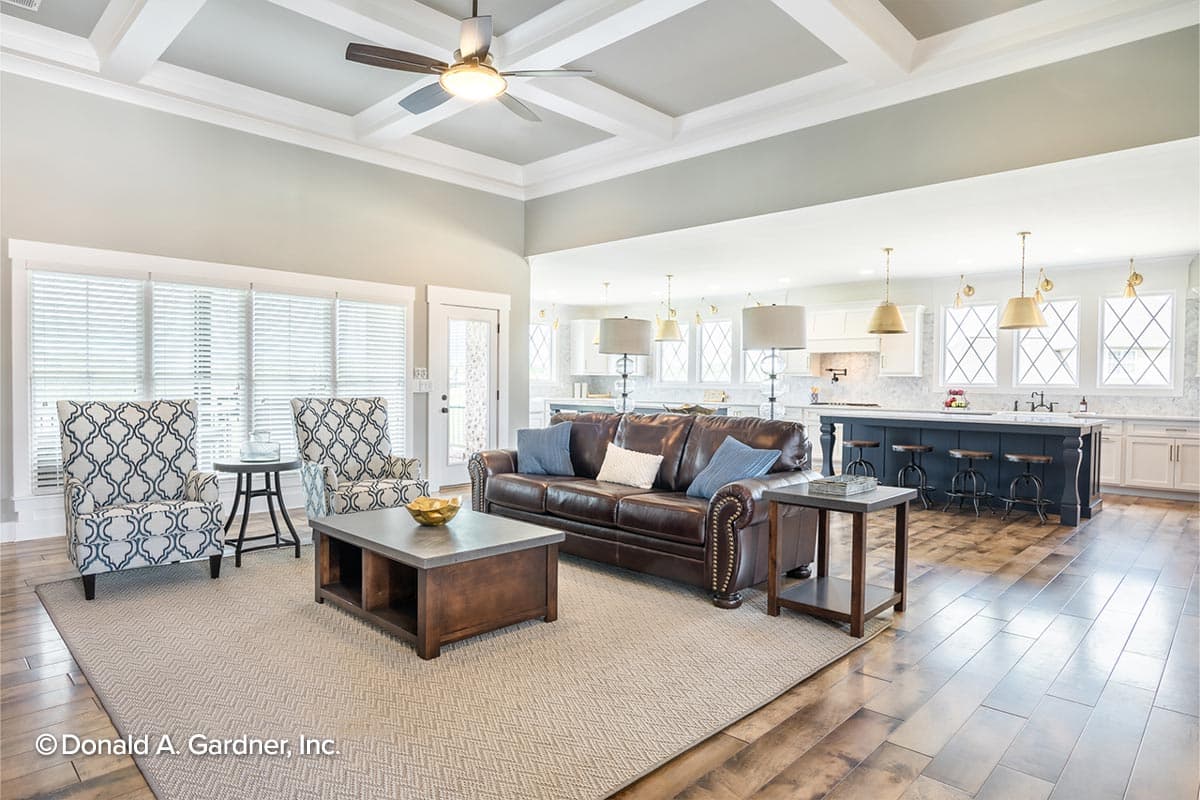

  • Further along, the great room includes a 22'8" cathedral ceiling, porch access and wall of windows to view outdoor scenery.

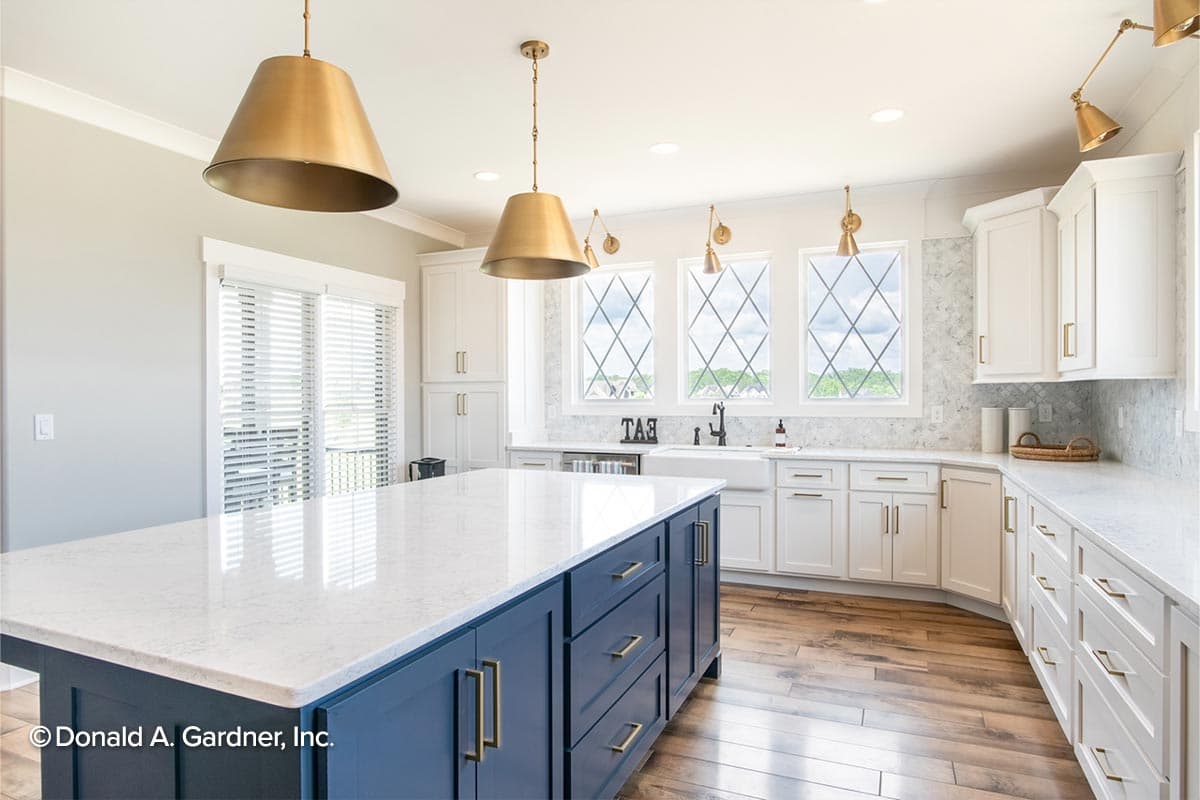

  • The breakfast room and kitchen are also open to the great room and one another, simplifying mealtime.
  • On the other side of the house plan, a large master suite has a 10'11" tray ceiling and has a bowed sitting area. The luxurious master bath features a corner shower, large soaking tub, dual vanities and a private toilet.
  • Three bedrooms are in the lower level and each has its own full bath. A large rec room with fireplace, outdoor access and storage completes the home.

What's Included

  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,357 sq. ft.

Lower Level

1,820 sq. ft.

1st Floor

2,537 sq. ft.

Basement Unfinished

707 sq. ft.

Bonus

582 sq. ft.

Porch, Front

54 sq. ft.

Porch, Rear

312 sq. ft.

Screened Porch

207 sq. ft.

Covered Patio

299 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

5

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 4"

Depth

95' 10"

Max Ridge Height

42' 6"

Garage

Type

Attached

Area

1006 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

14 on 12

Framing Type

Stick

Architectural Style

European

Special Features

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Plan Collections

Photo Gallery

Sloping Lot
