Plan 67121GL European-style Manor House Plan with Luxurious Master Suite

3,929 4 3.5+ 1 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

European-style Manor House Plan with Luxurious Master Suite

Plan 67121GL

  • 3,929

    Heated s.f.

  • 4

    Beds

  • 3.5+

    Baths

  • 1

    Stories

  • 3

    Cars

  • A splendid porte cochere connects the over-sized three car garage to the expansive main home in this European design.
  • An impressive central rotunda guides you to the main living areas.
  • The spectacular master bath is huge with a soaking tub and large walk-in shower flanked by two walk-in closets.
  • Entertain in style with the large pub wet bar that opens to the rear lanai.
  • A media wall in the vaulted family room will hold all your hi-tech equipment.
  • The quiet computer alcove off the study is the perfect spot for home or office work.
  • The kitchen is 17'-4" x 14'-4" and the family room ceiling is approximately 20' high.

Each plan set includes the following:


Cover sheet
table of contents

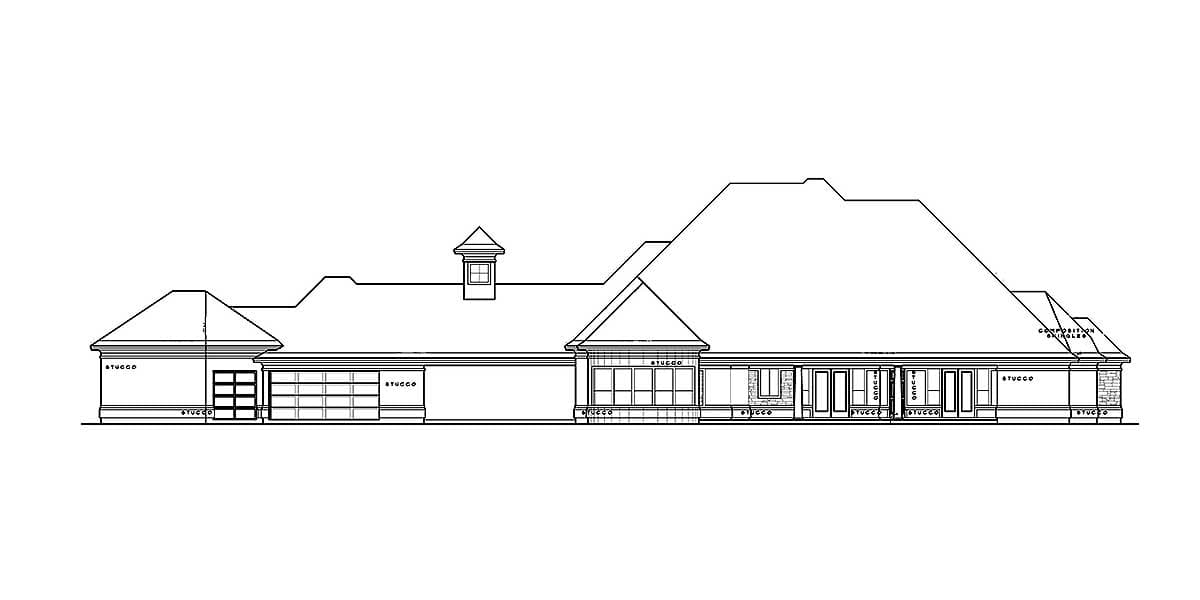

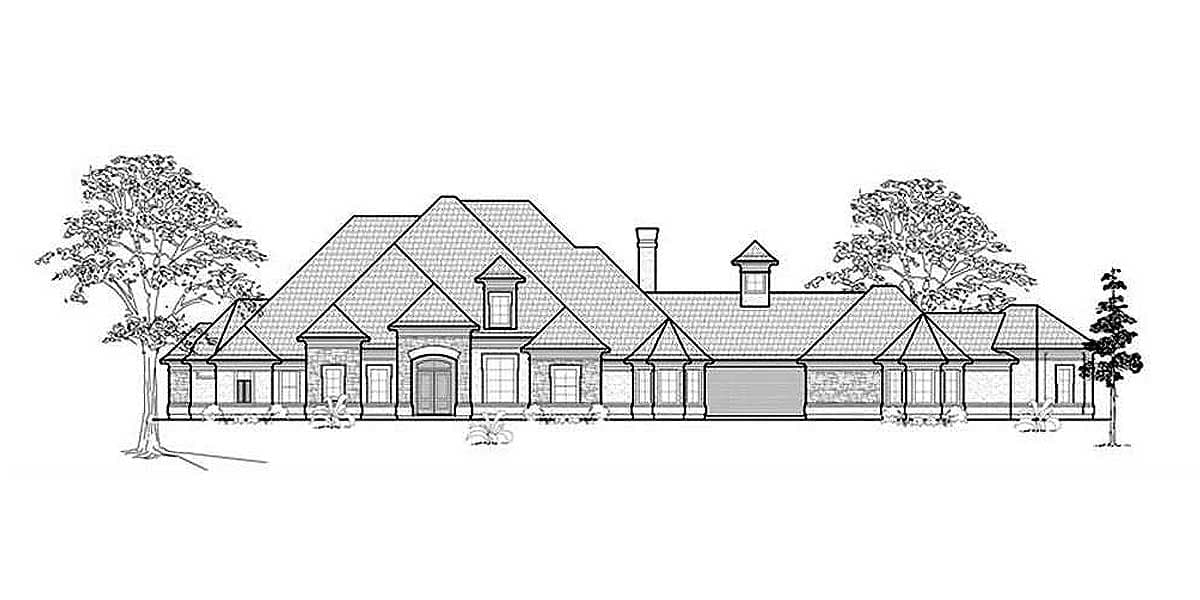

exterior elevations (noted and dimensioned)
floor plan(s) (noted and dimensioned)
electrical plan(s)
framing plan(s)
joist layout plan(s),
foundation footprint
at least one cross-section, and any other relevant details, including, but not limited to, a typical detail sheet showing common construction methods.

The plans do NOT include electrical plans,  HVAC (Heating, Ventilation, Air-conditioning) drawings, M.E.P. (Mechanical, Electrical, Plumbing), i.e. plumbing layouts showing pipe sizes and locations, or location specific engineering.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

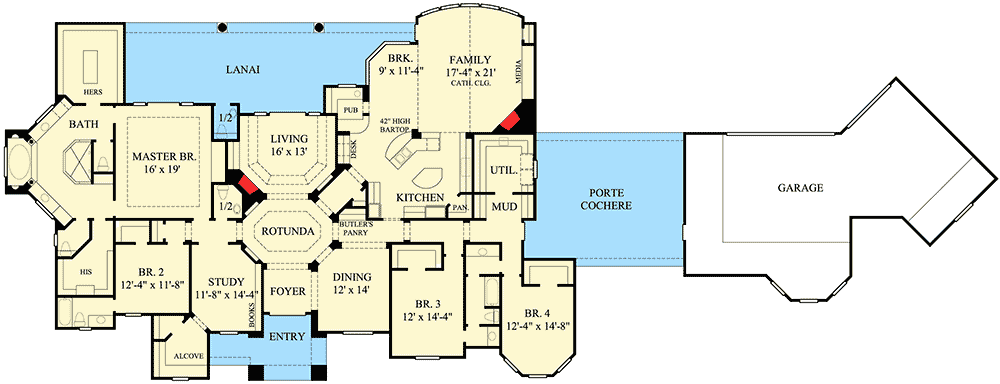

European-style Manor House Plan with Luxurious Master Suite - 67121GL floor plan - Main Level
