Plan 95047RW

European Styling

Heated S.F.
2,571
Beds
2 - 4
Baths
2.5 - 4.5
Stories
1
Cars
4

Floor Plan

Plan 95047RW

Main Level
Main Level
Optional Finished Lower Level
Optional Finished Lower Level

Plan 95047RW

M-F 9am-5pm EST |

1-203-761-8500

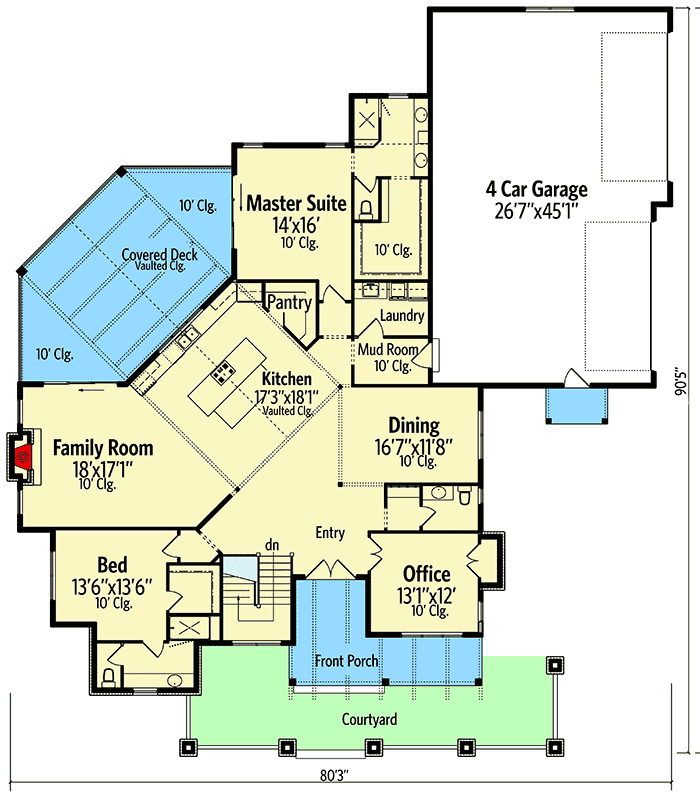

Main Level

Plan 95047RW: European Styling - Floor Plan - Main Level - European, Rustic

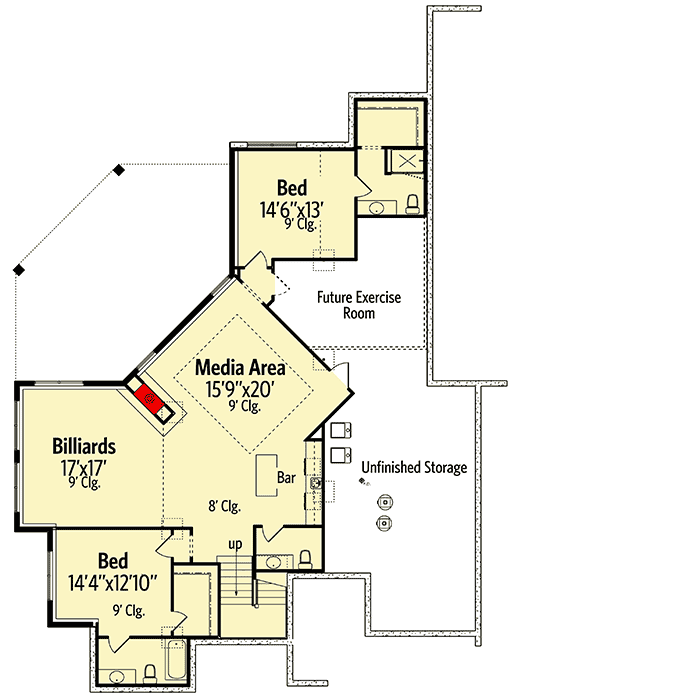

Optional Finished Lower Level

Plan 95047RW: European Styling - Floor Plan - Optional Finished Lower Level - European, Rustic

Plan Details

  • European styling adorns this beautiful two bedroom house plan that comes with the option for a finished lower level.
  • An open floor plan and 10' high ceilings expand the feeling of spaciousness.
  • In the kitchen area, a huge two-level island gives you both work space and eating space.
  • The kitchen sink overlooks the huge vaulted porch in back.
  • There's a guest bedroom and a home office plus the large master suite that is set off by itself.
  • A four car garage has plenty of room for a shop area.
  • And when you are ready to expand your home, an optional lower level will come with the blueprints.

What's Included

This plan set has 8 pages and includes the following:
  1. Cover page
  2. Front and rear elevations
  3. Side elevations
  4. Lower level floor plan
  5. Main floor plan
  6. Foundation plan - typical wall section
  7. Roof plan
  8. Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,571 sq. ft.

1st Floor

2,571 sq. ft.

Basement Unfinished

911 sq. ft.

Optional Lower Level

1,660 sq. ft.

Deck & Porch

721 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2, 3, or 4

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Daylight

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

80' 3"

Depth

90' 5"

Max Ridge Height

29' 9"

Garage

Type

Attached

Area

1305 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

European

Rustic

Special Features

Bedrooms - Clustered

Den

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Wet Bar

Plan Collections

Home Office

Sloping Lot
