Plan: 89834AH

European Styling with Optional Guest Suite

3,109 2-3 3 + 1-2 3
watch
video print
Pageloader

European Styling with Optional Guest Suite

Plan 89834AH

  • 3,109

    Heated s.f.

  • 2-3

    Beds

  • 3 +

    Baths

  • 1-2

    Stories

  • 3

    Cars

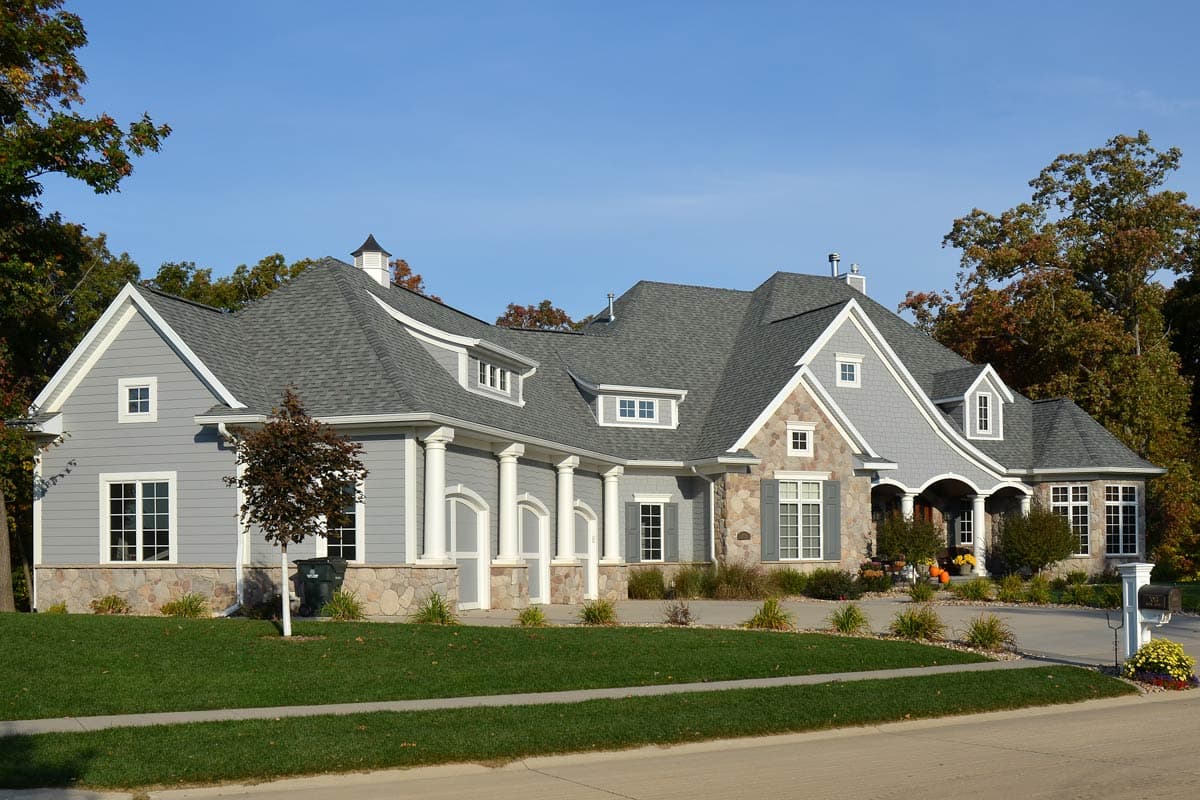

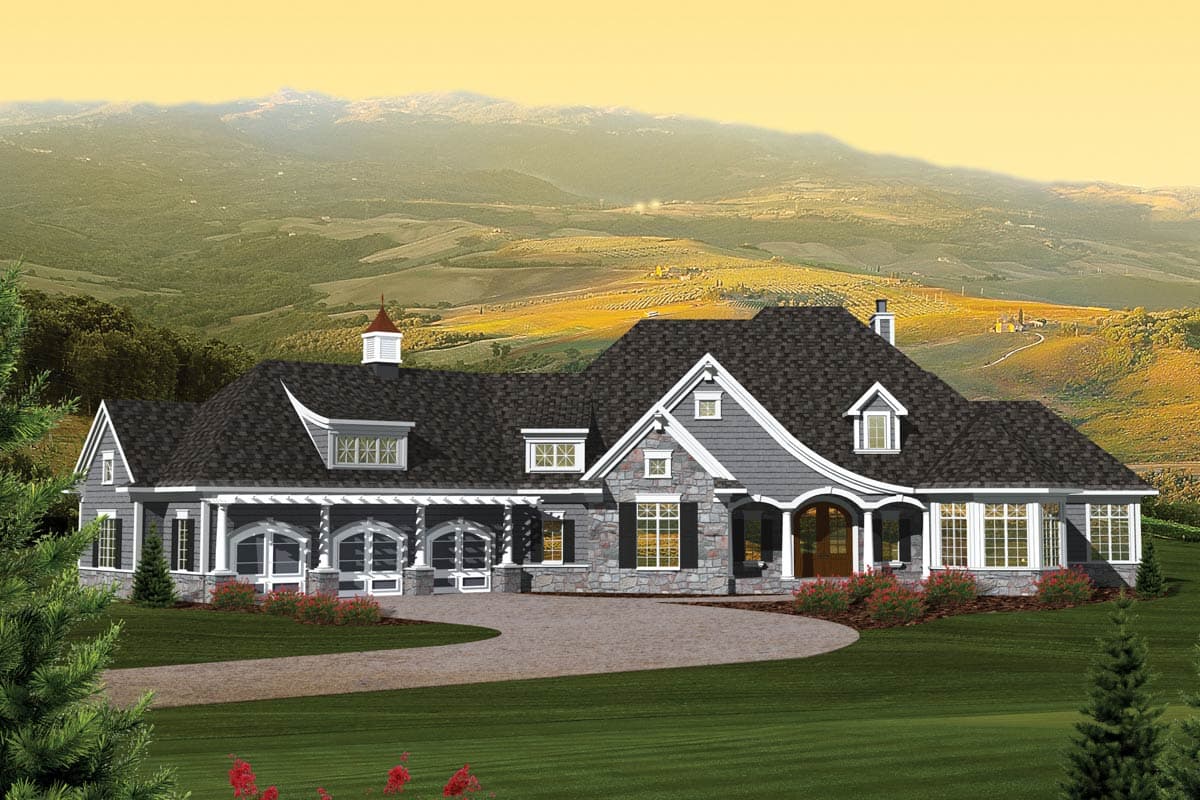

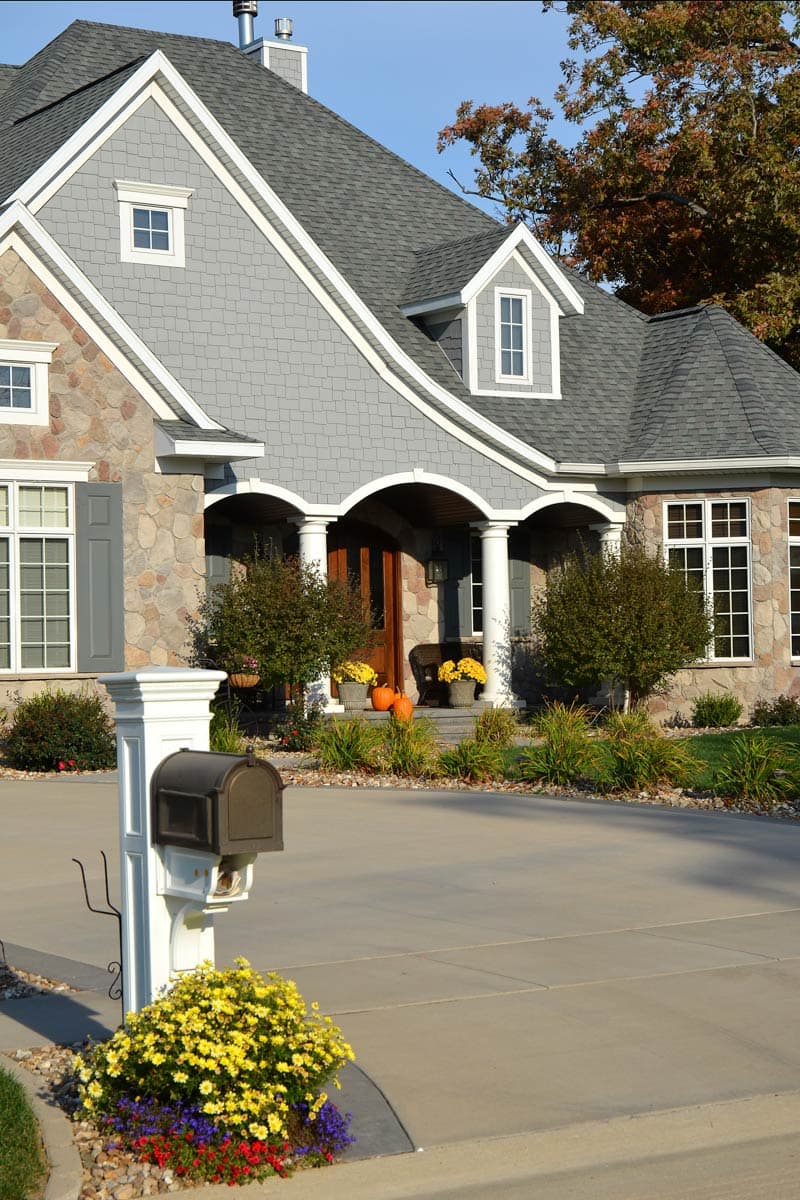

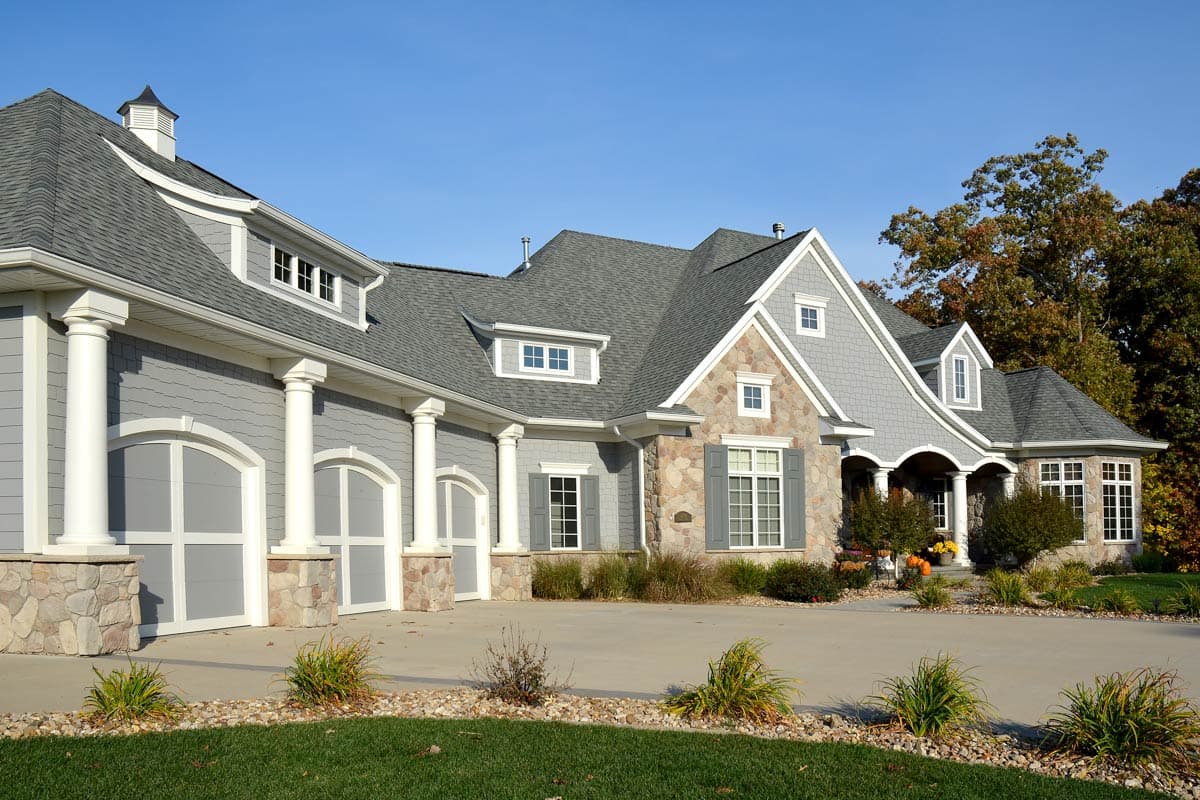

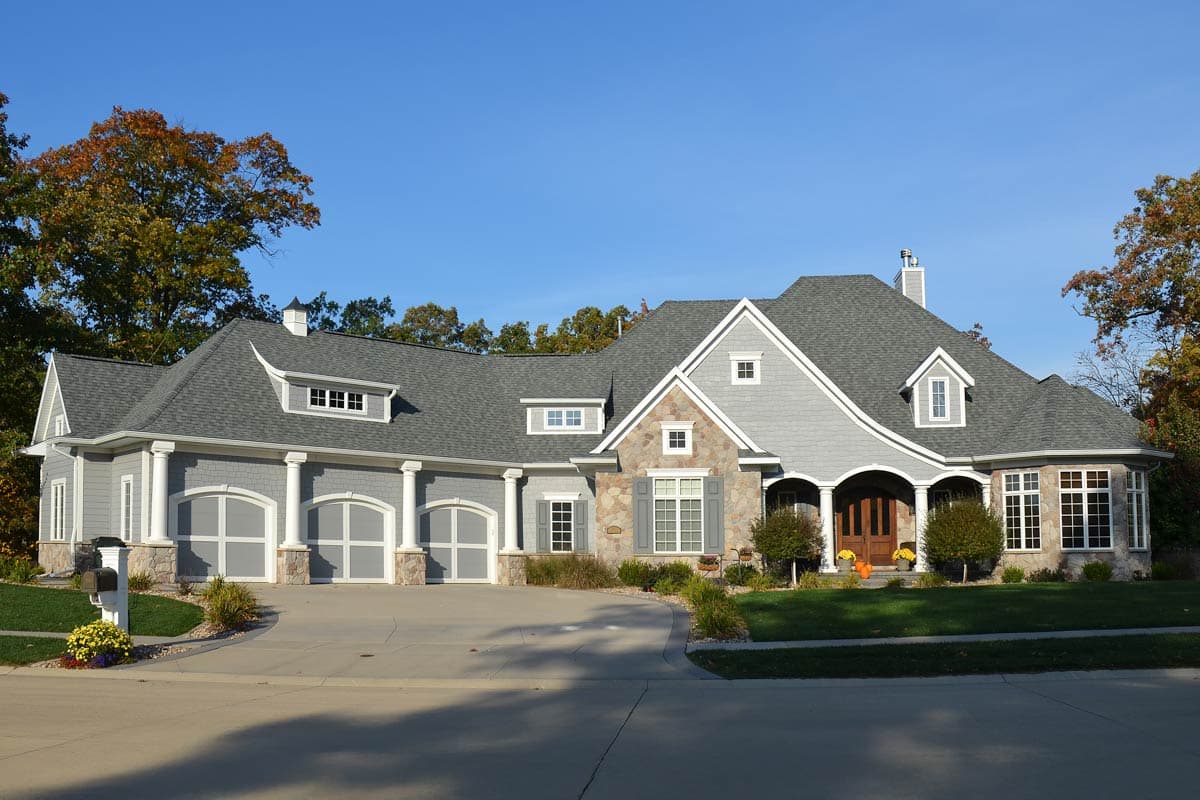

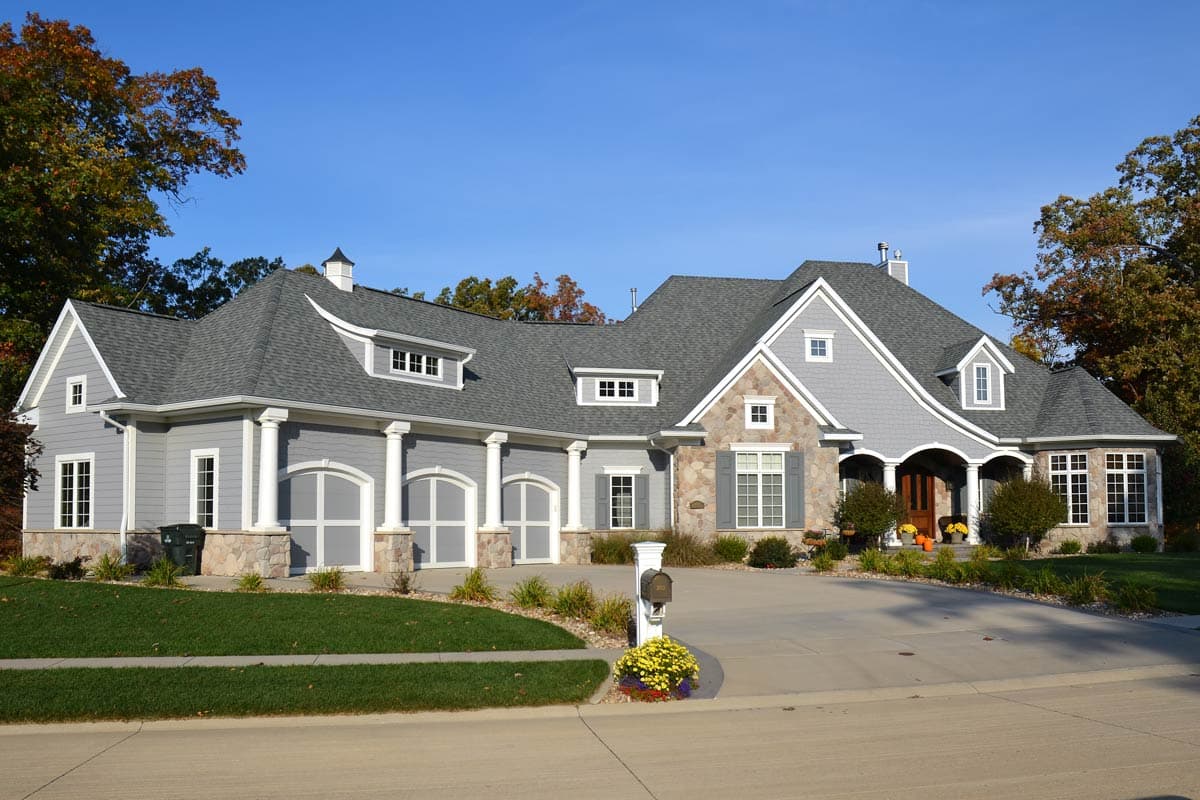

  • This amazing European ranch home plan will greats you with columns and a pergola defining the garage as well as a comfortable porch graced with columns.

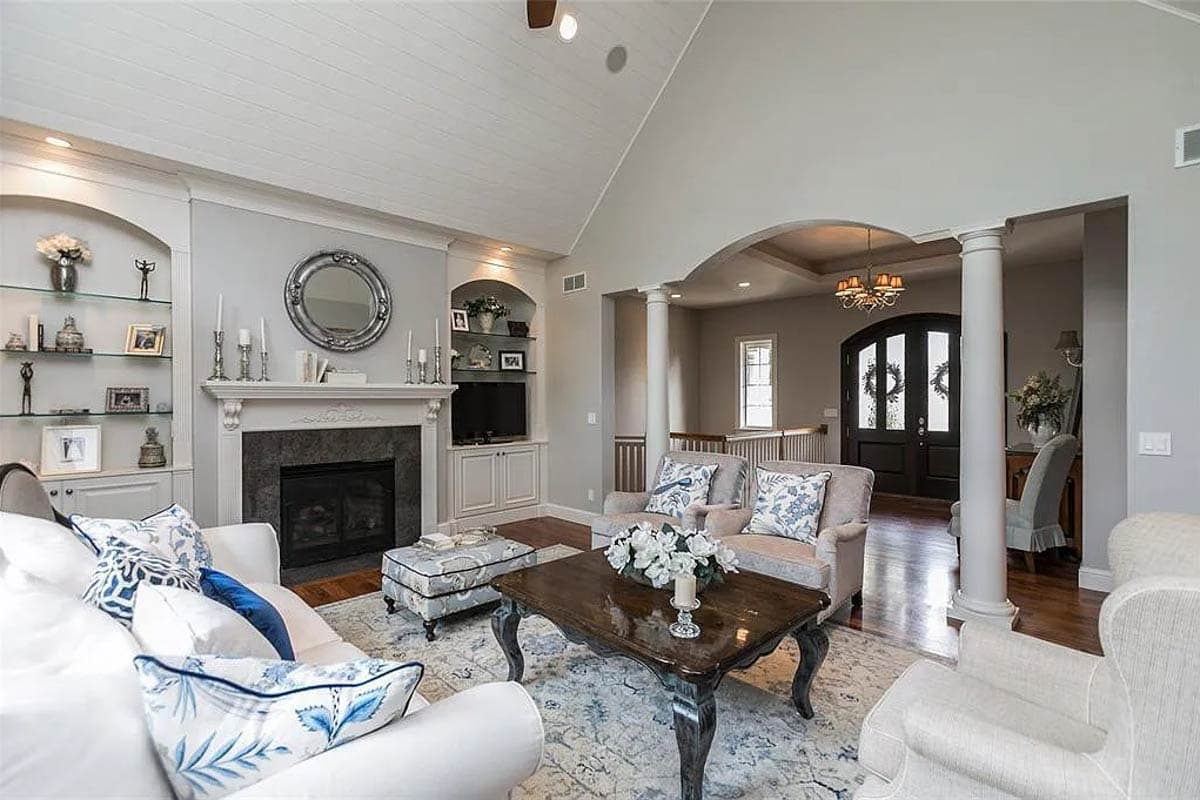

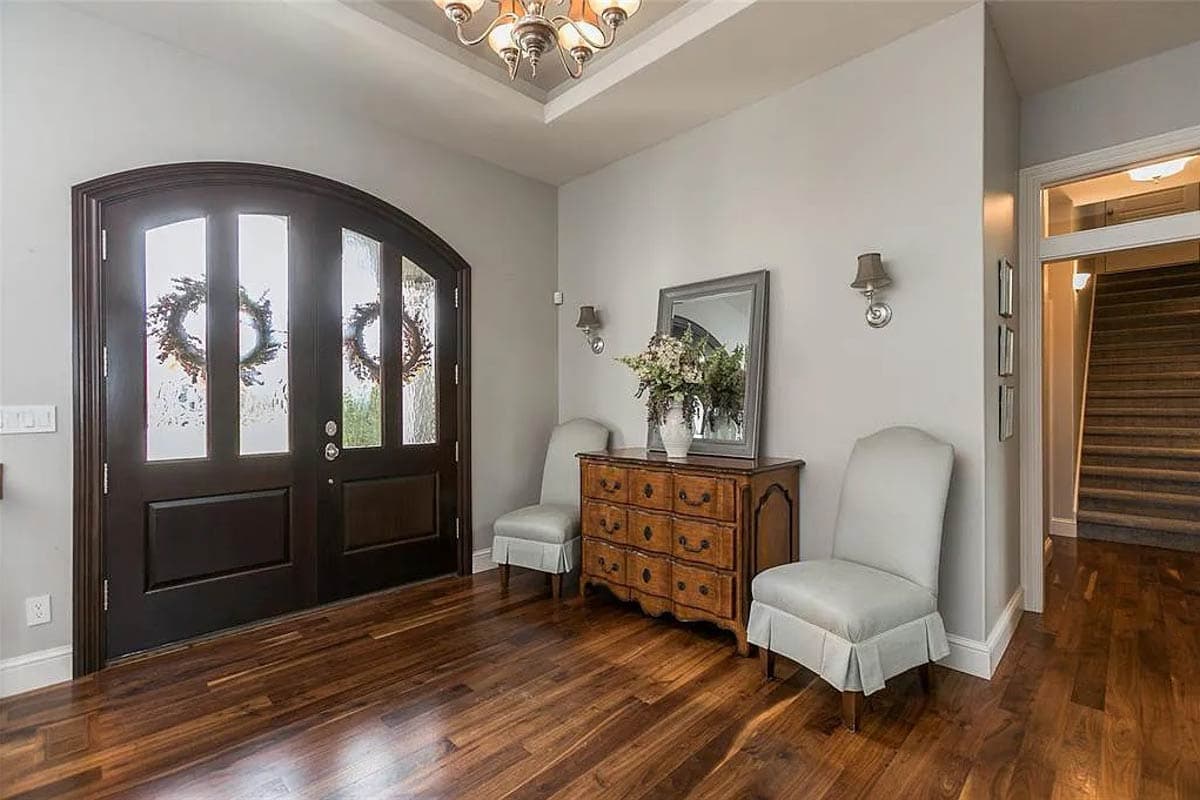

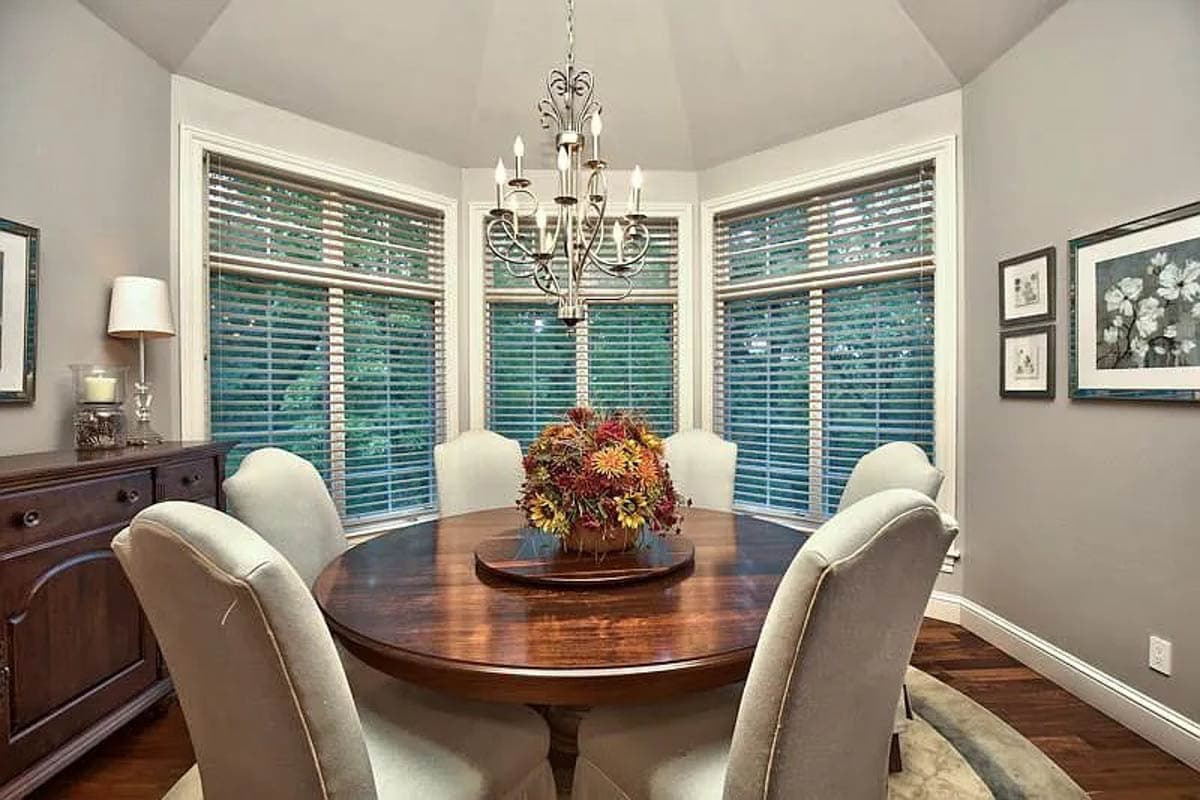

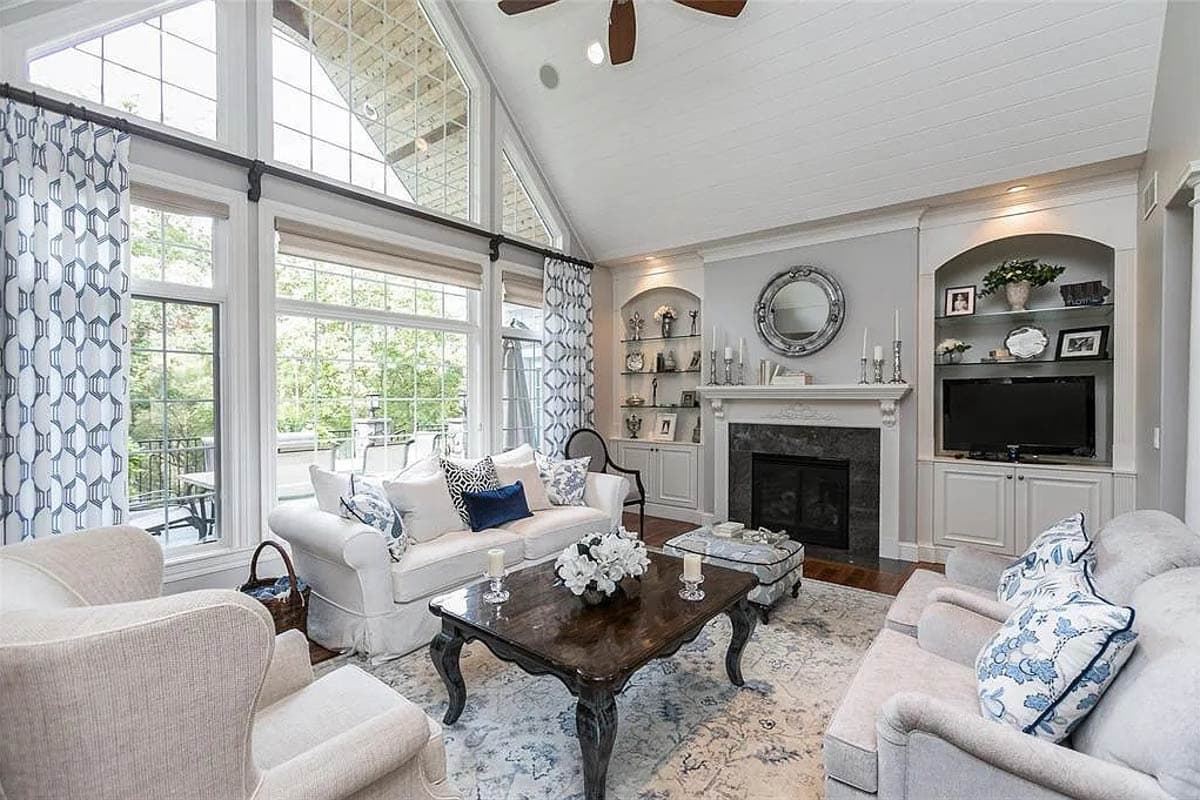

  • Nearly every room has a unique ceiling design including the entry where you'll find a step ceiling, the great room with its cathedral ceiling, the dining room with an octagonal peaked ceiling, and the master where there's another step ceiling.

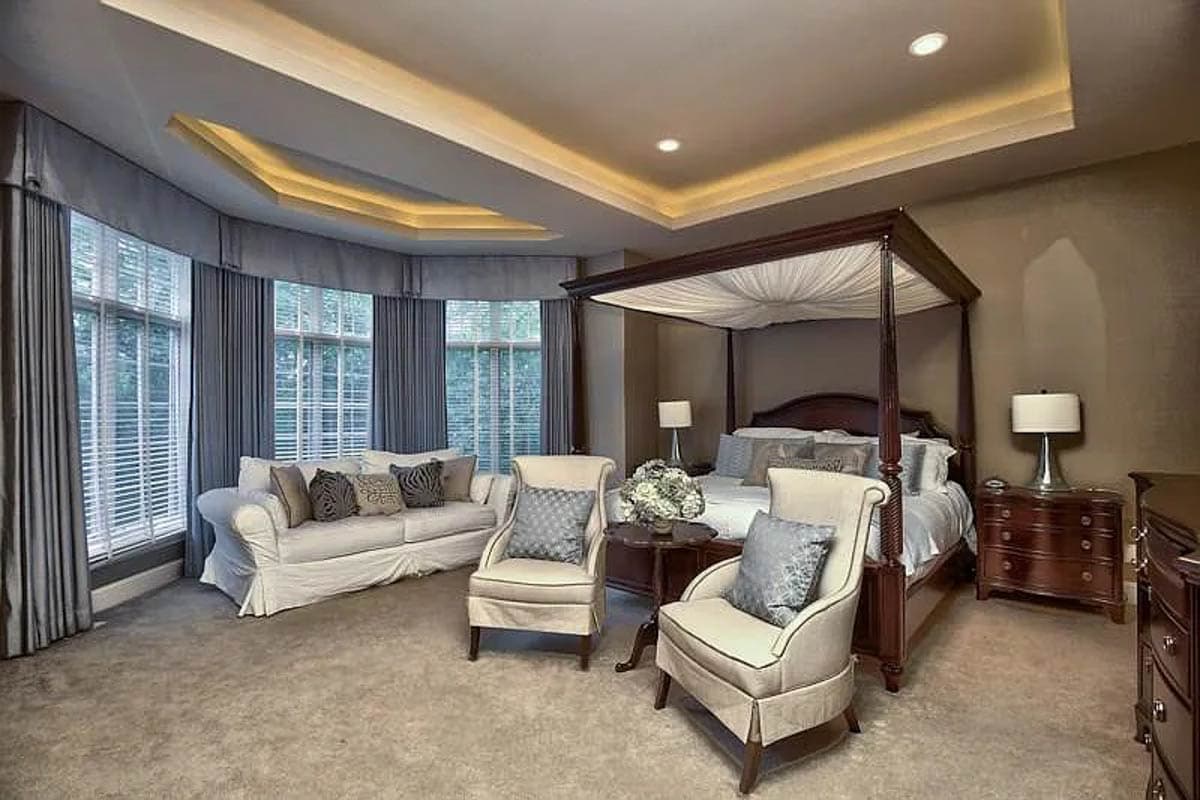

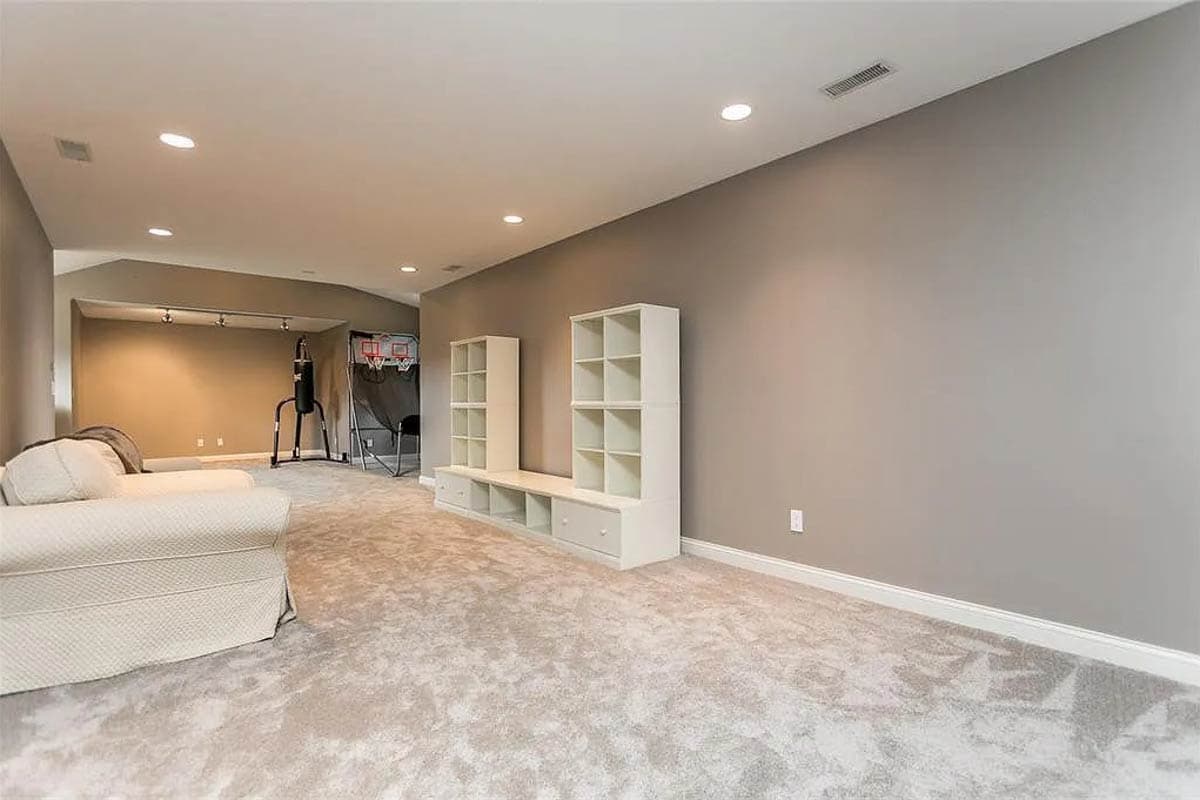

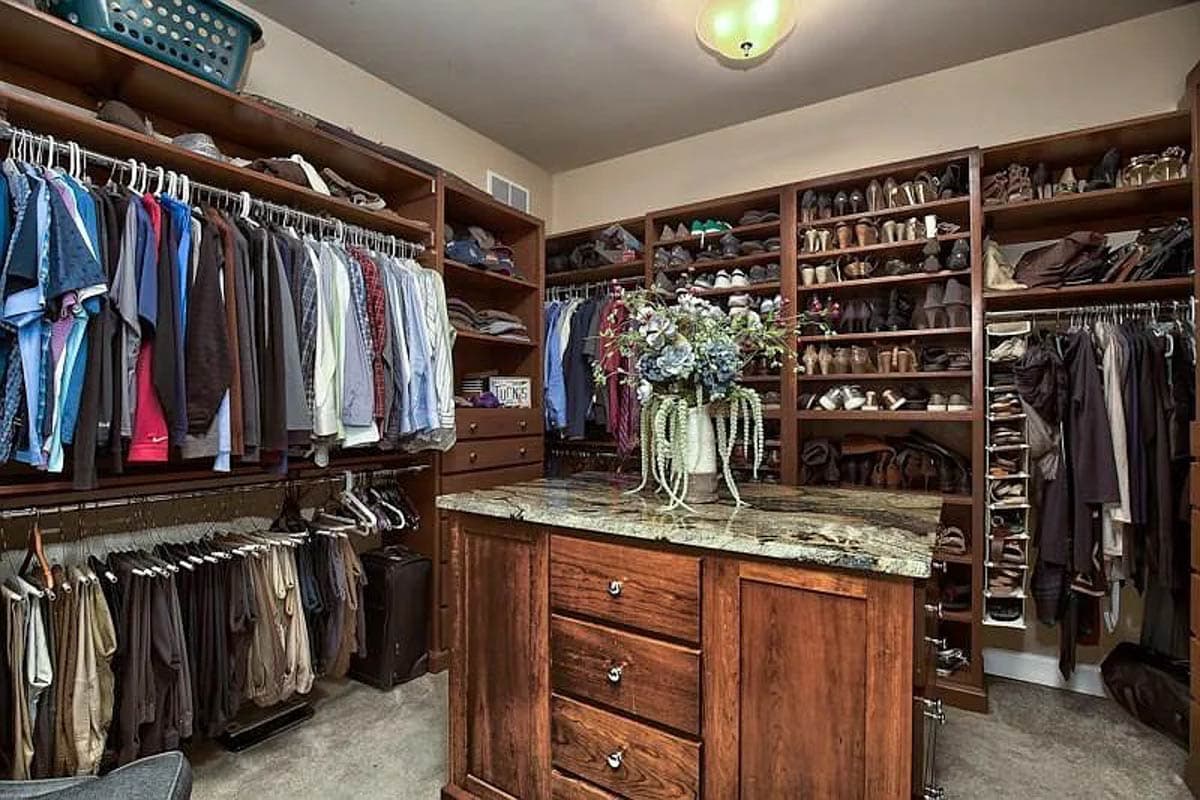

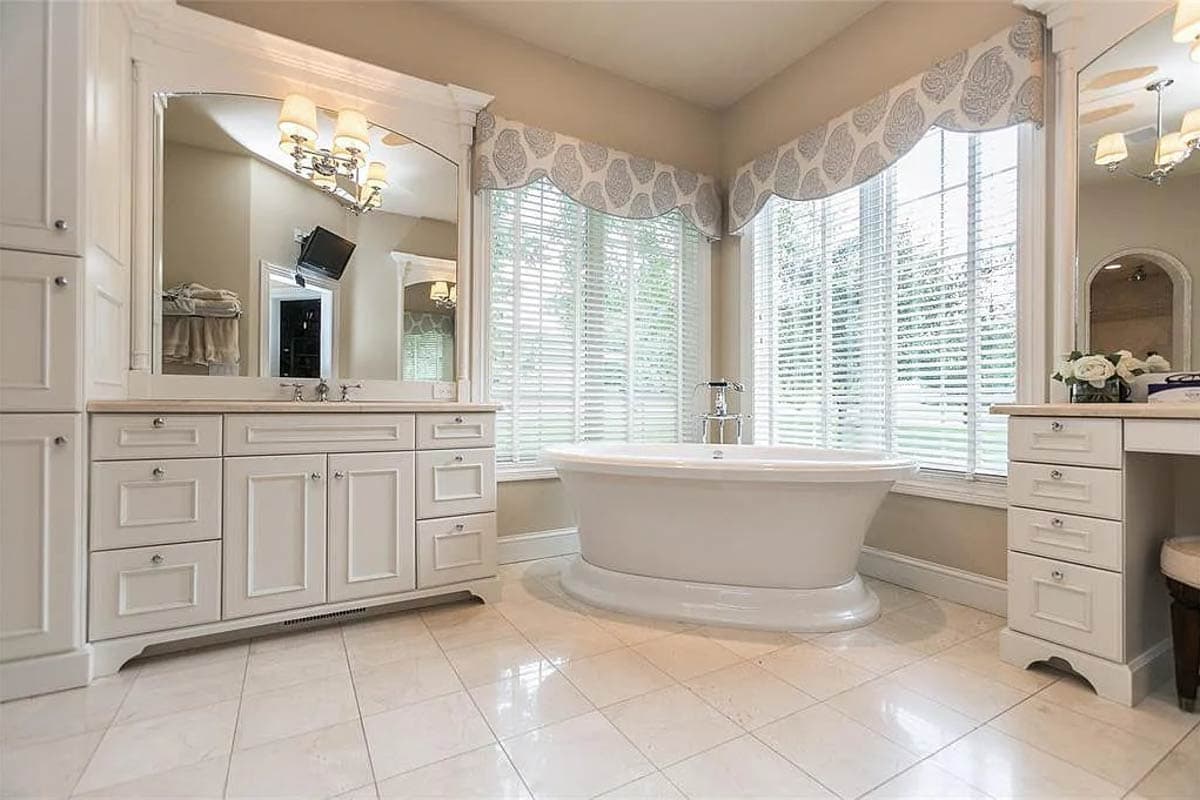

  • An open floor plan makes this home desirable and functional. The main floor master impresses with a large bay window for a sitting area, a corner Jacuzzi tub and a spacious walk-in closet. A second bedroom can be found to the left of the entry, while an entire guest suite that features an ensuite bath and large walk-in closet are found in the bonus area above the garage.
  • A three-stall, angled garage completes the home plan.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

Plans include the following

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

Framing plans are NOT included.


Plan details

Square Footage Breakdown

  • Total Heated Area: 3,109 sq. ft.
  • 1st Floor: 3,109 sq. ft.
  • Bonus: 734 sq. ft.
  • Porch, Rear: 224 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 125' 8"
  • Depth: 76' 0"
  • Max ridge height: 33' 11"

Garage

  • Type: Attached
  • Area: 1426 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



European Styling with Optional Guest Suite

  • 3,109

    Heated s.f.

  • 2 - 3

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,090
  • 8 Sets $1,135
  • Reproducible Set $1,370
  • PDF - single-use $1,370
  • CAD $2,180
  • View all purchase option online

About This Plan

  • This amazing European ranch home plan will greats you with columns and a pergola defining the garage as well as a comfortable porch graced with columns.
  • Nearly every room has a unique ceiling design including the entry where you'll find a step ceiling, the great room with its cathedral ceiling, the dining room with an octagonal peaked ceiling, and the master where there's another step ceiling.
  • An open floor plan makes this home desirable and functional. The main floor master impresses with a large bay window for a sitting area, a corner Jacuzzi tub and a spacious walk-in closet. A second bedroom can be found to the left of the entry, while an entire guest suite that features an ensuite bath and large walk-in closet are found in the bonus area above the garage.
  • A three-stall, angled garage completes the home plan.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

Floor Plans

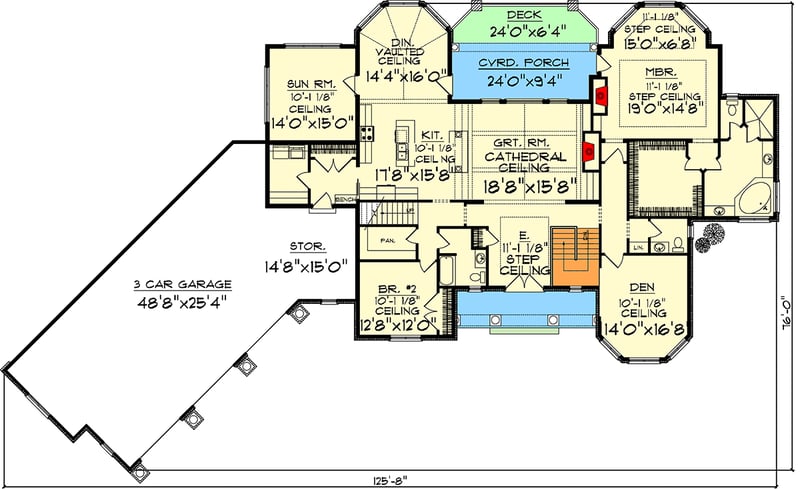

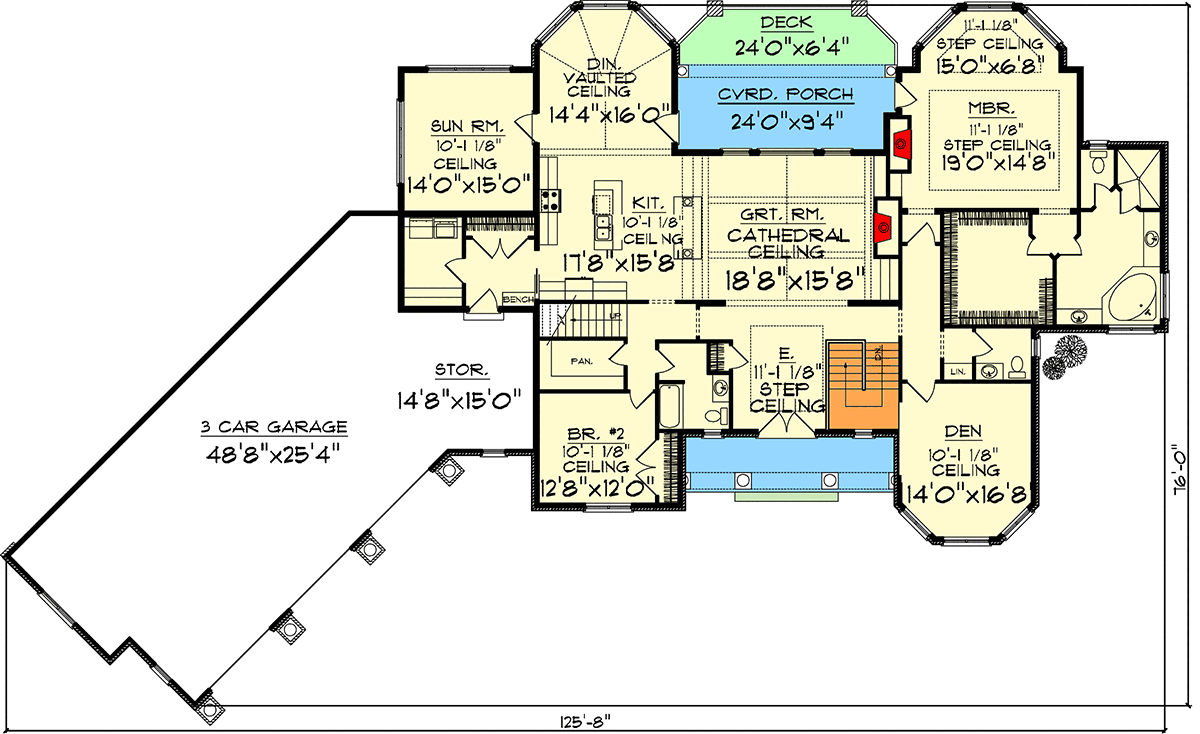

  • Main Level

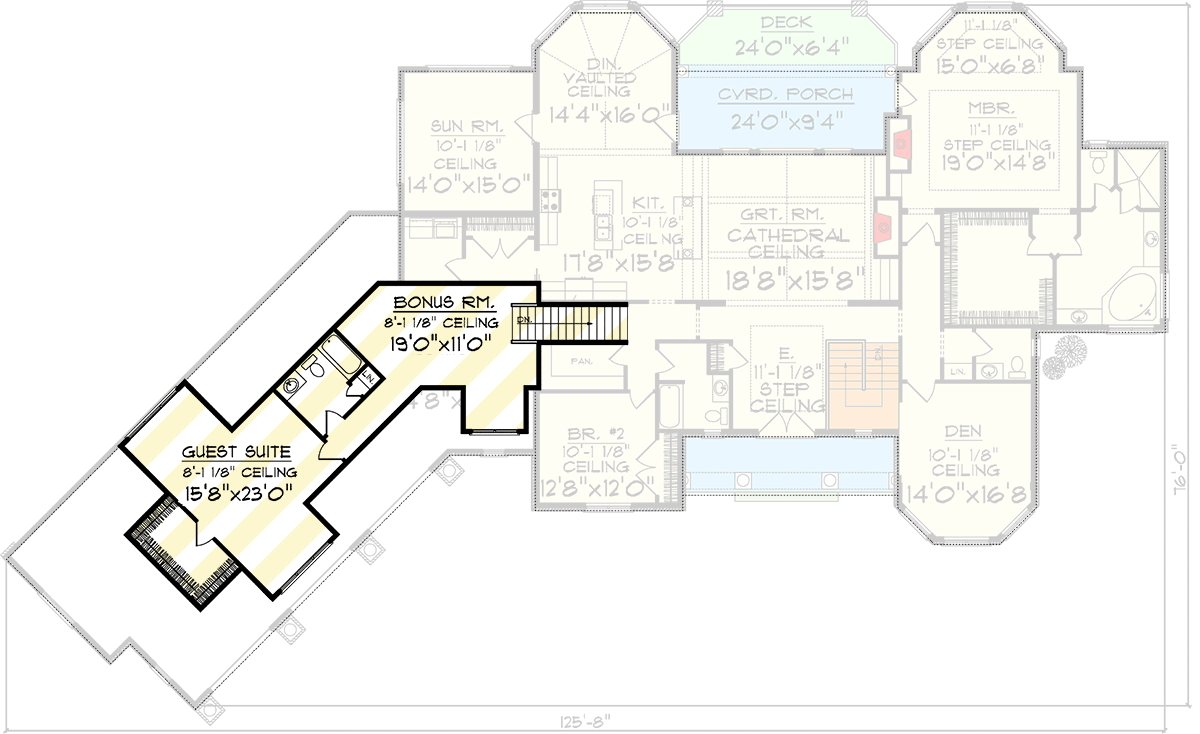

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,109 sq. ft.
  • 1st Floor: 3,109 sq. ft.
  • Bonus: 734 sq. ft.
  • Porch, Rear: 224 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 125' 8"
  • Depth: 76' 0"
  • Max ridge height: 33' 11"

Garage

  • Type: Attached
  • Area: 1426 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

  • European
  • French Country
  • Traditional

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • In-Law Suite
  • MBR Sitting Area
  • PDF
  • Split Bedrooms

Plan Collections

  • Luxury
  • Photo Gallery
