European Tudor with Four Bedrooms

Plan 9334EL

  • 2,589

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A spectacular open floor plan offers popular features around every turn in this English Manor Tudor style house plan.
  • A vaulted great room and island kitchen with dining space make hosting company a breeze.
  • The downstairs master suite boasts a large walk-in closet.
  • Other popular downstairs features are flex space for a study or play area, and separate laundry and mudrooms.
  • Upstairs you’ll find three suites and an optional bonus room.
  • The garage with generous 2-car dimensions makes it simple to park today’s larger vehicles.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

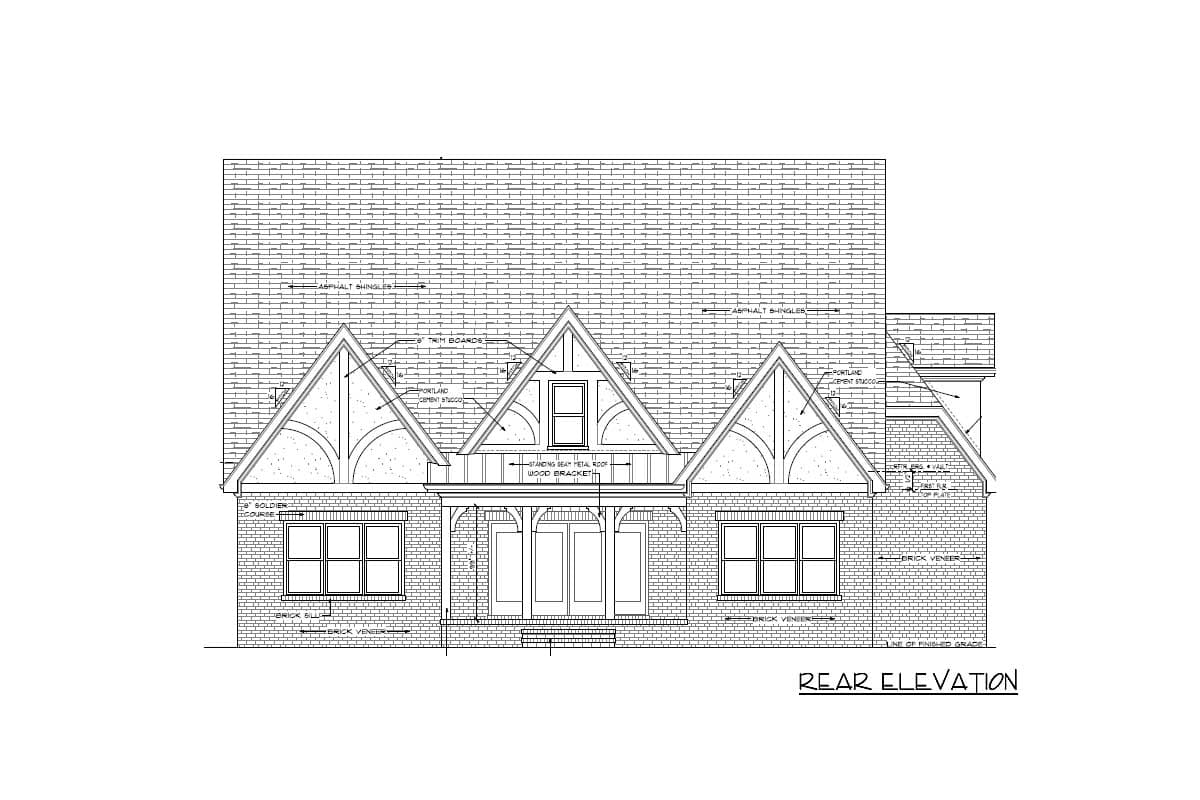

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

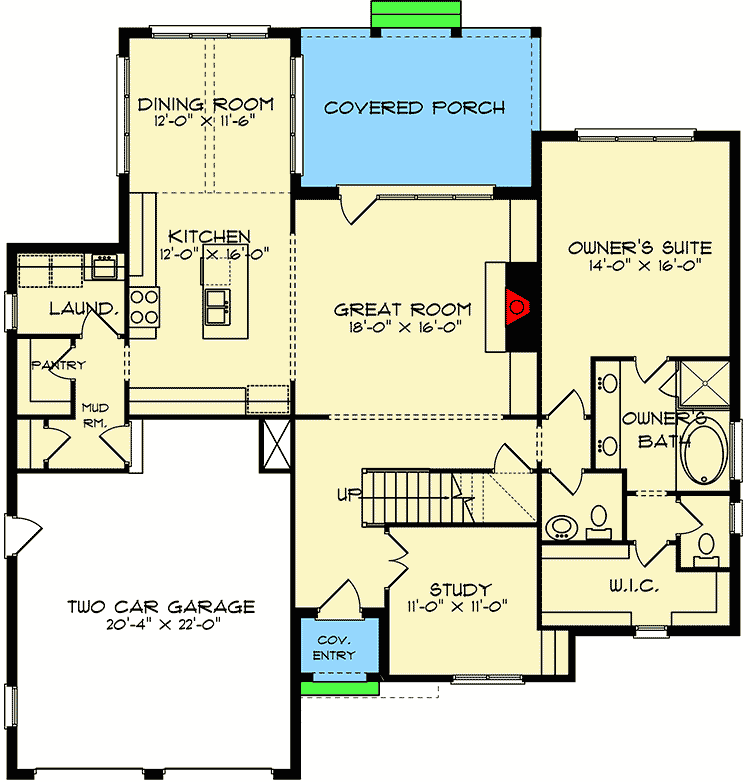

European Tudor with Four Bedrooms - 9334EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

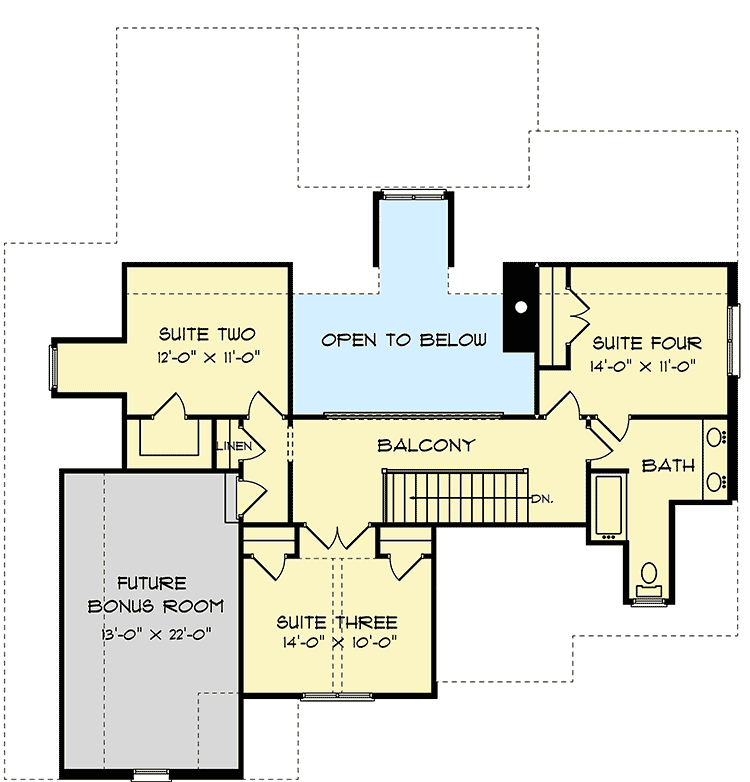

European Tudor with Four Bedrooms - 9334EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,589 sq. ft.
  • 1st Floor: 1,744 sq. ft.
  • 2nd Floor: 845 sq. ft.
  • Bonus: 307 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 54' 6"
  • Depth: 55' 10"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 532 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

European Tudor with Four Bedrooms

  • 2,589

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • CAD+PDF - Single-Build $2,395
  • PDF - Unlimited Build $2,745
  • CAD - Unlimited Build $3,245
  • View all purchase option online

About This Plan

  • A spectacular open floor plan offers popular features around every turn in this English Manor Tudor style house plan.
  • A vaulted great room and island kitchen with dining space make hosting company a breeze.
  • The downstairs master suite boasts a large walk-in closet.
  • Other popular downstairs features are flex space for a study or play area, and separate laundry and mudrooms.
  • Upstairs you’ll find three suites and an optional bonus room.
  • The garage with generous 2-car dimensions makes it simple to park today’s larger vehicles.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,589 sq. ft.
  • 1st Floor: 1,744 sq. ft.
  • 2nd Floor: 845 sq. ft.
  • Bonus: 307 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 54' 6"
  • Depth: 55' 10"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 532 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick
Plan 9334EL
