Everything On One Floor

Plan 48293FM

  • 3,214

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Enjoy one-level living in this spectacular European home plan with its brick and stone exterior.
  • The formal dining room is open to the foyer and gallery, making it appear even bigger.
  • Tray ceilings, built-ins and a warming fireplace grace the main living area that is open to the kitchen and breakfast nook.
  • Let the kids blow off steam in the media room tucked away in the back of the house.
  • The covered outdoor living area has a fireplace and access to the master suite.
  • Another tray ceiling tops the master suite with its own fireplace and huge walk-in closet.
  • Two additional bedrooms each have their own bath on the opposite side of the house.
  • Related Plan: Add a porte-cochere with house plan 48327FM.

Each plan set includes the following:

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

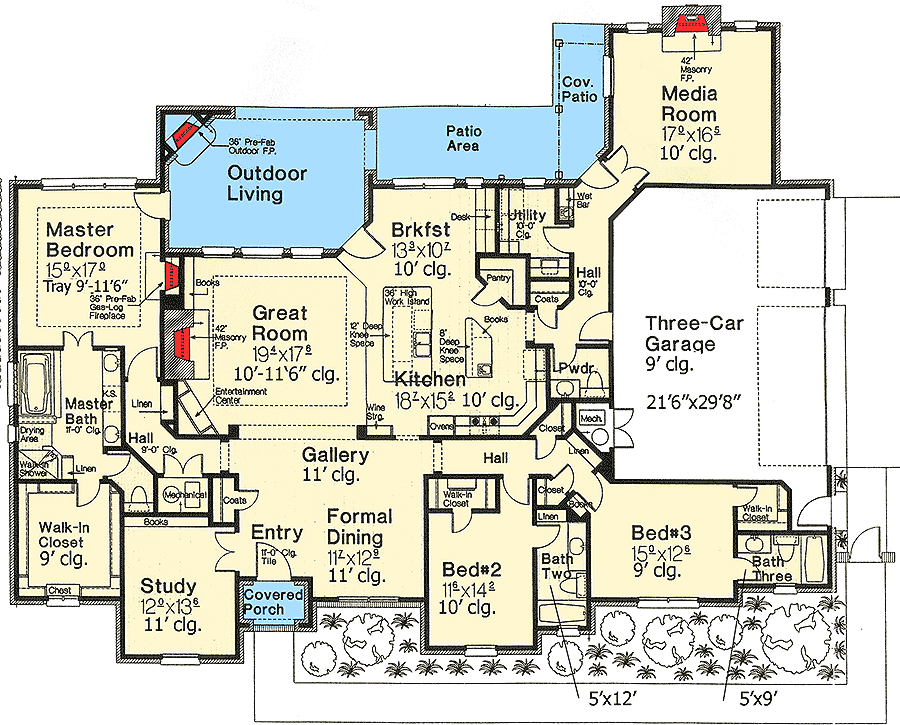

Everything On One Floor - 48293FM floor plan - Main Level

Plan details

Everything On One Floor

  • 3,214

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,395
  • 8 Sets $1,535
  • PDF - Single-Build $1,685
  • CAD - Single-Build $2,610
  • View all purchase option online

About This Plan

  • Enjoy one-level living in this spectacular European home plan with its brick and stone exterior.
  • The formal dining room is open to the foyer and gallery, making it appear even bigger.
  • Tray ceilings, built-ins and a warming fireplace grace the main living area that is open to the kitchen and breakfast nook.
  • Let the kids blow off steam in the media room tucked away in the back of the house.
  • The covered outdoor living area has a fireplace and access to the master suite.
  • Another tray ceiling tops the master suite with its own fireplace and huge walk-in closet.
  • Two additional bedrooms each have their own bath on the opposite side of the house.
  • Related Plan: Add a porte-cochere with house plan 48327FM.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,214 sq. ft.
  • 1st Floor: 3,214 sq. ft.
  • Porch, Combined: 420 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 83' 10"
  • Depth: 65' 4"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 703 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
