Plan 86304HH

Excellent Curb Appeal

Heated S.F.
3,346
Beds
4
Baths
4
Stories
2
Cars
2

Floor Plan

Plan 86304HH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 86304HH

M-F 9am-5pm EST |

1-203-761-8500

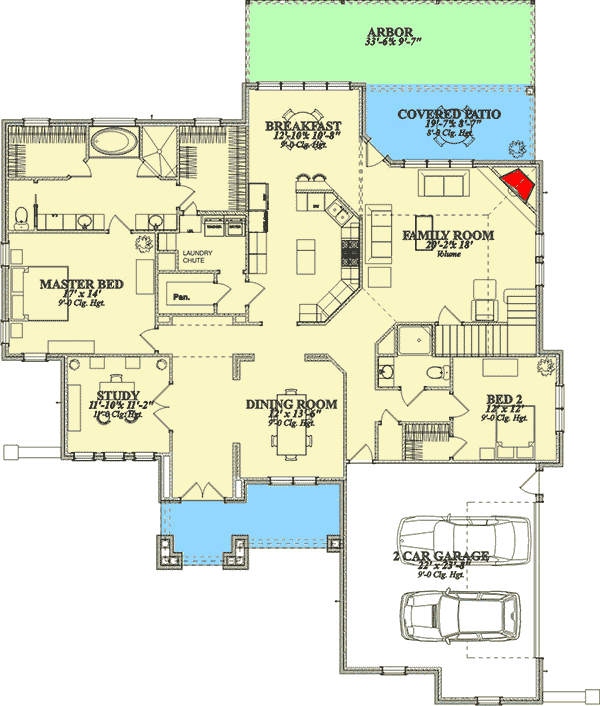

Main Level

Plan 86304HH: Excellent Curb Appeal - Floor Plan - Main Level - Southern, Traditional

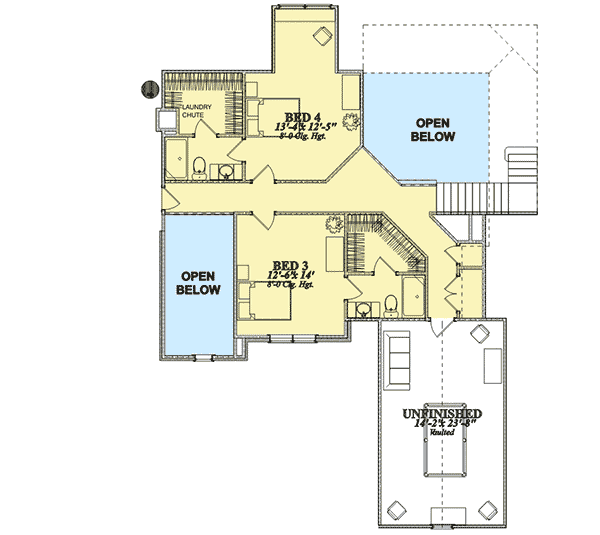

2nd Floor

Plan 86304HH: Excellent Curb Appeal - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

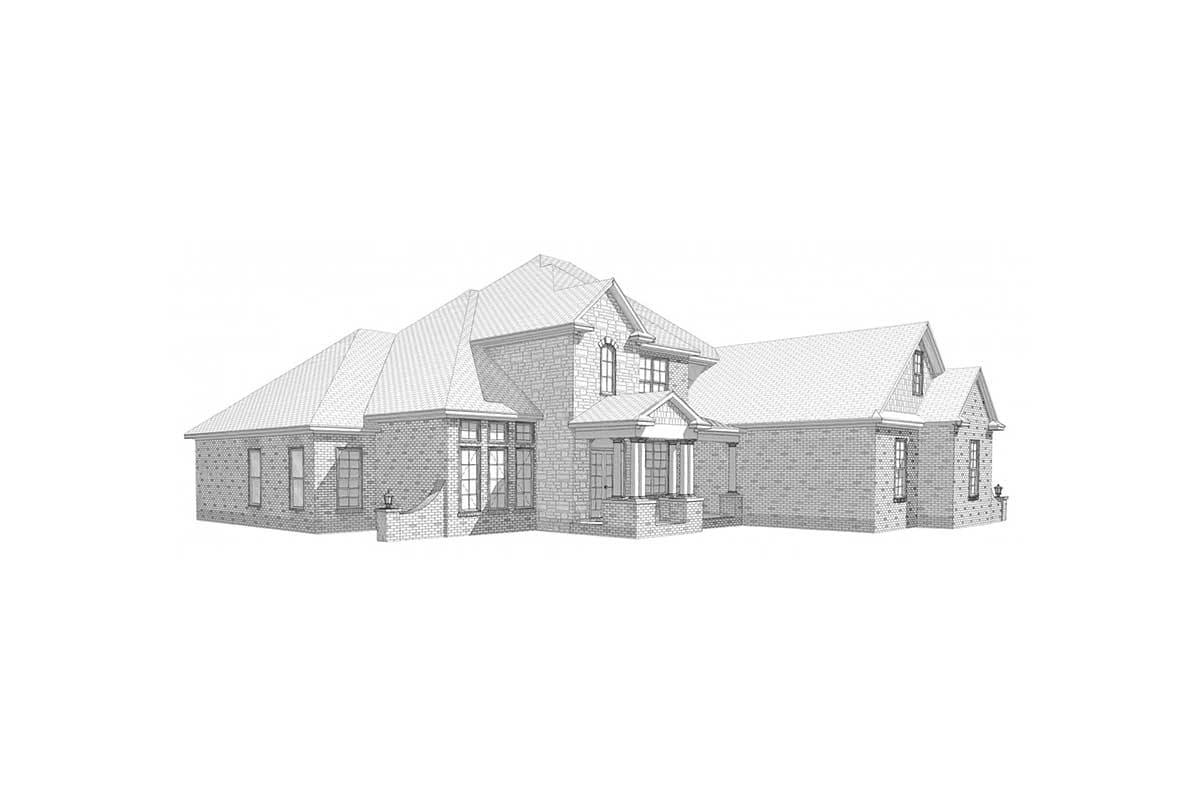

  • Beautiful proportions and a graceful hip roof with multiple roof lines give this Traditional house plan a marvelous curb appeal.
  • The large and upscale kitchen is well-placed in between the formal dining room and the informal breakfast nook.
  • A beautiful arbor and covered patio in back can be seen from the huge family room with its corner fireplace.
  • The master bedroom is on the first floor and has an over-sized master bathroom with two big walk-in closets.
  • There's even a door from one of the walk-in closets directly into the laundry room.
  • Bedroom 2 is the ideal guest suite, all the way across the house.
  • Upstairs, bedrooms 3 and 4 each have walk-in closets and private bathrooms.
  • A handy laundry chute is accessed in bedroom 4 closet.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.
