Exciting Craftsman Curb Appeal

Plan 890060AH

  • 2,904

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • Gable beams, stone and shingle siding blend effortlessly together to give this one and a half story home plenty of Craftsman charm.
  • A two-story ceiling in the entry draws you in where directly ahead, the open concept floor plan provides plenty of living space.
  • The great room features a central fireplace and direct access to the dining area. A hidden pantry in the kitchen is sure to please mom.
  • The main floor master suite is located behind the garage and includes a walk-in closet, Jacuzzi tub and direct access to the laundry.
  • Three additional bedrooms and a full bath are located upstairs giving mom and dad plenty of privacy.
  • A three-stall, split-load garage with plenty of space is perfect for any family.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

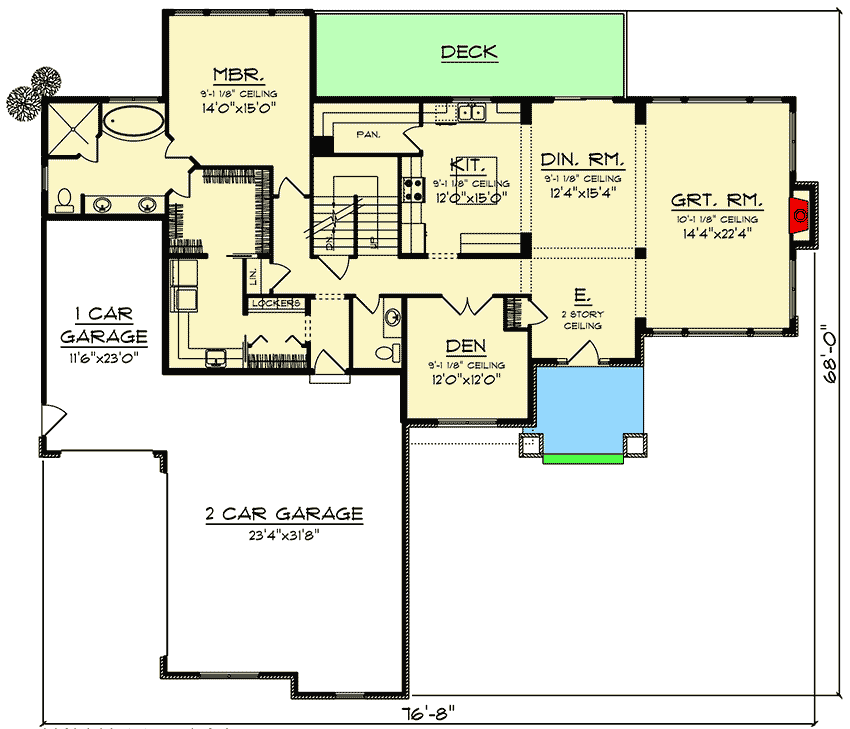

Floor Plan

Plan details



Exciting Craftsman Curb Appeal

  • 2,904

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $1,081
  • 8 Sets $1,122
  • Reproducible Set $1,352
  • PDF - Single-Build $1,352
  • CAD - Single-Build $2,162
  • View all purchase option online

About This Plan

  • Gable beams, stone and shingle siding blend effortlessly together to give this one and a half story home plenty of Craftsman charm.
  • A two-story ceiling in the entry draws you in where directly ahead, the open concept floor plan provides plenty of living space.
  • The great room features a central fireplace and direct access to the dining area. A hidden pantry in the kitchen is sure to please mom.
  • The main floor master suite is located behind the garage and includes a walk-in closet, Jacuzzi tub and direct access to the laundry.
  • Three additional bedrooms and a full bath are located upstairs giving mom and dad plenty of privacy.
  • A three-stall, split-load garage with plenty of space is perfect for any family.

Floor Plans

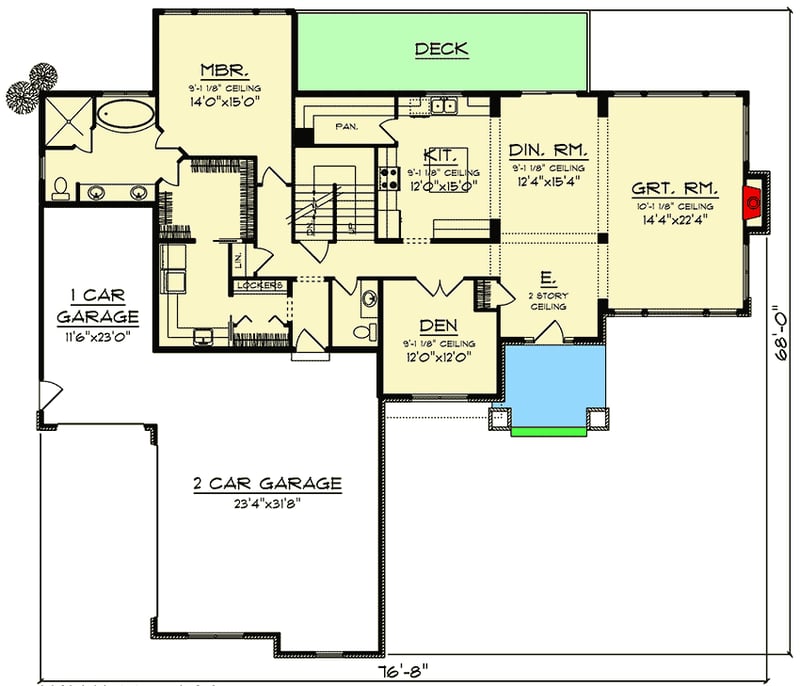

  • Main Level

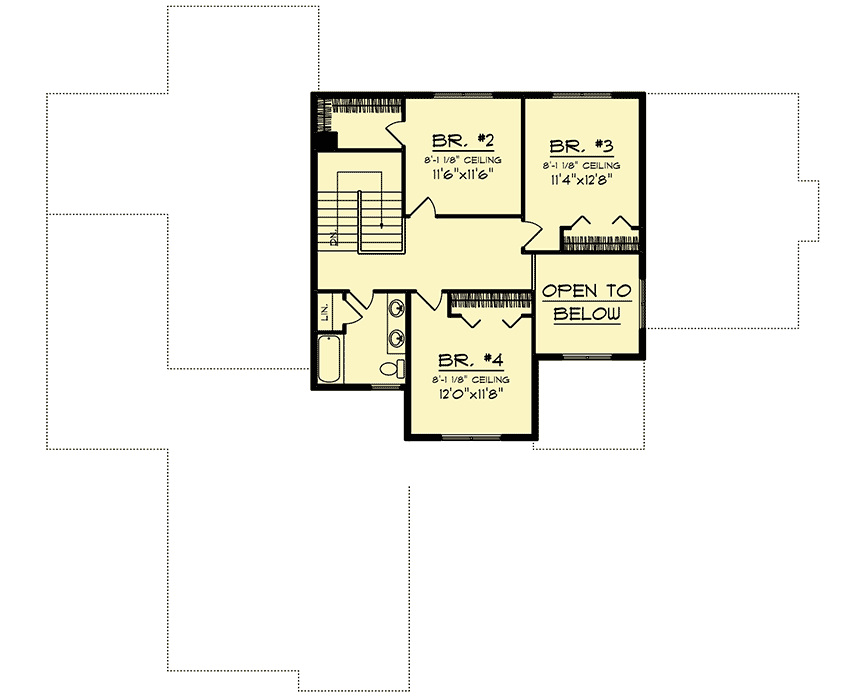

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,904 sq. ft.
  • 1st Floor: 1,992 sq. ft.
  • 2nd Floor: 912 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 76' 8"
  • Depth: 68' 0"
  • Max ridge height: 30' 6"

Garage

  • Type: Attached
  • Area: 1020 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
