Exciting Craftsman with Angled Garage and Optional Finished Lower Level

Plan 24375TW

  • 3,958

    Heated s.f.

  • 4-6

    Beds

  • 4.5 - 6.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Huge, spacious rooms are the hallmark of this exciting Craftsman house plan.

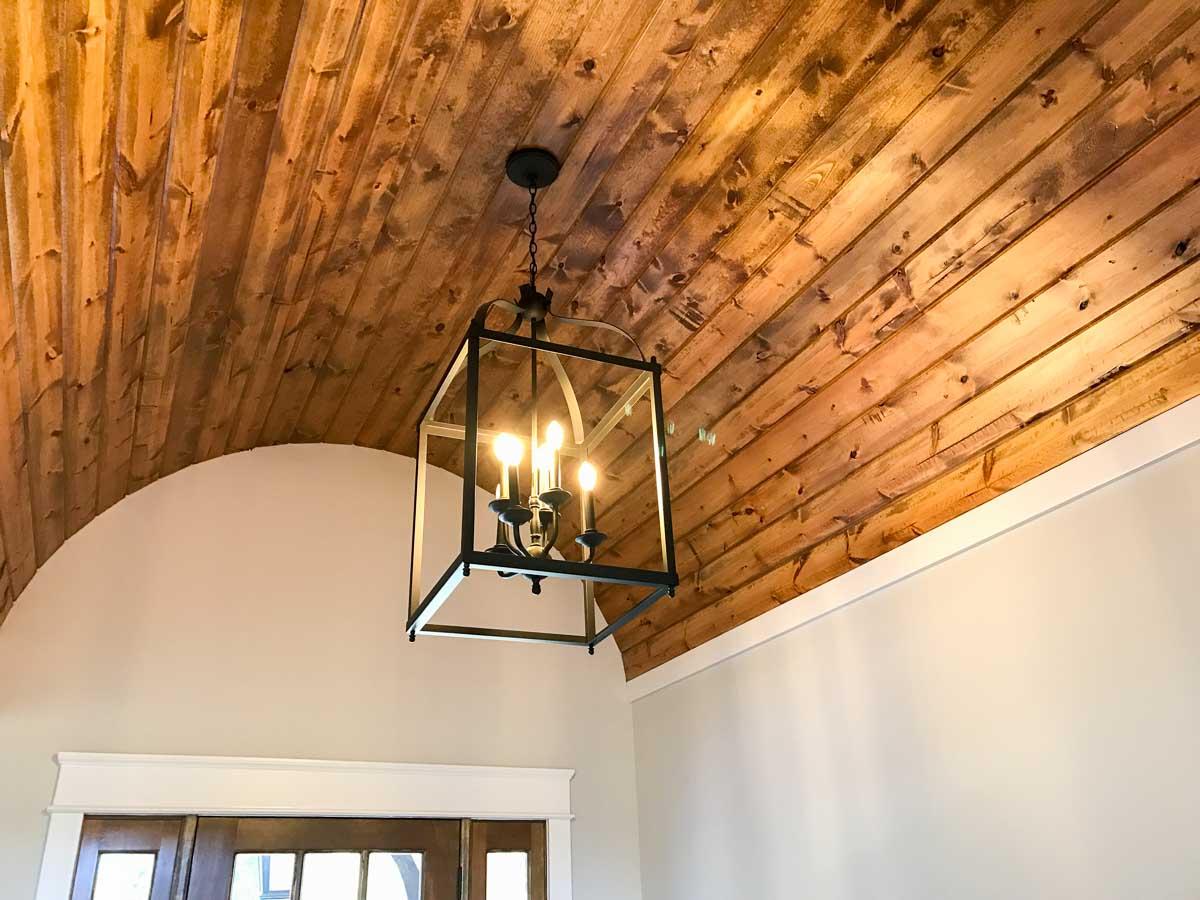

  • With features like the barrel vaulted ceiling in the foyer, built-ins and the over-sized sunroom, this is an impressive home.
  • The open layout is a real pleasure to live in, with views that sweep from room to room.
  • There's a walk-in food storage pantry with an extra refrigerator and a cozy home office tucked away in back.
  • The master bedroom is enormous and offers an elegant double tray ceiling plus a massive walk-in closet.
  • On the second floor, bedroom 4 is large enough to be a very gracious and comfortable in-law suite.
  • Finish the optional lower level and gain two more bedrooms, a game area with wet bar and a giant rec room.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.

The plans include the following:

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

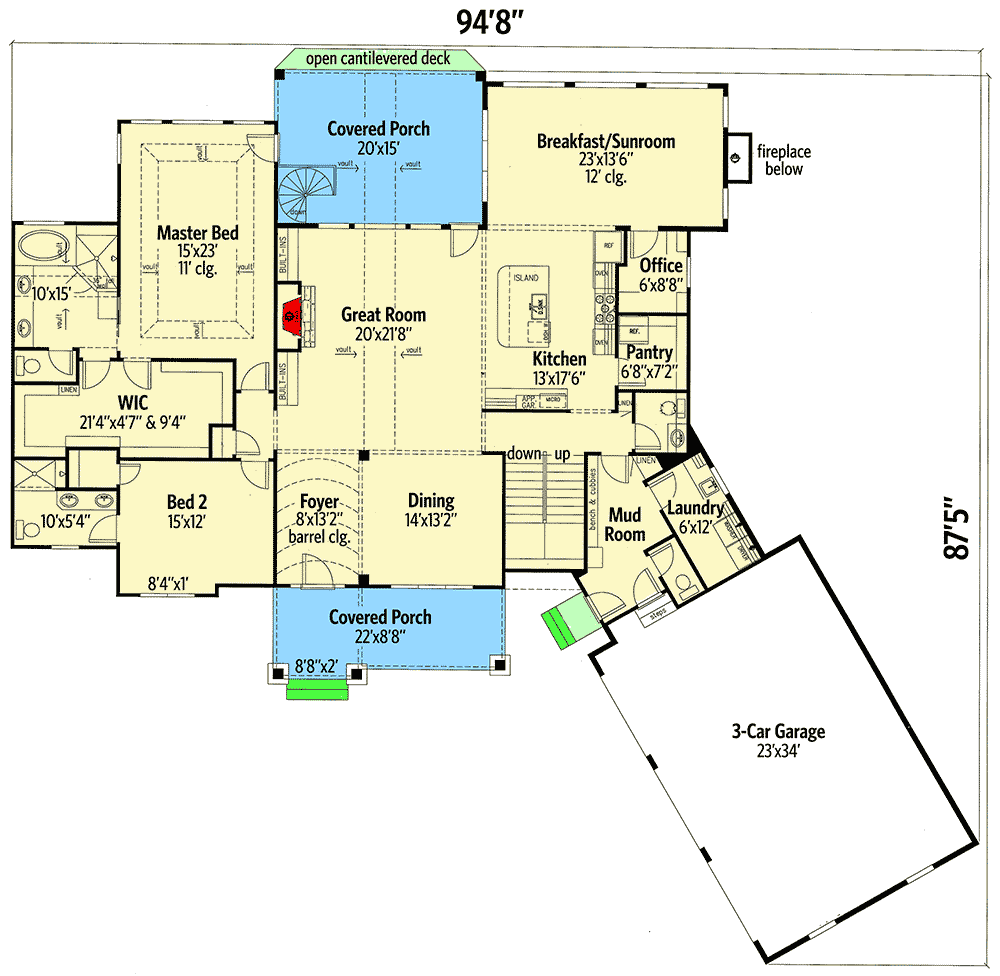

Exciting Craftsman with Angled Garage and Optional Finished Lower Level - 24375TW floor plan - Main Level

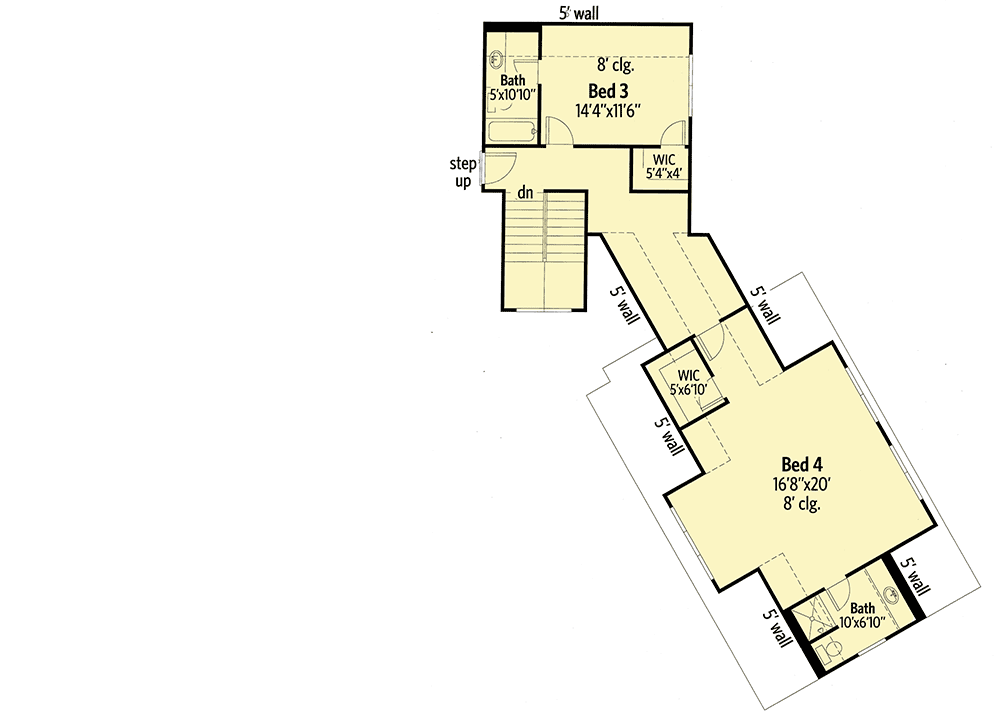

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exciting Craftsman with Angled Garage and Optional Finished Lower Level - 24375TW floor plan - Second Level

Optional Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

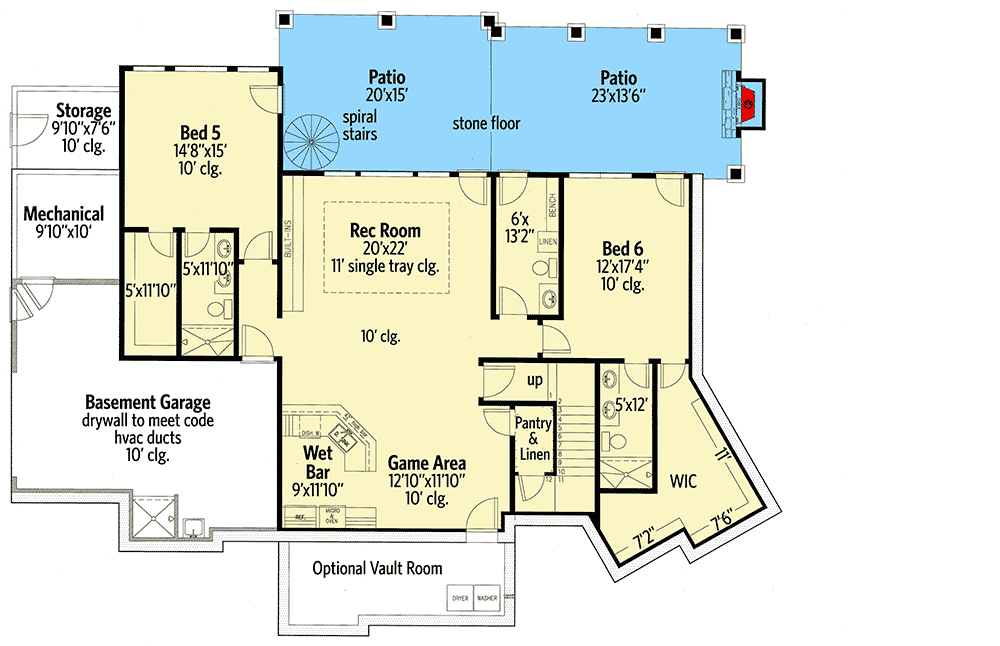

Exciting Craftsman with Angled Garage and Optional Finished Lower Level - 24375TW floor plan - Optional Finished Lower Level
