Exclusive 1-Bed Cabin with 714 Square Feet of Living Space

Plan 420087WNT

  • 714

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • This budget-friendly design gives you 714 square feet of living space with a charming front porch inviting you inside the exclusive 1-bedroom cabin.
  • The board and batten siding mimics the ribbed metal roof offering a cohesive exterior.
  • A vaulted ceiling crowns the open living room, dining area, and kitchen.
  • U-shaped cabinetry defines the kitchen and includes a breakfast bar for casual meals.
  • The bedroom neighbors the bathroom, which includes a washer and dryer.

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

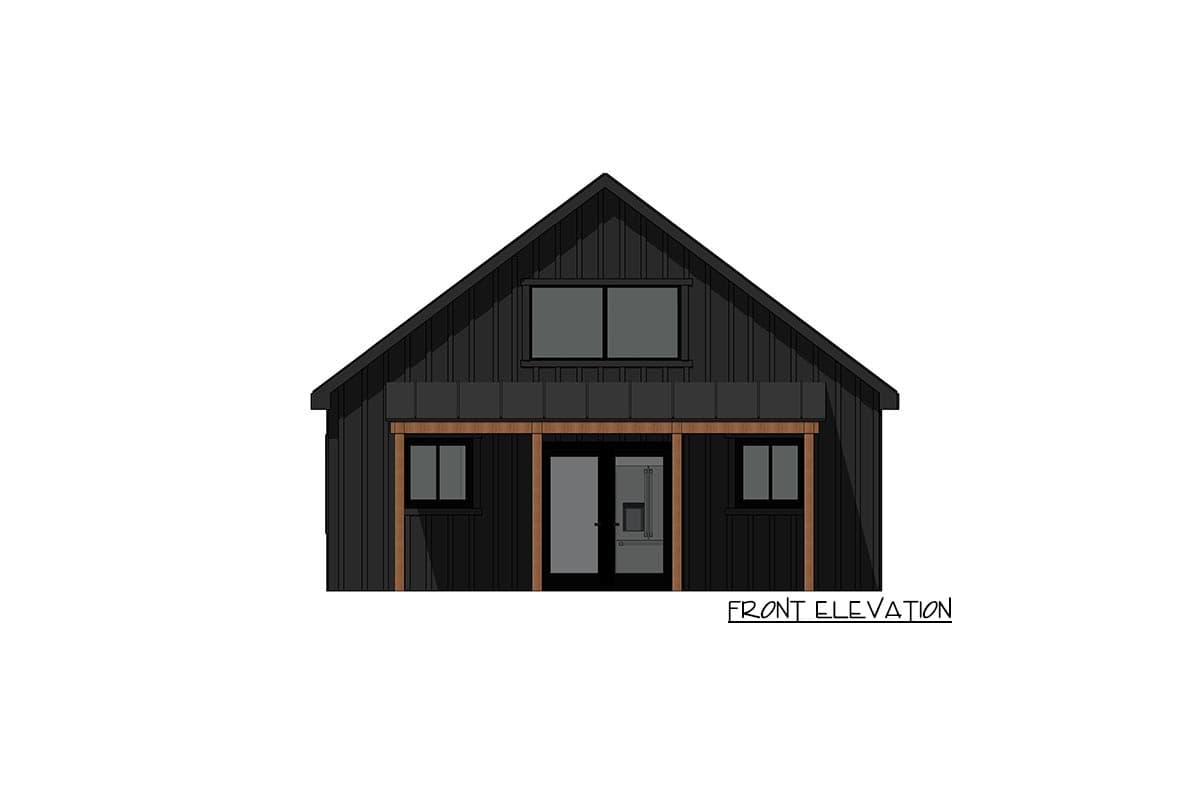

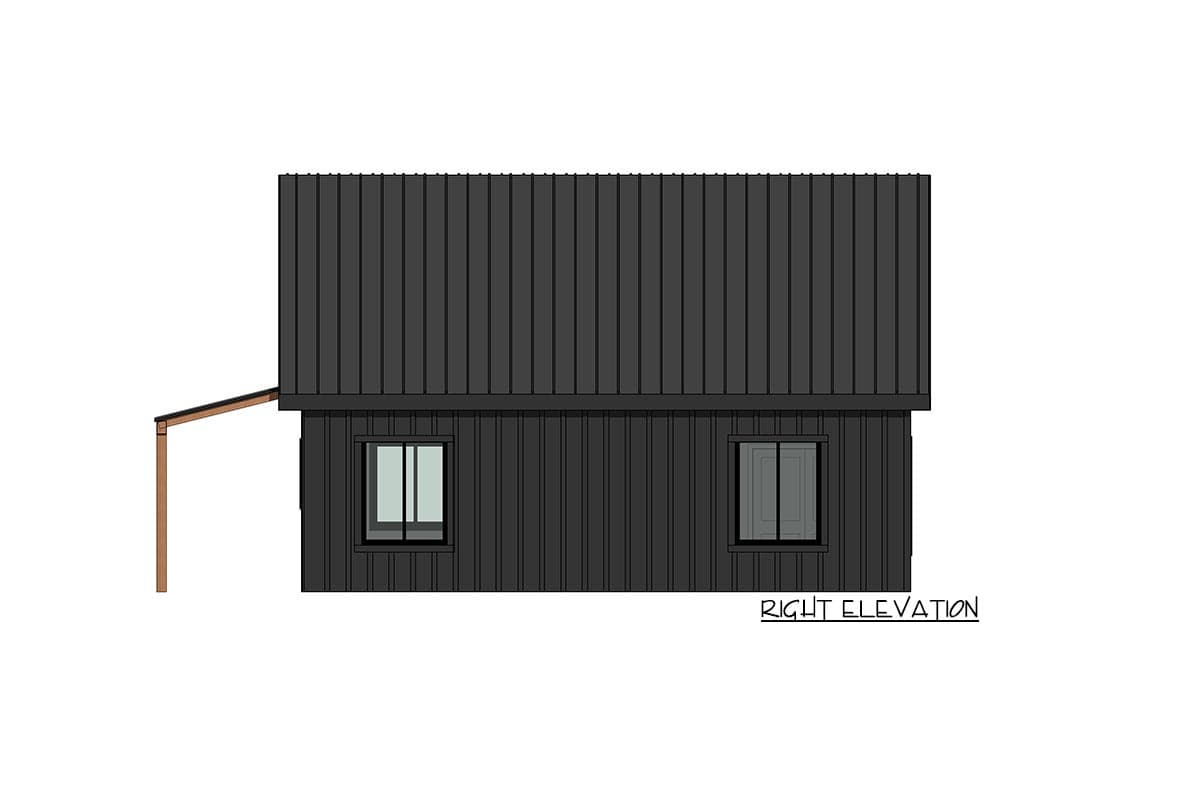

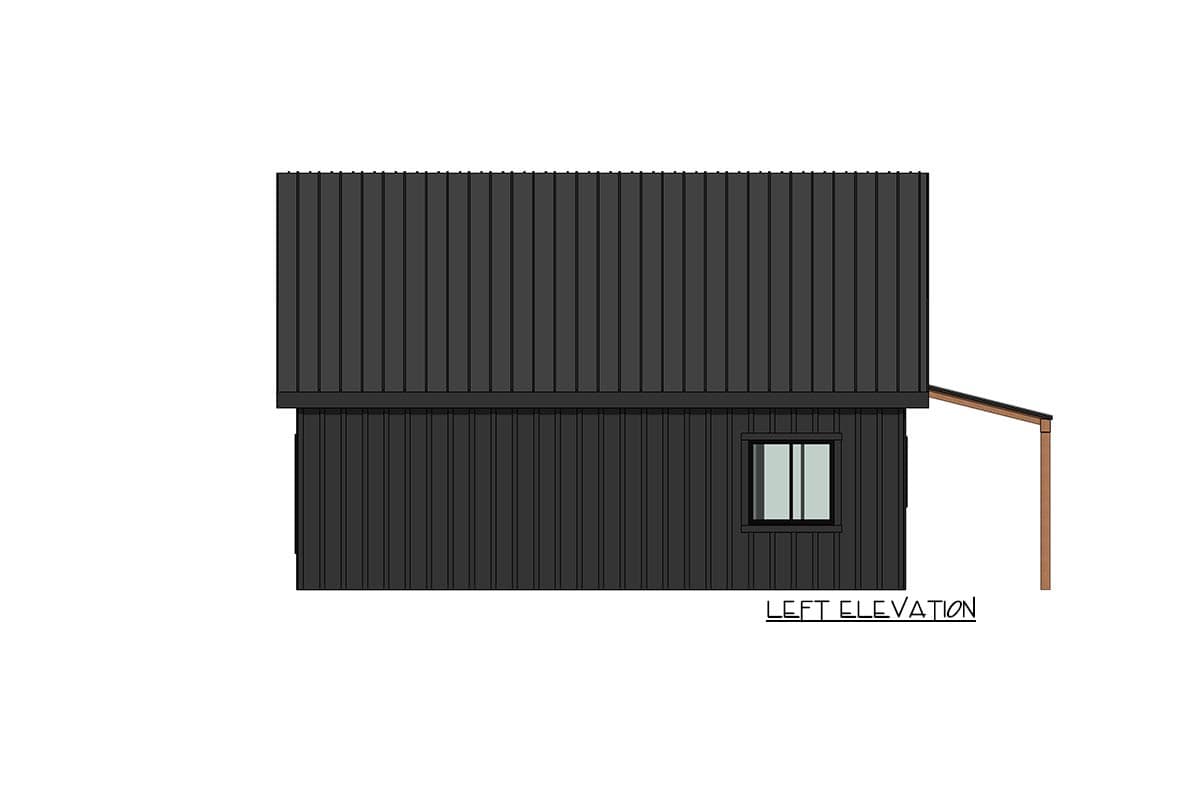

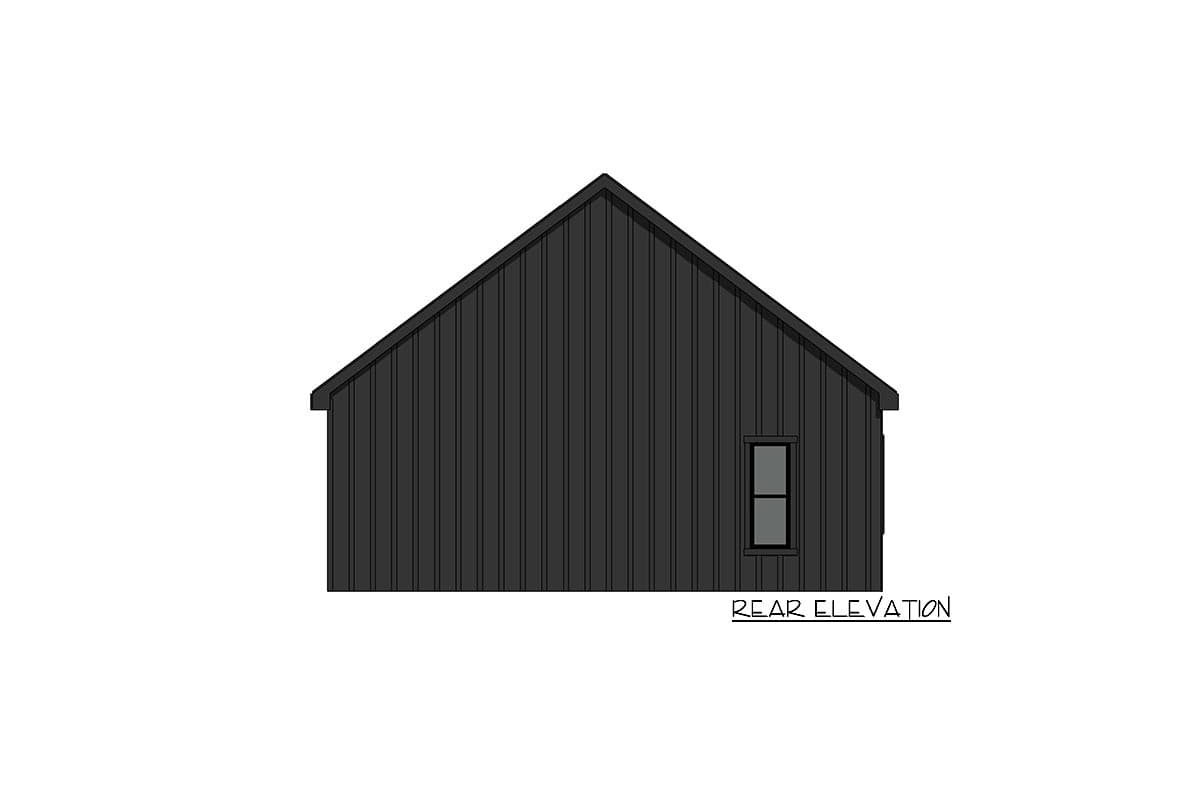

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
This plan set does NOT include;
  • Architectural or Engineering Stamp
  • Site Plan (Available as an upgrade option)
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations)Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations)Typically provided by your Plumbing subcontractor
  • Energy Calculations (Property specific energy efficiency calculations)Typically provided by local Energy Consultant

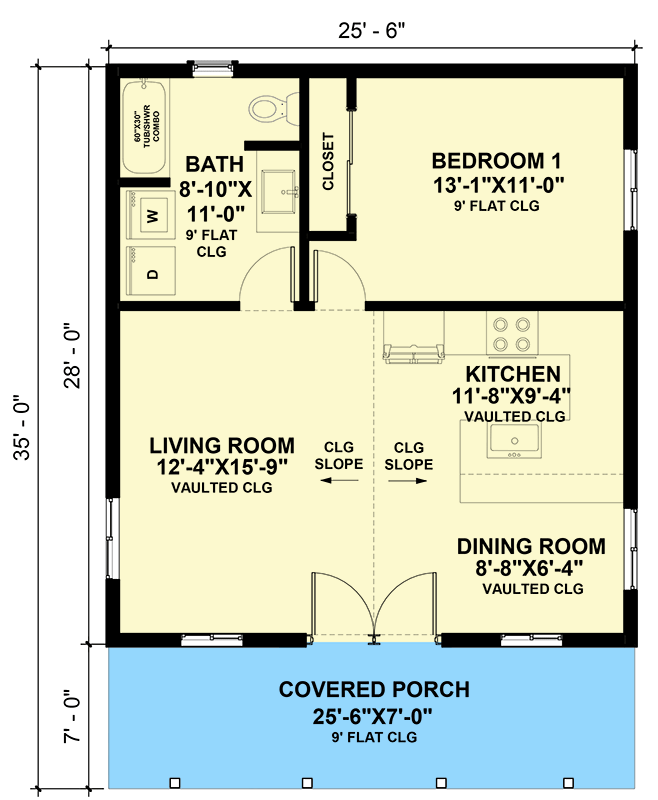

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive 1-Bed Cabin with 714 Square Feet of Living Space - 420087WNT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 714 sq. ft.
  • 1st Floor: 714 sq. ft.
  • Covered Patio: 178 sq. ft.
  • Porch, Combined: 178 sq. ft.
  • Porch, Front: 178 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Monolithic Slab
  • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 25' 6"
  • Depth: 35' 0"
  • Max ridge height: 19' 6"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Living Room Vaulted 9' 0" to 17' 0"
Kitchen Vaulted 9' 0" to 17' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Framing Type: Truss

Architectural Style
