Exclusive 2-Story Home Plan with First Floor Master
Heated S.F.
2,071
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This classic and exclusive home design features horizontal siding with cedar shake and brick accents. The front porch and single shed dormer complete the front elevation.
  • A coat closet awaits your personal items near the front entry. The great room enjoys a fireplace surrounded by builtins and an oversized opening to the eat-in kitchen.
  • The large prep island provides room for more than one cook in the kitchen and a nearby back door leads to an optional 14' by 12' deck. The walk-in pantry utilizes the space beneath the staircase for additional storage needs.
  • Enjoy the convenience of a first-floor master bedroom, which is tucked behind the 2-car garage with easy access to the mud and laundry rooms.
  • Bedrooms 2 and 3 are located upstairs and share a compartmentalized bath.
  • Related plans: Find a similar floor plan with 500052VV (19327A).
What's Included
  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive 2-Story Home Plan with First Floor Master

  • 2,071

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

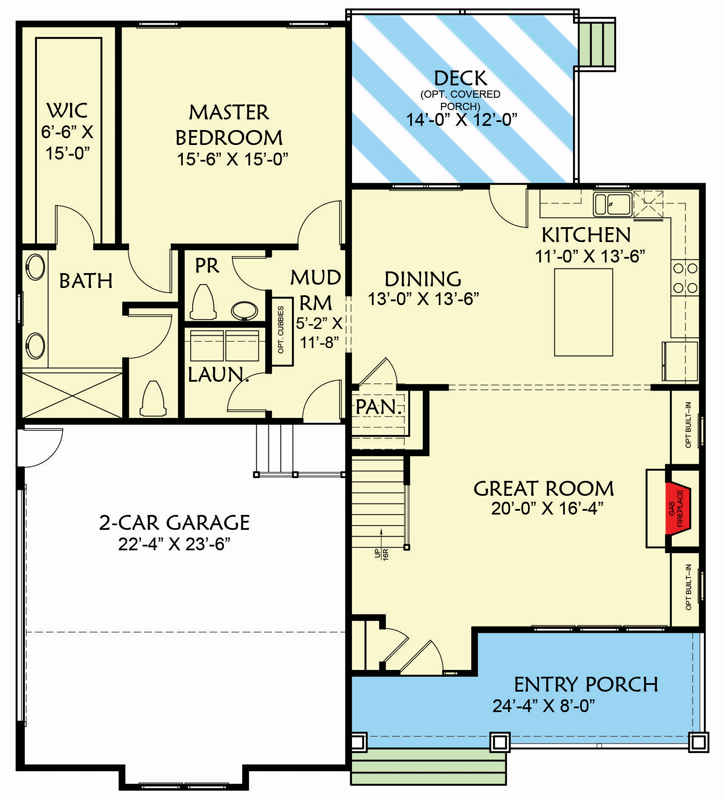

  • Main Level

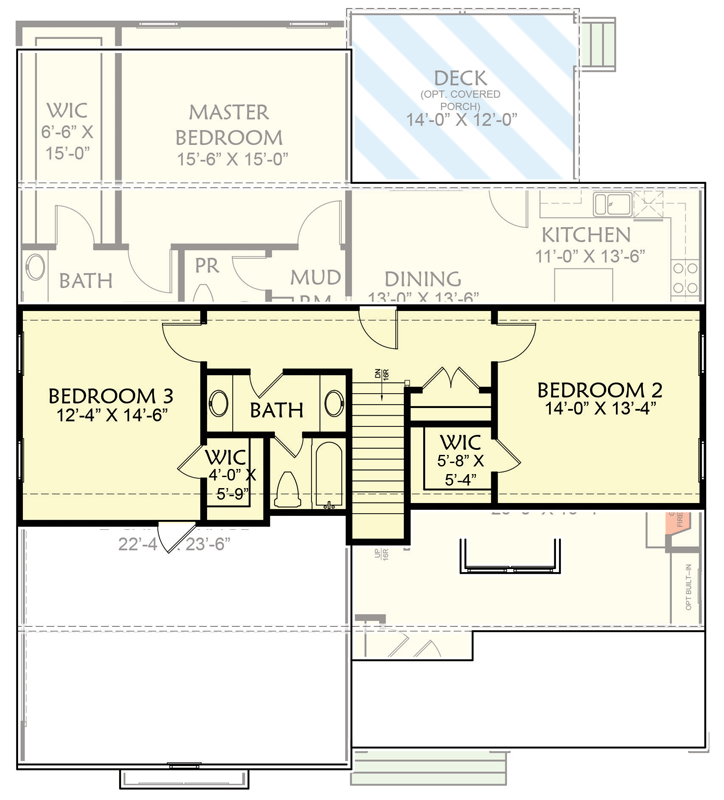

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,071 sq. ft.
  • 1st Floor: 1,418 sq. ft.
  • 2nd Floor: 653 sq. ft.

Dimensions

  • Width: 47' 4"
  • Depth: 53' 8"
  • Max ridge height: 27' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 554 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
