Plan 500081VV
EXCLUSIVE
Exclusive 3-Bed Cottage with Optional Lower Level
Heated S.F.
1,716
Beds
3
Baths
2.5
Stories
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

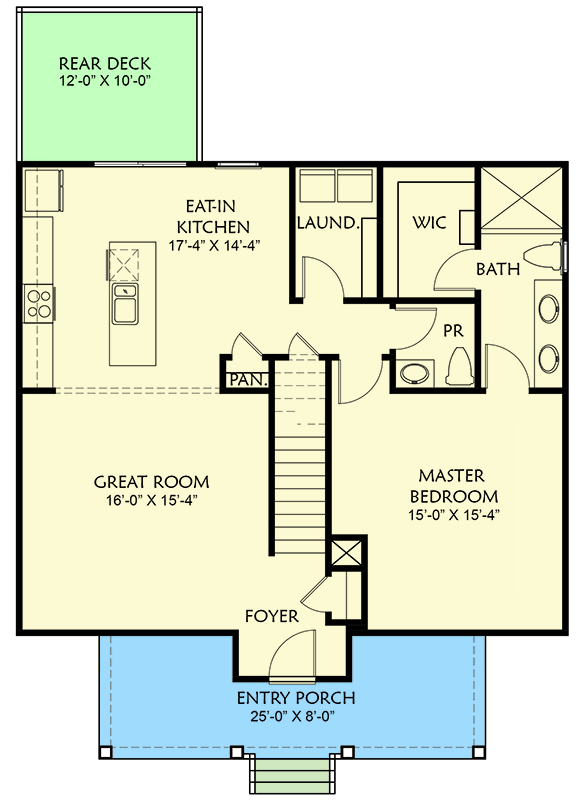

Exclusive 3-Bed Cottage with Optional Lower Level - 500081VV floor plan - Main Level
2nd Floor
Reverse Floor Plan

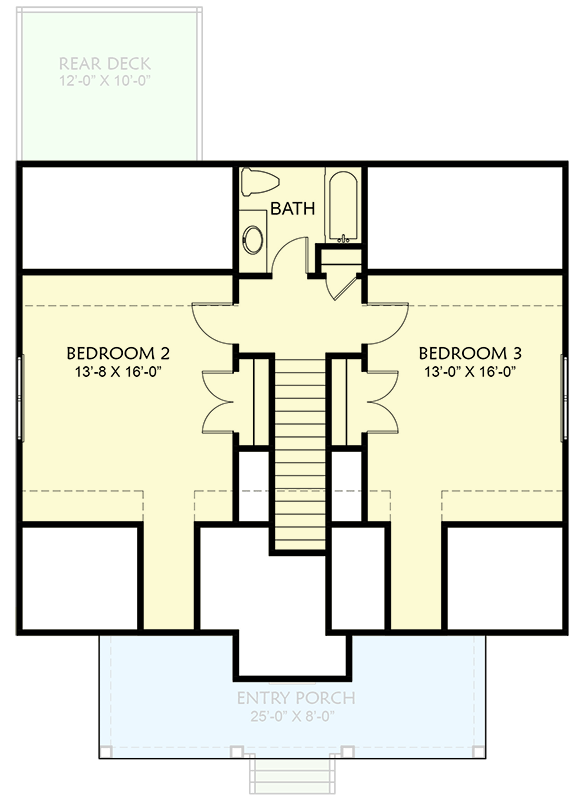

Exclusive 3-Bed Cottage with Optional Lower Level - 500081VV floor plan - 2nd Floor
Optional Lower Level
Reverse Floor Plan

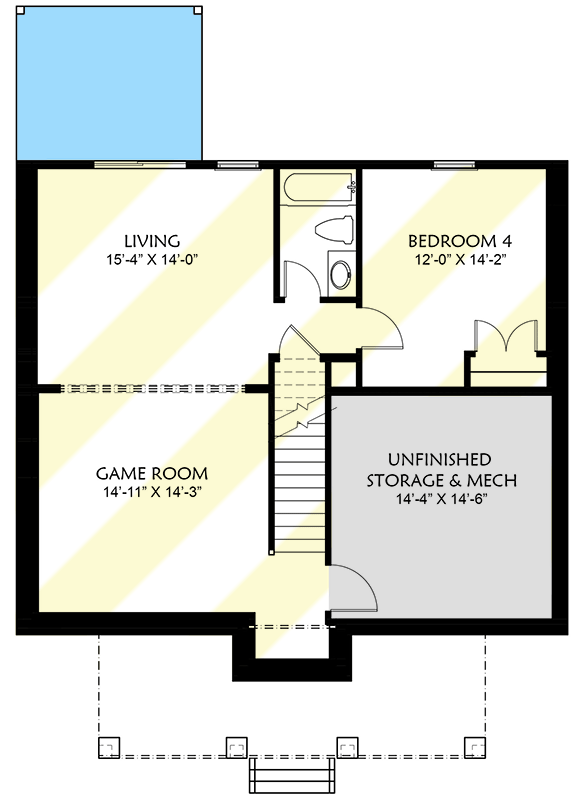

Exclusive 3-Bed Cottage with Optional Lower Level - 500081VV floor plan - Optional Lower Level
Plan Details
  • This dreamy 3-bedroom Cottage plan showcases a charming front porch and is exclusive to Architectural Designs.
  • The foyer includes a coat closet for your personal items upon entering and leads to the spacious great room. An oversized opening connects the great room to the eat-in kitchen with an island and sliding doors that lead to the back deck.
  • Enjoy the convenience of a main-level master bedroom that is accompanied by a 4-fixture bathroom and walk-in closet.
  • Upstairs, bedrooms 2 and 3 sit on either side of the staircase and share the full bath that rests in between.
  • The optional walkout basement adds another 1,080 square feet of living space with a game room, living area, full bath, and fourth bedroom.
  • Note: Limited availability in Richmond, Virginia area.
What's Included
  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive 3-Bed Cottage with Optional Lower Level

  • 1,716

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,716 sq. ft.
  • 1st Floor: 1,117 sq. ft.
  • 2nd Floor: 599 sq. ft.

Dimensions

  • Width: 35' 8"
  • Depth: 48' 8"
  • Max ridge height: 25' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick
