Plan 92373MX

Exclusive 3 Bedroom Mountain Retreat

2,758 3 4 1 3
Pageloader

Exclusive 3 Bedroom Mountain Retreat

Plan 92373MX

  • 2,758

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

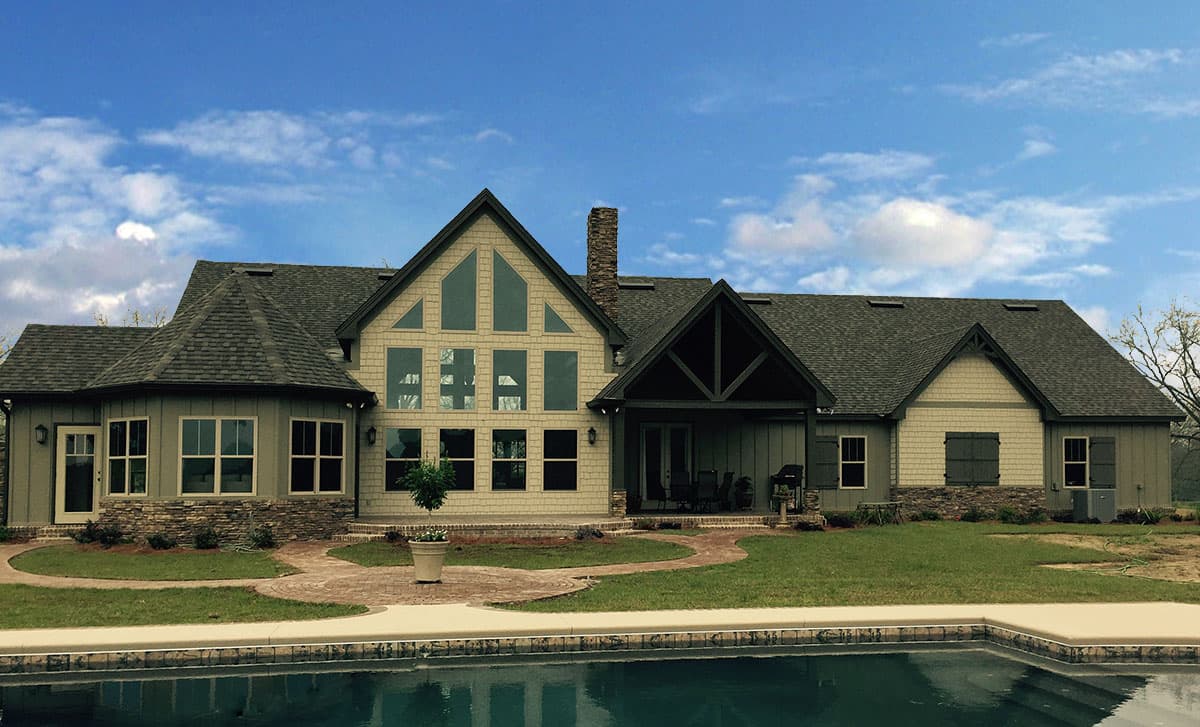

  • This alpine retreat comes with two-story windows front and back, opening the house to terrific views.

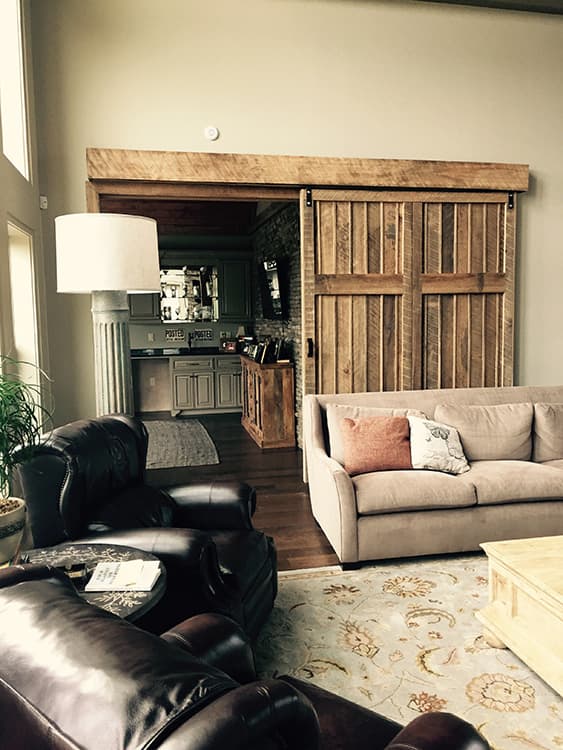

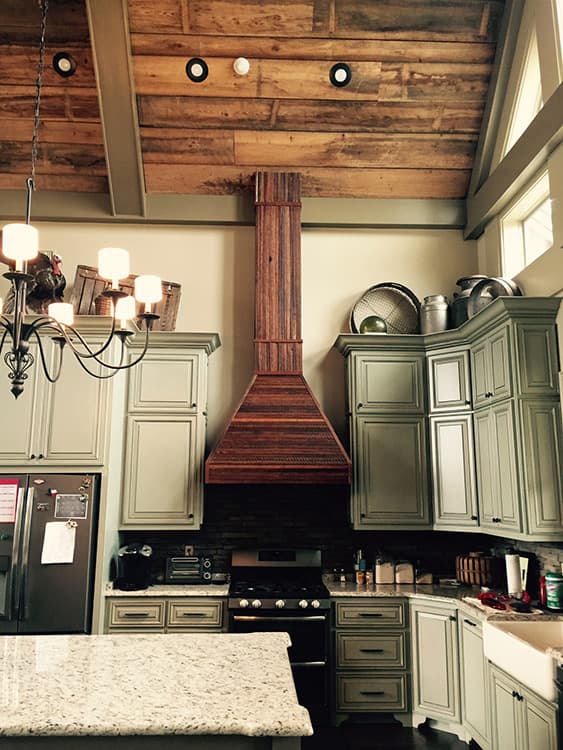

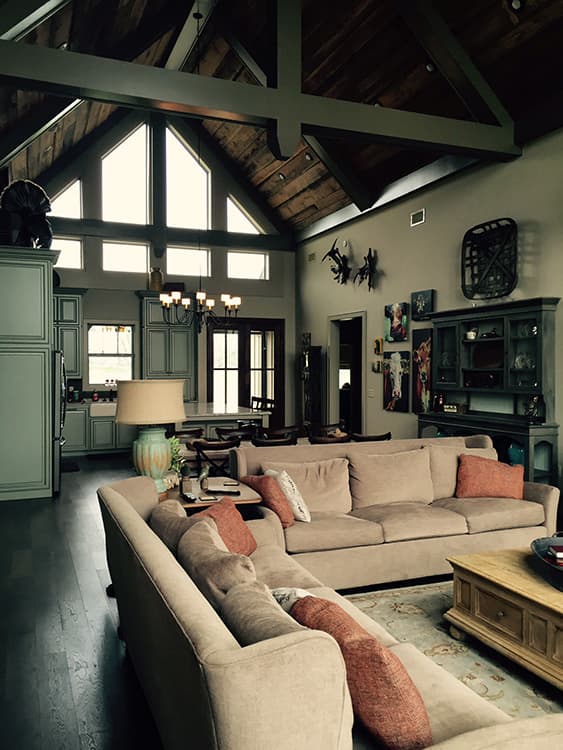

  • A big vaulted ceiling unites the kitchen, dining area and family room, so all three rooms can enjoy the big fireplace.
  • A home office is tucked away at the back of the central garage bay and there's also a large vaulted library in the main house, set in a bay window.

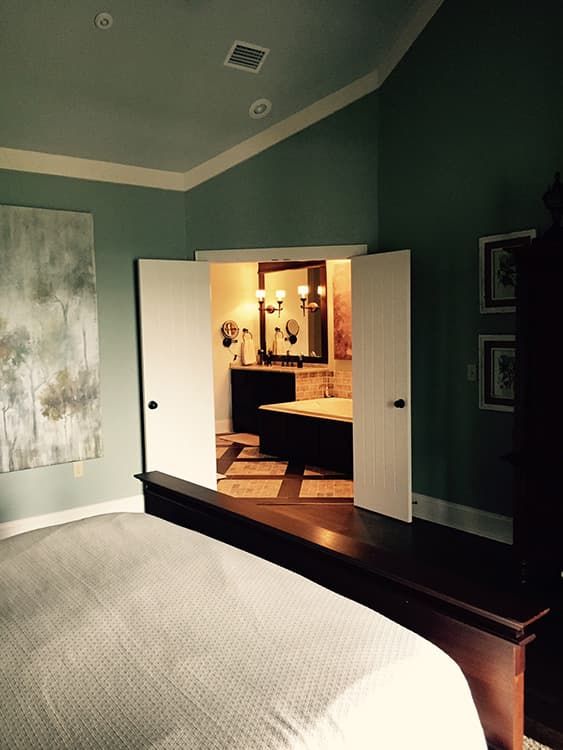

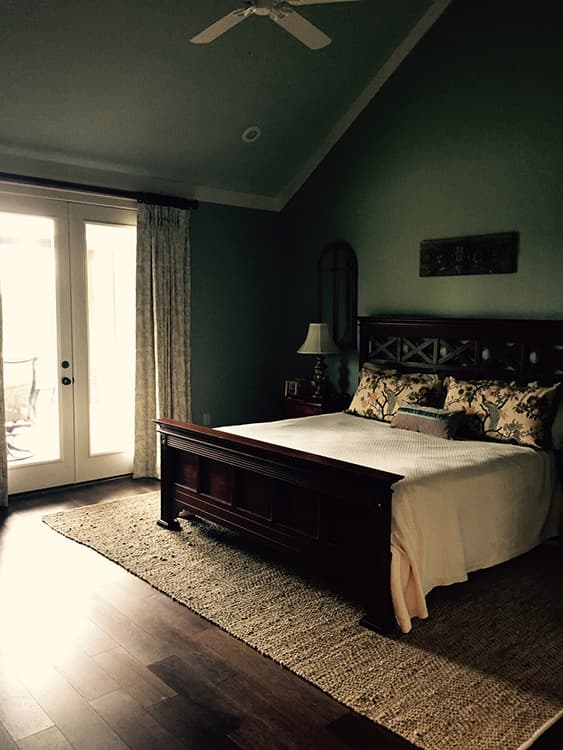

  • The master suite has double doors that open to the vaulted and screened porch in back, with an outdoor fireplace to warm those chilly nights.

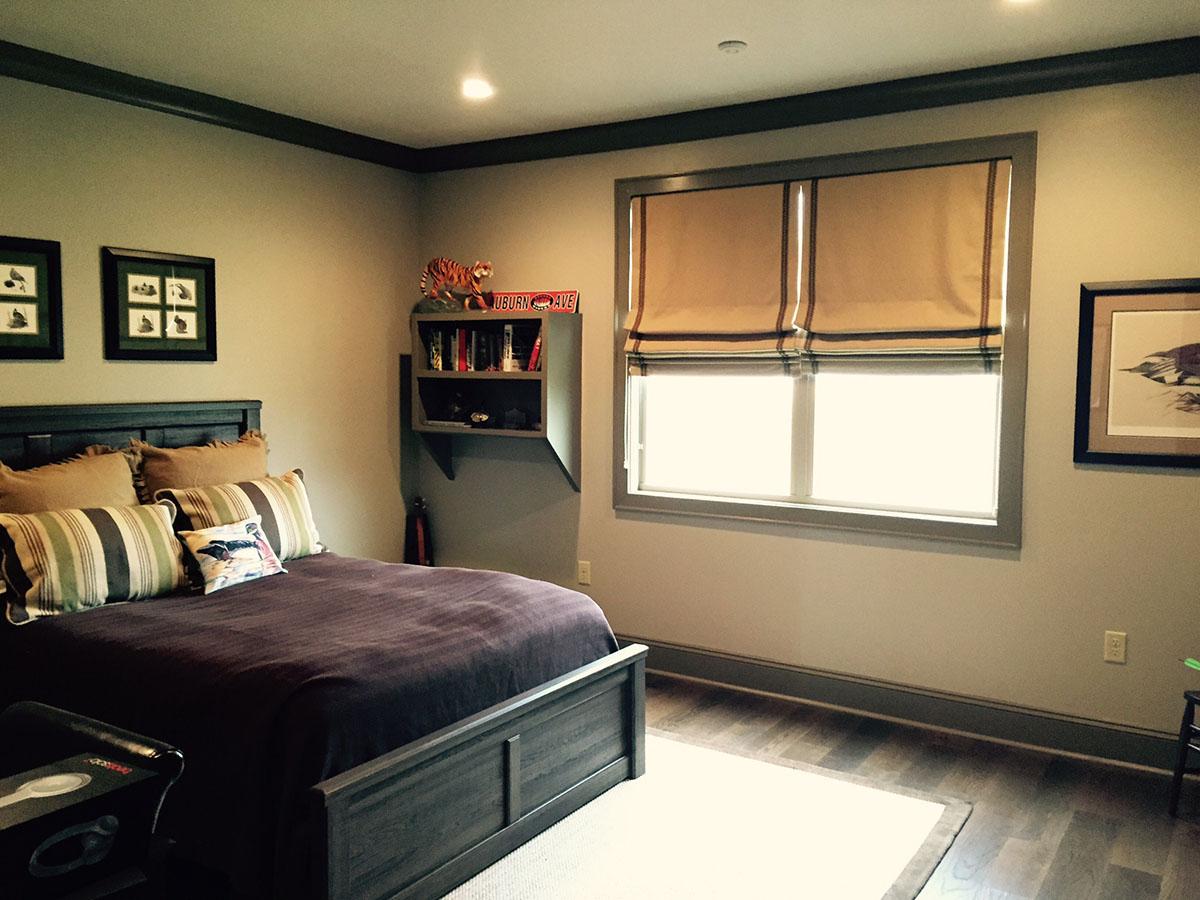

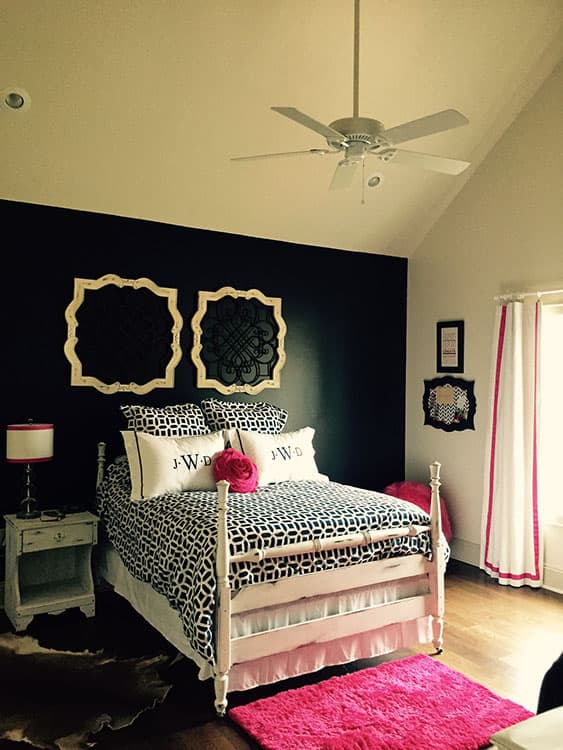

  • The two other family bedrooms are on the opposite side of the home and share a connected bathroom.
  • NOTE: Please allow 15 business days for delivery.

The plan set includes:

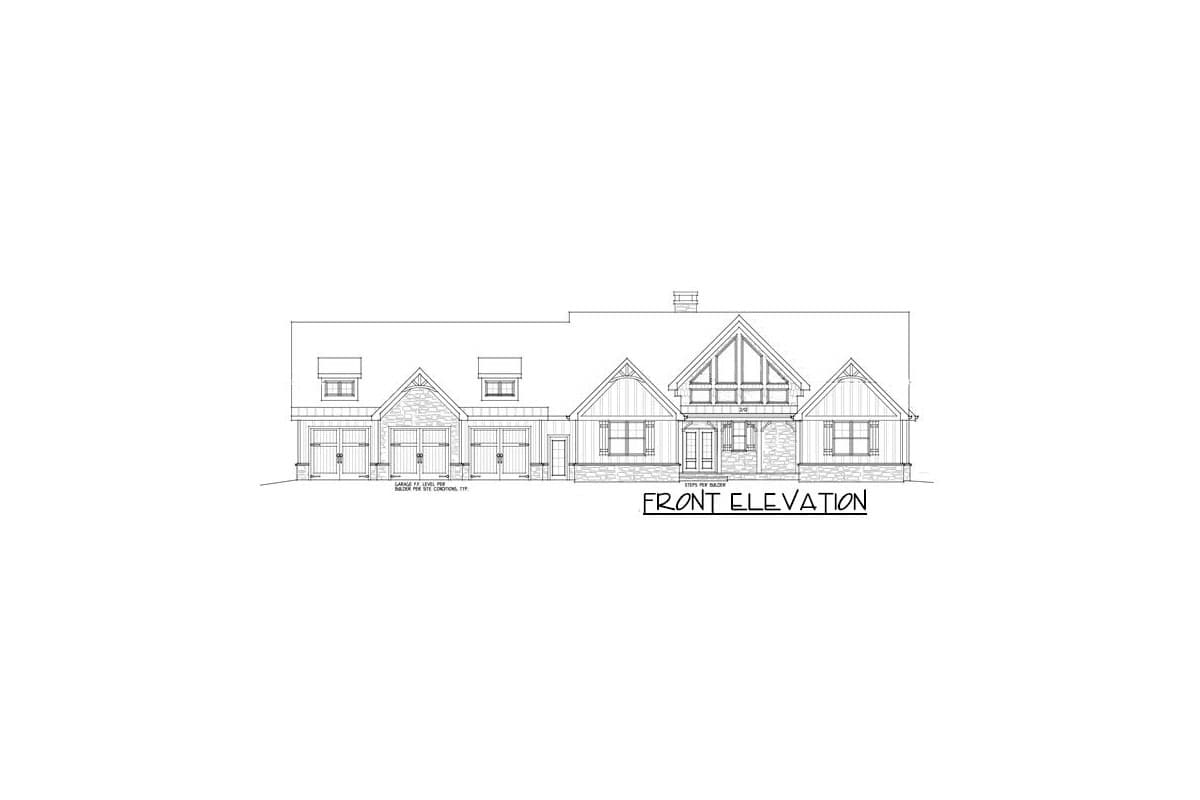

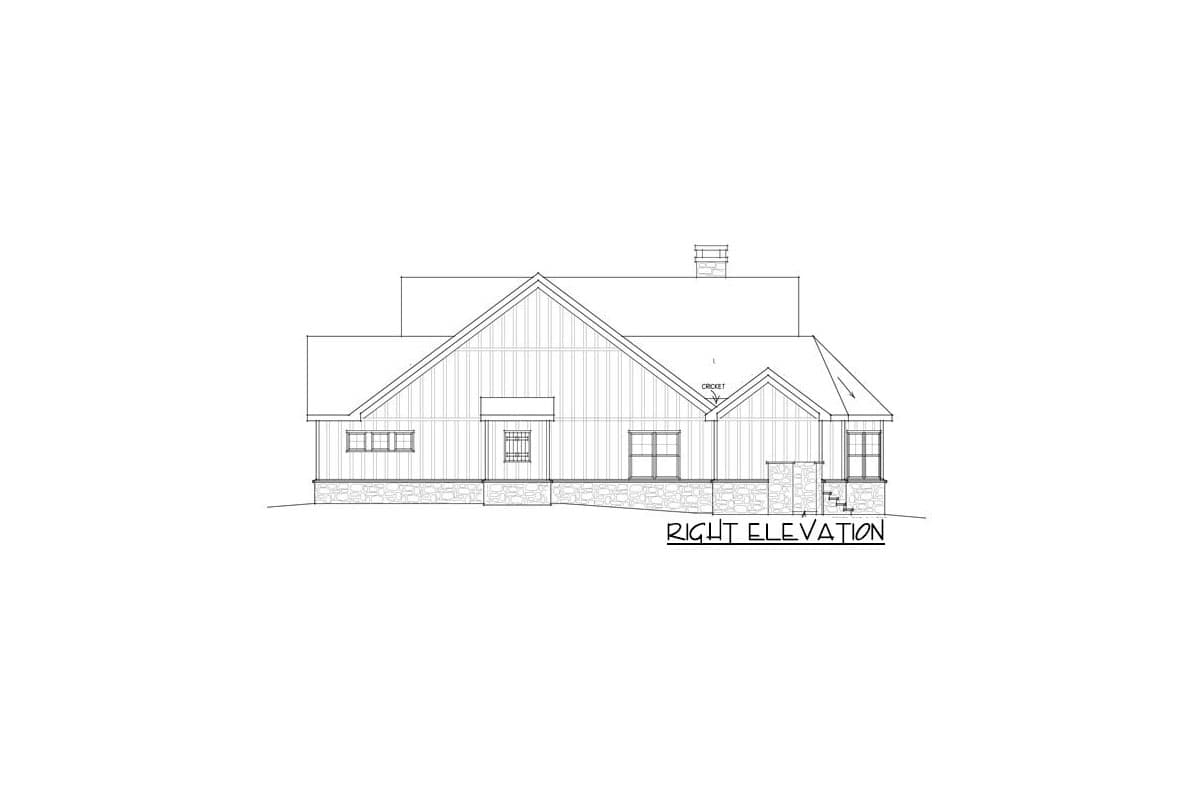

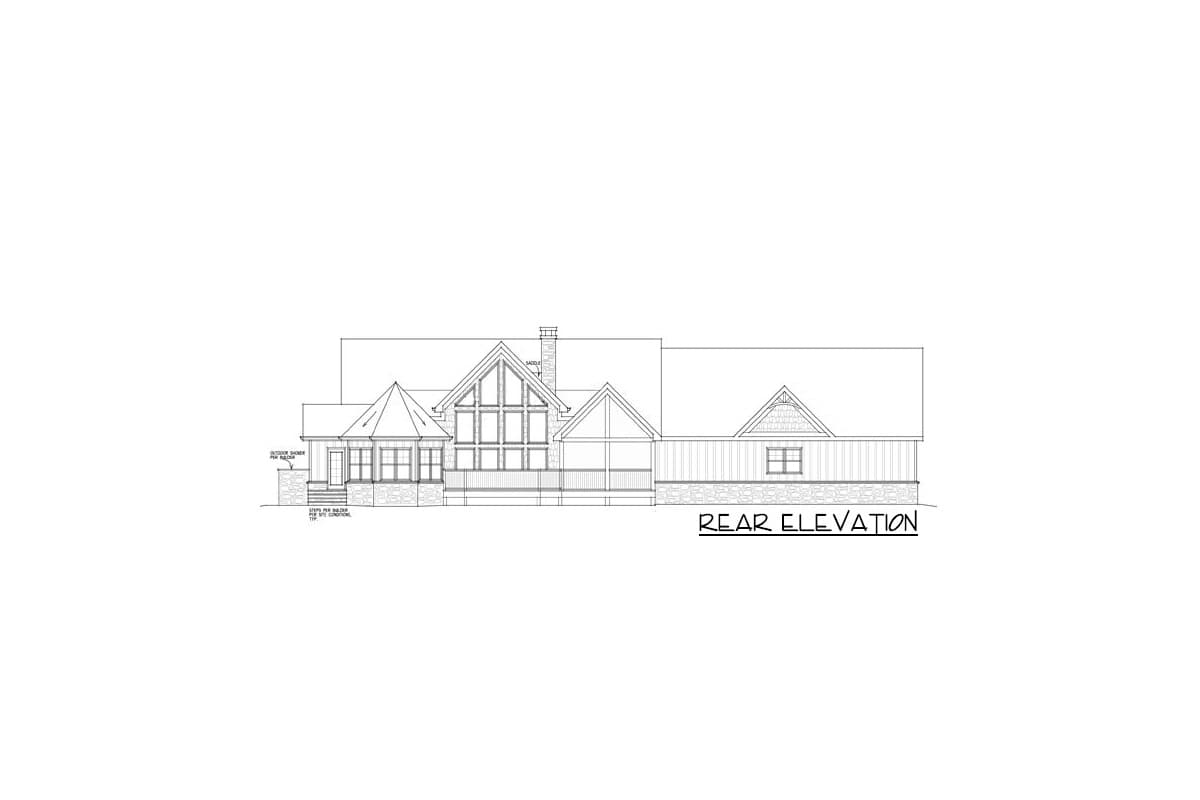

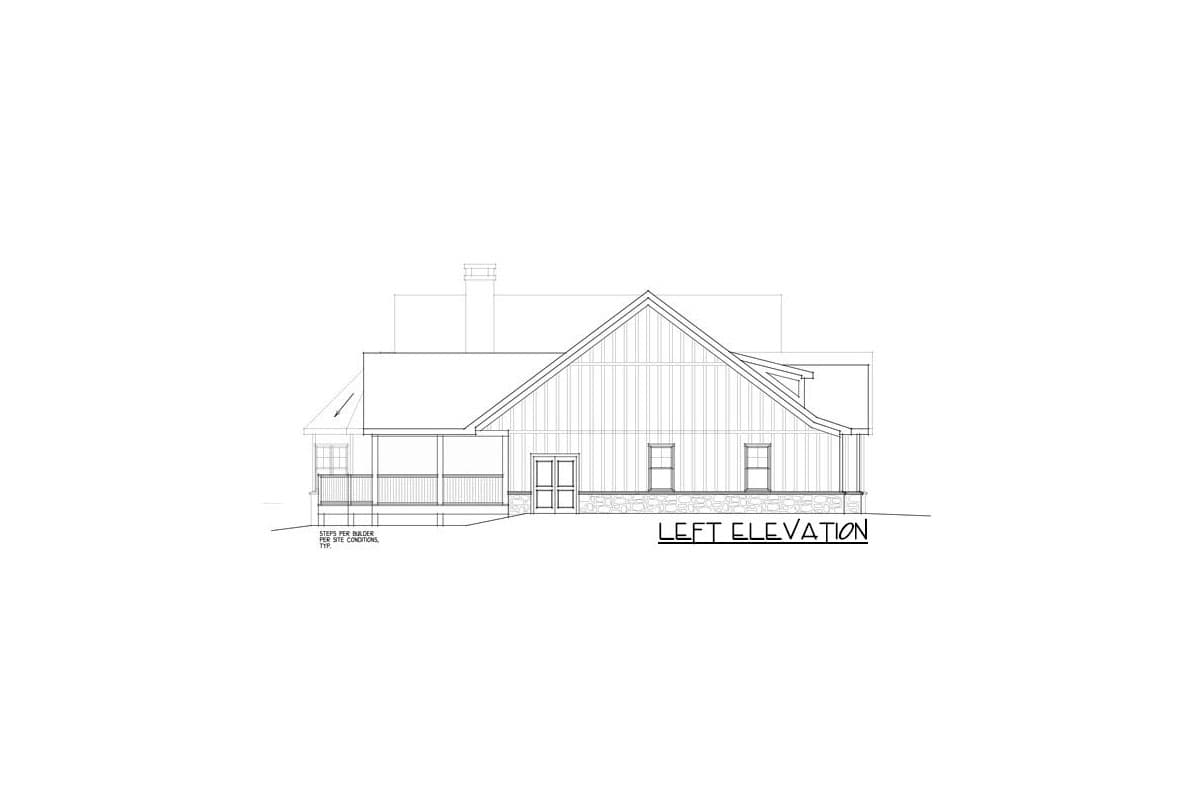

  • Front, side and rear elevations at 1/4" scale.  All elevations include notes, dimensions and recommended materials.
  • Complete dimensioned and detailed floor plans
  • Foundation plan.  Typically, the plans show a basement foundation. Slab and crawlspace foundations are also available for most plans for an additional fee.
  • Roof plans at 1/4" scale showing all pitches, ridges, hips and valleys
  • Electrical plans are customer specific and not included.  A custom electrical plan can be created for $350.

Floor Plan

Plan details



Exclusive 3 Bedroom Mountain Retreat

  • 2,758

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,195
  • CAD $1,695
  • View all purchase option online

About This Plan

  • This alpine retreat comes with two-story windows front and back, opening the house to terrific views.
  • A big vaulted ceiling unites the kitchen, dining area and family room, so all three rooms can enjoy the big fireplace.
  • A home office is tucked away at the back of the central garage bay and there's also a large vaulted library in the main house, set in a bay window.
  • The master suite has double doors that open to the vaulted and screened porch in back, with an outdoor fireplace to warm those chilly nights.
  • The two other family bedrooms are on the opposite side of the home and share a connected bathroom.
  • NOTE: Please allow 15 business days for delivery.

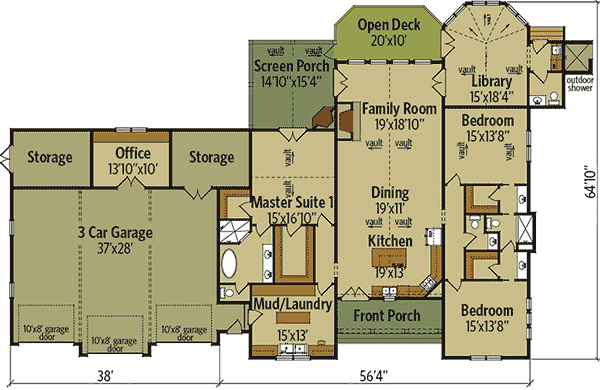

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,758 sq. ft.
  • 1st Floor: 2,758 sq. ft.
  • Screened Porch: 228 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Dimensions

  • Width: 94' 4"
  • Depth: 64' 10"

Garage

  • Type: Attached
  • Area: 1064 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Architectural Style

  • Craftsman
  • Mountain

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • PDF
  • Split Bedrooms

Plan Collections

  • Exclusive
  • Luxury
  • Photo Gallery
  • Premium Collection
