Plan 521018TTL

Exclusive

Exclusive 4-Bed Cottage with Rear 2-Car Garage - 1997 Sq Ft

Heated S.F.
1,997
Beds
3 - 4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 521018TTL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 521018TTL

M-F 9am-5pm EST |

1-203-761-8500

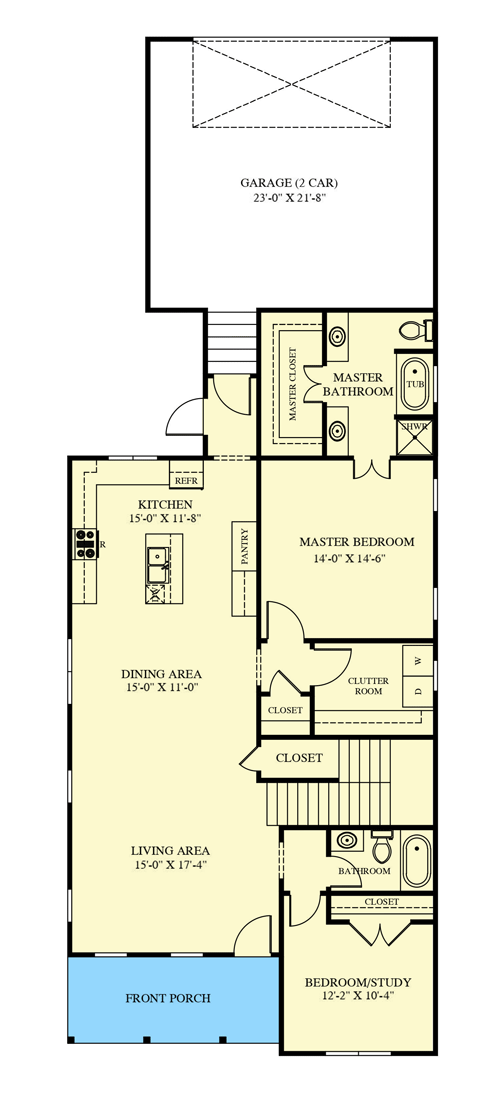

Main Level

Plan 521018TTL: Exclusive 4-Bed Cottage with Rear 2-Car Garage - 1997 Sq Ft - Floor Plan - Main Level - Cottage, Country, Traditional

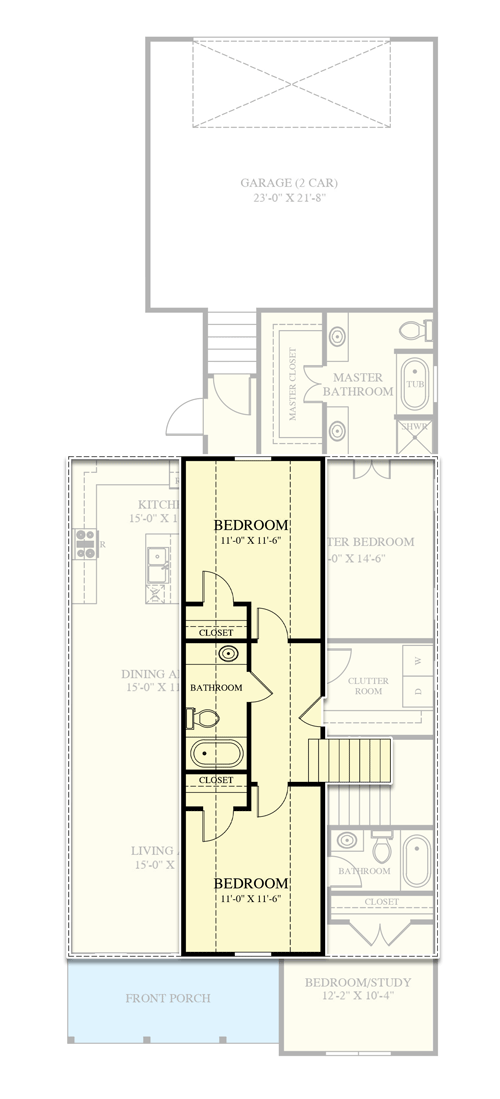

2nd Floor

Plan 521018TTL: Exclusive 4-Bed Cottage with Rear 2-Car Garage - 1997 Sq Ft - Floor Plan - 2nd Floor - Cottage, Country, Traditional

Plan Details

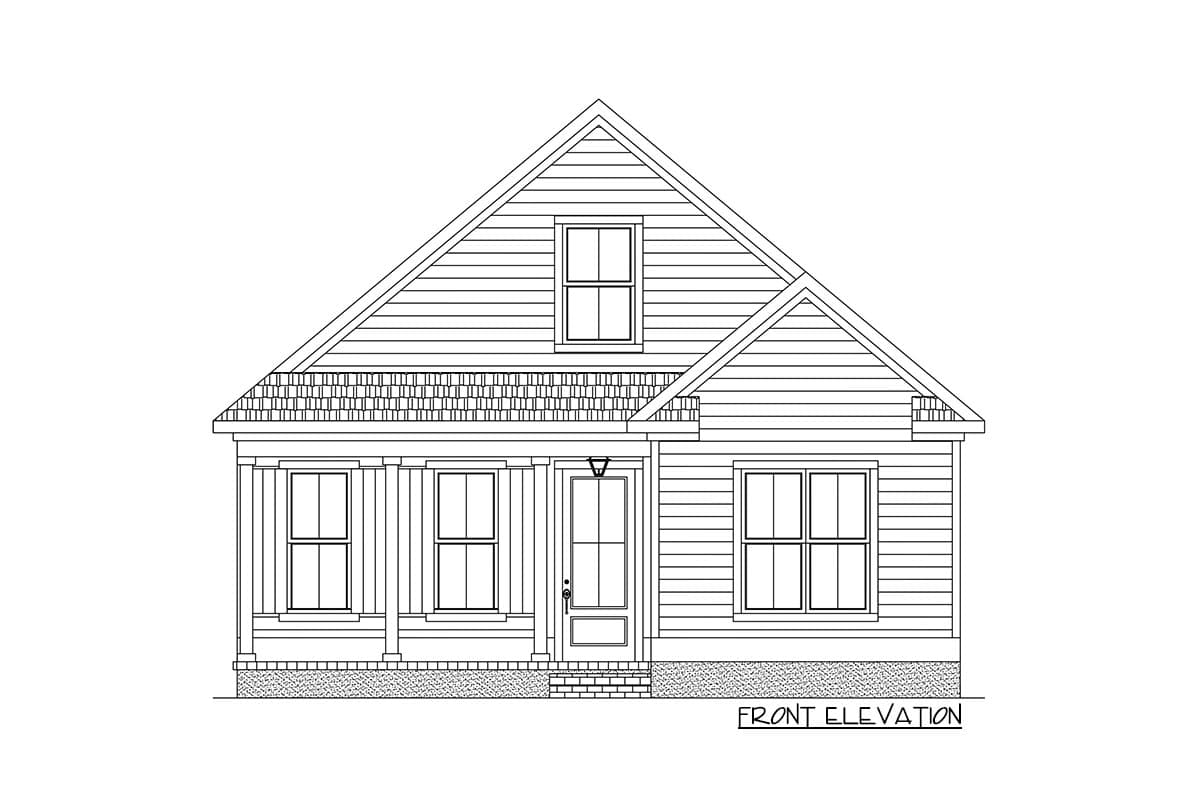

  • This 4-bedroom Cottage features a simple, yet romantic, exterior with a 7' by 17'2" front porch inviting you inside. This design is exclusive to Architectural Designs.
  • From the foyer, the open design allows you to see into the living room, dining area, and kitchen. The central island in the kitchen hosts a double-bowl sink and a pantry cabinet is situated nearby.
  • The main-floor master bedroom includes a 5-fixture bathroom with a walk-in closet and is next door to the laundry room and a storage closet.
  • A second bedroom on this level neighbors a full bathroom and can be utilized as a study or home office.
  • Two identical bedrooms upstairs are separated by a full bathroom and complete the design.

What's Included

  • Cover sheet
  • Foundation plan
  • Floor plan
  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,997 sq. ft.

1st Floor

1,528 sq. ft.

2nd Floor

469 sq. ft.

Porch, Combined

121 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

30' 0"

Depth

82' 8"

Max Ridge Height

24' 10"

Garage

Type

Attached

Area

545 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Cottage

Country

Traditional

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

1,997 sq. ft.

1st Floor

1,528 sq. ft.

2nd Floor

469 sq. ft.

Porch, Combined

121 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

30' 0"

Depth

82' 8"

Max Ridge Height

24' 10"

Garage

Type

Attached

Area

545 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Cottage

Country

Traditional

Special Features

Bedrooms - Split

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Plan Collections

Exclusive
