Plan 430801SNG Exclusive ADU House Plan with 2 Bedrooms

750 2 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive ADU House Plan with 2 Bedrooms

Plan 430801SNG

  • 750

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

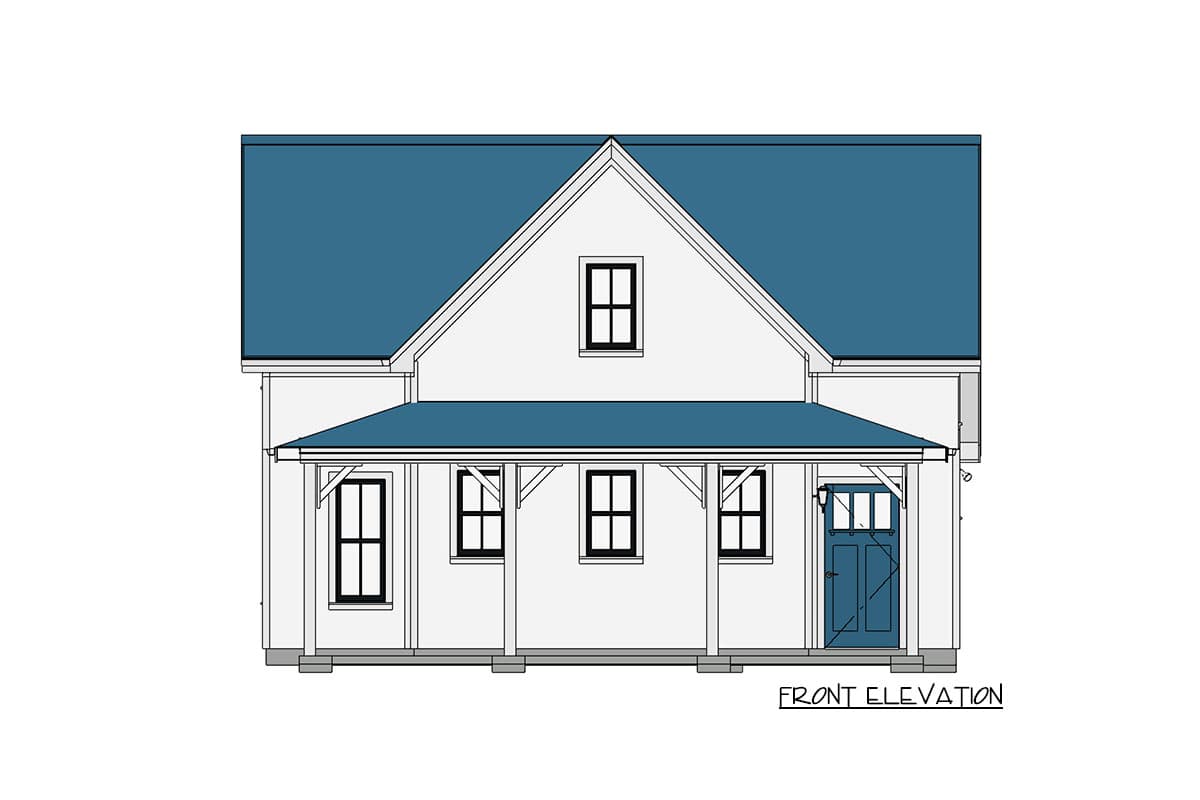

  • This ADU (accessory dwelling unit) house plan is full of big surprises, starting with the immense country charm and curb appeal on the front elevation.
  • A wrap-around, front porch greets you upon arrival. When you step inside, the two-story ceiling makes the living space feel larger, and the adjoining kitchen includes a pantry closet.
  • The main-level bedroom neighbors a full bath, and the laundry closet is right across the hall.
  • A storage closet beneath the staircase makes good use of the space.
  • Upstairs, discover a second bedroom, along with a full bath.

The plan set includes the following:

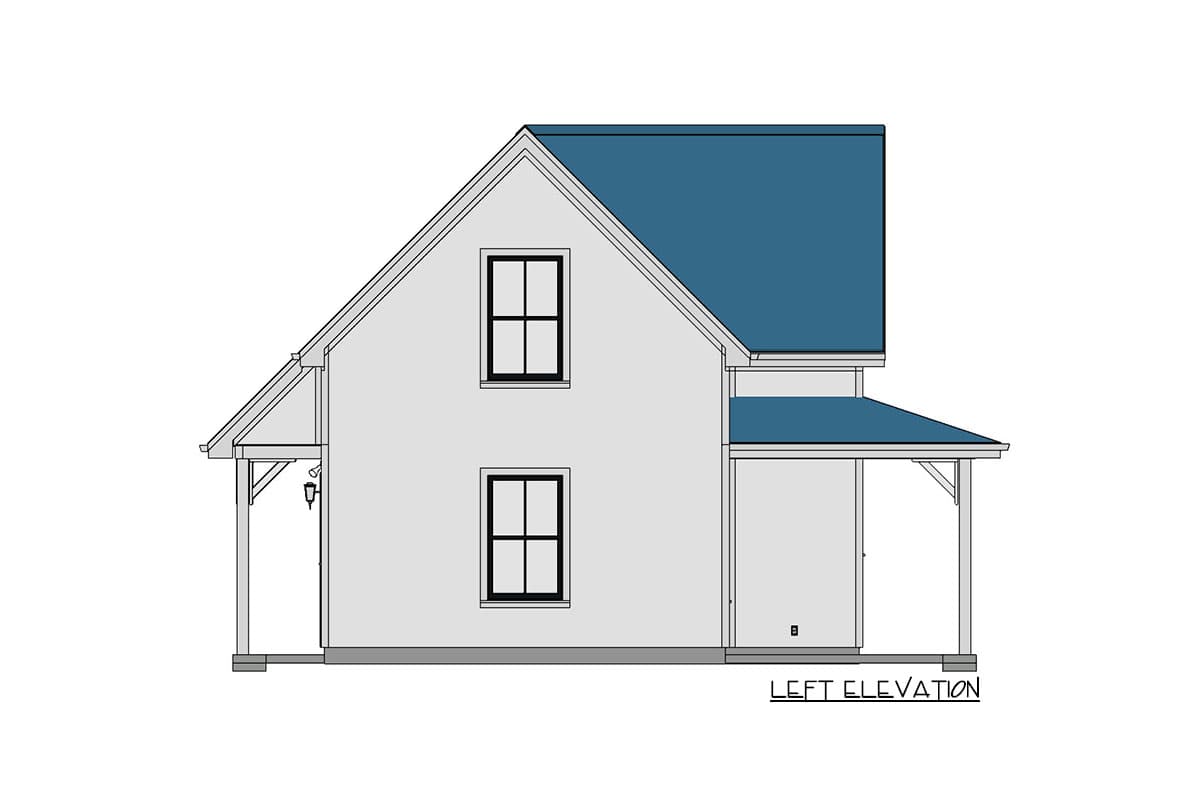

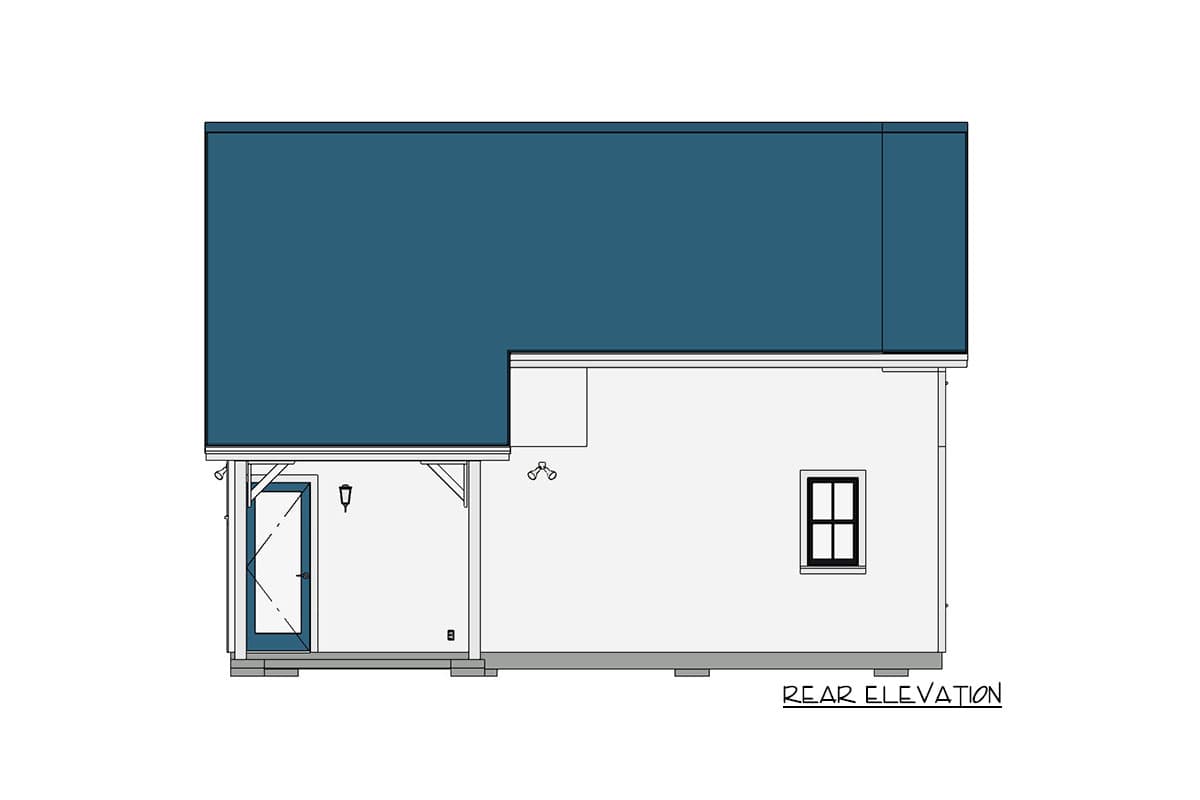

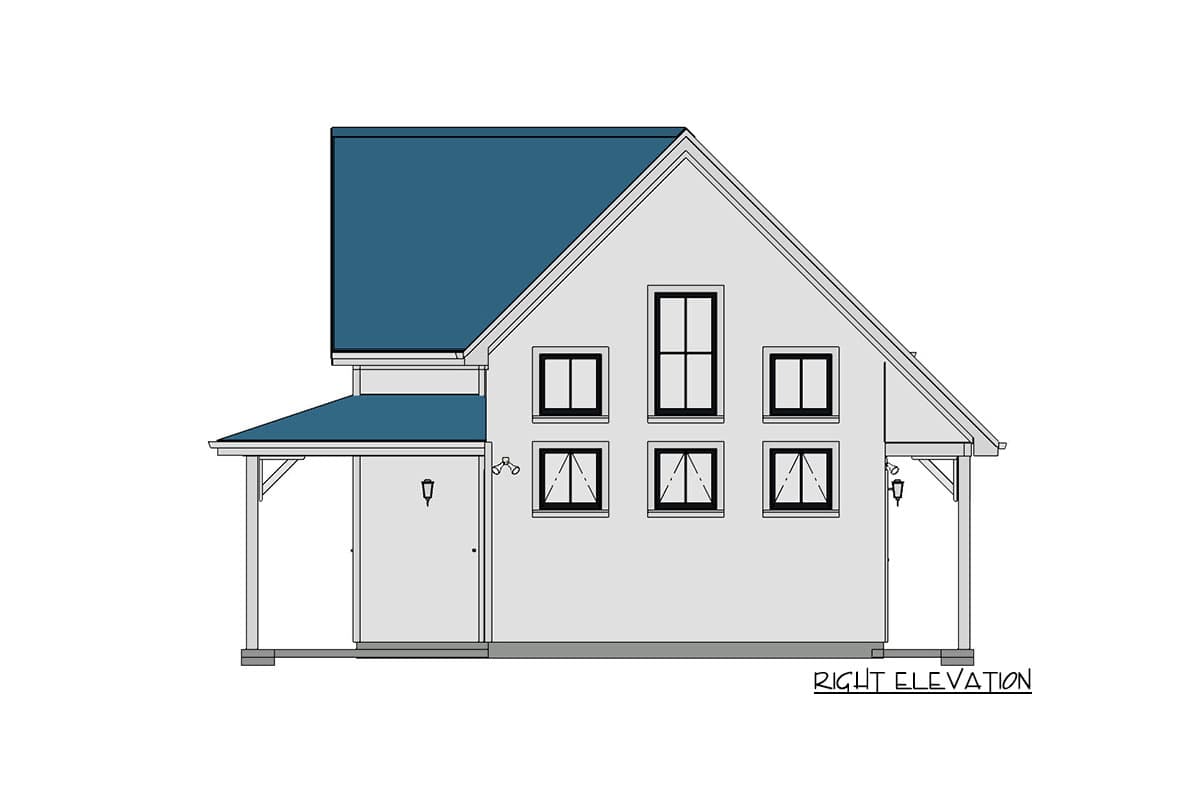

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

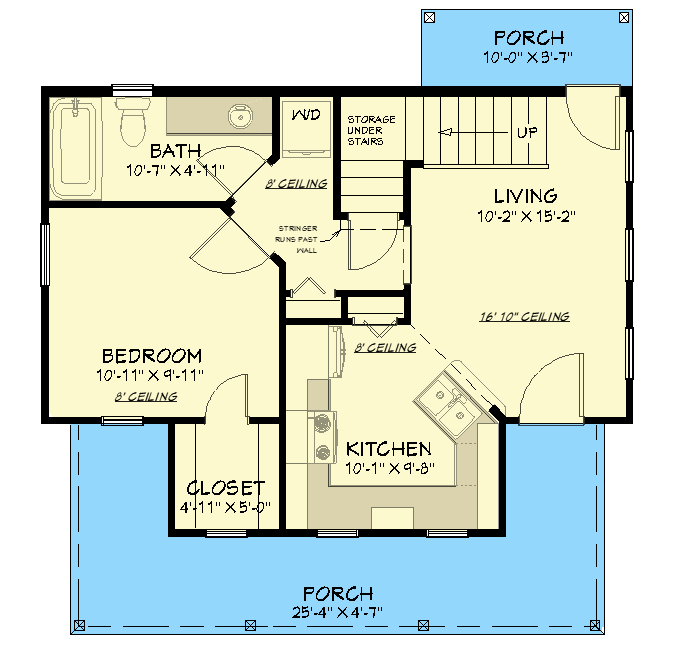

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive ADU House Plan with 2 Bedrooms - 430801SNG floor plan - Main Level

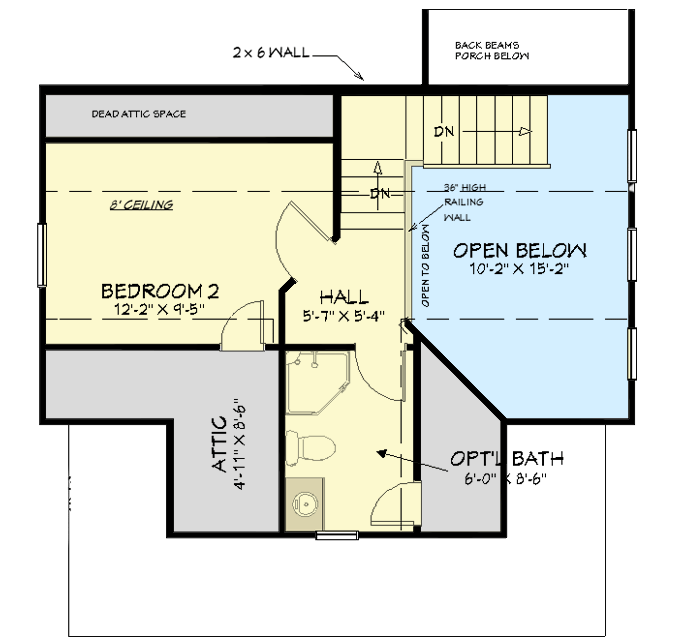

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive ADU House Plan with 2 Bedrooms - 430801SNG floor plan - 2nd Floor

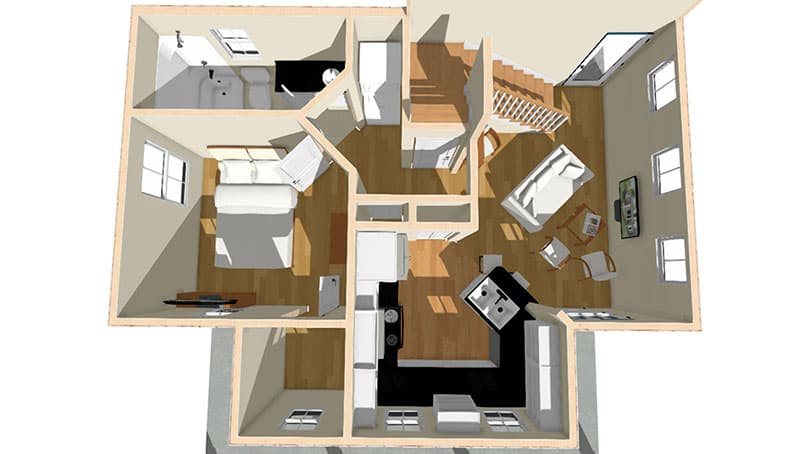

3D First Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive ADU House Plan with 2 Bedrooms - 430801SNG floor plan - 3D First Floor

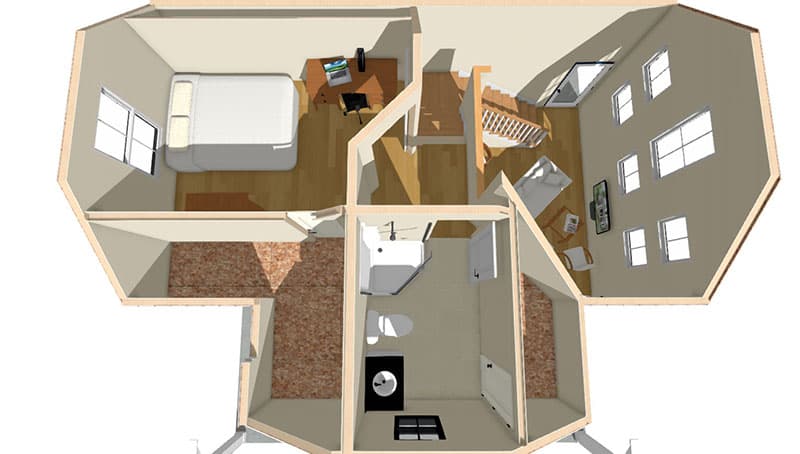

3D Second Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive ADU House Plan with 2 Bedrooms - 430801SNG floor plan - 3D Second Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 750 sq. ft.
  • 1st Floor: 533 sq. ft.
  • 2nd Floor: 217 sq. ft.
  • Porch, Rear: 36 sq. ft.
  • Porch, Front: 165 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 21' 0"
  • Max ridge height: 20' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Exclusive ADU House Plan with 2 Bedrooms

  • 750

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $800
  • CAD - Unlimited Build $1,200
  • View all purchase option online

About This Plan

  • This ADU (accessory dwelling unit) house plan is full of big surprises, starting with the immense country charm and curb appeal on the front elevation.
  • A wrap-around, front porch greets you upon arrival. When you step inside, the two-story ceiling makes the living space feel larger, and the adjoining kitchen includes a pantry closet.
  • The main-level bedroom neighbors a full bath, and the laundry closet is right across the hall.
  • A storage closet beneath the staircase makes good use of the space.
  • Upstairs, discover a second bedroom, along with a full bath.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3D First Floor

  • 3D Second Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 750 sq. ft.
  • 1st Floor: 533 sq. ft.
  • 2nd Floor: 217 sq. ft.
  • Porch, Rear: 36 sq. ft.
  • Porch, Front: 165 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 21' 0"
  • Max ridge height: 20' 0"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
