Exclusive Beach House Plan with 6 Bedrooms

Heated S.F.
2,460
Beds
6
Baths
5
Stories
2

Floor Plan

Plan 461012DNN

Ground Level
Ground Level
Main Level
Main Level
Upper Level
Upper Level

Plan 461012DNN

M-F 9am-5pm EST |

1-203-761-8500

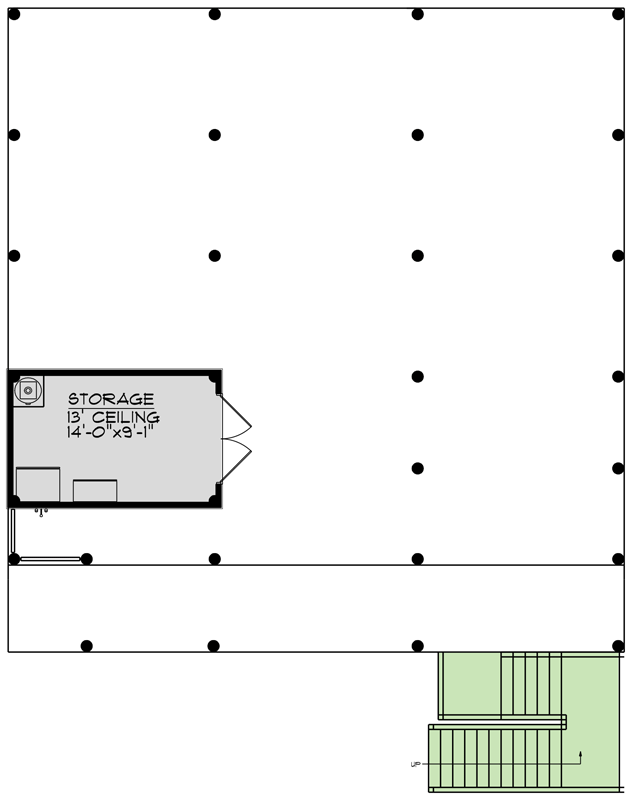

Ground Level

Plan 461012DNN: Exclusive Beach House Plan with 6 Bedrooms - Floor Plan - Ground Level - Beach, Coastal, Low Country, Vacation

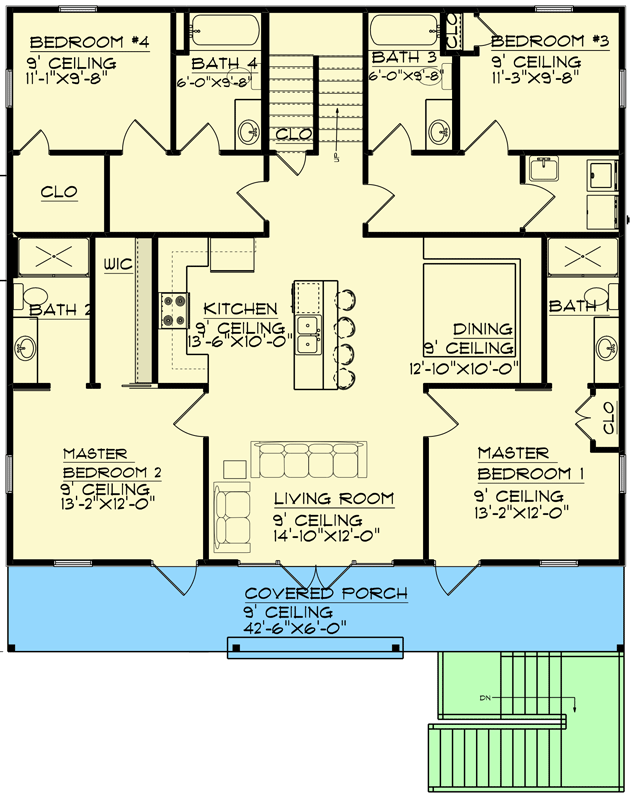

Main Level

Plan 461012DNN: Exclusive Beach House Plan with 6 Bedrooms - Floor Plan - Main Level - Beach, Coastal, Low Country, Vacation

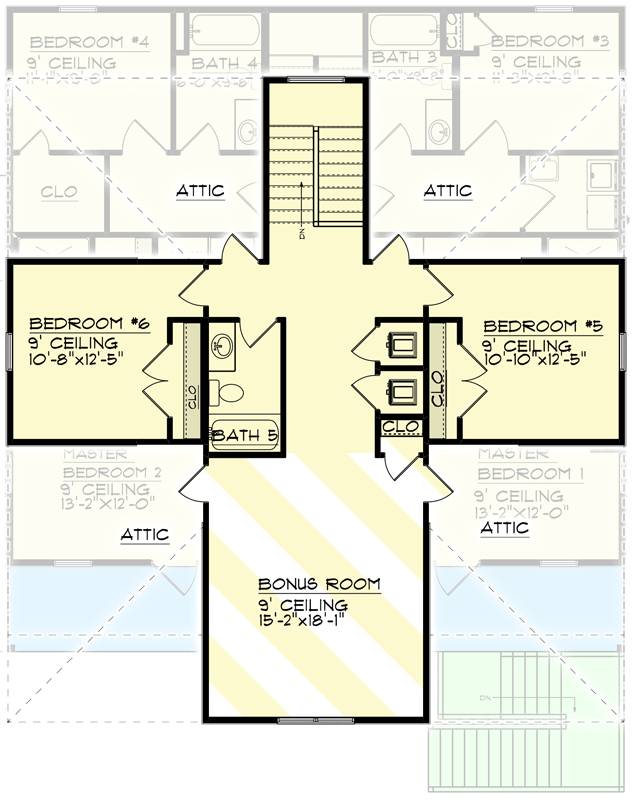

Upper Level

Plan 461012DNN: Exclusive Beach House Plan with 6 Bedrooms - Floor Plan - Upper Level - Beach, Coastal, Low Country, Vacation

Plan Details

  • This exclusive Beach house plan, built on stilts, presents six bedrooms and an open main-level living space.
  • The central living area is bordered by two master bedrooms, each with their own full bathroom.
  • The kitchen features four seats at the island bar and a built-in dining nook nearby.
  • Two additional bedrooms occupy the rear corners, along with a laundry room and access to the second level.
  • Upstairs, bedrooms 5 and 6 can be found, along with a bonus room that is factored into the total square footage.

What's Included

  • Foundation Plan
  • Fully Dimensioned Floor Plans

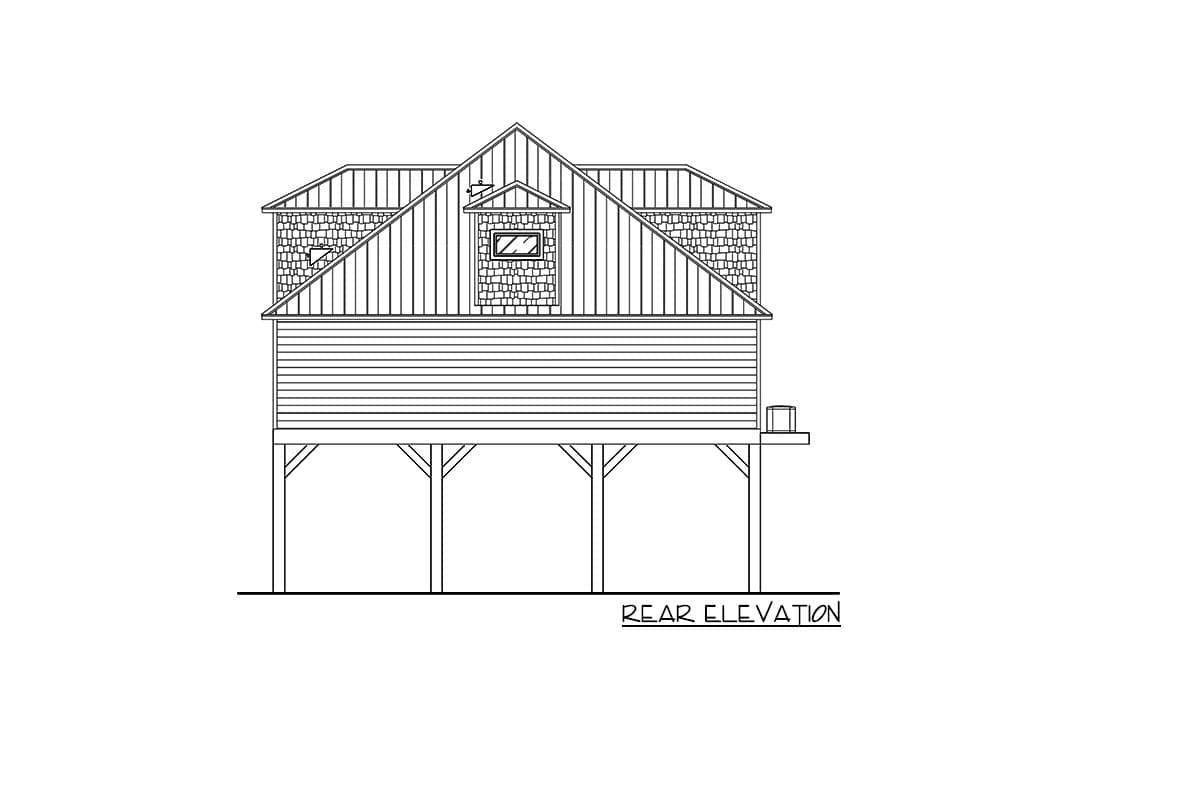

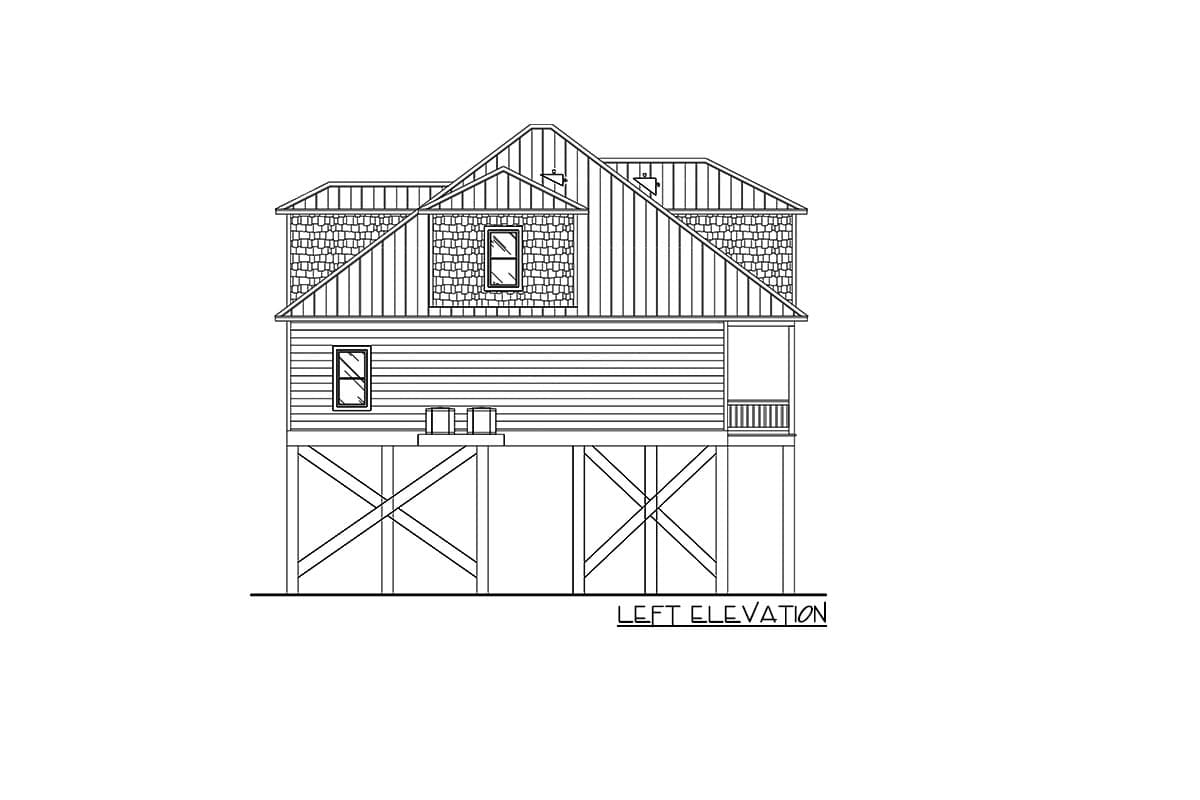

  • All Elevations
  • Birds Eye Roof Plan
  • Suggested Electrical Layout - This is part of the floor plan page(s)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,460 sq. ft.

Lower Level

62 sq. ft.

1st Floor

1,633 sq. ft.

2nd Floor

765 sq. ft.

Porch, Combined

255 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Foundation Type

Standard Foundations

Piling

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 6"

Depth

44' 5"

Max Ridge Height

30' 10"

Ceiling Heights

Lower Level

13'

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Beach

Coastal

Low Country

Vacation

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Upstairs

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Master Suites

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,460 sq. ft.

Lower Level

62 sq. ft.

1st Floor

1,633 sq. ft.

2nd Floor

765 sq. ft.

Porch, Combined

255 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Foundation Type

Standard Foundations

Piling

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 6"

Depth

44' 5"

Max Ridge Height

30' 10"

Ceiling Heights

Lower Level

13'

First Floor

9' 1"

Second Floor

9' 1"

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Beach

Coastal

Low Country

Vacation

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Upstairs

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Master Suites

Plan Collections

Exclusive
